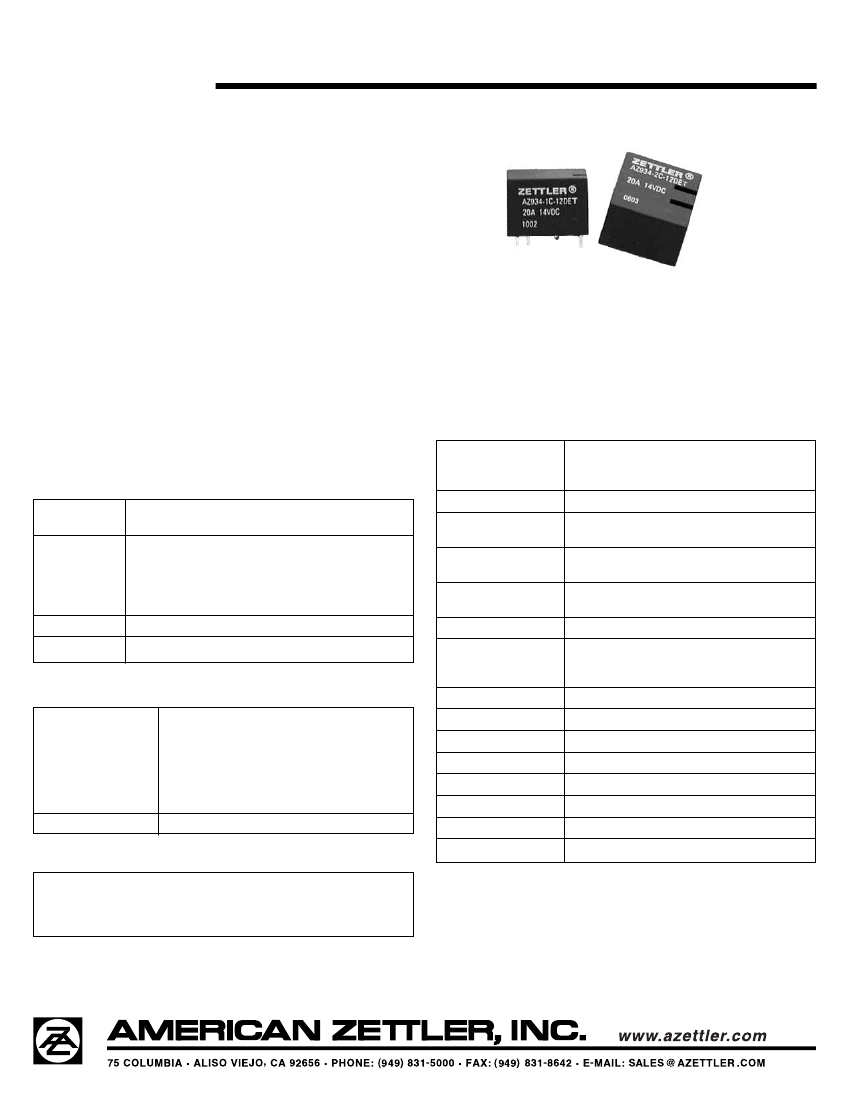

AZ934
AZ
20 AMP MINIATURE
AUTOMOTIVE RELAY,
SINGLE OR DUAL
FEATURES
•
•
•
•
•
•
•
•
•
Up to 20 Amp switching capability in a compact size
Sealed
Two separate relays in DPDT (dual) version
Quiet operation
Vibration and shock resistant
ISO/TS 16949, ISO 14000
Tested in accordance with SAE J2544
Cost effective
Designed for power windows, power seats
and wiper applications
GENERAL DATA
Life Expectancy
Mechanical
Electrical
DPDT (2 Form C)
SPDT (1 Form C)
Max. switched power: 280 W
Max. switched voltage: 100 VDC
Max. switched current (make/break), continuous:
1 Form C:
25A/20A, 20A
2 Form C:
25A/20A, 20A
Material
Resistance
Silver tin oxide (silver nickel available - contact factory)
< 100 milliohms at 1A, 5 VDC
Dielectric Strength
(at sea level for 1 min.)
CONTACTS
Arrangement
Ratings
Minimum operations
1 x 10
7
operations
2 x 10
5
operations at 20 A 14 VDC Res.
3 ms at nominal coil voltage
1.5 ms at nominal coil voltage
(with no coil suppression)
500 Vrms coil to contact
500 Vrms between open contacts
100 megohms min. at 20°C,
500 VDC, 50% RH
> 8.3% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 100°C (212°F)
-40°C (-40°F) to 155°C (311°F)
0.062" DA at 10–55Hz, 10 g at 55-200 Hz
30 g, 11 ms, functional
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
10 grams
Operate Time (typical)
Release Time (typical)
Insulation Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
203 mW
2.2 W 20°C (68°F) ambient
32°C (58°F) nominal coil VDC
155°C (311°F)
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1.
2.
3.
4.
All values at 20°C (68°F).
Maximum make current refers to in-rush current of lamp load.
Relay may pull in with less than “Must Operate” value.
Specifications subject to change without notice.
9/27/06W
