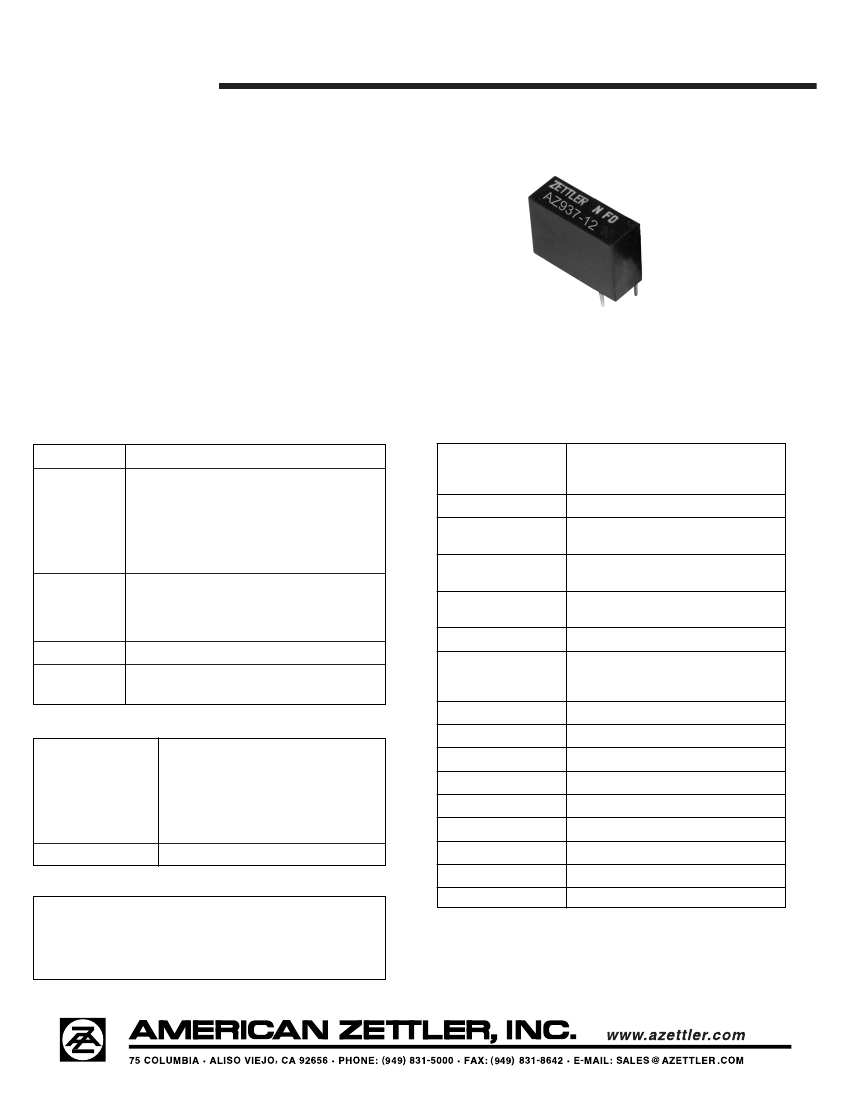

AZ937
SENSITIVE
SUBMINIATURE RELAY
FEATURES
•
Extremely small footprint utilizing only 0.22 square inch
of PCB area
•
Thin vertical profile only 0.275" wide
•
1 Form A contact with up to 3 Amp switching capability
•
High sensitivity, 113 mW pickup
•
Dielectric strength 4000 Vrms contact to coil
•
Coils to 24 VDC
•
Epoxy sealed for automatic wave soldering
and cleaning
•
UL, CUR file E44211
•
CSA file 702514
•
TÜV file B020440800001
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
Resistive load:
Max. switched power: 90 W or 750 VA
Max. switched current: 3 A
Max. switched voltage: 150* VDC or 250 VAC
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
5 million operations
1 X 10
5
at 3 A, 30 VDC or 250 VAC Res.
6 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
Rated Load
UL/CSA
TÜV
Material
Resistance
3 A at 250 VAC, general use, 200k cycles
3 A at 30 VDC, resistive, 200k cycles
1
/
10
HP at 250 VAC, 100k cycles
3 A at 250 VAC/30 VDC, resistive, 200k cycles
Silver nickel
< 100 milliohms initially
(at 6 V, 1 A, voltage drop method)
Dielectric Strength
750 Vrms between open contacts
(at sea level for 1 min.)
4000 Vrms contact to coil
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (221°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
5 grams
COIL
Shock
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
113 mW
Enclosure
Terminals
750 mW at 20°C (68°F) ambient
26°C (47°F) at nominal coil voltage
Max. 105°C (221°F)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Minimum permissible contact load.
4. Specifications subject to change without notice.
