AZ941-1CH-12DE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ941-1CH-12DE

AZ941-1CH-12DE: DescriptionMINIATURE PC BOARD RELAY; CategoryMechanical and electronic products relay; File Size63KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric View All

AZ941-1CH-12DE Overview

MINIATURE PC BOARD RELAY

AZ941-1CH-12DE Parametric

Parameter Name	Attribute value
Maker	AZETTLER
Reach Compliance Code	compli
body width	16.5 mm
body height	16.5 mm
Body length or diameter	22.5 mm
Coil operating voltage (DC)	9.6 V
Coil resistance	400 Ω
Maximum coil voltage (DC)	23.6 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	1250VA@300VAC
Contact (AC) maximum rated R load	6A@300VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	6 A
Contact (DC) maximum rated power R load	150W@150VDC
Contact (DC) maximum rated R load	6A@150VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	300 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	750 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Cadmium Oxide
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	5
operating hours	6 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB hole count	5
physical size	22.5mm x 16.5mm x 16.5mm
Guideline	UL
Relay action	LATCHED
Relay style	1 FORM C
Relay function	SPDT
release time	2 ms
seal	EPOXY
Terminal length	0.0035 inch
Termination type	SOLDER
weight	13 g

Preview

Download Datasheet

View All

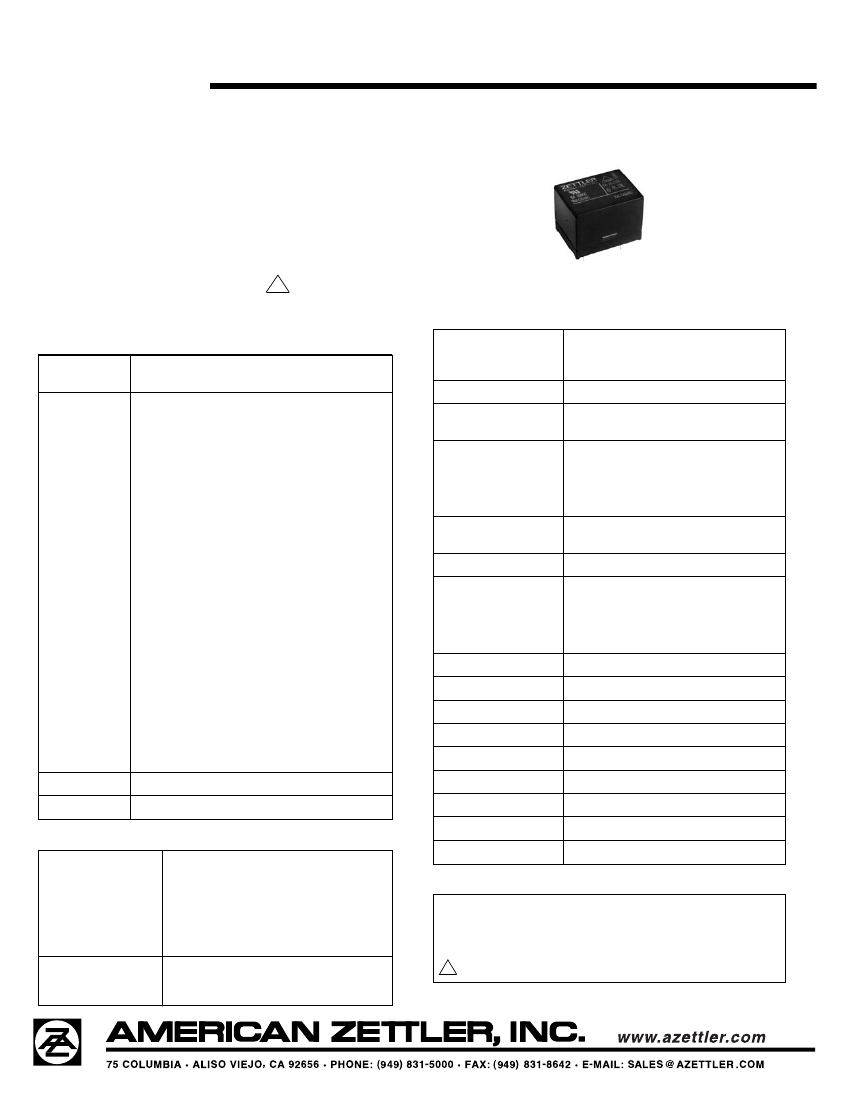

AZ941

MINIATURE

PC BOARD RELAY

FEATURES

•

Contacts rated at 3, 5, 10 or 16 Amps

DC coils to 48 V

Extremely low cost

Life expectancy to 10 million operations

Epoxy sealed versions available

UL, CUR file E44211; VDE 10056 5

Class B and F available

GENERAL DATA

CONTACTS

Arrangement

Ratings

Light Duty

SPDT (1 Form C)

Form A available upon request

Resistive load

Max. switched power: 90 W or 750 VA

Max. switched current: 3 A

Max. switched voltage: 150* VDC or 300 VAC

UL Rating:

3 A at 30 VDC or 250 VAC

Max. switched power: 150 W or 1250 VA

Max. switched current: 6 A

Max. switched voltage: 150* VDC or 300 VAC

UL Rating:

5 A at 30 VDC

6 A at 125 VAC

HP @ 125 VAC

Max. switched power: 300 W or 2500 VA

Max. switched current: 16 A

Max. switched voltage: 150* VDC or 300 VAC

UL Rating:

5 A at 30 VDC

16 A at 125 VAC

10 A at 277 VAC

HP @ 125 VAC

HP @ 250 VAC

Max. switched

UL Rating:

power: 300 W or 4000 VA

current: 16 A

voltage: 150* VDC or 300 VAC

A at 125 VAC

A at 30 VDC

Release Time (typical)

2 ms at nominal coil voltage

(with no coil suppression)

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Minimum operations

1x10

1 x 10

at 12 A 120 VAC Res.

6 ms at nominal coil voltage

Medium Duty

Dielectric Strength

1500 Vrms contact to coil

(at sea level for 1 min.)

750 Vrms contact to contact

Meets FCC part 68.302 1500 V lightning

surge

Meets FCC part 68.304 1000 V dielectric

Insulation Resistance

Dropout

Ambient Temperature

Operating (Standard)

Operating (Class B)

Storage (Standard)

Storage (Class B)

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

100 megohms min. at 20°C, 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 95°C (203°F)

-40°C (-40°F) to 105°C (221°F)

-40°C (-40°F) to 130°C (266°F)

0.062" DA at 10–55Hz

10 g

P.B.T. polyester

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

13 grams

Heavy Duty

Extra Heavy

Duty

*Note: If switching voltage is greater than 30 VDC, special

precautions must be taken. Please contact the factory.

Material

Resistance

Silver cadmium oxide

< 100 milliohms initially

COIL

Power

At Pickup Voltage

(typical)

Max Continuous

Dissipation

Temperature Rise

Temperature

230 mW

1.4 W 20°C (68°F) ambient, standard

1.7 W 20°C (68°F) ambient, Class B

27°C (49°F) nominal coil voltage

Max. 105°C (221°F)

Max. 130°C (266°F) Class B

Max. 155°C (311°F) Class F

NOTES

All values at 20°C (68°F).

Relay may pull in with less than “Must Operate” value.

Unsealed relays should not be dip cleaned.

Specifications subject to change without notice.

Only AZ941-1CT version is VDE approved at 7A, 250 VAC.

8/7/03W
