AZ944-1AH-5DE

Description
16 AMP LOW PROFILE POWER RELAY
CategoryMechanical and electronic products    relay
File Size70KB,2 Pages
ManufacturerAZETTLER
Websitehttp://www.azettler.com/
Environmental Compliance
Download Datasheet Parametric View All

AZ944-1AH-5DE Overview

16 AMP LOW PROFILE POWER RELAY

AZ944-1AH-5DE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAZETTLER
Reach Compliance Codeunknow
ECCN codeEAR99
body width16 mm
body height10.9 mm
Body length or diameter22 mm
Coil operating voltage (DC)4 V
Coil resistance125 Ω
Maximum coil voltage (DC)13.7 V
Nominal coil voltage5 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load2000VA@250VAC
Contact (AC) maximum rated R load16A@250VAC
Maximum contact current (AC)16 A
Maximum contact current (DC)16 A
Contact (DC) maximum rated power R load300W@125VDC
Contact (DC) maximum rated R load16A@125VDC
Contact resistance50 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)125 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1500 Vrms
Dielectric strength between breaking contacts1000 Vrms
Electrical life100000 Cycle(s)
End contact materialSilver Cadmium Oxide
Input switching control typeRandom
Insulation resistance100000000 Ω
Number of terminals5
operating hours10 ms
Maximum operating temperature95 °C
Minimum operating temperature-40 °C
PCB hole count5
physical size22mm x 16mm x 10.9mm
GuidelineUL
Relay actionLATCHED
Relay style1 FORM A
Relay functionSPST
Relay typePOWER/SIGNAL RELAY
release time4 ms
sealEPOXY
Terminal length0.0036 inch
Termination typeSOLDER
weight8 g

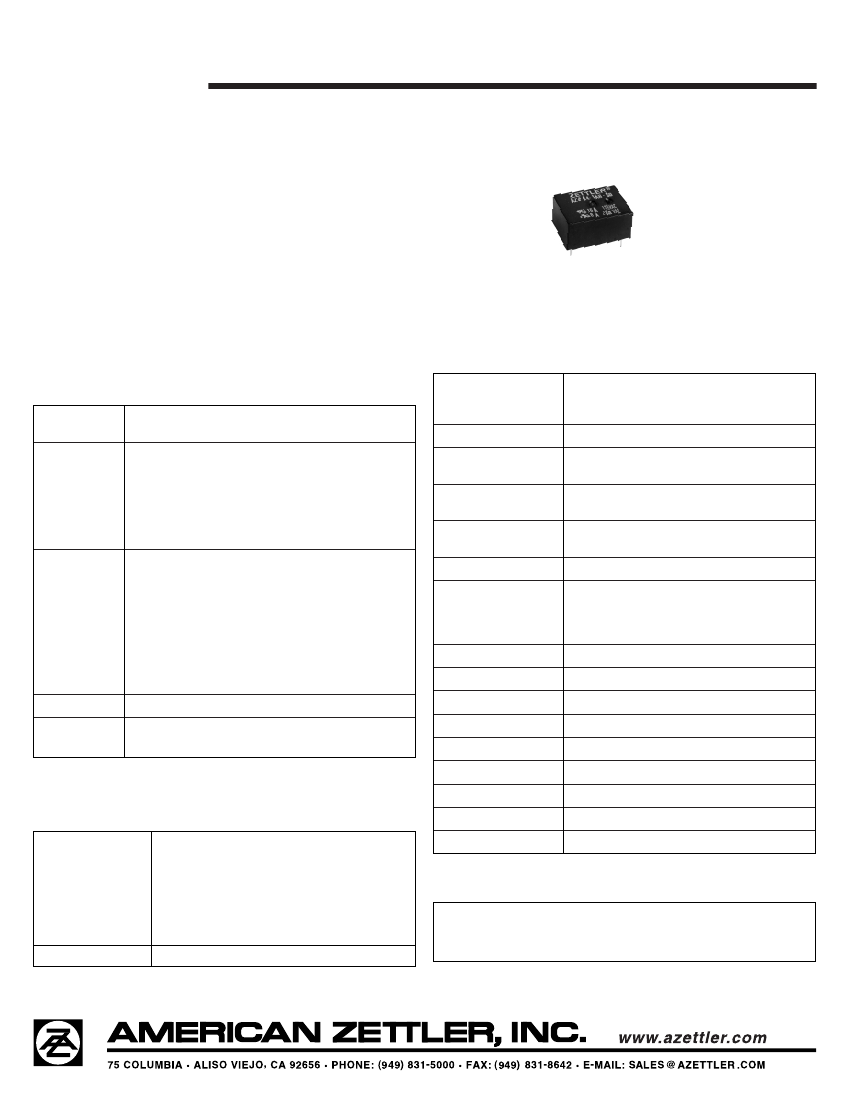

AZ944
16 AMP LOW PROFILE
POWER RELAY
FEATURES
High power switching (2000 VA)
High sensitivity, 128 mW pickup
Low profile (less than .5" height)
SPST (1 Form A), SPDT (1 Form C)
DC coils up to 100 VDC
Class B (130°C) and Class F (155°C)
insulation systems available
UL, CUR file E44211
GENERAL DATA
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
SPDT (1 Form C)
Resistive load:
Max. switched power: 300 W, 2000 VA (SPST)
150 W, 1250 VA (SPDT)
Max. switched current: 16 A (SPST), 10 A (SPDT)
Max. switched voltage: 250 VAC/125 VDC*
*
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 10 A 120 VAC Res.
10 ms at nominal coil voltage
4 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
1500 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms contact to contact
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
100 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 5% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F), Form C
-40°C (-40°F) to 95°C (203°F), Form A
-40°C (-40°F) to 115°C (239°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
8 grams
Rated Load
UL, CUR
SPST
16 A at 125 VAC, resistive
8 A at 250 VAC, resistive
10 A at 30 VDC, resistive
1
/
4
HP 125 VAC
1
/
10
HP 277 VAC
SPDT
10 A at 125 VAC, resistive
1
/
10
5 A at 277 VAC, 30 VDC, resistive
HP 277 VAC
Material
Resistance
Silver cadmium oxide
< 50 milliohms initially
(24 V, 1 A voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
Form A: 128 mW
Form C: 256 mW
Max. Immersion Time
Weight
NOTES
1.5 W at 20°C (68°F)
Form A: 16°C (29°F) at nominal coil voltage
Form C: 28°C (50°F) at nominal coil voltage
Max. 115°C (239°F)
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
9/19/02W
