AZ954Y-1C-6D

Description
SUBMINIATURE POWER RELAY
CategoryMechanical and electronic products    relay
File Size76KB,2 Pages
ManufacturerAZETTLER
Websitehttp://www.azettler.com/
Environmental Compliance
Download Datasheet Parametric View All

AZ954Y-1C-6D Overview

SUBMINIATURE POWER RELAY

AZ954Y-1C-6D Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAZETTLER
Reach Compliance Codecompli
ECCN codeEAR99
body width10.75 mm
body height11.81 mm
Body length or diameter15.75 mm
Coil operating voltage (DC)4.5 V
Coil power450 mW
Coil resistance80 Ω
Maximum coil voltage (DC)8.9 V
Nominal coil voltage6 V
Coil/Input Power TypeDC
Contact (AC) maximum rated power R load250VA@300VAC
Contact (AC) maximum rated R load2A@300VAC
Maximum contact current (AC)2 A
Maximum contact current (DC)2 A
Contact (DC) maximum rated power R load30W@150VDC
Contact (DC) maximum rated R load2A@150VDC
Contact resistance100 mΩ
Maximum contact voltage (AC)300 V
Maximum contact voltage (DC)150 V
Contact/Output Power TypeAC/DC
Dielectric strength between coil and contacts1250 Vrms
Dielectric strength between breaking contacts750 Vrms
Electrical life100000 Cycle(s)
End contact materialSilver Nickel
End contact platingGOLD
Input switching control typeRandom
Insulation resistance100000000 Ω
JESD-609 codee3
Number of terminals6
operating hours5 ms
Maximum operating temperature75 °C
Minimum operating temperature-25 °C
PCB hole count6
physical size15.75mm x 10.75mm x 11.81mm
GuidelineCUR; UL
Relay actionLATCHED
Relay style1 FORM C
Relay functionSPDT
Relay typePOWER/SIGNAL RELAY
release time1 ms
Terminal surfaceTi
Terminal length0.0032 inch
Termination typeSOLDER
weight3.5 g

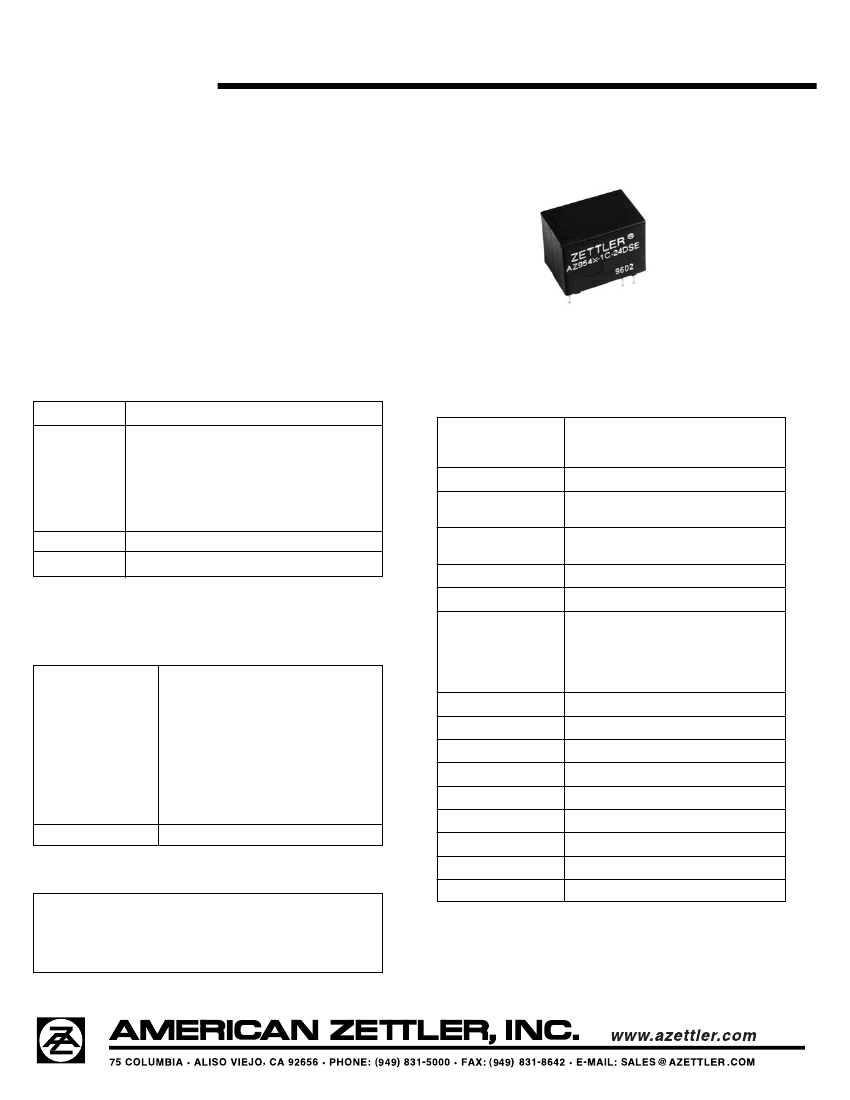

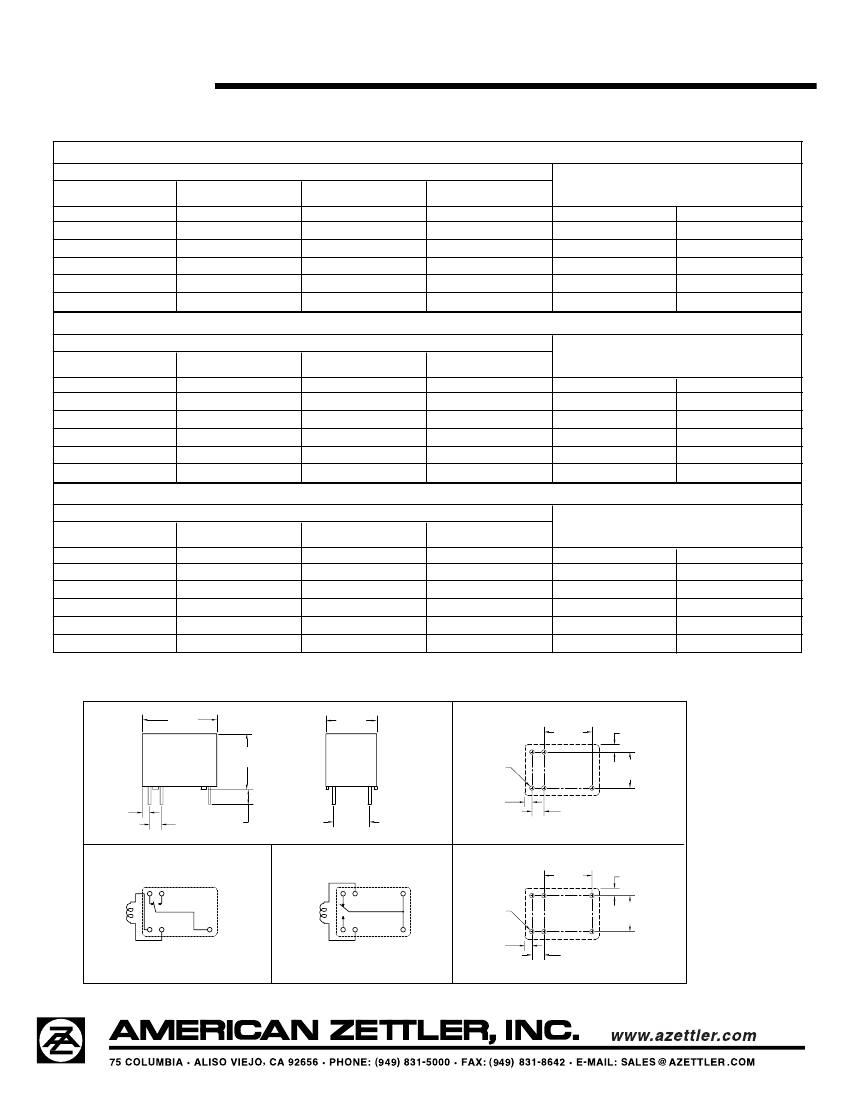

AZ954
SUBMINIATURE
POWER RELAY
FEATURES
Subminiature size for high density packaging
Coil sensitivity to 114 mW
Extremely low cost
Coils to 24 VDC
Epoxy sealed versions available
2 Amp contacts
Class B insulation standard
Life expectancy to 10 million operations
UL, CUR file E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 2 A 120 VAC Res.
5 ms at nominal coil voltage
1 ms at nominal coil voltage
(with no coil suppressions)
CONTACTS
Arrangement
Ratings
SPDT (1 Form C)
Resistive load:
Max. switched power: 30 W or 250 VA
Max. switched current: 2 A
Max. switched voltage: 150 VDC* or 300 VAC
UL Rating: 2 A at 125 VAC General Use
1 A at 240 VAC General Use
1 A at 30 VDC Resistive
Material
Resistance
Silver nickel, gold plated
< 100 milliohms initially
Insulation Resistance
Dropout
Ambient Temperature
Operating
100 megohms min. at 20°C, 500 VDC
Greater than 10% of nominal coil voltage
At nominal coil voltage
0.45W: -25°C (-13°F) to 75°C (167°F)
0.36W: -25°C (-13°F) to 85°C (185°F)
0.2W:
-25°C (-13°F) to 95°C (203°F)
-25°C (-13°F) to 130°C (266°F)
0.062" DA at 10–55Hz
15 g
P.B.T. polyester
Tinned copper alloy
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
3.5 grams
Dielectric Strength
1250 Vrms coil to contact
(at sea level for 1 min.)
750 Vrms between open contacts
COIL
Power
At Pickup Voltage
(typical)
Max Continuous
Dissipation
Temperature Rise
0.45 W coil: 253 mW
0.36 W coil: 203 mW
0.2 W coil: 114 mW
1.0 W at 20°C (68°F) ambient
At nominal coil voltage:
0.45W: 54°C (97°F)
0.36W: 44°C (79°F)
0.2W: 30°C (54°F)
130°C (266°F)
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Max. Temperature
NOTES
Weight
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Other coil resistances and sensitivities available upon request.
4. Specifications subject to change without notice.
5/16/05W
