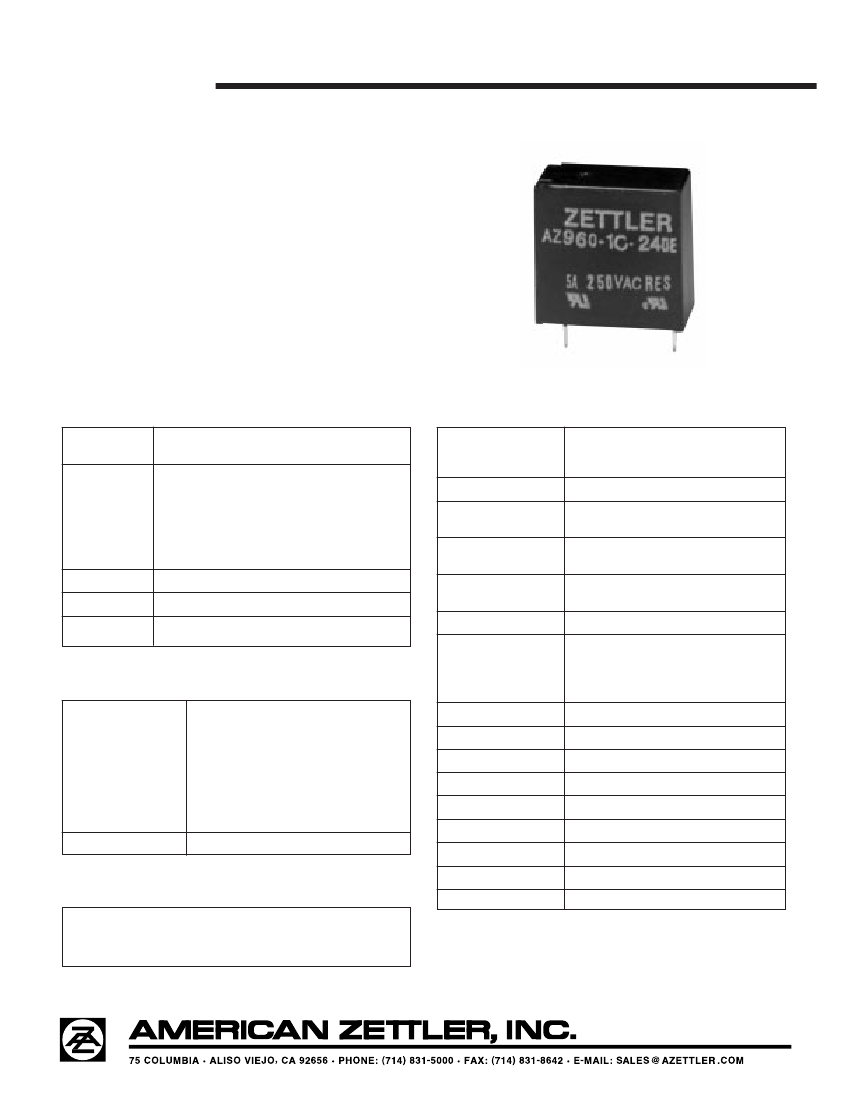

AZ960
MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
1 Form A or 1 Form C
Standard and sensitive coils
High in-rush capability
All plastics rated 94V-0
UL, CUR file E44211
Epoxy sealed version available
CONTACTS
Arrangement
Ratings
SPST NO (1 Form A)
SPDT
(1 Form C)
Resistive load:
Max. switched power: 150 W or 1250 VA
Max. switched current: 5 A
Max. switched voltage: 30 VDC or 250 VAC
UL, CUR
5 A at 250 VAC
1
/
10
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at rated load
10 ms at nominal coil voltage
5 ms at nominal coil voltage
(with no coil suppression)
HP 125, 250 VAC
Dielectric Strength
2000 Vrms coil to contact
(at sea level for 1 min.)
750 Vrms contact to contact
Insulation Resistance
Dropout
1000 megohms min. at 500 VDC,
20°C, 50% RH
Greater than 5% of nominal coil voltage
Minimum Load
Material
Resistance
5 VDC, 0.1 A
Silver alloy
< 100 milliohms initially
(24 V, 1 A voltage drop method)
Ambient Temperature
Operating Standard:
40°C (-40°F) to 75°C (167°F)
Sensitive:
40°C (-40°F) to 80°C (176°F)
Storage
Vibration
40°C (-40°F) to 105°C (221°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
250°C (482°F)
5 seconds
80°C (176°F)
30 seconds
8 grams
COIL
Power
At Pickup Voltage
(typical)
Max Continuous
Dissipation
Temperature Rise
Standard coil: 176 mW
Sensitive coil: 129 mW
1.3 W at 20°C (68°F)
0.9 W at 40°C (104°F)
At nominal coil voltage:
Standard coil: 31°C (56°F)
Sensitive coil: 23°C (41°F)
105°C (221°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Max. Temperature
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Weight
Rev. 7/10/97
AZ960

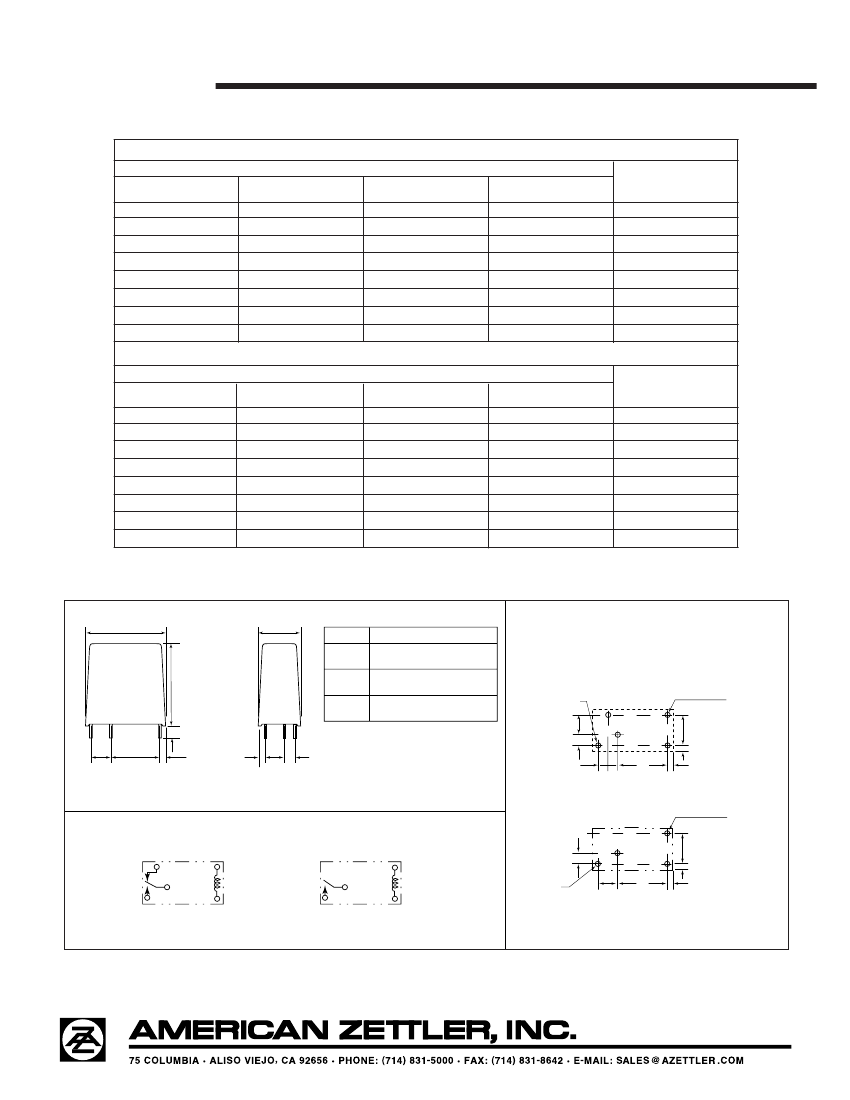

RELAY ORDERING DATA
STANDARD RELAYS
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
9
12
14
18
24
48
Must Operate
VDC
3.5
4.2
6.3
8.4
9.8
12.6
16.8
33.6
Max. Continuous
VDC
9.5
11.4
17.1
22.8
26.6
34.2
45.6
91.2
Coil Resistance
±10%
69
100
225
400
544
900
1600
6400
ORDER NUMBER*
AZ960–1C–5D
AZ960–1C–6D
AZ960–1C–9D
AZ960–1C–12D
AZ960–1C–14D
AZ960–1C–18D
AZ960–1C–24D
AZ960–1C–48D
SENSITIVE RELAYS
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
9
12
14
18
24
48
Must Operate
VDC
3.6
4.3
6.5
8.6
10.1
13.0
17.3
34.7
Max. Continuous
VDC
11.4
13.7
20.6
27.3
32.0
41.1
54.3
109.5
Coil Resistance
±10%
100
145
325
575
790
1300
2310
9220
ORDER NUMBER*
AZ960–1C–5DS
AZ960–1C–6DS
AZ960–1C–9DS
AZ960–1C–12DS
AZ960–1C–14DS
AZ960–1C–18DS
AZ960–1C–24DS
AZ960–1C–48DS
*Add suffix “E” for epoxy sealed version. Substitute “1A” in place of the “1C” to indicate 1 Form A.
MECHANICAL DATA
.807
(20.5)
.413
(10.5)
Term. No. Dimensions Tol.: ±0.005(0.13)
2, 3
.807
(20.5)
1, 4
5
.134
(3.4)
.20
.50
(5.08) (12.70)
.54
(1.36)
.54
(1.36)
.20
(5.08)
.10
(2.54)
0.024 X 0.024
(0.6 X 0.6)
0.016 X 0.024
(0.4 X 0.6)
0.010 X 0.032
(0.25 X 0.8 )
.20 (5.08)
.10 (2.54)
.10 (2.54)
.50
(12.7)
.10
(2.54)
.30 (7.62)
.0571 (1.44)
.054 (1.36)
PC BOARD LAYOUT
.047 (1.2) 3 places
.039 (1.0) 2 places
.039 (1.0) 2 places
WIRING DIAGRAM
1
NC
COM
NO
4
3
4
2
1
COM
NO
3
2
.30 (7.62)
.10 (2.54)
.50
.047 (1.2) 2 places .20
(12.7)
(5.08)
.057 (1.44)
.054 (1.36)
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ±0.010"
Viewed toward terminals
Rev. 7/10/97
