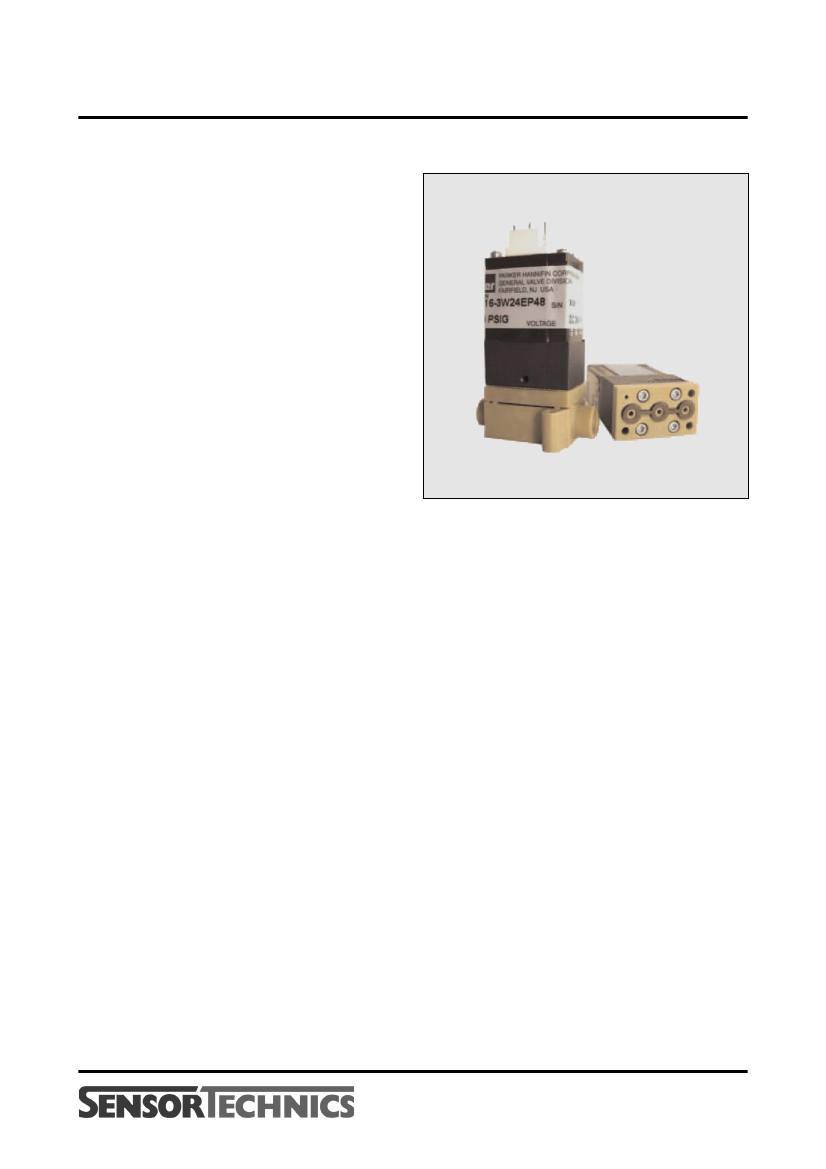

LQX16
16 mm isolated diaphragm solenoid valves
FEATURES
· 3-way universal valves
· EPDM or FKM elastomer options
· 16 mm centreline spacing; ideal for
manifold mounting
· Low internal volume
· Manifold sub-base; option of fluid
connectors on single or multiple station
assemblies
MEDIA COMPATIBILITY
Liquids and gases
PHYSICAL PROPERTIES
Operating environment
Storage temperature
Porting
4 to 66 °C
-40 to 70 °C
manifold mount,
1/4-28 threaded ports
62 g
WETTED MATERIALS
Elastomer: EPDM or FKM
Body/manifold: PEEK
Weight (1/4-28 port option)
ELECTRICAL
Power
Voltage
max. 3.4 W
12 or 24 V
DC
± 5%
Internal volume
Manifold mount
1/4-28 port
123.3 µl
213.3 µl
Current/Resistance (Ω ±5% @ 21 °C)
12 V
DC
286 mA / 42
Ω
24 V
DC
141 mA /170
Ω
March 2008 / 273
1/5
www.sensortechnics.com
LQX16
16 mm isolated diaphragm solenoid valves
PERFORMANCE CHARACTERISTICS
Part no.
LQX16...
Pressure
Vacuum...50 psig
(3.5 bar)
Orifice siz e
0.060"
(1.52 mm)
Leak rate
1
≤
0.016 sccm
(@ 50 psi air)
Life cycles
10 million
(application
dependent)
R esp o n se
<20 msec
cycling
Note:
1
sccm denotes Standard Cubic Centimeters per Minute. It is a unit for the flow rate at standard conditions of temperature and pressure.

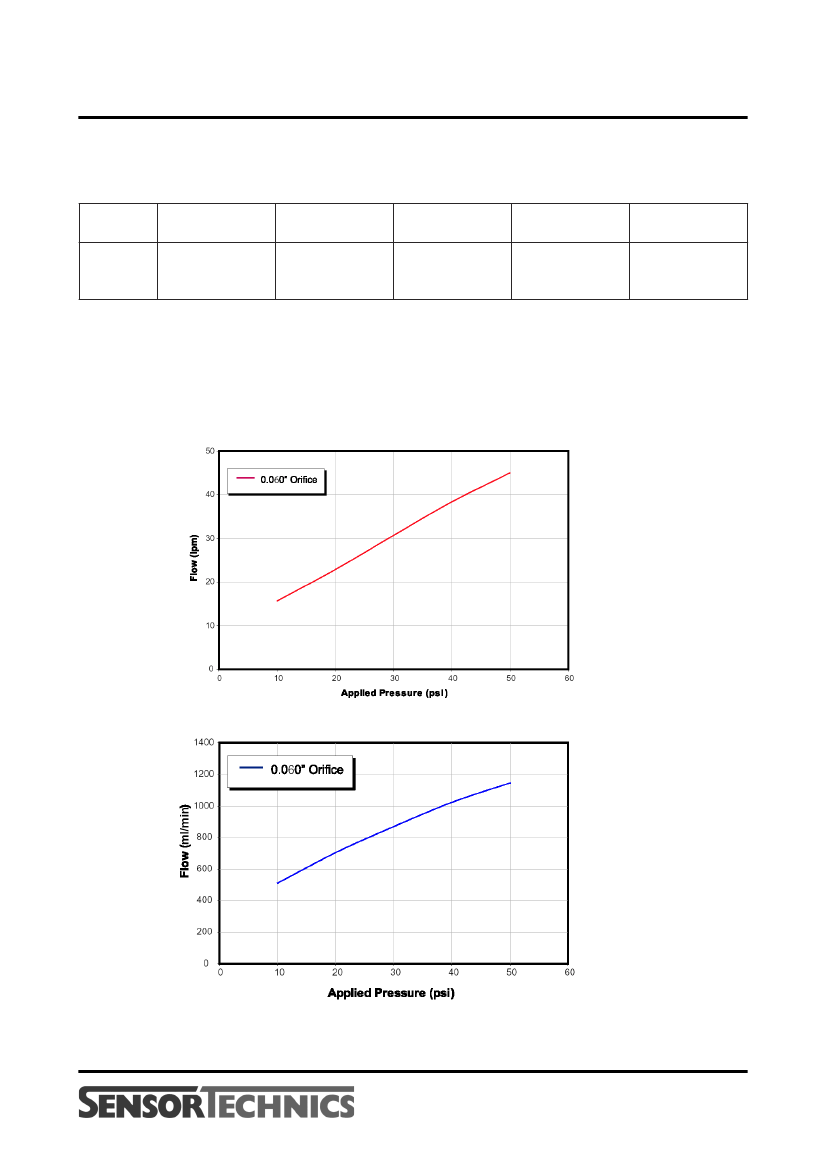

FLOW CURVES
Typ. air flow
Typ. water flow
March 2008 / 273
2/5
www.sensortechnics.com
LQX16
16 mm isolated diaphragm solenoid valves

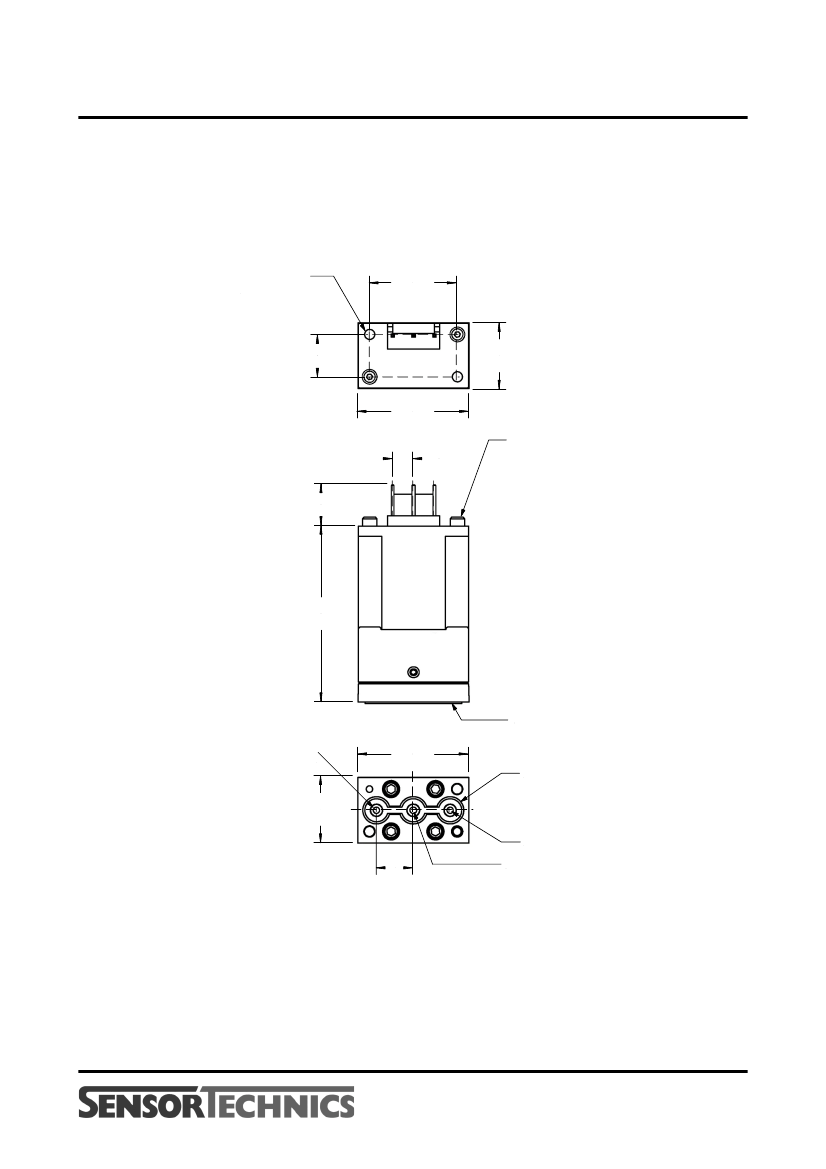

OUTLINE DRAWING
Face seal manifold sub-base option
Ø 0.098 (2.5)
through
0.85
(21.5)
0.41
(10.5)
0.63
(16.0)
1.06
(27.0)
0.20
(5.1)
0.40
(10.2)
#2-56 UNC-2A cross recessed pan head
mounting screw (typ. 2 pl.)
P/N 066-0001-121-001
recommended torque: 0.23 N m
recommended mounting tap:
#2-56 UNC-2B x 0.300 (7.62) min dp
1.71
(43.3)
Gasket
Normally closed
port
1.07
(27.2)
Ø 0.265 (6.7)
0.64
(16.2)
Normally open port
0.35
(9.0)
Common port
dimensions in inches (mm)
March 2008 / 273
3/5
www.sensortechnics.com
LQX16
16 mm isolated diaphragm solenoid valves

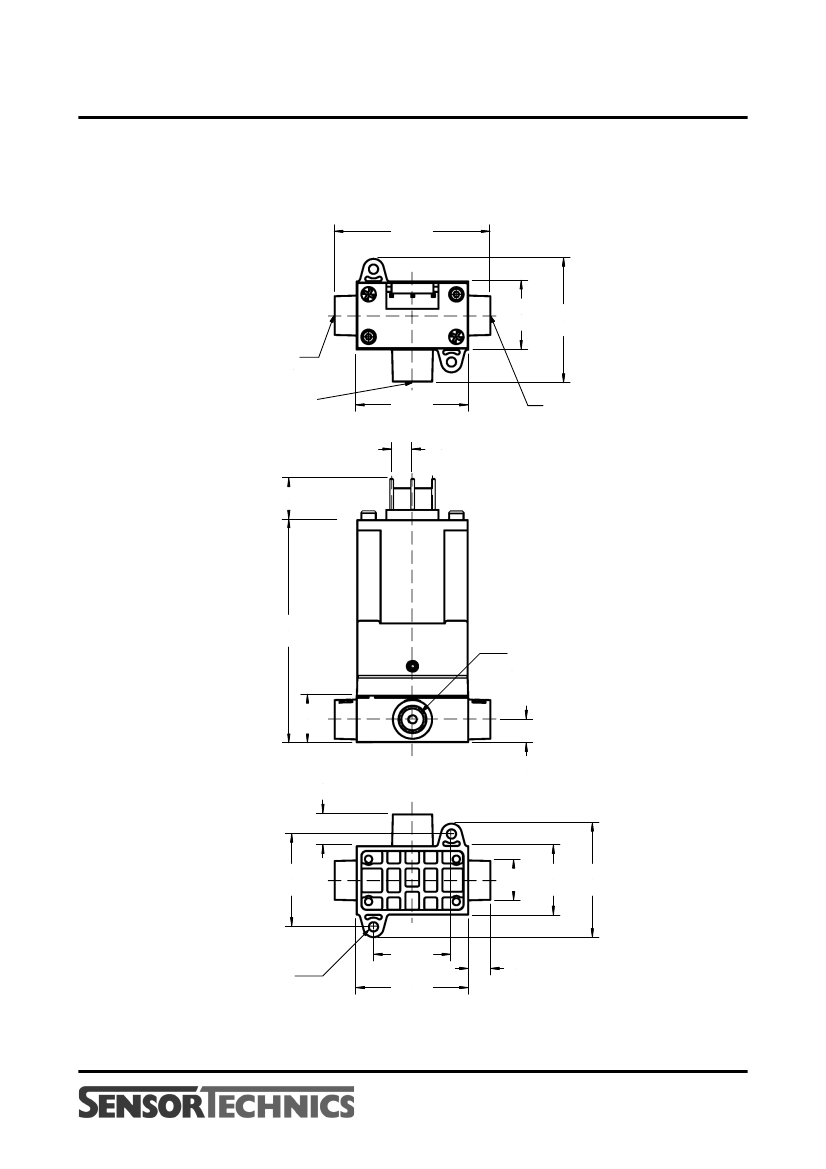

OUTLINE DRAWING (cont.)
1/4-28 fluid connector option
1.50
(38.1)
0.63
(16.0)
Normally closed
port
Common port
1.06
(27.0)
0.20
(5.1)
0.40
(10.2)
1.19
(30.2)
Normally open
port
2.15
(54.6)
Tap drill 0.32 (8.1 mm) dp
Tap 1/4-28 UNF-2B thread
0.45
(11.4)
0.22
(5.6)
0.31
(7.87)
0.90
(22.9)
Ø 0.38 0.66 1.10
(9.6) (16.8) (27.9)
0.75
(19.1)
Ø 0.090 (2.3)
through
1.07
(27.2)
0.21
(5.3)
dimensions in inches (mm)
March 2008 / 273
4/5
www.sensortechnics.com
LQX16
16 mm isolated diaphragm solenoid valves
ORDERING INFORMATION
Series
Options
LQX16
Configuration
3W
3-way
Voltage
12
12 V
D C
Elastomer
FK
FK M
Mounting style
FS
face seal
Electrical connection
000
standard
(3-pin connector)
24
24 V
D C
EP
EPD M
48
1/4-28 ports
Example:
LQX16
3W
12
FK
FS
000
Note: Not all combinations might be available.
Please contact your nearest Sensortechnics sales representative for further information.
Please order separately free of charge:
Order No.
290-066-0128-1
Description
24 inch lead wire assembly
Sensortechnics reserves the right to make changes to any products herein. Sensortechnics does not assume any liability arising out of the
application or use of any product or circuit described herein, neither does it convey any license under its patent rights nor the rights of others.
March 2008 / 273
5/5
www.sensortechnics.com
