Long Reach, Client-Side SFP, Multi-Rate, Multi-Protocol,
CWDM, 3R Transponder

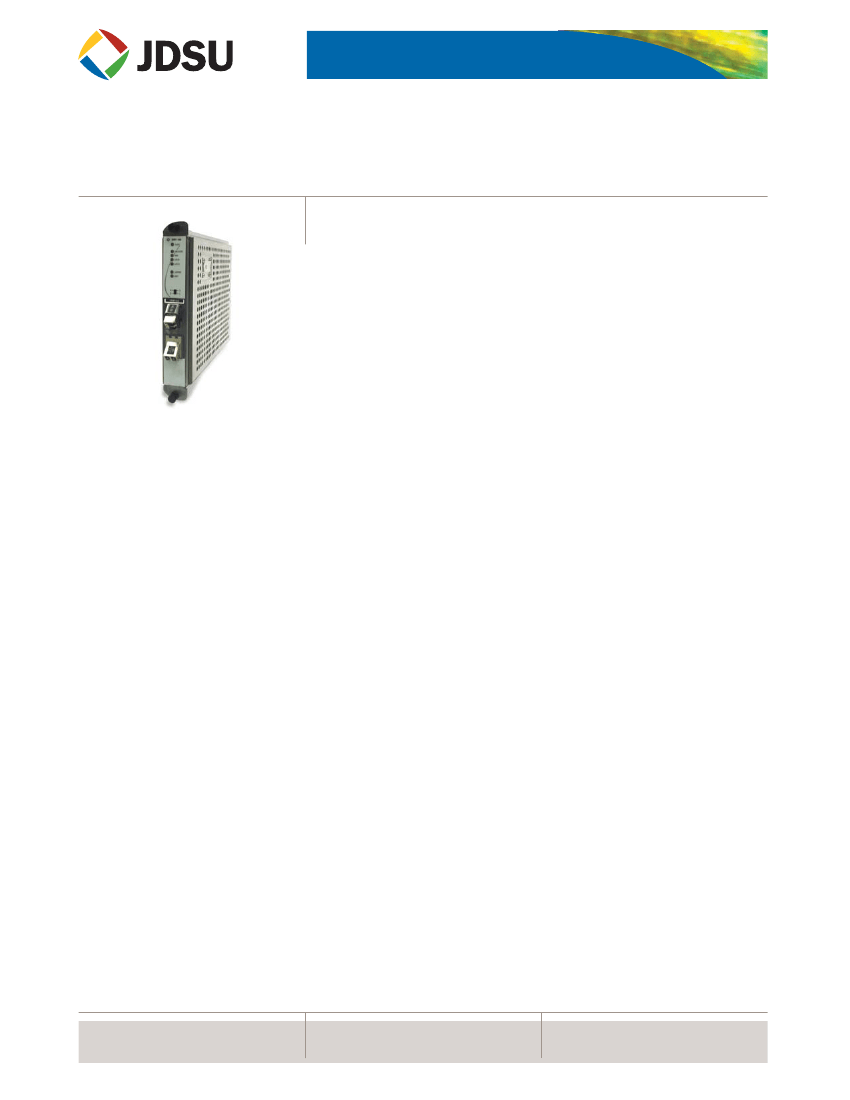

WaveReady™ Transponder 740 LR CWDM
Key Features
• Client-side SFP modules support either single-mode (SMF)
or multi-mode fiber (MMF)
• Automatic bit rate detection and reporting
• Multiple protocols supported at discrete bit rates of 125 Mb/s
to 2.7 Gb/s
• Network optics support eight CWDM channels using 20-nm
channel spacing
• Facility loopback functionality on both network and client sides
• Remote management with SNMP traps or TL1
• 3R functionality at all supported bit rates and protocols
Applications
• Wavelength services
• Metro optical access overlay
• Storage area network (SAN) and
GigE extension services
The WaveReady Transponder 740 LR CWDM (WRT-740 CWDM) is a multi-rate,
multi-protocol, auto-lock module that translates optical signals between a variety
of client-side interfaces into a long-reach, single-mode course wavelength division
multiplexing (CWDM) interface. This module features small form factor
pluggable (SFP) modules on the client side as well as loopback and 3R (reshape,
re-time, and re-amplify/regenerate) functionalities.
The WRT-740 CWDM contains an embedded management channel, which
allows for remote management, lowering operating, administration, and
management costs. The transponder’s WaveReady communication module
manages the WRT-740 CWDM using TL1, SNMP, command line interface, or
JDSU Node Manager software
Compliance
• FCC Part 15 (Class A)
• UL 60950 3rd edition, December 2000
• CAN/CSA-C22.2 No. 950-95
• NEBS Level 3
• GR-63-CORE
• CE
• IEC 60950
• ETS300-386
• EN 55022 (Class B)
• 73/23/EEC
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
WAVEREADY TRANSPONDER 740 LR CWDM
2

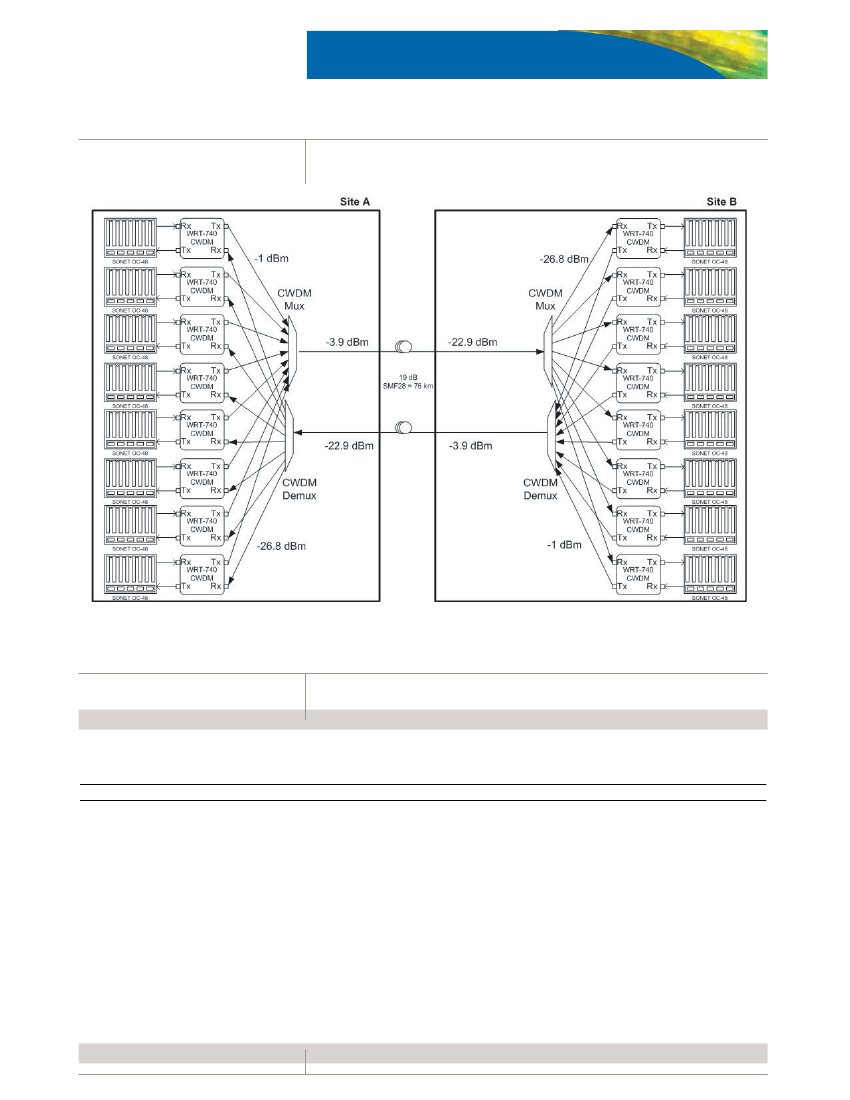

Point-to-Point Eight-Channel CWDM Link
Typical Link Budget
Data Rate
OC-48
Gigabit Ethernet
Minimum Rx Power
-28.5 dBm
-30 dBm
Total Power Budget
27.5 dB
29.0 dB
Maximum Distance
76 km
82 km
WAVEREADY TRANSPONDER 740 LR CWDM
3

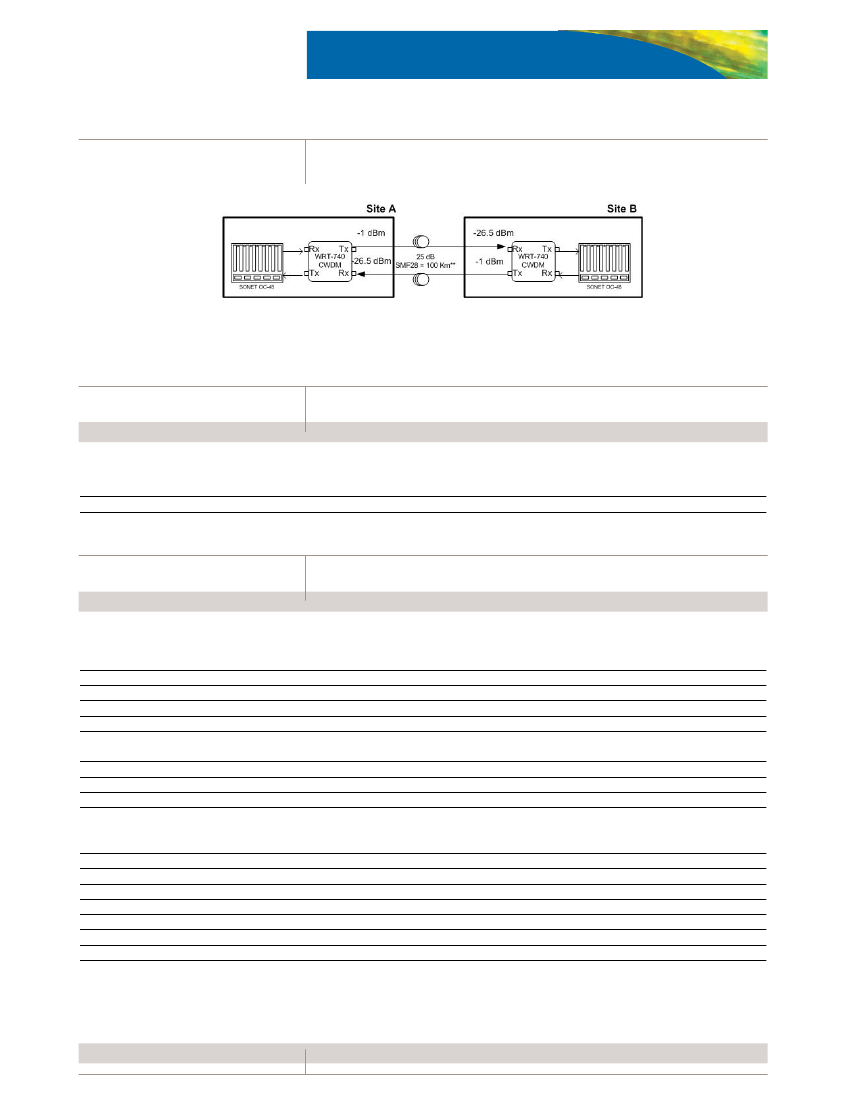

Point-to-Point Single-Channel CWDM Link
Note: Power budget is 25 dB, but to go from 80 to 100 km, a dispersion compensation module (DCM) is required.
Typical Link Budget
Data Rate
OC-48
Gigabit Ethernet
Minimum Rx Power
-28.5 dBm
-30 dBm
Total Power Budget
27.5 dB
29.0 dB
Maximum Distance
110 km
116 km
Network Optical Specifications
Parameter
Optical Path between Transmitter and Receiver Connectors
Dispersion penalty at OC-48 (80 km)
Dispersion at OC-48
Optical return loss of cable plant, including any connectors
Discrete reflectance between transmitter and receiver connectors
Maximum link budget at OC-48,
including dispersion penalty at BER = 1x10
-12
Transmitter
Output wavelengths
Wavelength accuracy
Mean output power
Specifications
Maximum
Minimum
Minimum
Maximum
Minimum
Typical
2 dB
1600 ps/nm
24 dB
27 dB
25.5 dB
27 dB
1471, 1491, 1511, 1531, 1551, 1571, 1591, and 1611 nm
± 6.5 nm
-1 dBm
1 dBm
4 dBm
8.2 dB
1
-30 dBm
-28.5 dBm
-8 dBm
2
-36 dBm
-34 dBm
Extinction ratio
Receiver
Sensitivity at 100Base-F to GigE, BER = 1x10
-12
Sensitivity at OC-48, BER = 1x10
-12
Overload
LOS activation threshold
LOS deactivation threshold
Minimum
Typical
Maximum
Minimum
Minimum
Minimum
Minimum
Typical
Typical
Note: All specifications are guaranteed over the life, operating temperatures, wavelengths, and input voltage range specified. This product should be deployed in accordance
with each company’s deployment directives.
1. At OC-48
2. Management communications at OC-3 require input power less than -15 dBm
WAVEREADY TRANSPONDER 740 LR CWDM
4
Other Specifications
Parameter
Electrical
Power dissipation
Supply voltage
1
Environmental
Storage temperature
Ambient operating temperature
Humidity
Mechanical
Weight (approximate)
Dimensions (H x W x D)
Mounting options
Condition
Specifications
Over temperature range EOL
Typical
Maximum
Minimum
Maximum
15.5 W
19 W
38 V
60 V
-40 to 85°C
-5 to 55 °C
5 to 95%
1.4 kg (3.1 lb)
25.4 x 223.5 x 175 mm
(1.0 x 6.89 x 8.8 inches)
WaveReady 3500-F or WaveReady
3100 shelf in standard 19- or
23-inch or ETSI rack
-5 to 55°C short term; 96 hours continuous;
no more than 15 days per year
Non-condensing
1. The DC power supply must be -48 V SELV output and certified by a nationally recognized test laboratory (NRTL). UL tested at -48 V.
Interface Specifications
Parameter
Operations, administration, maintenance,
and provisioning (OAM&P)
Specification
Via the WaveReady Communication Module 200; remote management:
SNMP and TL1 command mode through JDSU Node Manager software or
through telnet or command-line application or SNMP; Communication
with remote modules through an embedded supervisory channel
CARD (power), MAJ/CRIT (major/critical alarm), MIN (minor alarm),
LOS B, LOS D, LOOPBK (loopback), MGT (management)
Client-side ports: A and B single-mode or multi-mode fiber (SMF or MMF);
Network-side ports: C and D, SMF
CARD (power), MAJ/CRIT (major/critical) alarm; MIN (minor alarm),
LOS B, LOS D (loss of lock); Alarm relay open under normal operation;
relay closed when power is off and alarm is active
Front panel LEDs
Front panel ports
Alarms
WAVEREADY TRANSPONDER 740 LR CWDM
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: WRT-740DC240B-057
WRT-740DC240B-
Code
047
049
051
053
055
057
059
061
Frequency
1471
nm
1491
nm
1511
nm
1531
nm
1551
nm
1571
nm
1591
nm
1611
nm
Note: For current compatible SFPs, please contact your local JDSU account manager.
All statements, technical information and recommendations related to the products herein are based upon information believed to be
reliable or accurate. However, the accuracy or completeness thereof is not guaranteed, and no responsibility is assumed for any
inaccuracies. The user assumes all risks and liability whatsoever in connection with the use of a product or its application. JDSU reserves
the right to change at any time without notice the design, specifications, function, fit or form of its products described herein, includ-
ing withdrawal at any time of a product offered for sale herein. JDSU makes no representations that the products
herein are free from any intellectual property claims of others. Please contact JDSU for more information. JDSU, Waveready, and the
