COMMUNICATIONS MODULES & SUBSYSTEMS
RoHS-compliant 2.125, 1.25 and 1.063 Gbps, Single-mode
1310 nm eSFP Transceiver
JSH-12L1DD1
Key Features
• 1310 nm FP laser
• 10 km distance
• Case operating temperature of -40 – 85°C
• Single +3.3 V power supply
• Hot pluggable
• EEPROM with serial ID functionality
• Industry-standard duplex LC optical connector
• Operates with 9/125
µm
single-mode optical fibers
Applications
• Gigabit Ethernet
• 2.125 and 1.25 Gbps Fibre Channel
• High-speed storage area networks
- Switch and hub interconnect
- Mass storage systems interconnect
- Host adapter interconnect
• Computer cluster cross-connect
• Custom high-speed data pipes
• Client/server environments
• Distributed multiprocessing
• Visualization, real-time video,
collaboration
• Data acquisition
Compliance
The JDSU JSH-12L1DD1 SFP transceivers are hot-pluggable, 3.3 V duplex-LC
transceivers that provide a high-speed serial link at a signaling rate of up to 2.125
Gbps. They are designed for use in ANSI Fibre Channel and Gigabit Ethernet ap-
plications. These transceives provide the LC optical receptacle that is compatible
with the industry-standard LC connector.

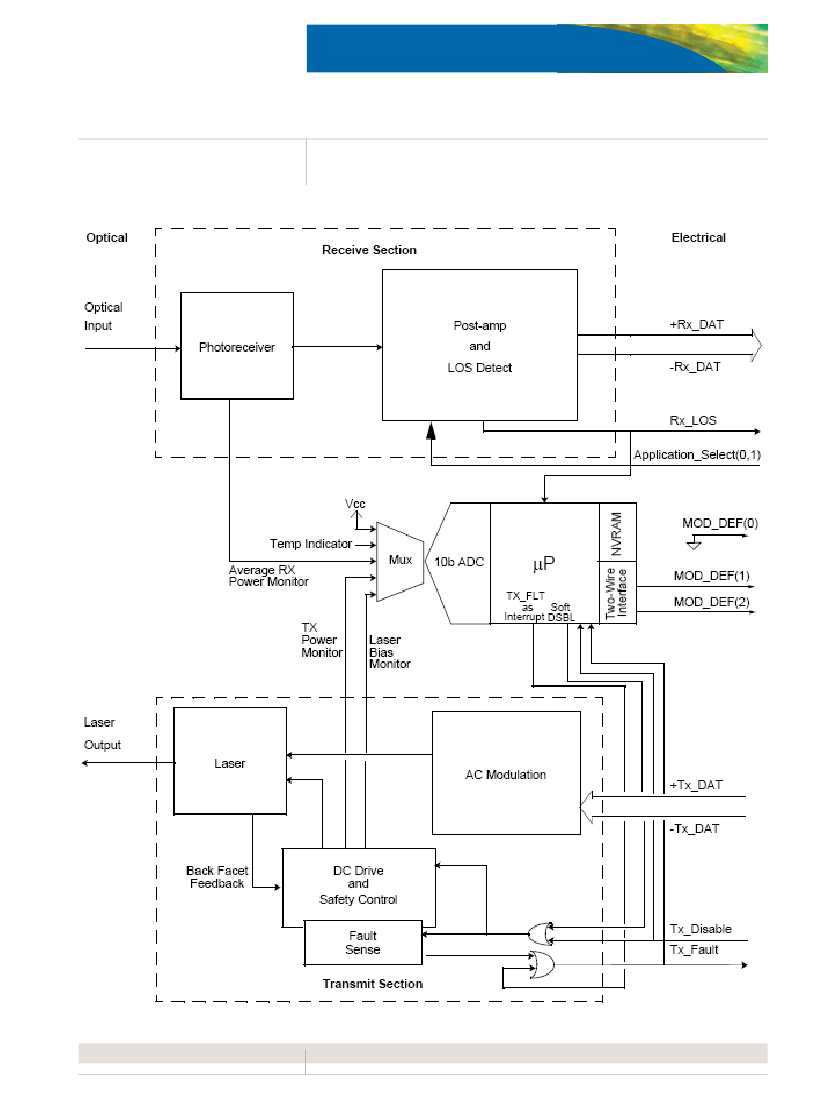

The transceiver consists of an optical subassembly housing the transmitter and
receiver, and an electrical subassembly. All are packaged together with a top metal
cover and bottom shield. The optical subassembly consists of two parts. The trans-
mitter side has a high-performance, 1310 nm, back-facet monitor. The receiver
side has an InGaAs PIN and a preamplifier.
The digital diagnostic monitoring (DDM) interface uses the same two-wire serial
ID interface defined in the SFP MSA specification. The standard serial ID infor-
mation is located at address A0h. Using address A2h, the user can monitor trans-
ceiver parameters, including temperature, voltage, laser bias current, laser power,
and receiver power. Alarms and warnings are provided when the monitored pa-
rameters exceed predefined threshold values. All transceivers include a loss-of-
signal-detect circuit, which provides a TTL logic high output when an unusable
input optical signal level is detected.
• Gigabit Ethernet (1000 Base-LX) at
1.25 Gbps
• 2 G, 1 G ANSI Fibre Channel
• Small form factor pluggable (SFP)
multisource agreement (MSA) or
digital diagnostics SFF-8472
NORTH AMERICA: 800 498-JDSU (5378)
WORLDWIDE: +800 5378-JDSU
WEBSITE: www.jdsu.com
ROHS-COMPLIANT 2.125, 1.25 AND 1.063 GBPS,
SINGLE-MODE 1310 NM ESFP TRANSCEIVER
2
Absolute Maximum Ratings
Parameter
Storage temperature
1
Relative humidity
2
Supply voltage
1. Case temperature
2. Noncondensing
Symbol
T
S
RH
V
CC
Min.
-40
5
Typ.
Max.
+95
95
4.0
Unit
°C
%
V
Recommended Operating Conditions
Parameter
Ambient operating temperature at -40°C
and case temperature at 85°C
Supply voltage
Transmitter differential input voltage
Transmit disable input volt—low
Transmit disable Input Volt—high
Symbol
T
OP
V
CC
V
D
TD
Lo
TD
Hi
Min.
-40
2.97
0.6
2.3
Typ.
Max.
+85
3.6
2.0
0.3
Unit
°C
V
V
V
V
ROHS-COMPLIANT 2.125, 1.25 AND 1.063 GBPS,
SINGLE-MODE 1310 NM ESFP TRANSCEIVER
3
Electrical Characteristics
(Over specified T
op
range, V
CC
= +2.97 V to +3.6 V)
Parameter
Power consumption
Transmitter
TX fault output—high
TX fault output—low
Initialization time
Receiver
Data output voltage swing (differential)
Data output rise and fall times
1
Loss of signal detect output—high
Loss of signal detect output—low
1. 20 – 80 %
Symbol
P
diss
Voh, TTL
Vol, TTL
Min.
Typ.
Max.
1000
Unit
mW
V
V
ms
V
ns
V
V
2.0
0.0
Vcc
0.8
300
1.2
0.26
Vcc
0.8
V
diff
t
r
, t
f
Voh, TTL
Vol, TTL
0.5
2.0
0.0
Optical Characteristics
(Over specified T
op
range, V
CC
= +2.97 V to +3.6 V)
Parameter
Transmitter
Output optical power
1
9/125 µm, NA = 0.10 fiber
Optical extinction ratio—GbE
Center wavelength
Spectral width
Side mode suppression ratio
Optical rise/fall time
2
Relative intensity noise
Transmitter optical contributed jitter (total)
Receiver
Minimum optical input power (sensitivity)
Maximum optical input power (saturation)
Operating center wavelength
Return loss
Loss of signal—deasserted
Loss of signal—asserted
Loss of signal—hysteresis
1. JSH-12L1DD1
2. 20 – 80 %
Symbol
Min.
Typ.
Max.
Unit
P
OUT
λ
c
SMSR
t
r
/ t
f
RIN
TJ
P
IN
P
IN
λ
c
P
A
P
D
P
A
– P
D
-9.5
9
1290
0.1
30
-2.5
dBm avg.
dB
nm
nm
dB
ns
dB/Hz
ps
dBm avg.
dBm avg.
nm
dB
dBm avg.
dBm avg.
dB
1330
0.5
0.26
-120
225
-21
1.0
1265
12
-30
0.5
1625
-21
5.0
ROHS-COMPLIANT 2.125, 1.25 AND 1.063 GBPS,
SINGLE-MODE 1310 NM ESFP TRANSCEIVER
4
SFP Pin Defi nitions
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Symbol
VeeT
TX Fault
TX Disable
MOD – DEF2
MOD – DEF1
MOD – DEF0
Rate Select
LOS
VeeR
VeeR
VeeR
RD-
RD+
VeeR
VccR
VccT
VeeT
TD+
TD-
VeeT
Description of Function
Transmitter Signal Ground
Transmitter Fault Indication
Transmitter Disable
Module Definition 2
Module Definition 1
Module Definition 0
Select between full or reduced receiver bandwidth (not implemented)
Loss of Signal
Receiver Signal Ground
Receiver Signal Ground
Receiver Signal Ground
Received Data Inverted Differential Output
Received Data Noninverted Differential Output
Receiver Signal Ground
+3.3 V Receiver Power Supply
+3.3 V Transmitter Power Supply
Transmitter Signal Ground
Transmitter Data Noninverted Differential Input
Transmitter Data Inverted Differential Input
Transmitter Signal Ground

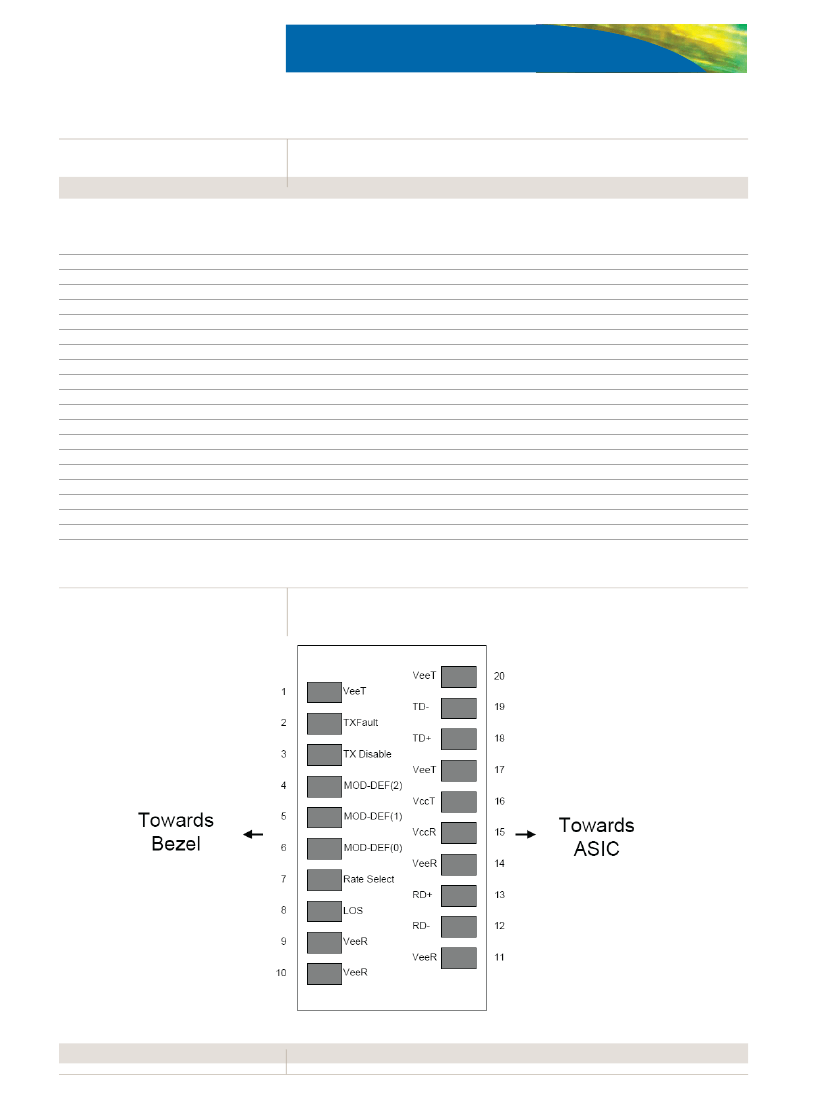

Pin Function Defi nitions
SFP optical transceiver pin-out on host board
Embedded System
