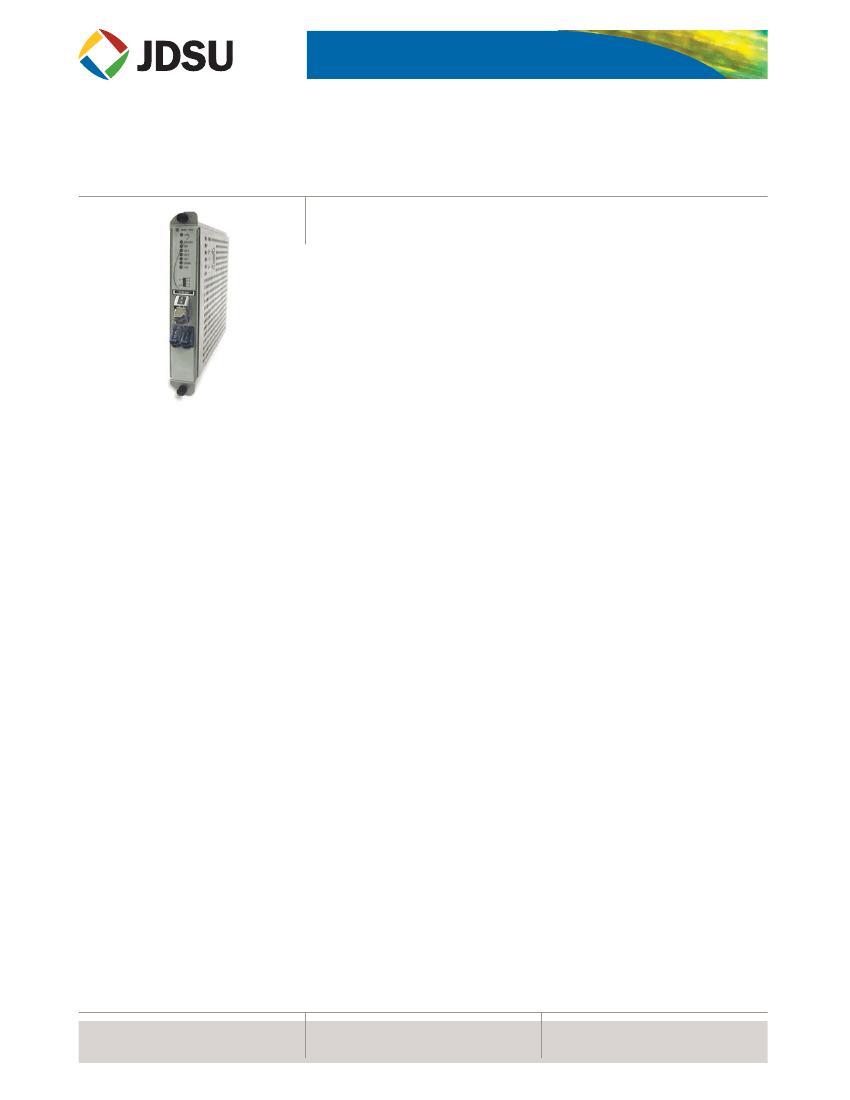

• 1+1 protection for network optics, controlled by loss of
signal (LOS) level, loss of lock, or user configurable
power thresholds
• Client-side SFP modules support either single-mode
fiber (SMF) or multimode fiber (MMF)
• Multiple protocols supported at discrete bit rates of
125 Mb/s to 3.125 Gb/s
• Automatic bit-rate detection and reporting
• Remote management via SNMP traps or TL1
• Network optics support 16 ITU wavelengths over
distances up to 100 km without dispersion
compensation or amplification
• Facility loopback on both network and client sides
• 3R functionality at all supported bit rates and protocols
Applications
• Wavelength services
• Metro optical access overlay
• Protected storage area network
(SAN) and GigE extension services
The WaveReady Transponder 760 (WRT-760) is a multi-rate, multi-protocol,
auto-lock transponder module that translates optical signals between a variety of
client-side interfaces into a long-reach, single-mode, dense wavelength division
multiplexing (DWDM) interface. This module includes path protection, small
form factor pluggable (SFP) modules on the client side, loopback, and 3R
(reshape, retime and re-amplify/regenerate) functionality.
Built-in path protection eliminates the need for extra transponders and protection
devices on protected links, a significant saving in capital expenditure.
SFP modules optimized for a wide range of protocols are available for single-
mode and multimode fiber. Supported protocols include 100Base-FX Ethernet,
Gigabit Ethernet (GigE), ESCON, Fibre channel, FICON, and OC-3 to OC-48.
Supported data rates range from 125 Mb/s to 3.125 Gb/s. The WRT-760's bit-rate
and protocol independence gives service providers the flexibility to meet the
shifting service demands of customers without changing installed equipment.
Full 3R functionality allows multiple WRT-760 modules to be deployed in series for
very long reach applications. Loopback facilitates fault isolation and troubleshooting.
Compliance
• FCC Part 15 (Class A); UL 60950
3rd Edition, December 2000;
CAN/CSA-C22.2 No. 950-95;
NEBS Level 3; GR-63-CORE;
GR-1089-CORE; GR-78-CORE; CE;
IEC 60950; ETS300-386;
EN 55022 (Class B); 73/23/EEC
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
WRT-760
2

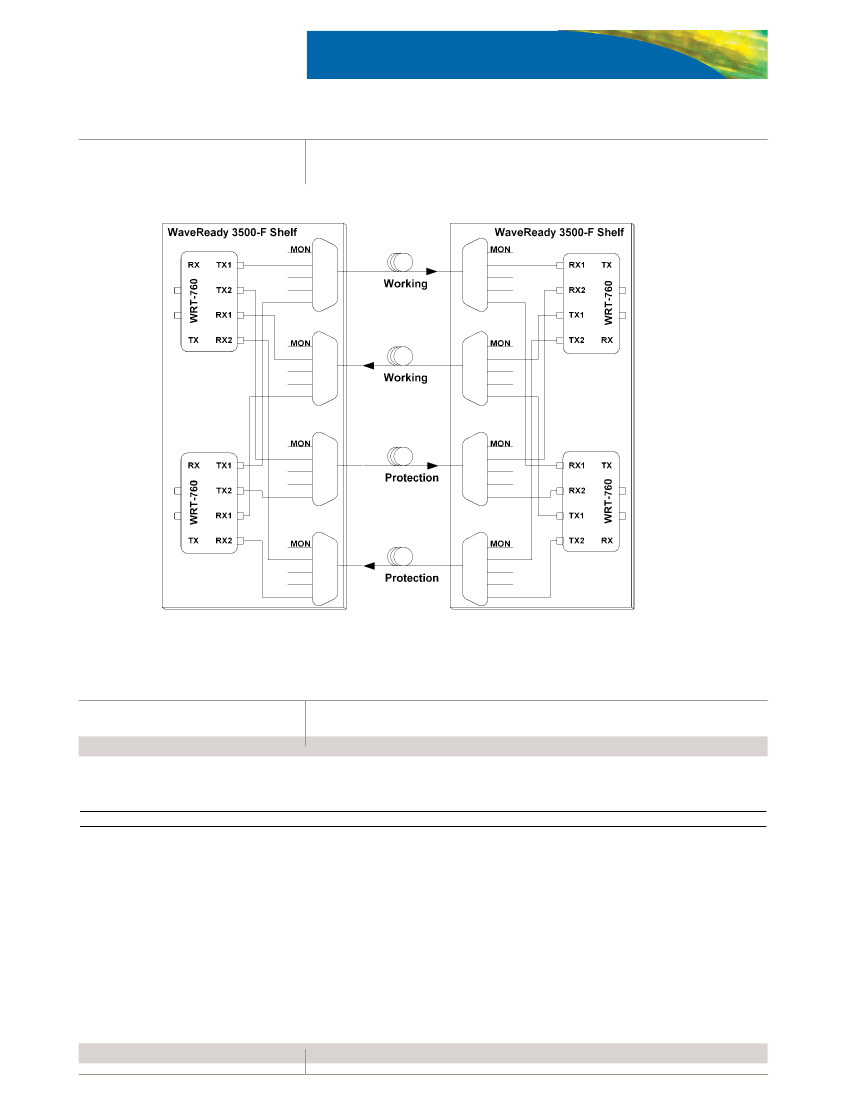

Point-to-Point Four-Channel
Protected DWDM Link
Typical Link Budget
Parameter
OC-48
Gigabit Ethernet
Minimum Rx Power
-28.5 dBm
-30 dBm
Total Power Budget
24.4 dB
22.9 dB
Maximum Distance
97 km
91 km
WRT-760
3
Point-to-point Single Channel
Protected DWDM Link
Typical Link Budget
Parameter
OC-48
Gigabit Ethernet
Minimum Rx Power
-28.5 dBm
-30 dBm
Total Power Budget
30 dB
28.5 dB
Maximum Distance
100 km (dispersion limited)
114 km
WRT-760
4
Network Optical Specifications
Parameter
Optical Path between Transmitter and Receiver Connectors
Dispersion
1
at OC-48
Optical return loss of cable plant, including any connectors
Discrete reflectance between transmit and receive connectors
Maximum link budget at OC-48 including dispersion
Transmitter
Wavelength range
Frequency range (32 frequencies, 100 GHz spacing)
Central frequency deviation
Mean output power
Extinction ratio
2
Receiver
Sensitivity at 100BaseF to GE, BER=1x10
-10
Sensitivity at OC-48, BER=1x10
-10
Overload
OSNR tolerance at BER=1x10
-12
Optical path penalty on standard single-mode fiber
Reflectance of receiver at receiver connector
LOS activation threshold
LOS deactivation threshold
Protection
Switching time
Switch-back hold time (user configurable, default is 300 seconds)
Specifications
Maximum
Minimum
Maximum
Minimum
Typical
1800 ps/nm
24 dB
27 dB
25.5 dB
28.5 dB
1530 to 1561 nm
192.1 to 195.9 THz
100 pm
-1.0 dBm
2 dBm
8.2 dB
10 dB
-30 dBm
-28.5 dBm
-8 dBm
20 dB
3
2 dB
4
-27 dB
-35 dBm
-30 dBm
50 ms
3 seconds
300 seconds
Maximum
Minimum
Maximum
Minimum
Typical
Minimum
Minimum
Minimum
Minimum
Maximum
Maximum
Typical
Typical
Minimum
Minimum
Maximum
Note: All specifications are guaranteed over the life, operating temperatures, wavelength range, and input voltage range specified. This product should be deployed in
accordance with each company's deployment directives.
1. Maximum dispersion for the defined path penalty of 2 dB
2. Back-to-back measurement, 8.2 dB extinction ratio and no other signal impairments
3. With receive power of -27 dBm with no other signal impairments at EOL over all temperatures
4. Dispersion penalty only
Interface Specifications
Parameter
Provisioning, operations,
Specification
Via the WaveReady Communication Module 200. Remote management: SNMP and TL1 command
mode through administration, maintenance JDSU Node Manager software or TL1 through telnet or
command-line application or SNMP. Communication with remote modules through an embedded
supervisory channel.
CARD (power), MAJ/CRIT (major or critical alarm), MIN (minor alarm), LOS B, LOS D (loss of
lock) LOOPBK (loopback), MGT (management).
Client side ports A and B single mode or multimode fiber (SMF or MMF), SFP1 SFP2, SFP3, SFP4 or
SFP5. Network side ports: C and D, SMF.
CARD (power), MAJ/CRIT (major or critical alarm), MIN (minor alarm), LOS B, LOS D (loss of
lock). Alarm relay open under normal operation. Relay closed when power is off and alarm is active.
Front panel LEDs
Front panel ports
Alarms
WRT-760
5
Other Specifications
Parameter
Electrical
Power consumption
Supply voltage
1
Condition
Specifications
Over temperature range EOL
Typical
Maximum
Minimum
Typical
Maximum
16.5 W
20 W
38 V
48 V
60 V
-40 to 85 °C
-5 to 55 °C
0 to 95%
LC
1.4 kg (3.1 pounds)
25.4 x 223.5 x 175 mm
(1.0 x 6.89 x 8.8 inches)
WaveReady 3500-F or fan-equipped
WaveReady 3100 shelf in standard
19- or 24-inch rack
Environmental
Storage temperature
Ambient operating temperature
Humidity
Mechanical
Connectorization
Weight (approximate)
Dimensions (W x H x D)
Mounting options
-5 to 55 °C short term, 96 hours continuous.
No more than 15 days per year.
Non-condensing
1. The DC power supply must be -48 V SELV output and certified by a nationally recognized test laboratory (NRTL)
Compatibility of Client SFPs
Protocol
SMF Fiber
100Base-FX Ethernet
OC-3 IR-1/STM-1 S-1.1
ESCON
D1 video
OC-12/STM-4 S-4.1
FICON LX single mode
Fibre channel 100-SMLL-L
Gigabit Ethernet 1000Base-LX
Fibre channel 200-SMLL-I
OC-48/STM-16 I-16
OC-48 FEC
MMF Fiber
100Base-FX Ethernet
ESCON
FICON LX
FICON SX
Fibre channel 100-M5-SN-I
Gigabit Ethernet 1000Base-SX
Bit Rate
SFP
125 Mb/s
155.52 Mb/s
200 Mb/s
270 Mb/s
622.08 Mb/s
1.0625 Gb/s
1.0625 Gb/s
1.250 Gb/s
2.125 Gb/s
2.48832 Gb/s
2.7 Gb/s
125 Mb/s
200 Mb/s
1.0625 Gb/s
1.0625 Gb/s
1.0625 Gb/s
1.250 Gb/s
SFP1 and SFP2
SFP1 and SFP2
SFP1 and SFP2
SFP1 and SFP2
SFP1 and SFP2
SFP1
SFP1
SFP1
SFP1
SFP1
SFP1
SFP2
SFP2 or SFP1
1
SFP3 or SFP1
1
SFP4
SFP4
SFP4
1. Due to the dual media (single-mode and multimode) support of this transmitter, fulfillment of this protocol requires a single-mode fiber offset launch mode conditioning
patch cord. The offset launch mode conditioning cable lowers the launch power by 0.5 dB and incurs a similar penalty on the sensitivity.
