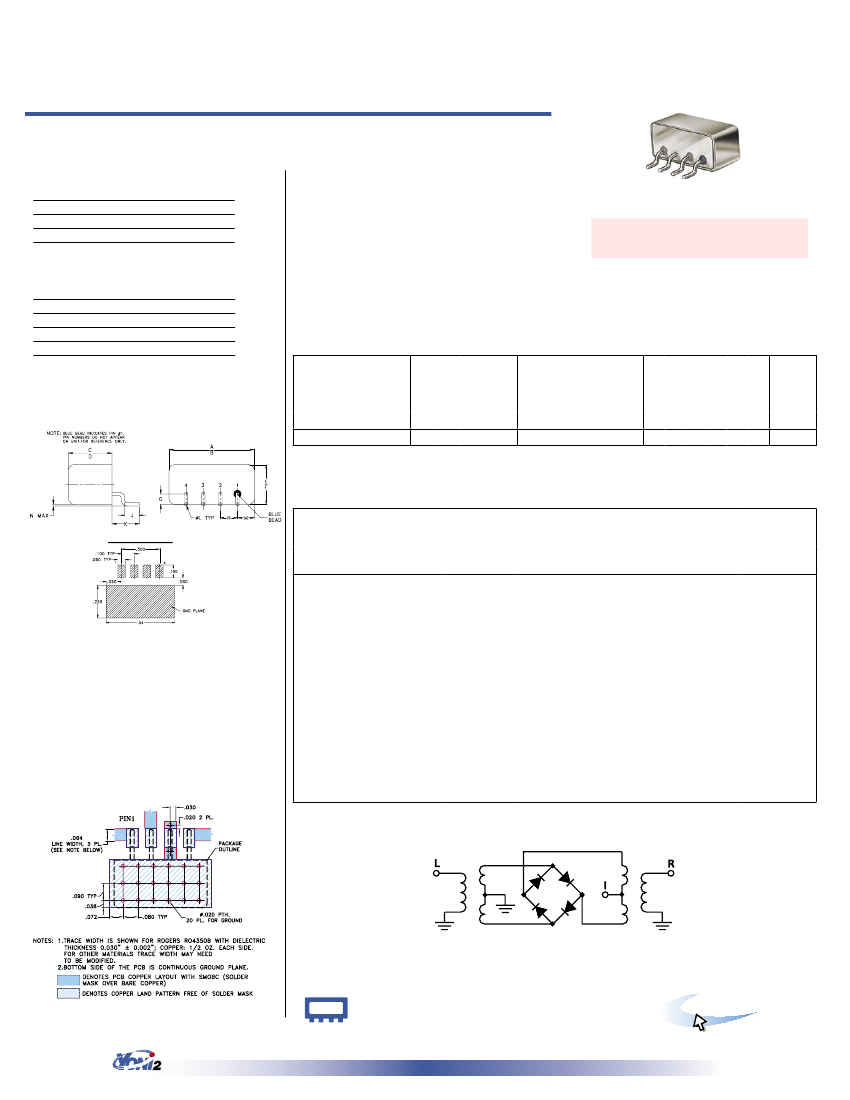

Surface Mount

High Reliability Mixer

Level 10 (LO Power +10 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

TUF-R2LHSM+

50 to 1000 MHz

CASE STYLE: NNN150

PRICE: $10.85 ea. QTY (1-9)

Features

• hermetically sealed ceramic quad

• low conversion loss, 6.2 dB typ.

• excellent isolation L-R, 49 dB typ.; L-I, 44 dB typ.

• wideband, 50 to 1000 MHz

• rugged welded construction

• shielded metal case

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualiﬁcations.

Pin Connections

LO

RF

IF

GROUND

CASE GROUND

4

1

2

3

Applications

• VHF/UHF

• cellular

• ISM/GSM

Electrical Speciﬁcations

FREQUENCY

(MHz)

LO/RF

IF

—

X

DC-1000

6.2

CONVERSION LOSS

(dB)

Mid-Band

m

σ

0.03

Total

Range

Max. Max.

7.5

9.0

LO-RF ISOLATION

(dB)

L

Typ. Min.

55 45

M

Typ. Min.

49 38

U

Typ. Min.

42 35

LO-IF ISOLATION

(dB)

L

Typ. Min.

52 40

M

Typ. Min.

44 30

U

Typ. Min.

35 24

IP3

at center

band

(dBm)

Typ.

17

Outline Drawing

f

L

-f

U

50-1000

1 dB COMP.: +5 dBm typ.

L = 50-100 MHz

M = 100-500 MHz

m= mid band [2f

L

to f

U

/2]

U = upper range [f

U

/2 to f

U

]

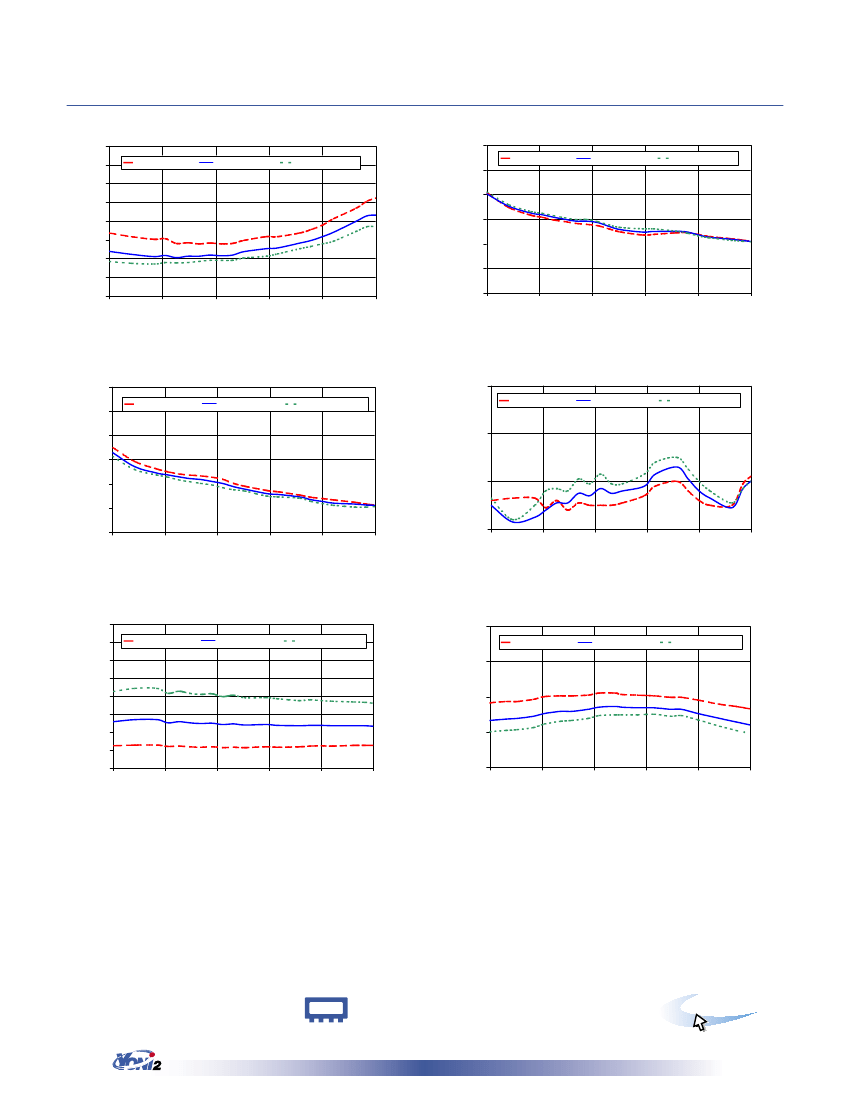

Typical Performance Data

Frequency

(MHz)

PCB Land Pattern

Conversion

Loss

(dB)

LO

+10dBm

6.19

6.11

6.05

6.08

6.02

6.06

6.09

6.07

6.09

6.18

6.26

6.28

6.41

6.48

6.58

6.70

6.99

7.14

7.16

Isolation

L-R

(dB)

LO

+10dBm

60.26

55.17

52.42

51.75

50.74

49.93

49.17

49.14

48.54

47.02

45.69

44.68

44.91

44.98

44.73

43.60

42.59

41.76

41.23

40.78

Isolation

L-I

(dB)

LO

+10dBm

52.94

47.10

44.40

43.65

42.83

42.12

41.74

40.96

40.07

38.75

37.73

35.90

35.55

34.52

33.37

32.67

31.98

31.53

31.18

31.08

VSWR

RF Port

(:1)

LO

+10dBm

1.10

1.03

1.05

1.08

1.11

1.15

1.14

1.17

1.15

1.16

1.18

1.23

1.26

1.21

1.16

1.13

1.09

1.17

1.21

VSWR

LO Port

(:1)

LO

+10dBm

2.28

2.34

2.25

2.28

2.25

2.23

2.24

2.20

2.22

2.19

2.20

2.18

2.17

2.18

2.17

2.15

RF

50.10

130.10

210.10

250.10

290.10

330.10

370.10

410.10

450.10

490.10

530.10

610.10

650.10

730.10

770.10

810.10

850.10

930.10

970.10

1010.10

Suggested Layout,

Tolerance to be within

±.002

80.10

160.10

240.10

280.10

320.10

360.10

400.10

440.10

480.10

520.10

560.10

640.10

680.10

760.10

800.10

840.10

880.10

960.10

1000.10

1040.10

Outline Dimensions (

inch

)

mm

A

.50

12.70

H

.100

2.54

B

.48

12.19

J

.09

2.29

C

.255

6.48

K

.16

4.06

D

.240

6.10

L

.020

0.51

E

.23

5.84

M

.09

2.29

F

.21

5.33

G

.06

1.52

N

wt

.005 grams

0.13

1.9

Demo Board MCL PIN: TB-201

Suggested PCB Layout (PL-081)

Electrical Schematic

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

®

minicircuits.com

EW

ALL N

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com

REV. OR

M109914

ED-12915/2

TUF-R2LHSM+

WL/AM

070516

Page 1 of 2
