ZMSC-2-1W+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZMSC-2-1W+

ZMSC-2-1W+: DescriptionPower Splitter/Combiner 2 Way-0 50Î© 1 to 650 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size150KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

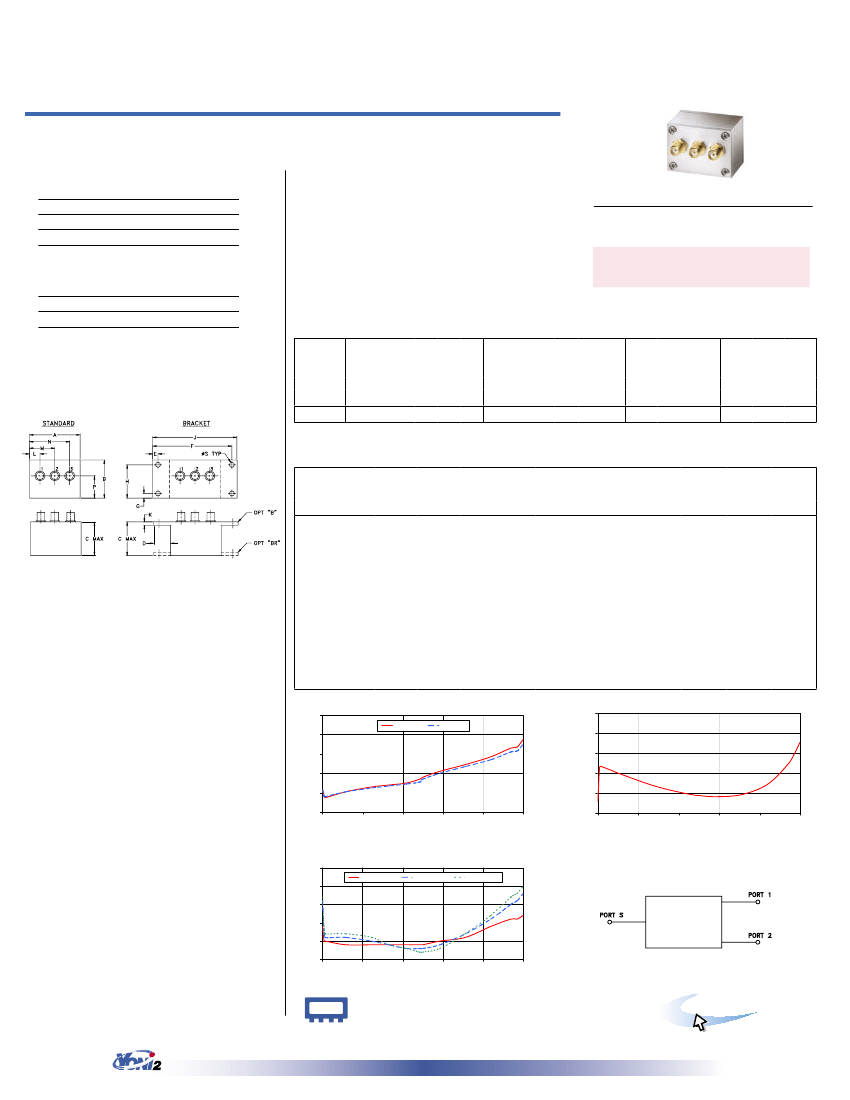

ZMSC-2-1W+ Overview

Power Splitter/Combiner 2 Way-0 50Î© 1 to 650 MHz

ZMSC-2-1W+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SMA, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1 dB
Maximum operating frequency	650 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

Power Splitter/Combiner

2 Way-0°

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

1W max.

0.125W max.

Coaxial

ZMSC-2-1W

ZMSC-2-1W+

50Ω

1 to 650 MHz

Features

• wideband, 1 to 650 MHz

• excellent isolation, 35 dB typ.

• excellent amplitude unbalance, 0.1 dB typ.

• excellent phase unbalance, 1.0 deg. typ.

• rugged shielded case

CASE STYLE: M21

Connectors Model

Price

SMA

ZMSC-2-1W(+)

$54.95

BRACKET (OPTION "B")

$5.00

BRACKET (OPTION "BR")

$1.50

Qty.

(1-9)

(1+)

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

• VHF/UHF

• instrumentation

• communications systems

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

FREQ.

RANGE

(MHz)

ISOLATION

(dB)

-f

1-650

Typ.

Min

Typ.

Min

Typ.

Min

INSERTION LOSS (dB)**

ABOVE 3.0 dB

PHASE

UNBALANCE

(Degrees)

Max.

AMPLITUDE

UNBALANCE

(dB)

Max.

0.15

Max.

0.20

Max.

0.30

Outline Drawing

Typ. Max. Typ. Max. Typ. Max.

0.3

0.5

0.8

0.7

1.0

L = low range [f

to 10 f

]

M = mid range [10 f

to f

/2]

U= upper range [f

/2 to f

]

Typical Performance Data

Frequency

(MHz)

Insertion Loss

(dB)

S-1

1.00

6.00

10.00

76.00

160.00

216.00

272.00

315.00

325.00

380.00

.987

25.07

Amplitude

Unbalance

(dB)

0.00

0.01

0.03

0.02

0.03

0.04

Isolation

(dB)

Phase

Unbalance

(deg.)

0.03

0.06

0.04

0.15

0.34

0.39

0.54

0.55

0.60

0.65

0.71

0.83

0.82

0.84

0.87

VSWR

S-2

3.23

3.16

3.21

3.25

3.27

3.29

3.31

3.34

3.40

3.47

3.54

3.62

3.63

3.70

26.15

29.51

29.68

28.88

27.93

27.42

27.02

26.77

26.75

26.63

26.84

27.86

29.83

30.82

32.10

1.09

1.05

1.04

1.05

1.06

1.09

1.11

1.12

ZMSC-2-1W

ISOLATION

3.23

3.16

3.15

3.21

3.26

3.28

3.30

3.34

3.36

3.42

3.49

3.57

3.66

3.67

3.75

1.16

1.07

1.06

1.05

1.04

1.03

1.04

1.07

1.11

1.15

1.16

1.18

1.17

1.08

1.07

1.06

1.04

1.03

1.02

1.03

1.07

1.12

1.17

1.18

1.20

Outline Dimensions (

inch

)

1.50

38.10

2.50

63.50

1.13

28.70

.10

2.54

1.00

25.40

.31

7.87

.50

12.70

.75

19.05

.155

3.94

1.19

30.23

2.345

59.56

.66

16.76

.138

3.51

.150 grams

3.81

40.0

INSERTION LOSS (dB)

462.50

545.00

610.00

630.00

650.00

ZMSC-2-1W

INSERTION LOSS

4.0

S-1(dB)

S-2(dB)

ISOLATION (dB)

3.8

3.6

3.4

3.2

3.0

130

260

390

520

650

FREQUENCY (MHz)

130

260

390

520

650

FREQUENCY (MHz)

ZMSC-2-1W

VSWR

1.25

#S-VSWR

#1-VSWR

#2-VSWR

1.20

VSWR

1.15

1.10

1.05

1.00

130

260

390

520

650

FREQUENCY (MHz)

electrical schematic

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

minicircuits.com

REV. A

M118015

ZMSC-2-1W

HY/TD/CP/AM

080602

ALL N

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com

ZMSC-2-1W+ Related Products

	ZMSC-2-1W+	ZMSC-2-1W
Description	Power Splitter/Combiner 2 Way-0 50Î© 1 to 650 MHz	Power Splitter/Combiner 2 Way-0 50Î© 1 to 650 MHz
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Reach Compliance Code	unknow	unknow
Other features	SMA, ISOLATION-MIN (DB):20	SMA, ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω	50 Ω
structure	COAXIAL	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm
Maximum insertion loss	1 dB	1 dB
Maximum operating frequency	650 MHz	650 MHz
Minimum operating frequency	1 MHz	1 MHz
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	COMBINER	COMBINER
Maximum voltage standing wave ratio	1.2	1.2
Base Number Matches	1	1
