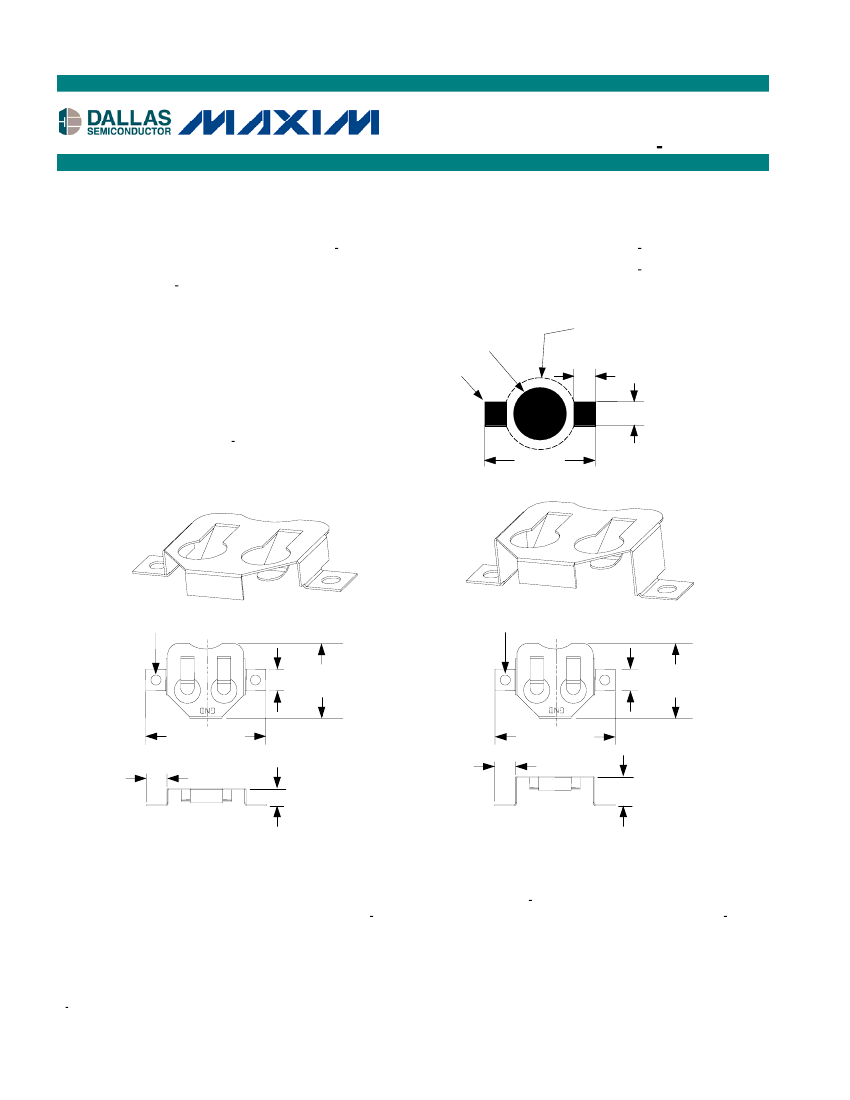

DS9094SM
Surface-Mount iButton Clip
www.maxim-ic.com
FEATURES
Compact Single-Piece, All-Metal Clip for ibutton
®
Mounting
Lowest Profile iButton Mount
Made from 0.25mm Thick Tin-Plated Phosphor
Bronze
Withstands High Temperatures Required for
Surface Mounting
Can be Soldered, Riveted, or Screw-Mounted
Compatible with Leaded and Lead-Free Solder
Processes
Available for F3 and F5 iButton
ORDERING INFORMATION
DS9094SM3+
DS9094SM5+
Clip for F3 iButton
Clip for F5 iButton
MOUNTING PAD LAYOUT
Data pad
Ø 13.97
Ground
Keep-out area
Ø 19.05
5.72
6.35
29.36
DS9094SM3
DS9094SM5
Hole centered
2.35
Hole centered
2.35
5.08 17.57
5.08 17.57
28.09 ± 0.38
4.81
4.01
28.09 ± 0.38
4.81
6.81
All dimensions are in millimeters.
DESCRIPTION
The DS9094SM is a low-cost, surface-mount device that retains a 16.3mm iButton on a printed circuit board. Two
springs that double as ground contacts press the iButton to the data pad on the printed circuit board. The iButton
can be inserted and extracted without special tools. For best results the data contact on the printed circuit board
should be plated with a layer of minimum 0.76µm hard gold over minimum 3.81µm nickel.
iButton is a registered trademark of Dallas Semiconductor.
1 of 1
050207
