Part Number:
Status:
Overview:
Description:
0002081002
Active
mlx
MLX Crimp Terminal 42024, 14-20 AWG, Bag Tin (Sn)
Documents:
Drawing (PDF)
Product Specification PS-42022-0001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Crimp Quality Equipment
MolexKits
Overview
Product Name
Crimp Terminals
42024
Yes
Yes
mlx
MLX™

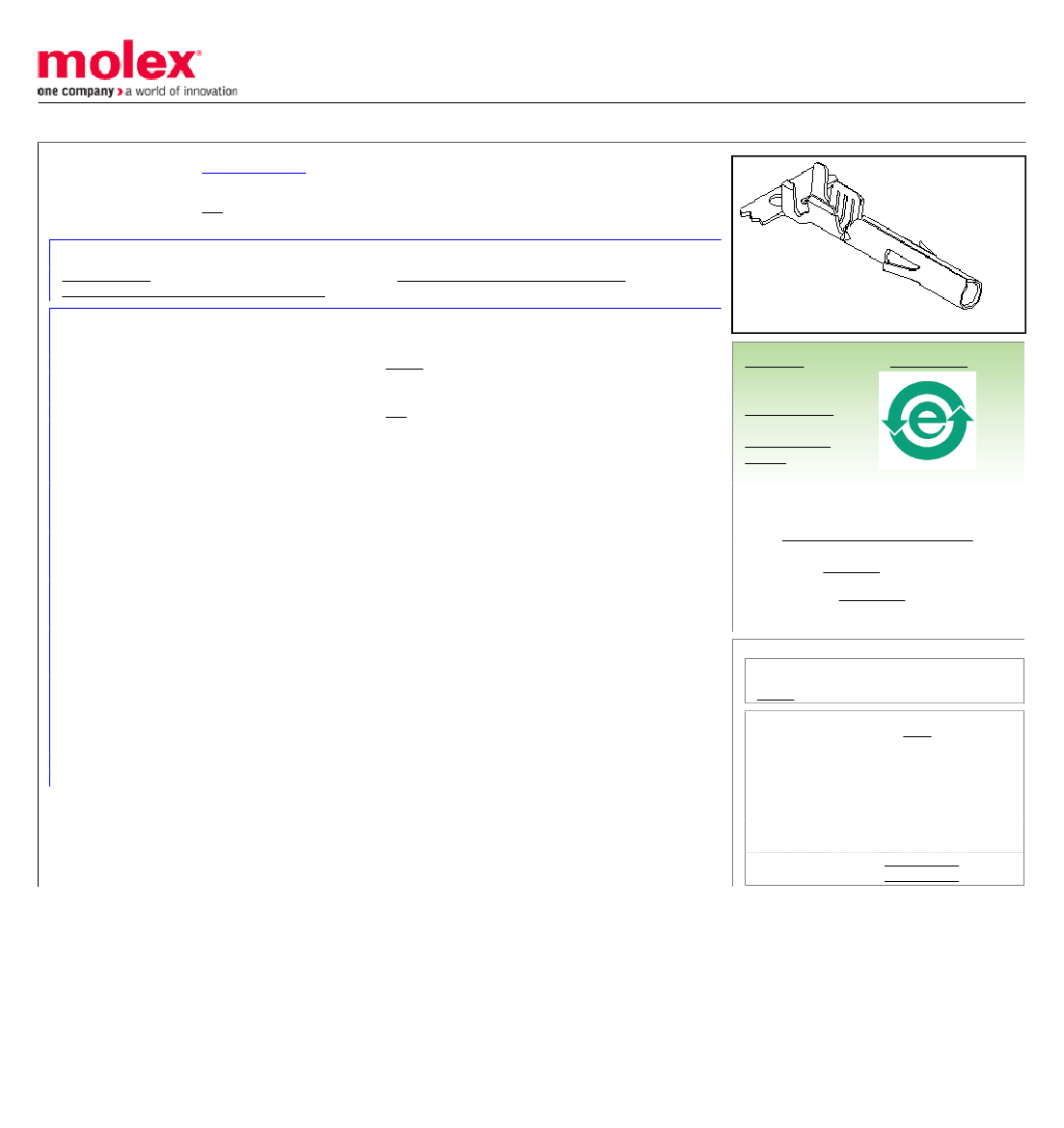

image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Tin
Tin
Bag
20
0.50
20
0.50
Crimp or Compression
1.52-3.30mm (.060-.130")
14, 16, 18, 20
N/A
Material Info
Old Part Number
42024-1A1L
Search Parts in this Series
42024Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool
0011010168
HAND CRIMP TOOL 0638116800
Reference - Drawing Numbers
Product Specification

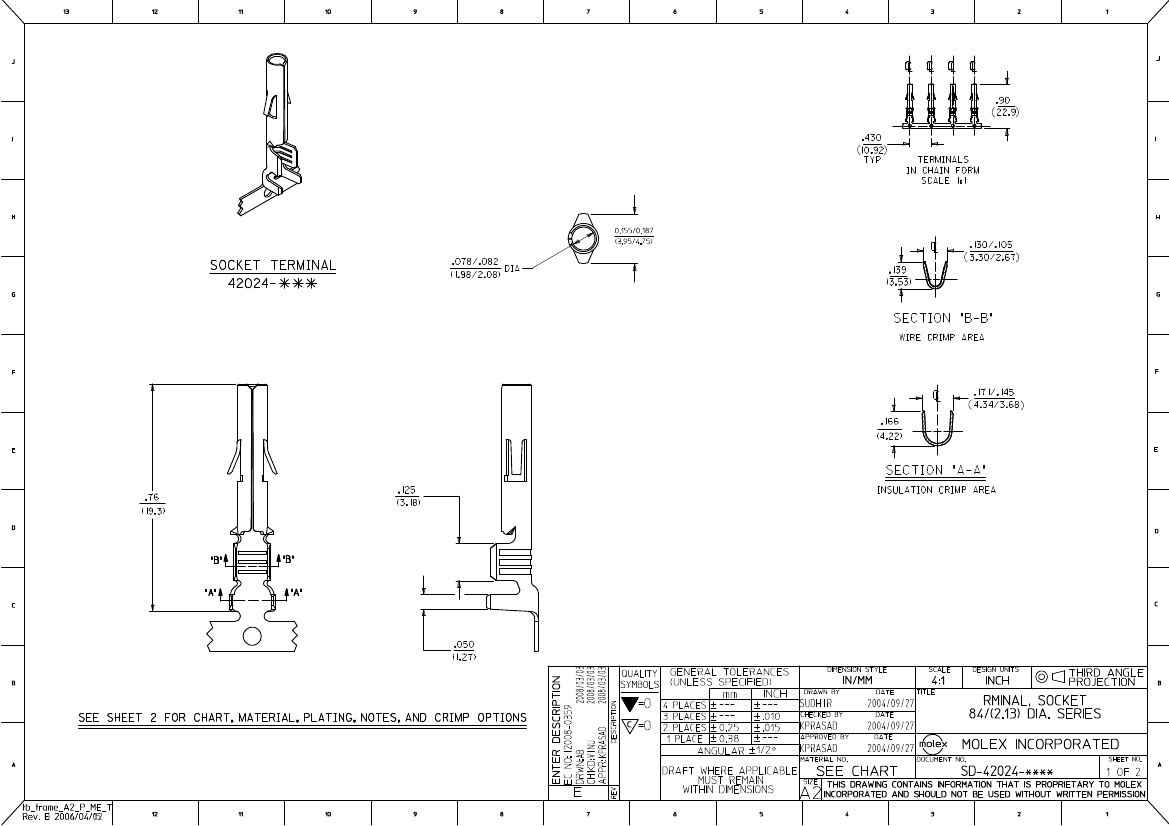

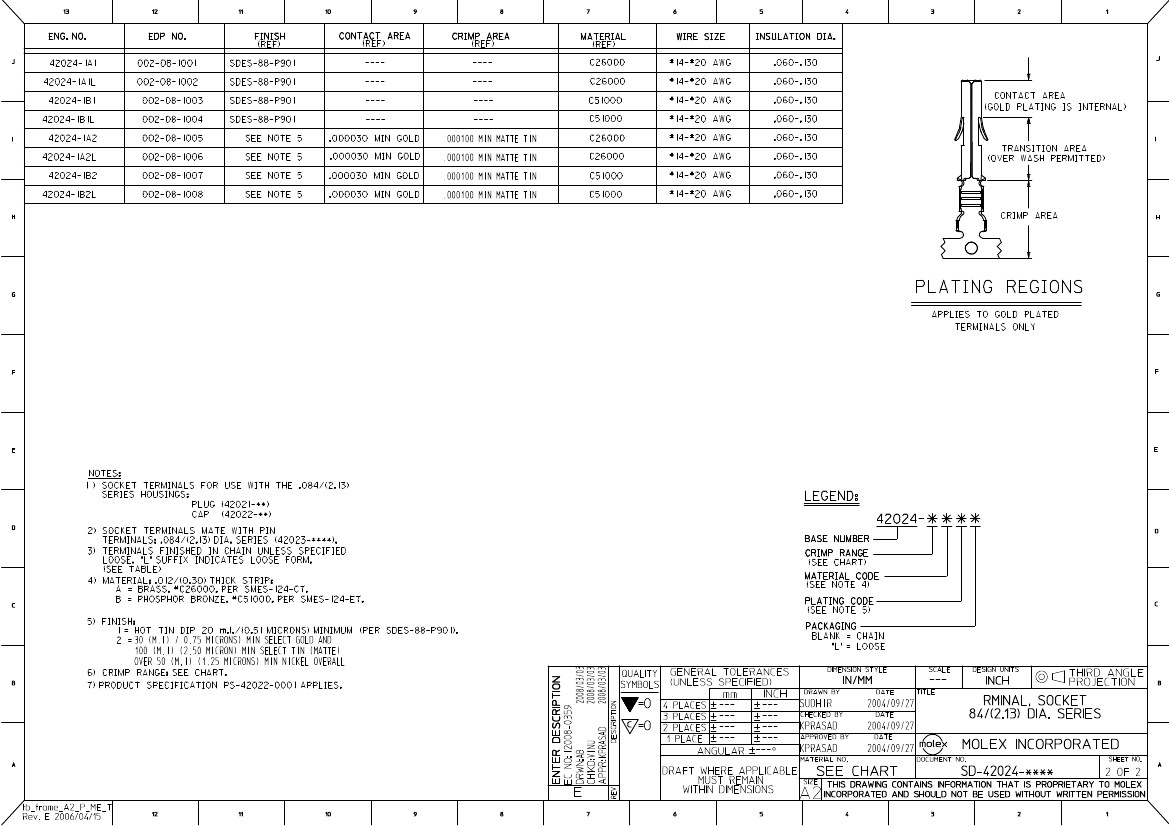

Sales Drawing
PS-42022-0001
SD-42024-****
