2.5V or 3.3V, 200-MHz, 14 Output Zero Delay Buffer
General Features
Output frequency range: 8.3MHz to 200MHz
Input frequency range: 4.2MHz to 125MHz
2.5V or 3.3V operation
Split 2.5V/3.3V outputs
14 Clock outputs: Drive up to 28 clock lines
1 Feedback clock output
2 LVCMOS reference clock inputs
150 pS max output-output skew
PLL bypass mode
‘SpreadTrak’
Output enable/disable
Industrial temperature range: –40°C to +85°C
52 Pin 1.0 mm TQFP Package
RoHS Compliance
ASM5I9775A
14 outputs partitioned in 3 banks of 5, 5, and 4 outputs.
Bank A and Bank B divide the VCO output by 4 or 8 while
Bank C divides by 8 or 12 per SEL(A:C) settings, see
Functional Table.
These dividers allow output to input
ratios of 6:1, 4:1, 3:1, 2:1, 3:2, 4:3, 1:1, and 2:3. Each
LVCMOS compatible output can drive 50Ω series or
parallel
terminated
transmission
lines.
For
series
terminated transmission lines, each output can drive one
or two traces giving the device an effective fanout of 1:28.
The PLL is ensured stable, given that the VCO is
configured to run between 200 MHz and 500 MHz. This
allows a wide range of output frequencies from 8.3 MHz
to 200 MHz. For normal operation, the external feedback
input, FB_IN, is connected to the feedback output,
FB_OUT. The internal VCO is running at multiples of the
input reference clock set by the feedback divider, see
Frequency Table.
When PLL_EN is LOW, PLL is
bypassed and the reference clock directly feeds the
output dividers. This mode is fully static and the minimum
input clock frequency specification does not apply.
Functional Description
The ASM5I9775A is a low-voltage high-performance
200 MHz PLL-based zero delay buffer designed for high-
speed clock distribution applications. The ASM5I9775A
features two reference clock inputs and provides

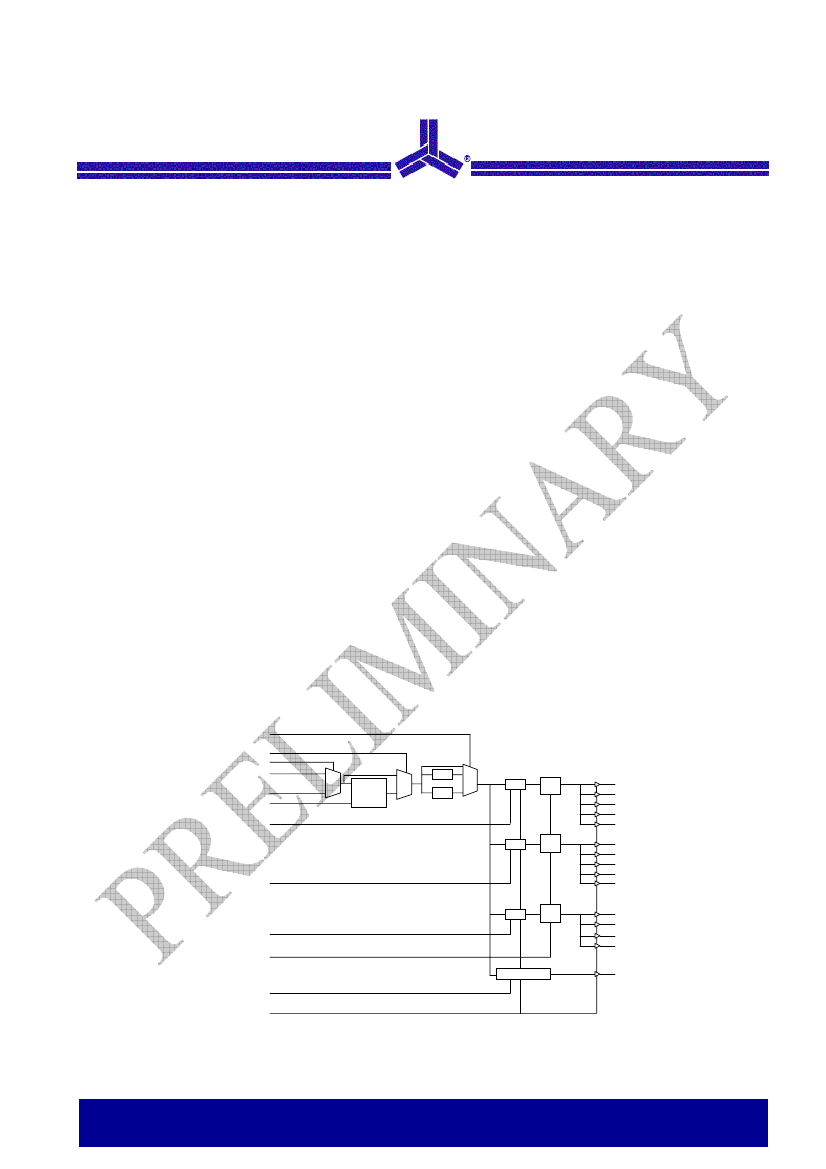

Block Diagram
.
VCO_SEL (1, 0)
PLL_EN
TCLK_SEL
TCLK0
TCLK1
FB_IN
SELA
+2/+4
CLK
STOP
+2
PLL
200-
500MHZ
+2/+4
+4
CLK
STOP
QA0
QA1
QA2
QA3
QA4
QB0
QB1
QB2
QB3
QB4
SELB
+4/+6
SELC
CLK_STP#
CLK
STOP
QC0
QC1
QC2
QC3
FB_OUT
+4/+6/+8/+12
FB_SEL(1.0)
MR#/OE
Alliance Semiconductor
2575, Augustine Drive
•
Santa Clara, CA
•
Tel: 408.855.4900
•
Fax: 408.855.4999
•
www.alsc.com
Notice: The information in this document is subject to change without notice.
June 2005
rev 0.3

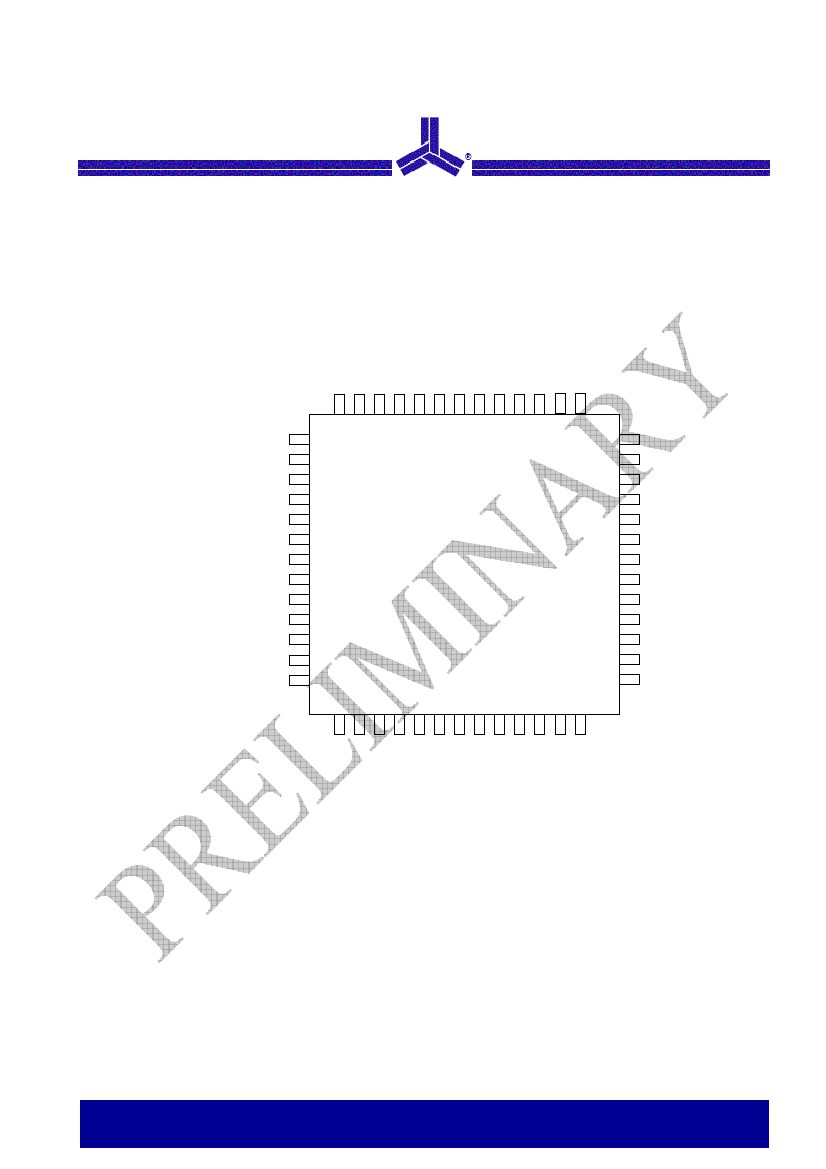

Pin Configuration
ASM5I9775A
VCO_SEL
VDDQC
VDDQC
VDDQB
QC1
QC2
QC3
VSS
VSS
QC0
VSS
VSS
MR#/OE
CLK_STP#
SELB
SELC
PLL_EN
SELA
TCLK_SEL
TCLK0
TCLK1
VCO_SEL1
VDD
AVDD
1
2
3
4
5
6
7
8
9
10
11
12
13
52 51 50 49 48 47 46 45 44 43 42 41 40
NC
QB0
39
38
37
36
35
34
33
32
31
30
29
28
27
VSS
QB1
VDDQB
QB2
VSS
QB3
VDDQB
QB4
FB_IN
VSS
FB_OUT
VDDFB
NC
ASM5I9775A
14 15 16 17 18 19 20 21 22 23 24 25 26
QA3
QA2
QA1
QA4
FB_SEL0
FB_SEL1
VSS
AVSS
VDDQA
VDDQA
VSS
QA0
2.5V or 3.3V, 200-MHz, 14 Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
VDDQA
2 of 12
June 2005
rev 0.3
Pin Description
1
Pin
9
10
16, 18,
21, 23,
25
32, 34,
36, 38,
40
44, 46,
48, 50
29
31
2
3
6
8
11, 52
7, 4, 5
20, 14
17, 22,
26
33, 37,
41
45, 49
28
13
12
15
1, 19,
24, 30,
35, 39,
43, 47,
51
27, 42
ASM5I9775A
Name
TCLK0
TCLK1
QA(4:0)
QB(4:0)
QC(3:0)
FB_OUT
FB_IN
MR#/OE
CLK_STP#
PLL_EN
TCLK_SEL
VCO_SEL(1,0)
SEL(A:C)
FB_SEL(1,0)
VDDQA
VDDQB
VDDQC
VDDFB
AVDD
VDD
AVSS
I/O
I, PD
I, PU
O
O
O
O
I, PU
I, PU
I, PU
I, PU
I, PD
I, PD
I, PD
I, PD
Supply
Supply
Supply
Supply
Supply
Supply
Supply
Type
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
LVCMOS
VDD
VDD
VDD
VDD
VDD
VDD
Ground
Description
LVCMOS/LVTTL reference clock input
LVCMOS/LVTTL reference clock input
Clock output bank A
Clock output bank B
Clock output bank C
Feedback clock output.
Connect to FB_IN for normal operation.
Feedback clock input.
Connect to FB_OUT for normal operation.
This input should be at the same voltage rail as input reference
clock. See
Table 1.
Output enable/disable input.
See
Table 2.
Clock stop enable/disable input.
See
Table 2.
PLL enable/disable input.
See
Table 2.
Reference select input.
See
Table 2.
VCO divider select input.
See
Tables 2, 3 and 4.
Frequency select input, Bank (A:C).
See
Table 3.
Feedback dividers select inputs.
See
Table 4.
2.5V or 3.3V Power supply for bank A output clocks
2,3
2.5V or 3.3V Power supply for bank B output clocks
2,3
2.5V or 3.3V Power supply for bank C output clocks
2,3
2.5V or 3.3V Power supply for feedback output clock
2,3
2.5V or 3.3V Power supply for PLL
2,3
2.5V or 3.3V Power supply for core and inputs
2,3
Analog Ground
VSS
Supply
Ground
Common Ground
NC
No Connection
Notes:
1. PU = Internal pull-up, PD = Internal pull-down
2. A 0.1µF bypass capacitor should be placed as close as possible to each positive power pin (<0.2”). If these bypass capacitors are not close to the pins their
high frequency filtering characteristics will be cancelled by the lead inductance of the traces.
3. AVDD and VDD pins must be connected to a power supply level that is at least equal or higher than that of VDDQA, VDDQB, VDDQC, and VDDFB power
supply pins.
2.5V or 3.3V, 200-MHz, 14 Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
3 of 12
June 2005
rev 0.3
‘SpreadTrak’
Many systems being designed now utilize a technology
called Spread Spectrum Frequency Timing Generation.
ASM5I9975A is designed so as not to filter off the Spread
Spectrum feature of the Reference Input, assuming it
exists.
ASM5I9775A
When a zero delay buffer is not designed to pass the
Spread Spectrum feature through, the result is a significant
amount of tracking skew which may cause problems in the
systems requiring synchronization.
Table 1. Frequency Table
Feedback Output
Divider
÷8
÷12
÷16
÷24
÷32
÷48
÷4
÷6
÷8
÷12
VCO
Input Clock * 8
Input Clock * 12
Input Clock * 16
Input Clock * 24
Input Clock * 32
Input Clock * 48
Input Clock * 4
Input Clock * 6
Input Clock * 8
Input Clock * 12
Input Frequency Range
(AVDD = 3.3V)
25 MHz to 62.5 MHz
16.6 MHz to 41.6 MHz
12.5 MHz to 31.25 MHz
8.3 MHz to 20.8 MHz
6.25 MHz to 15.625 MHz
4.2 MHz to 10.4 MHz
50 MHz to 125 MHz
33.3 MHz to 83.3 MHz
25 MHz to 62.5 MHz
16.6 MHz to 41.6 MHz
Input Frequency Range
(AVDD = 2.5V)
25 MHz to 50 MHz
16.6 MHz to 33.3 MHz
12.5 MHz to 25 MHz
8.3 MHz to 16.6 MHz
6.25 MHz to 12.5 MHz
4.2 MHz to 8.3 MHz
50 MHz to 100 MHz
33.3 MHz to 66.6 MHz
25 MHz to 50 MHz
16.6 MHz to 33.3 MHz
Table 2. Function Table (Configuration controls)
Control
TCLK_SEL
VCO_SEL0
VCO_SEL1
PLL_EN
Default
0
0
0
1
TCLK0
0
TCLK1
VCO÷2 (mid input frequency range)
Gated by VCO_SEL0
Bypass mode, PLL disabled. The input clock
connects to the output dividers
Outputs disabled (three-state) and reset of the
device. During reset/output disable the PLL
feedback loop is open and the VCO running at its
minimum frequency. The device is reset by the
internal power-on reset (POR) circuitry during
power-up.
QA, QB, and QC outputs disabled in LOW state.
FB_OUT is not affected by CLK_STP.
1
VCO÷4 (low input frequency range)
VCO (high input frequency range)
PLL enabled. The VCO output
connects to the output dividers
MR/OE
1
Outputs enabled
CLK_STP
1
Outputs enabled
2.5V or 3.3V, 200-MHz, 14 Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
4 of 12
June 2005
rev 0.3
Table 3. Function Table (Bank A, B, and C)
VCO_SEL1
0
0
0
0
1
1
ASM5I9775A
VCO_SEL0
0
0
1
1
x
x
SELA
0
1
0
1
0
1
QA(4:0)
÷4
÷8
÷8
÷16
÷2
÷4
SELB
0
1
0
1
0
1
QB(4:0)
÷4
÷8
÷8
÷16
÷2
÷4
SELC
0
1
0
1
0
1
QC(3:0)
÷8
÷12
÷16
÷24
÷4
÷6
Table 4. Function Table (FB_OUT)
VCO_SEL1
0
0
0
0
0
0
0
0
1
1
1
1
VCO_SEL0
0
0
0
0
1
1
1
1
x
x
x
x
FB_SEL1
0
0
1
1
0
0
1
1
0
0
1
1
FB_SEL0
0
1
0
1
0
1
0
1
0
1
0
1
FB_OUT
÷8
÷16
÷12
÷24
÷16
÷32
÷24
÷48
÷4
÷8
÷6
÷12
Absolute Maximum Conditions
Parameter
VDD
VDD
V
IN
V
OUT
V
TT
LU
R
PS
T
S
T
A
T
J
Ø
JC
Ø
JA
ESD
H
FIT
Description
DC Supply Voltage
DC Operating Voltage
DC Input Voltage
DC Output Voltage
Output termination Voltage
Latch Up Immunity
Power Supply Ripple
Temperature, Storage
Temperature, Operating Ambient
Temperature, Junction
Dissipation, Junction to Case
Dissipation, Junction to Ambient
ESD Protection (Human Body Model)
Failure in Time
Condition
Functional
Relative to VSS
Relative to VSS
Functional
Ripple Frequency < 100 kHz
Non Functional
Functional
Functional
Functional
Functional
Manufacturing test
Min
-0.3
2.375
-0.3
-0.3
-
200
-
-65
-40
-
-
-
2000
Max
5.5
3.465
VDD+ 0.3
VDD+ 0.3
VDD ÷2
-
150
+150
+85
150
23
55
-
10
Unit
V
V
V
V
V
mA
mVp-p
°C
°C
°C
°C/W
°C/W
Volts
ppm
2.5V or 3.3V, 200-MHz, 14 Output Zero Delay Buffer
Notice: The information in this document is subject to change without notice.
I am a DSP beginner. When I was learning about 7-segment digital tube control, I saw some codes written like this: #define led_7seg (*((unsigned int *)0x02400)) unsigned int uLED[10]={0x024,0x0af,0x94...
INT ReceivePacket( IN NDIS_HANDLE ProtocolBindingContext, IN PNDIS_PACKET Packet ); and NIDS_STATUS Receive( IN NDIS_HANDLE ProtocolBindingContext, IN NDIS_HANDLE MacReceiveContext, IN PVOID HeaderBuf...
[i=s]This post was last edited by tiankai001 on 2014-5-24 14:09[/i] [align=center][size=4]The Inventor's Electronic Design Handbook --- the English original version is here! ! ! [/size][/align] [align...
The rapid development of the Internet has realized high-speed information transmission and resource sharing, greatly facilitating people's lives. Embedded systems are widely used in various electr...[Details]
introduction
With the continuous optimization of surface mount technology (SMT) and the rapid development of chip component manufacturing technology, the application of chip mounters in the el...[Details]
1. Introduction
Automobile pollution is one of the most important issues that people are most concerned about and need to solve urgently. As an important method for detecting automobile exhau...[Details]
introduction
Solar cells and LED lighting are typical applications of new energy and energy-saving and efficient technologies. Solar LED lighting uses solar cells to convert solar energy...[Details]
Power management solutions for today's portable application processors are becoming increasingly integrated. Total power consumption, standby and sleep current consumption affect battery size, bill...[Details]
The data collector of the automatic weather station is generally designed based on a single-chip microcomputer or a PC/104 bus controller. It has the characteristics of good compatibility with PC, low...[Details]
1. What is temperature?
Heat is a type of molecular motion. The hotter an object is, the faster its molecules move. Absolute zero is defined as the temperature at which all molecular motion ...[Details]
To understand how and why OLED power supply affects display image quality, you must first understand OLED display technology and power supply requirements. This article will explain the latest OLED...[Details]
introduction
Incandescent bulbs can emit a variety of light, but in specific applications, only green, red, and yellow light are usually needed - such as traffic lights. If an incand...[Details]
At present, a large number of cooling tower fans, speed fans and special fans are in use in petroleum, chemical, pharmaceutical, metallurgical and other enterprises. Some fans have no monitoring in...[Details]
The above is to use MB1404 as a stereo composite signal transmitter. You can use the internal high-frequency amplifier and oscillator or not! According to my experience, I still recommend beginners...[Details]
Cars equipped with xenon headlights are already common on the road. Whether they are standard equipment on high-end cars or embellishments on modified cars, xenon lamps are gradually becoming a sym...[Details]
During the global semiconductor industry recession, the automotive electronics market has performed strongly, especially the application of car remote control systems has become more and more wides...[Details]
With the explosive growth of electronic functions in cars, will more and more luxurious cars endanger the safety of passengers? This is the origin of the problem of over-electrification of cars. What ...[Details]
In the past 20 years, although the inverters that use power transistors (GTR) as inverter power devices, 8-bit microprocessors as control cores, and realize asynchronous motor speed regulation acco...[Details]
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
