0003091041-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 0003091041-P

0003091041-P: Description4 CONTACT(S), MALE AND FEMALE, POWER CONNECTOR, SOLDER, PLUG; CategoryThe connector; File Size113KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

0003091041-P Overview

4 CONTACT(S), MALE AND FEMALE, POWER CONNECTOR, SOLDER, PLUG

0003091041-P Parametric

Parameter Name	Attribute value
Total number of contacts	4
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	plug
Manufacturer Series	1490
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	power connector
Connector male and female	pins and sockets
empty shell	Yes
collocation information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Shell material	nylon
Terminal type	welding
UL flammability code	94V-2

Preview

Download Datasheet

View All

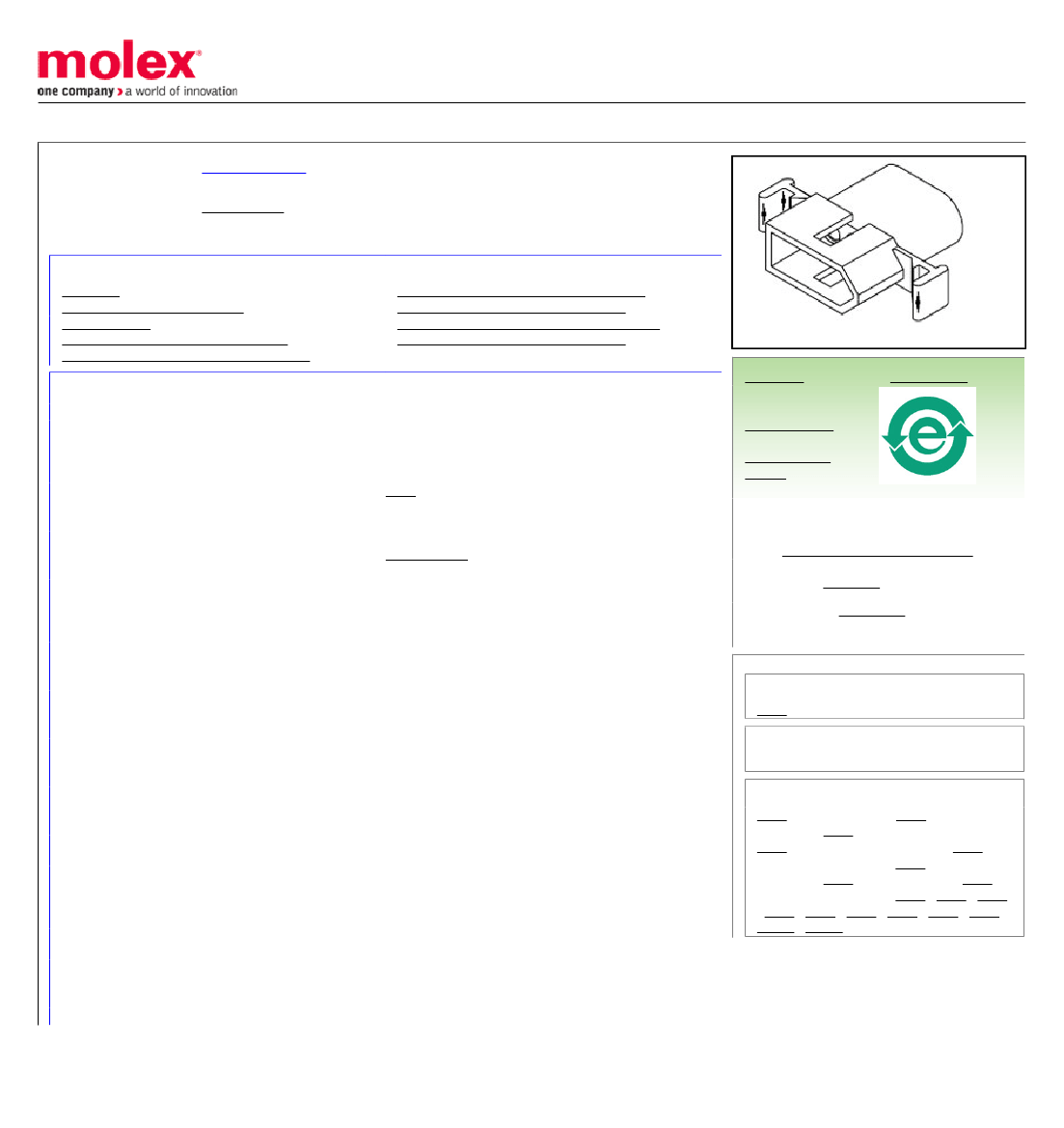

This document was generated on 06/07/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0003092041

Active

standard_093

2.36mm (.093") Diameter Standard .093" Pin and Socket Plug Housing, 4 Circuits,

Single Row

Documents:

3D Model

Packaging Specification (PDF)

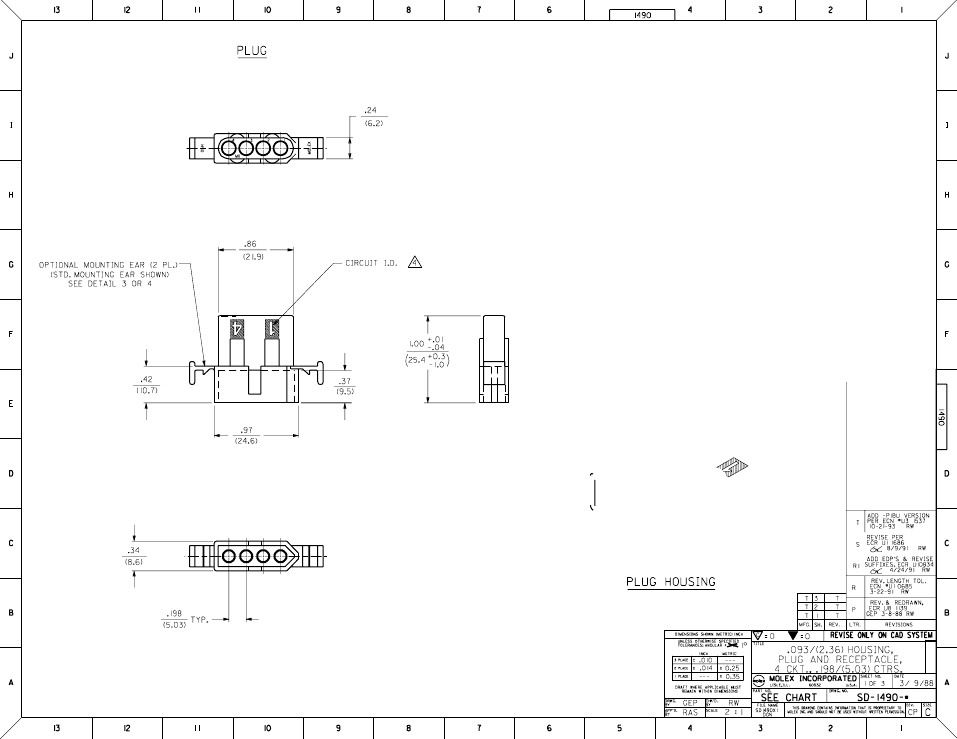

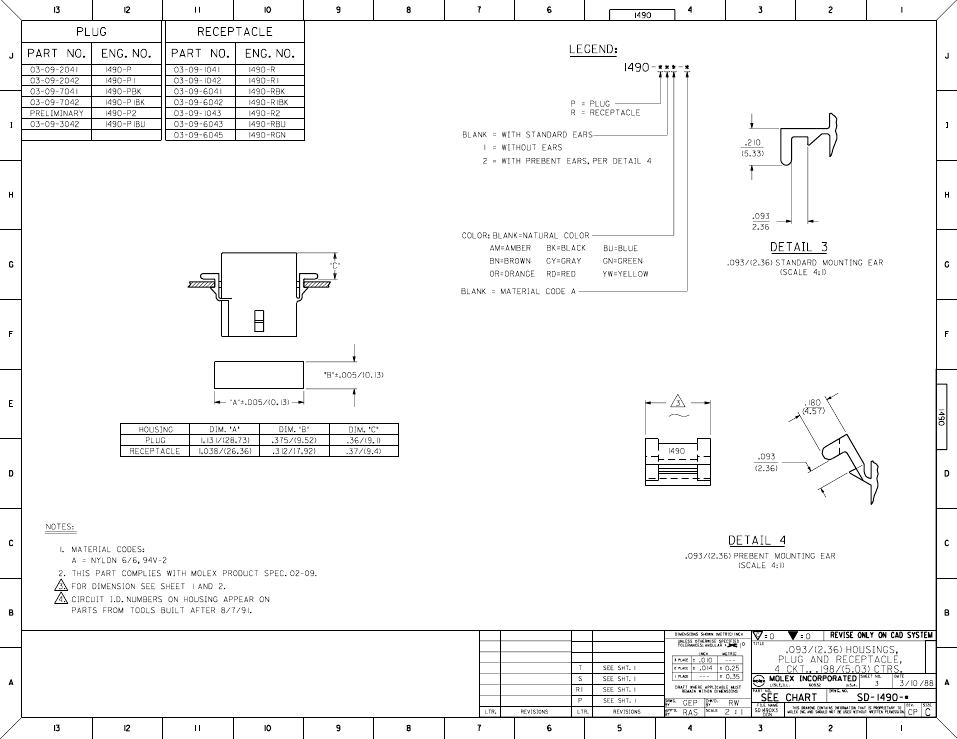

Drawing (PDF)

Product Specification PS-02-09 (PDF)

Product Specification PS-1490-001 (PDF)

Product Specification PS-1490-002 (PDF)

Product Specification PS-42477 (PDF)

Product Specification PS-43660-9999 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Comments

MolexKits

Overview

Product Name

Crimp Housings

1490

14.0A max. can be achieved when housing is used with

42477 or 42478 terminals

Yes

standard_093

Standard .093"

Physical

Circuits (maximum)

Circuits Detail

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

(1 x 4)

Natural

94V-2

Dual

Nylon

Bag

Yes

0.198 In

5.03 mm

-40°C to +105°C

Search Parts in this Series

1490Series

Mates With

1490r

Use With

1189 Crimp Terminals, 1190 Crimp

Terminals, 1376 Male PC Tail Terminals,

1377 Female PC Tail Terminals, 1380

Male Crimp Terminals, 1381 Female Crimp

Terminals, 1433 Crimp Terminals, 1434

Male Crimp Terminals, 1973 , 2151 , 2273

, 2870 , 2871 , 4272 , 4550 , 6271 , 6310 ,

42477 , 42478

Electrical

Current - Maximum per Contact

11A

Material Info

Old Part Number

1490-P

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

PK-1490-001

PS-02-09, PS-1490-001, PS-1490-002, PS-42477,

PS-43660-9999

SD-1490-*

This document was generated on 06/07/2010
