0015474075 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0015474075

0015474075: Description7 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE; CategoryThe connector The connector; File Size143KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0015474075 Overview

7 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE

0015474075 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	STACKED
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	7
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

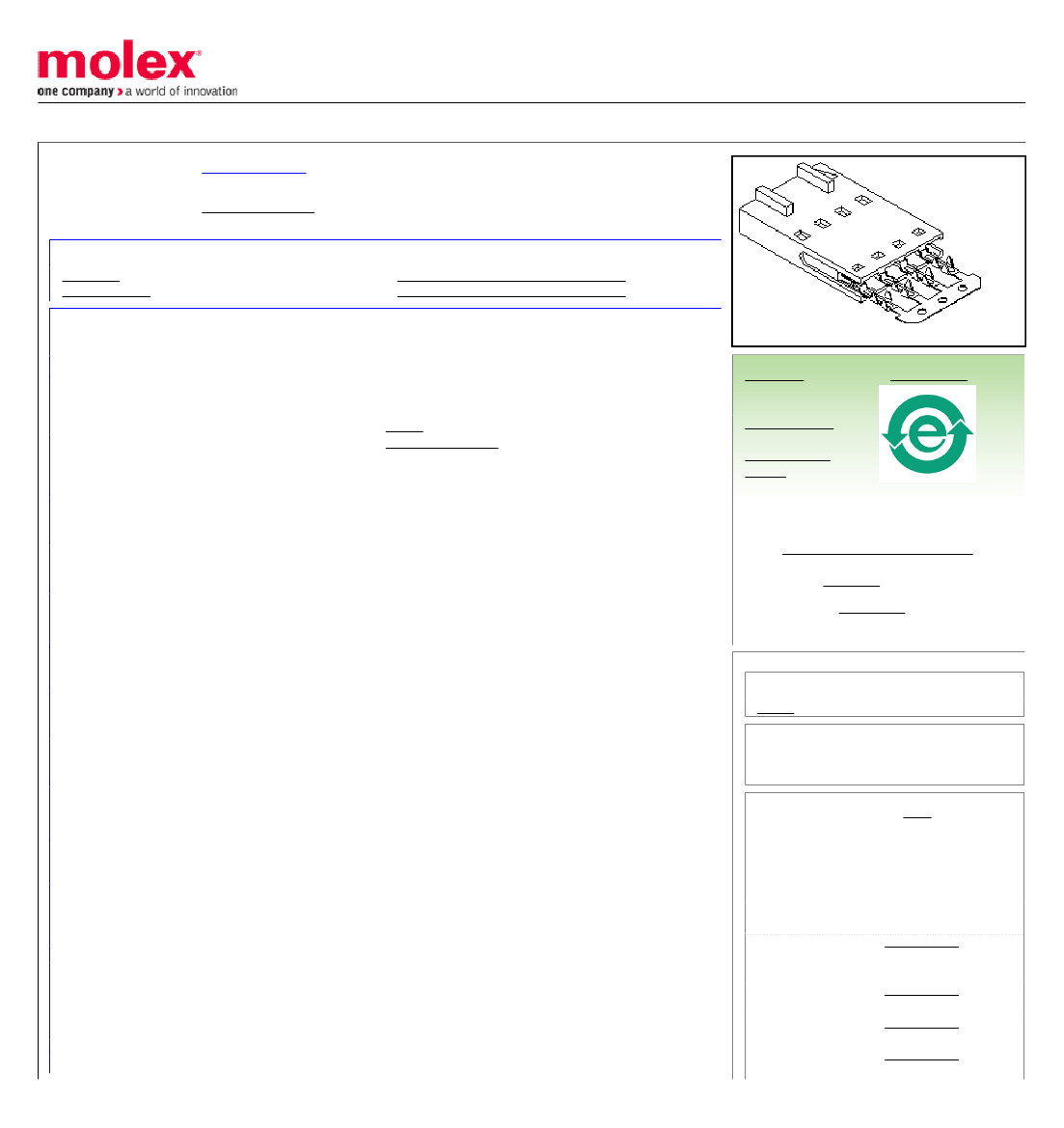

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0015474075

Active

cgrid__sl_products

2.54mm (.100") C-Grid SL™ Single Row, Female, Version C Receptacle, 7 Circuits

Product Specification PS-70430 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR19880

E29179

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Overview

Product Name

FFC/FPC Connectors

70430

cgrid__sl_products

SL™

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Black

N/A

Vertical

94V-0

Phosphor Bronze

Gold

Tin

Polyester Alloy

Vertical

None

Tube

0.100 In

2.54 mm

0.75

1.875

Yes

-40°C to +105°C

IDT or Pierce

FFC/FPC

Search Parts in this Series

70430Series

Mates With

70544, 70546 straight and 70554, 70556

right angle polarized headers

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Manual Ribbon

0638170100

Cable Cutter Hand

Tool

Tool Kit for Standard 0622007400

Manual Press FFC

Standard Manual

0622007800

Press for FFC

TM-42™ FFC and 0622018700

SL™ Termination Kit

Electrical

Current - Maximum per Contact

Voltage - Maximum

1A, 2A

250V

Material Info

Old Part Number

70430-0391

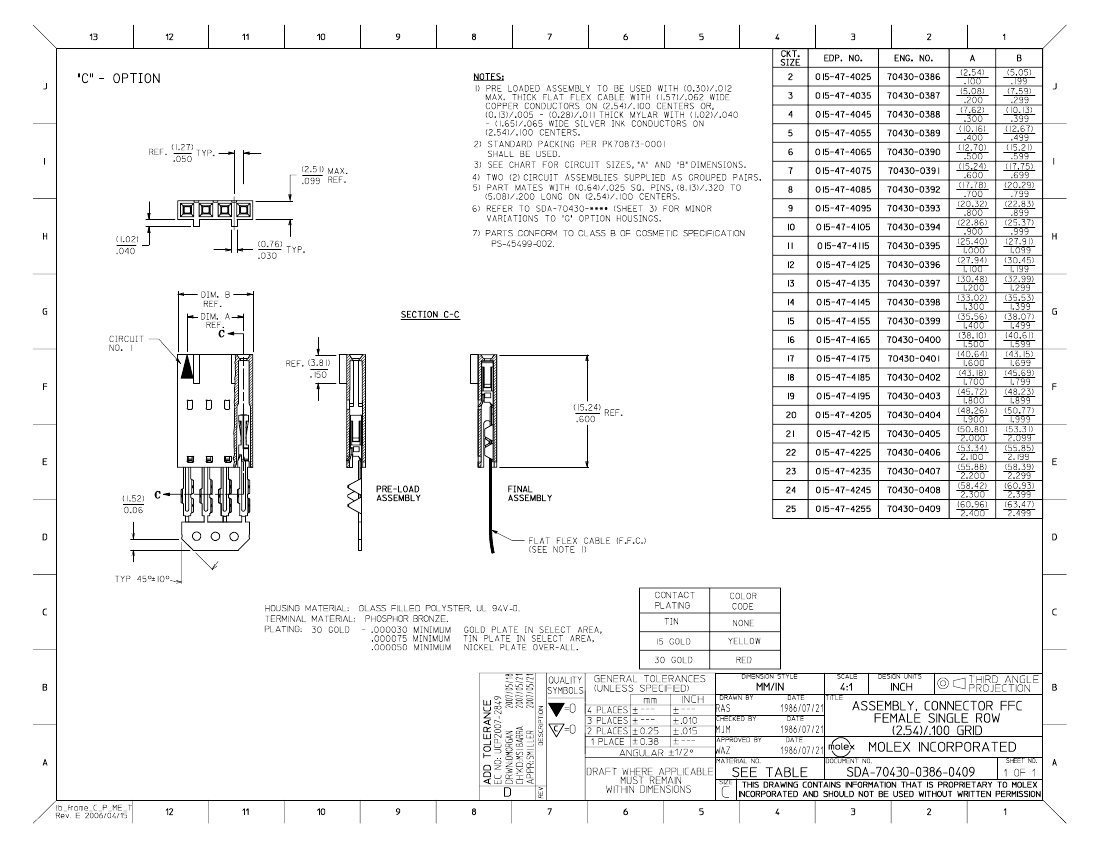

Reference - Drawing Numbers

Product Specification

Sales Drawing

PS-70430

SDA-70430-0386-0409

0015474075 Related Products

	0015474075	015-47-4075	70430-0391
Description	7 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE	7 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE	7 CONTACT(S), FEMALE, FFC/FPC CONNECTOR, IDC, RECEPTACLE
Reach Compliance Code	unknown	unknow	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
Connector type	FFC/FPC CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	GOLD	AU ON NI	-
Contact completed and terminated	Tin (Sn)	TIN OVER NICKEL	-
Contact point gender	FEMALE	FEMALE	-
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-
Installation type	CABLE	CABLE	-
Number of rows loaded	1	1	-
Termination type	IDC	IDC	-
Total number of contacts	7	7	-
Base Number Matches	1	1	-
