Part Number:
Status:
Description:
0015477756
Active
2.54mm (.100") Pitch C-Grid® Header, Through Hole, Dual Row, Vertical, High
Temperature, Shrouded, with Peg, 56 Circuits, 0.76µm (30µ") Gold (Au) Selective
Plating, Tin (Sn) PC Tail Plating
Documents:
3D Model

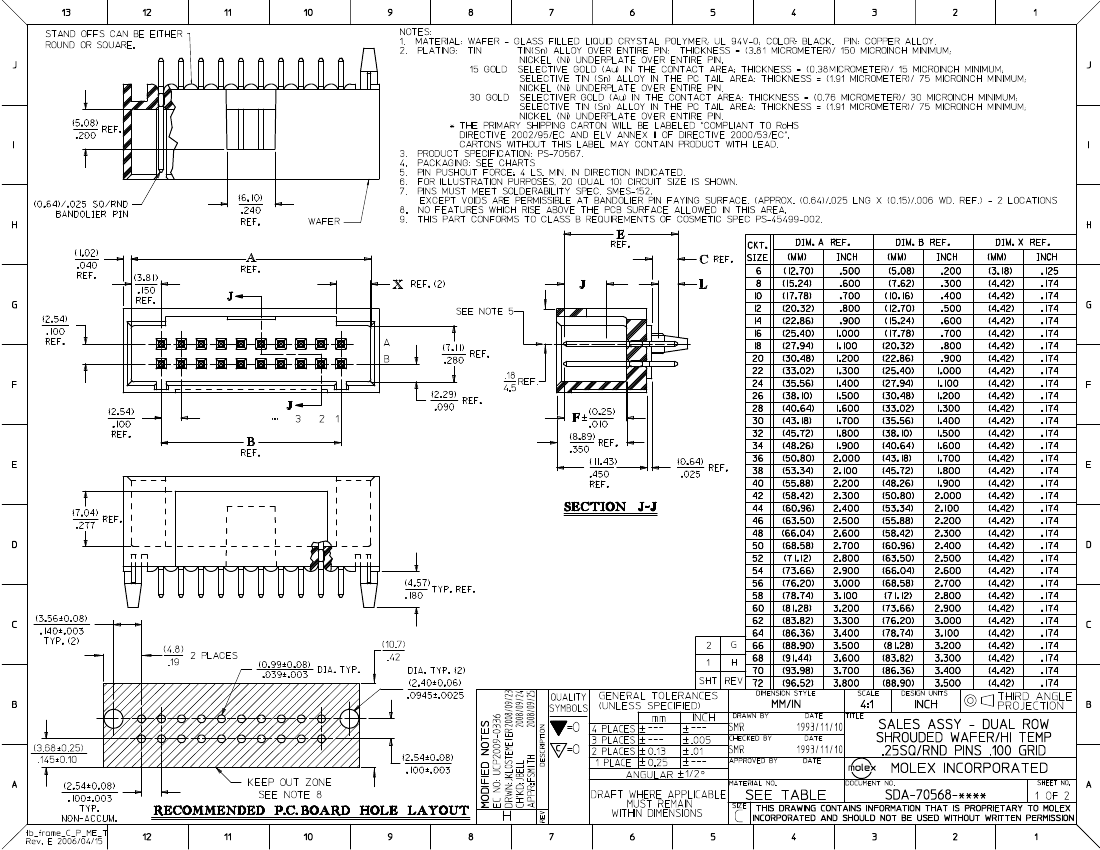

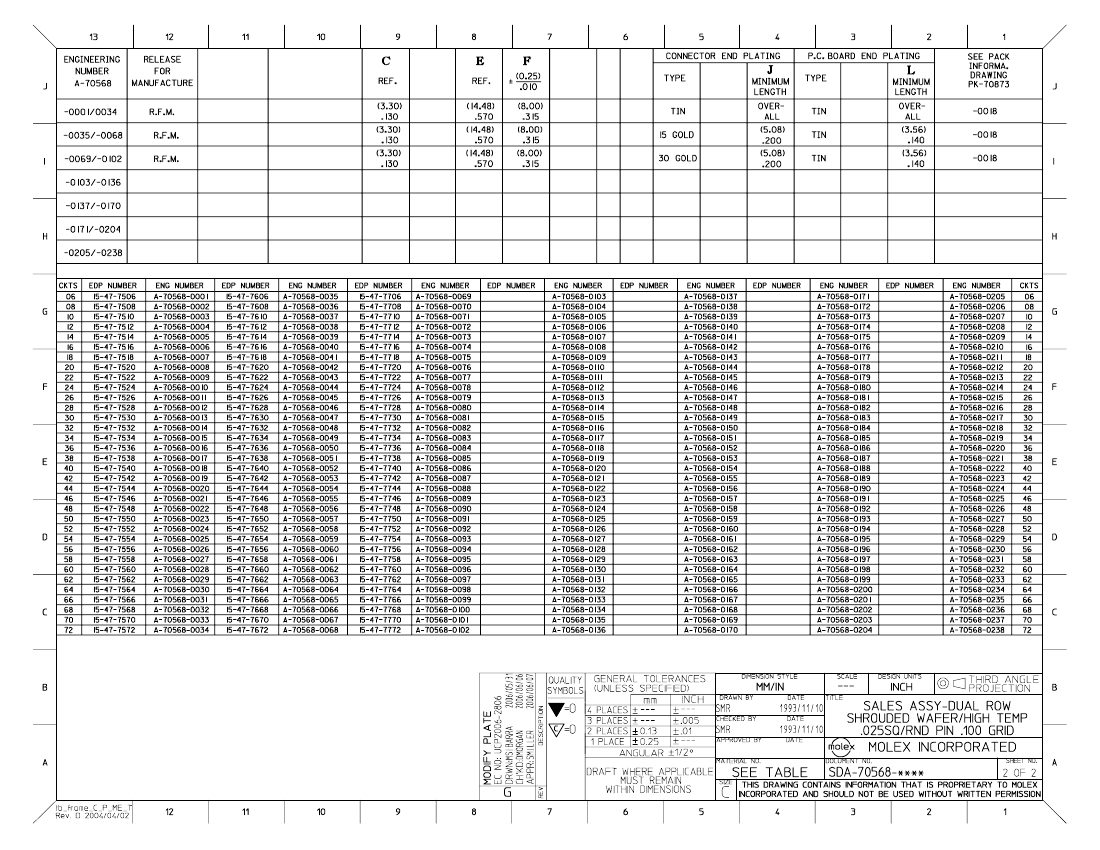

Drawing (PDF)
Product Specification PS-70567 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
UL
General
Product Family
Series
Application
Product Name
PCB Headers
70568
Wire-to-Board
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Color - Resin
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
56
Black
No
94V-0
No
No
None
Yes
Brass, Phosphor Bronze
Gold
High Temperature Thermoplastic
2
Vertical
0.130 In
3.30 mm
No
Yes
0.093 In
2.40 mm
Tube
0.100 In
2.54 mm
0.100 In
2.54 mm
30
0.76
Yes
Yes
Fully
No
No
-55°C to +105°C
Through Hole
Search Parts in this Series
70568Series
Electrical
Current - Maximum per Contact
Voltage - Maximum
2.5A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
SMC & Wave Capable (TH only)
1
245
Material Info
Old Part Number
A-70568-0094
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-70567
SDA-70568-****
