0022436020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0022436020

0022436020: Description2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size113KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0022436020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0022436020	-	-	View	Buy Now

0022436020 Overview

2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

0022436020 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED, SHROUDED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (100)
Contact completed and terminated	TIN (100)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	42249
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 06/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022436020

Active

2.50mm (.098") Pitch SPOX™ Header, Shrouded, Staggered Footprint, 2 Circuits,

White

Documents:

3D Model

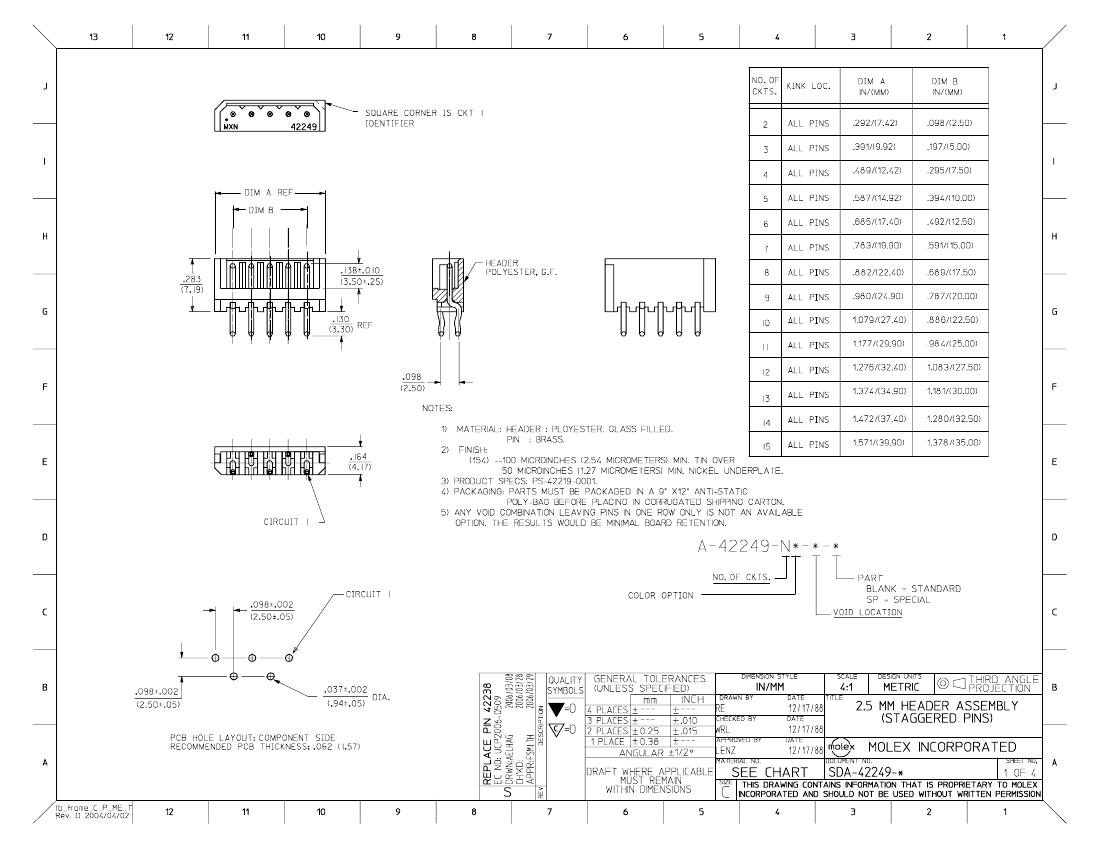

Drawing (PDF)

Product Specification PS-42219-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

42249

Wire-to-Board

SPOX™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Tin

Polyester

Vertical

0.130 In

3.30 mm

Yes

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

101.6

2.54

101.6

2.54

Yes

Partial

0°C to +75°C

Through Hole

Search Parts in this Series

42249Series

Mates With

42219

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V
