0022436140 datasheet, PDF - EEWORLD Datasheet

0022436140: Description2.50mm; File Size113KB，6 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

0022436140 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0022436140	-	-	View	Buy Now

0022436140 Overview

2.50mm

Preview

Download Datasheet

View All

This document was generated on 06/08/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0022436140

Active

2.50mm (.098") Pitch SPOX™ Header, Shrouded, Staggered Footprint, 14 Circuits,

White

Documents:

3D Model

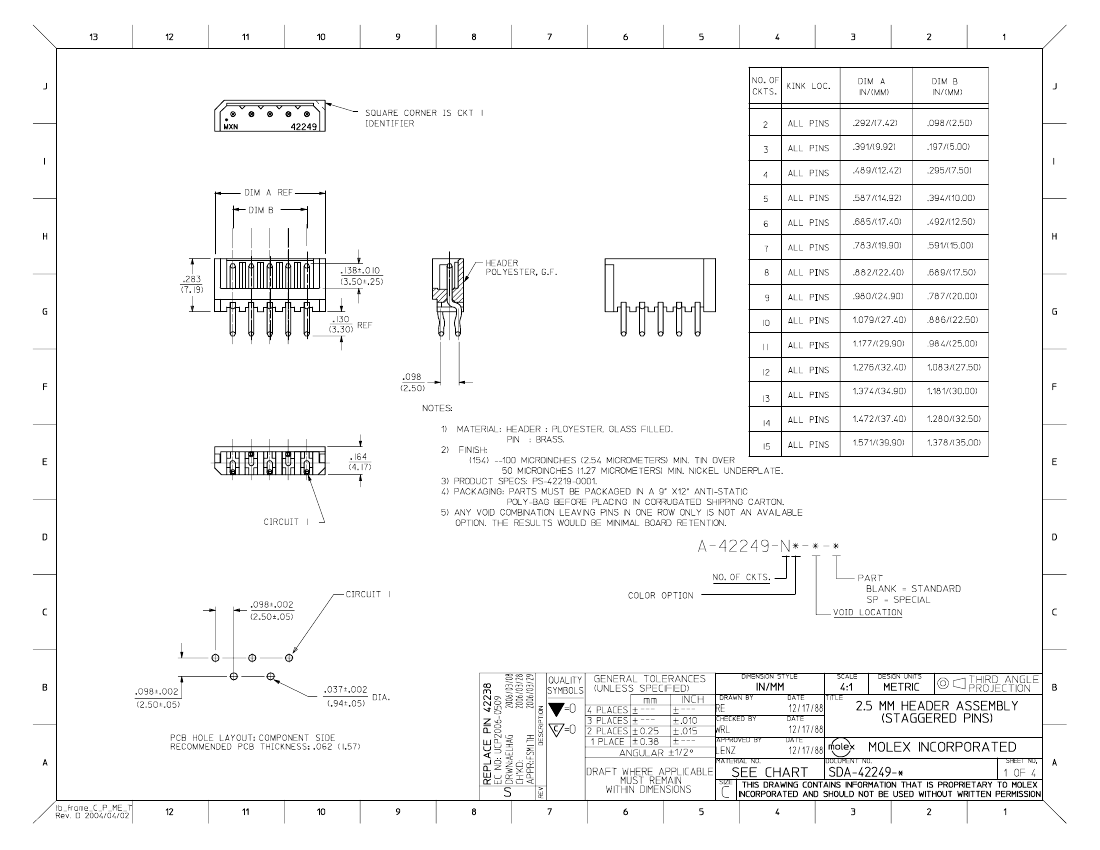

Drawing (PDF)

Product Specification PS-42219-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

42249

Wire-to-Board

SPOX™

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural

94V-0

None

Tin

Polyester

Vertical

0.130 In

3.30 mm

Yes

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

101.6

2.54

101.6

2.54

Yes

Partial

0°C to +75°C

Through Hole

Search Parts in this Series

42249Series

Mates With

42219

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V
