Part Number:
Status:
Overview:
Description:
0022503275
Active
kk
2.54mm (.100") KK® IDT Double Cantilever Contact, 27 Circuits, Tin (Sn), Feed-
Through, Friction Ramp and Polarizing Rib, Green ID Strip
Documents:
3D Model
Drawing (PDF)
Product Specification PSX-7690S (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
General
Product Family
Series
Comments
Crimp Quality Equipment
Overview
Product Name
IDT and Solder Connectors
7720
Version H
Yes
kk
KK®
Physical
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
27
27
Natural
5
94V-2
Female
No
None
Brass
Tin
Tin
Nylon
1
Bag
0.100 In
2.54 mm
0.100 In
2.54 mm
Yes
No
0°C to +75°C
IDT or Pierce
24 Stranded, 26 Solid, 26 Stranded Topcoat
Search Parts in this Series
7720Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Insertion Tool for
0638133504
2.54mm (.100") Pitch
KK® IDT Crimp
Terminals
IDT - Semi-automatic 0011200412
- Bench-Top
Terminator
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Material Info
Old Part Number
7720SC27H

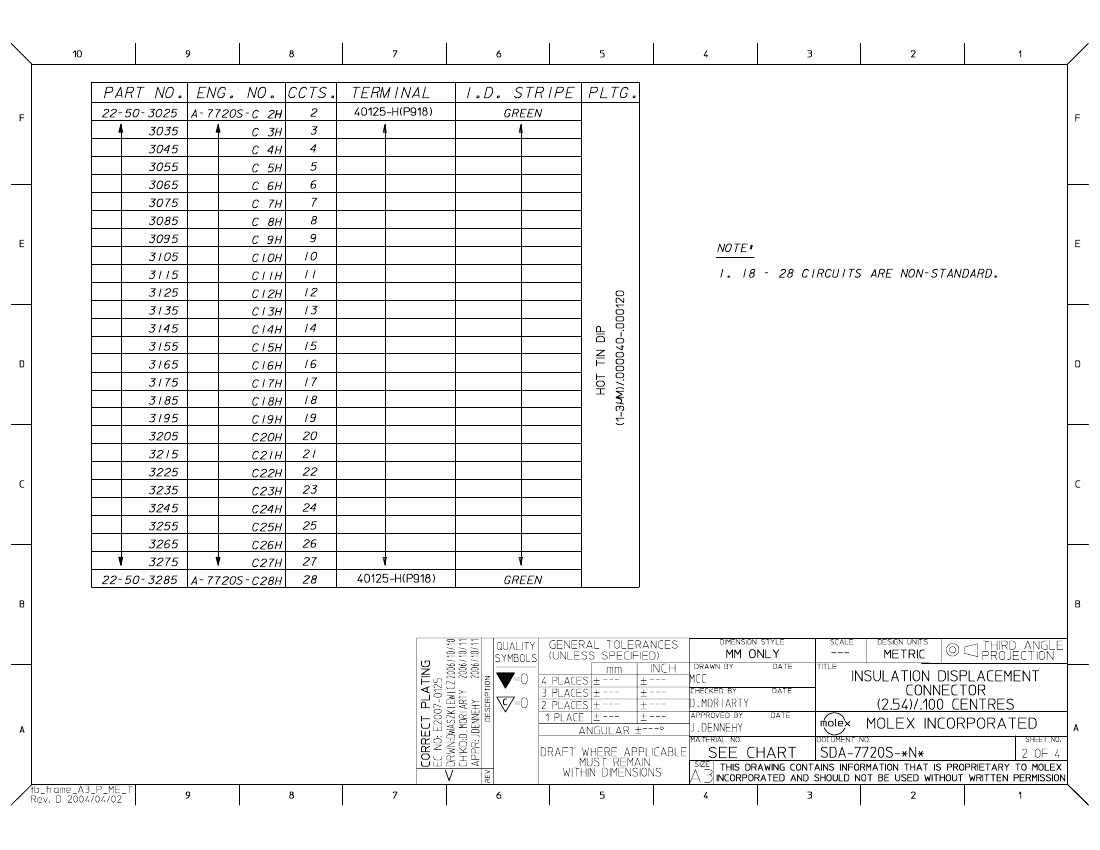

Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
PK-7720-100
PSX-7690S
SDA-7720S-*N*
