This document was generated on 03/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0082285549

Active

1.27mm (.050") Pitch Round Conductor Flat Cable - 28 AWG (7 x 36) Stranded

Topcoat, 49 Circuits, Reel 30.48m (100.0' ) Length

Series

RoHS Certificate of Compliance (PDF)

image - Reference only

EU RoHS

China RoHS

Compliance Status

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Documents:

Drawing (PDF)

Agency Certification

CSA

LR61126

E61522

General

Product Family

Series

Crimp Quality Equipment

Geographic Area

Product Name

Cable

40158

Yes

Asia

Ribbon

Physical

Cable Length

Circuits (Loaded)

Circuits (maximum)

Insulation

Packaging Type

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Temperature Range - Operating

Wire Size AWG

Wire/Cable Type

30.48m (100.0' )

PVC

Reel

0.050 In

1.27 mm

-20°C to +105°C

(7x36) Stranded, Topcoat

Search Parts in this Series

40158Series

Use With

70121 MX-50™ Slimline Ribbon Cable.

90584 Picoflex® PF-50 IDT Receptacle

Electrical

Current - Maximum per Contact

Voltage - Maximum

N/A

300V

Material Info

Old Part Number

40158-49-100B

Reference - Drawing Numbers

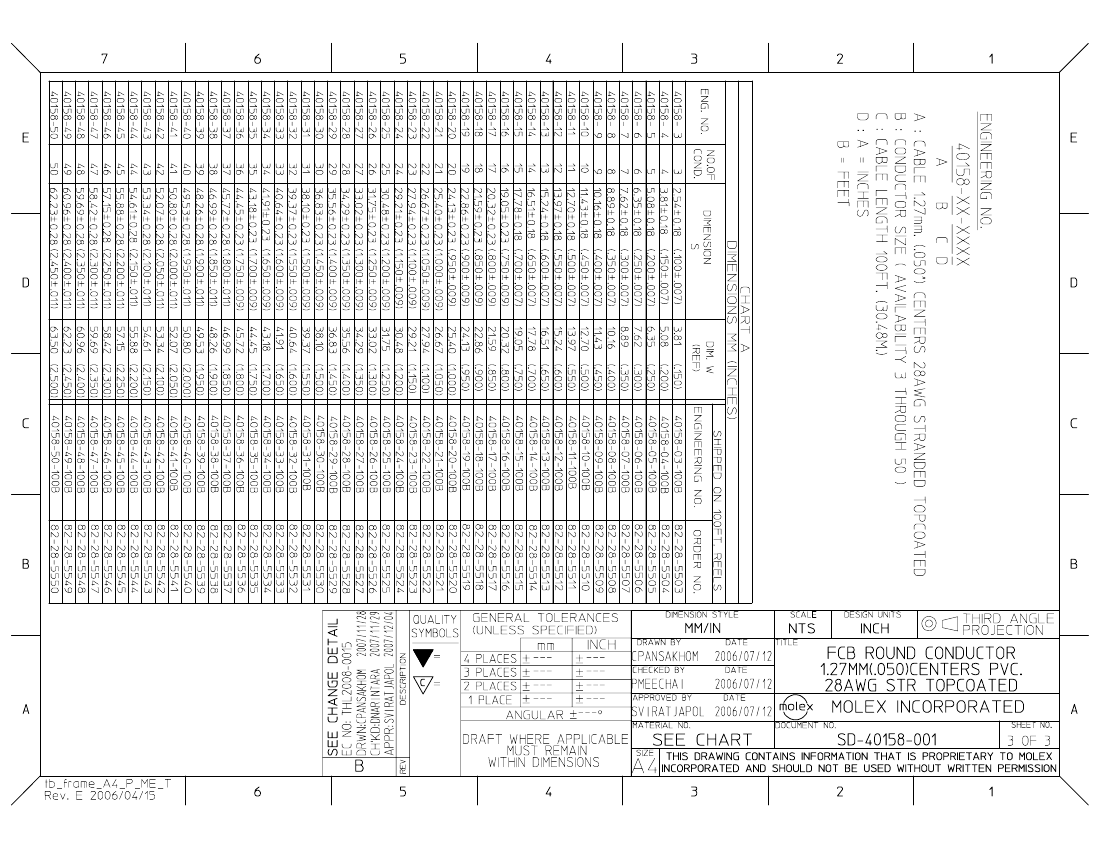

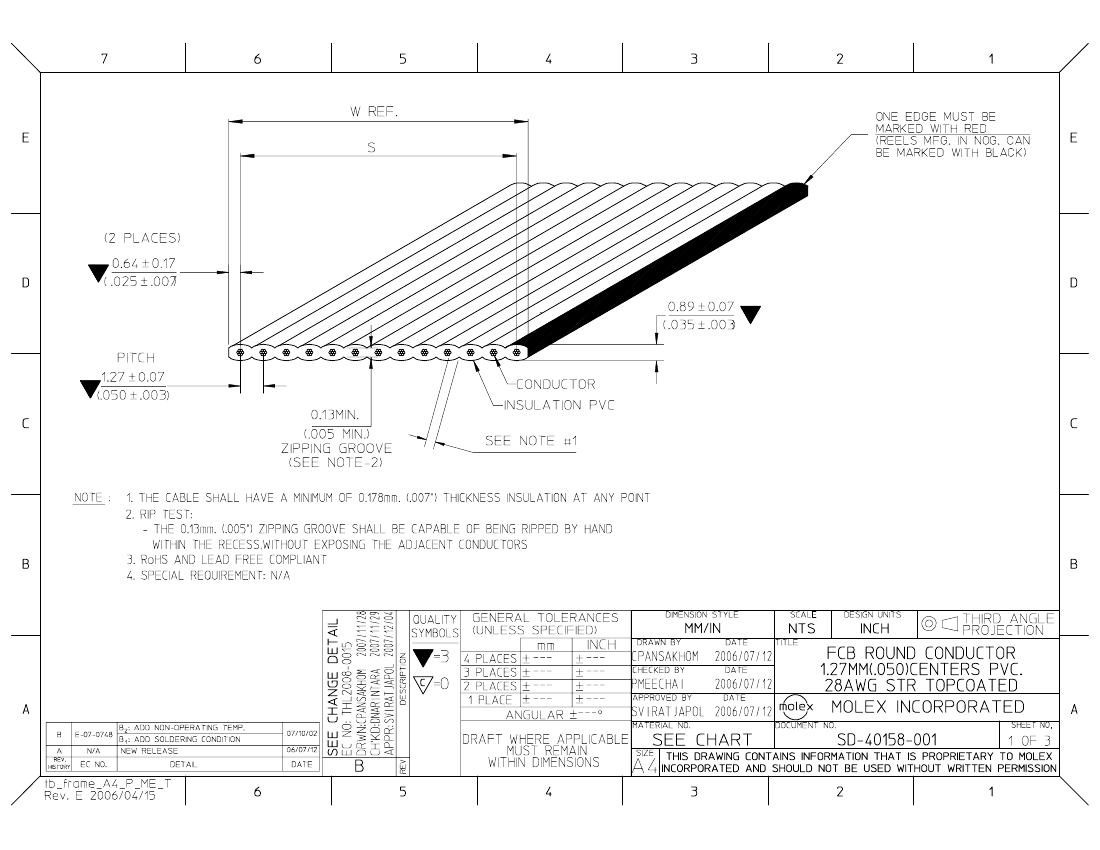

Sales Drawing

SD-40158-001

This document was generated on 03/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
