Output voltage and constant current level programmable
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 12800W for one 19
”
rack shelf
Built-in I C interface, support PMBus protocol
(Optional CANBus protocol)
Protections: Short circuit / Overload / Over voltage /
Over temperature
Optional conformal coating
5 years warranty
2
■
Certificates
Safety: UL/EN/IEC 62368-1
EMC: EN 55032 / 55024
■
Applications
Industrial automation
Distributed power architecture system
Wireless/telecommunication solution
Redundant power system
Electric vehicle charger system
Constant current source system
■
Description

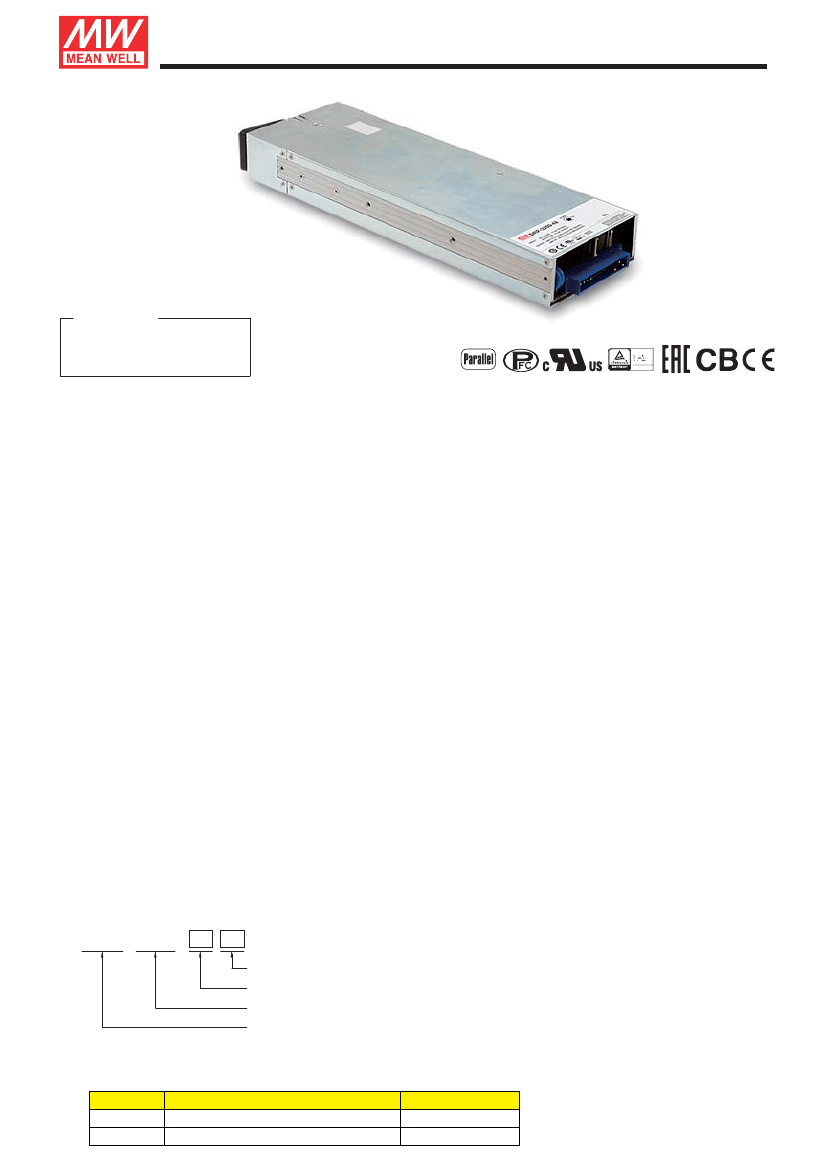

DRP-3200 is a 3.2KW single output rack mountable front end AC/DC power supply with 1U low profile
3
and high power density up to 37W/inch . This series operates at 90~264VAC input voltage and offers
the models with the DC output mostly demanded by the industry. Each model is cooled by the built-in
DC fan with fan speed control and working for the temperature up to 70
℃
. DRP-3200 provides vast design
flexibility by equipping various built-in functions such as the PMBus communication protocol, output
programming, active current sharing (up to 25600W via two 19
”
rack shelves, DHP-1UT), remote ON/OFF
control, auxiliary power, alarm signal, and etc.
Maximum number that can be monitored by master
controller in communication shall be 8 power supplies.
■
Model Encoding / Order Information
DRP - 3200 - 24
Communication protocol option
Output voltage(24V/48V)
Output wattage
Series name
※
Note 1: 19" rack shelf, DHP-1UT, available. Details available on http://www.meanwell.com/
※
Note 2: Control/Monitor unit, RKP-CMU1, available. Details available on http://www.meanwell.com/
Type
Blank
CAN
Communication Protocol
PMBus protocol
CANBus protocol
Note
In Stock
By request
File Name:DRP-3200-SPEC 2018-08-16
3200W Rack Mountable Front End Rectifier
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
EFFICIENCY (Typ.)
INPUT
DRP-3200-24
24V
133A
0 ~ 133A
3192W
23.5 ~ 30V
±0.5%
±0.5%
1500ms, 60ms/230VAC at full load
16ms / 230VAC at 75% load
Note.5
90 ~ 264VAC
DRP-3200
DRP-3200-48
48V
67A
0 ~ 67A
3216W
480mVp-p
47.5 ~ 58.8V
±1.0%
±0.5%
±0.5%
series
RIPPLE & NOISE (max.)
Note.2
300mVp-p
VOLTAGE TOLERANCE
Note.4
±1.0%
9ms / 230VAC at full load
127 ~ 370VDC
47 ~ 63Hz
0.97/230VAC at full load
Note.6
93.5%
94.5%
AC CURRENT (Typ.)
Note.5
17A/230VAC
INRUSH CURRENT (Typ.)
COLD START 55A/230VAC
LEAKAGE CURRENT
OVERLOAD
<1.5mA / 230VAC
105 ~ 115% rated output power
Protection type : Constant current limiting, shut down O/P voltage 5 sec. after O/P voltage is down low, re-power on to recover
31.5 ~ 37.5V
63 ~ 75V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage
OUTPUT VOLTAGE PROGRAMMABLE(PV)
Please refer to the Function Manual in following pages
CONSTANT CURRENT LEVEL PROGRAMMABLE(PC)
Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual in following pages
FUNCTION
REMOTE ON-OFF CONTROL
REMOTE SENSE
AUXILIARY POWER
ALARM SIGNAL
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
By electrical signal or dry contact
Power ON:short
Power OFF:open. Please refer to the Function Manual in following pages
Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages
5V @ 0.3A, tolerance
±
10%, ripple 150mVp-p, 12V @ 0.8A, tolerance
±
10%, ripple 450mVp-p
Isolated TTL signal output for T-Alarm, AC-OK and DC-OK. Please refer to the Function Manual in following pages
-30 ~ +70
℃
(Refer to "Derating Curve")
20 ~ 90% RH non-condensing
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
UL62368-1, TUV EN62368-1, EAC TP TC 004 approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Standard
Conducted
EMC EMISSION
SAFETY &
EMC
(Note 8)
Test Level / Note
EN55032 (CISPR32) / EN55011 (CISPR11) Class B
EN55032 (CISPR32) / EN55011 (CISPR11) Class A
EN61000-3-2
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-6-2
EN61000-4-6
EN61000-4-8
EN61000-4-11
-----
-----
Test Level / Note
Level 3, 8KV air ; Level 2, 4KV contact
Level 3
Level 3
2KV/Line-Line 4KV/Line-Earth
Level 3
Level 4
>95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
MIL-HDBK-217F (25
℃
)
Radiated
Harmonic Current
Voltage Flicker
EN55024 , EN61204-3, EN61000-6-2
Parameter
ESD
Radiated
EFT / Burst
Surge
Conducted
Magnetic Field
Voltage Dips and Interruptions
EMC IMMUNITY
MTBF
OTHERS
DIMENSION
PACKING
NOTE
176.1K hrs min.
Telcordia SR-332 (Bellcore) ; 44.5K hrs min.
325*107*41mm (L*W*H)
2.65Kg;4pcs/11.6Kg/0.87CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Under parallel operation ripple of the output voltage may be higher than the SPEC at light load condition. It will go back to normal ripple level once the
output load is more than 5%.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The efficiency is measured at 75% load.
7. If use PV signal to adjust Vo, under certain operating conditions, ripple noise of Vo might slightly go over rating defined in this specification.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
9. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:DRP-3200-SPEC 2018-08-16
3200W Rack Mountable Front End Rectifier
BLOCK DIAGRAM
DRP-3200
series
PFC fosc : 110KHz
PWM fosc : 90KHz
+S
I/P
EMI
FILTER
ACTIVE
INRUSH
CURRENT
LIMITING
RECTIFIERS
&
PFC
POWER
SWITCHING
RECTIFIERS
&
FILTER
DETECTION
CIRCUIT
O.V.P.
DETECTION
CIRCUIT
MCU
O.T.P.
TRANSCEIVERS
ORING
FET
+V
-V
-S
ORING FET
CONTROL
PV/PC
DA/DB
T-Alarm
AC-OK
DC-OK
SDA/SCL
(CANH/CANL)
Remote ON-OFF
O.T.P.
AUX
POWER
FAN
MCU
DATA
ISOLATION
AUX. POWER
5V/0.3A
12V/0.8A
RECTIFIERS
&
FILTER
STATIC CHARACTERISTICS
100
DERATING LOADs vs INPUT VOLTAGE
MODEL
24V
3192W
133A
1596W
66.5A
48V
3216W
67A
1608W
33.5A
INPUT
180~305VAC
90VAC
LOAD (%)
50
90
100
115
180
264
INPUT VOLTAGE (VAC) 60Hz
DERATING CURVE
EFFICIENCY vs LOAD (48V MODEL)
96
100
80
94
EFFICIENCY (%)
-10
0
15
30
50
60
70
(HORIZONTAL)
230VAC
Input only
60
92
90
88
86
LOAD (%)
50
40
20
-30
-25
84
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
LOAD
◎
The curve above is measured at 230VAC.
AMBIENT TEMPERATURE (
℃
)
File Name:DRP-3200-SPEC 2018-08-16
3200W Rack Mountable Front End Rectifier
FUNCTION MANUAL

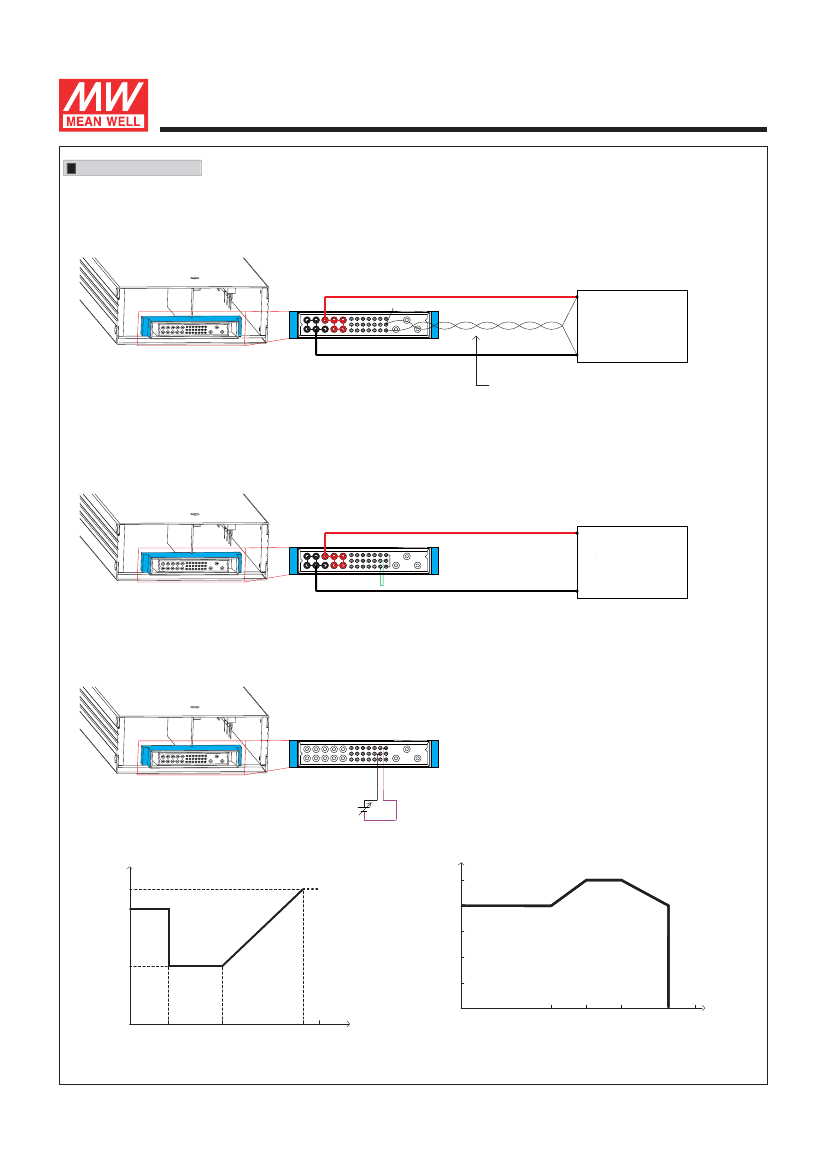

1. Voltage Drop Compensation
1.1 Remote Sense
※
The Remote Sense compensates voltage drop on the load wiring up to 0.5V
DRP-3200
series
PIN30
+S
+V
LOAD
PIN31 -S
-V
Sense lines should be twisted in pairs to minimize noise pick-up.
◎
The +S signal should be connected to the positive terminal of the load whereas -S signal to the negative terminal.
1.2 Local Sense
※
The +S,-S have to be connected to the +V(signal),-V(signal), respectively, as the following diagram, in order to get the correct output voltage if Remote
Sense is not used.
PIN29
-V(signal)
+V
LOAD
PIN28 +V(signal) PIN30 +S
PIN31 -S
-V
2. Output Voltage Programming (or, PV / remote voltage programming / remote adjust / margin programming / dynamic voltage trim)
※
In addition to the adjustment via the built-in potentiometer, the output voltage can be trimmed to 50~125% of the nominal voltage by applying
EXTERNAL VOLTAGE.
PIN27 PV
EXTERNAL VOLTAGE (DC)
PIN29 -V(signal)
◎
For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
Vout
100
OUTPUT VOLTAGE(%)
OUTPUT CURRENT (%)
125
100
80
60
40
20
50
50
0
0.4
1
4.7
5
90
95
100
125
V
V
OUTPUT VOLTAGE (%)
EXTERNAL VOLTAGE (DC)
◎
The rated current should change with the Output Voltage Programming accordingly.
◎
For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
File Name:DRP-3200-SPEC 2018-08-16
3200W Rack Mountable Front End Rectifier
DRP-3200
series
3. Constant Current Level Programming (or, PC / remote current programming / dynamic current trim)
※
The constant current level can be trimmed to 20~100% of the rated current by applying EXTERNAL VOLTAGE.
※
If setting output current to a much lower level, as output status turns to constant current mode, it might cause higher current ripple under such condition.
PIN26 PC
EXTERNAL VOLTAGE (DC)
PIN29 -V(signal)
◎
For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
Iout
110
OUTPUT CURRENT (%)
100
Non-Linear
20
0.4 1
4.7 5
EXTERNAL VOLTAGE (VDC)
V

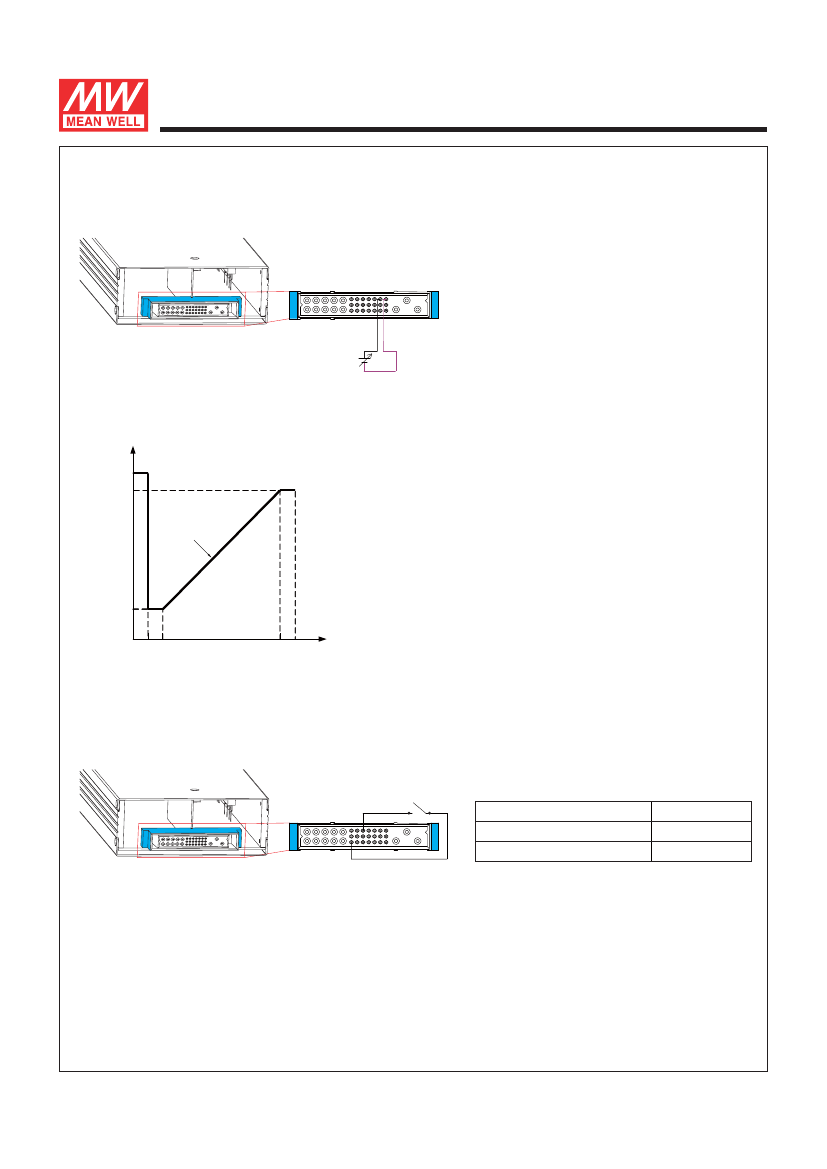

4. Remote ON-OFF Control
The power supply can be turned ON/OFF individually or along with other units by using the "Remote ON-OFF" function.
PIN17 Remote ON-OFF
switch
Between Remote ON-OFF and +5V-AUX
Switch Short
Switch Open
Power Supply Status
ON
OFF
PIN13 +5V-AUX
5.PMBus Communication Interface
DRP-3200 supports PMBus Rev. 1.1 with maximum 100KHz bus speed, allowing information reading, status monitoring, output trimming, etc. For details,
