XC4002A-4PQ100C datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> XC4002A-4PQ100C

Preview

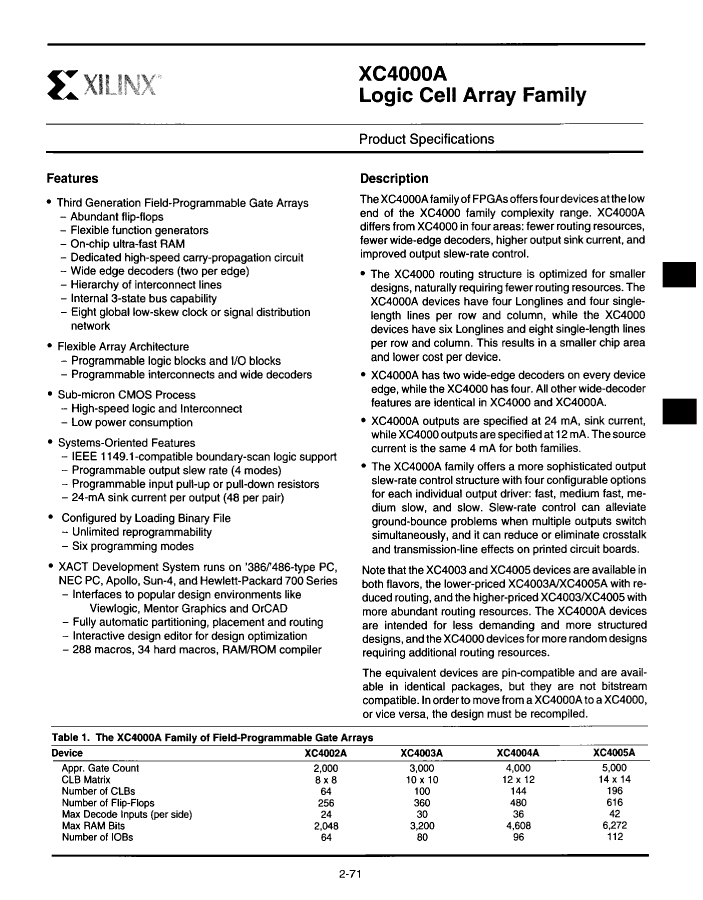

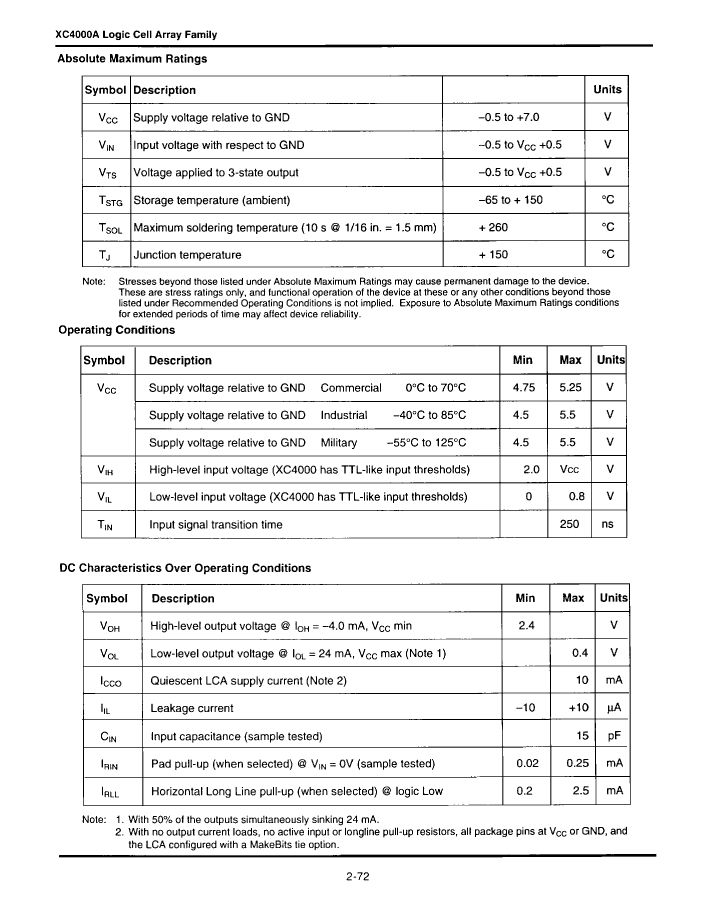

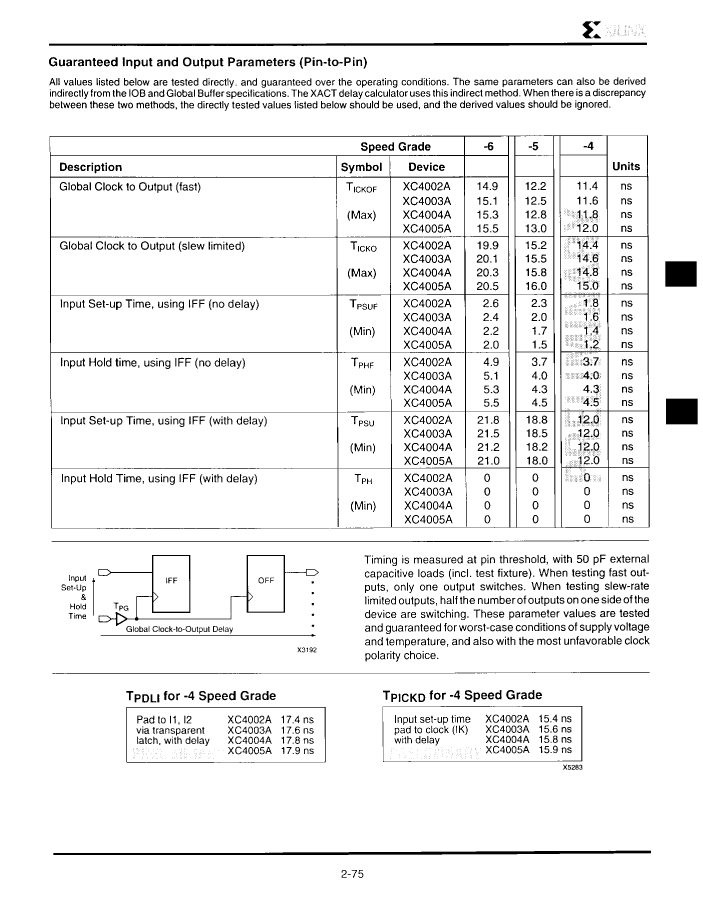

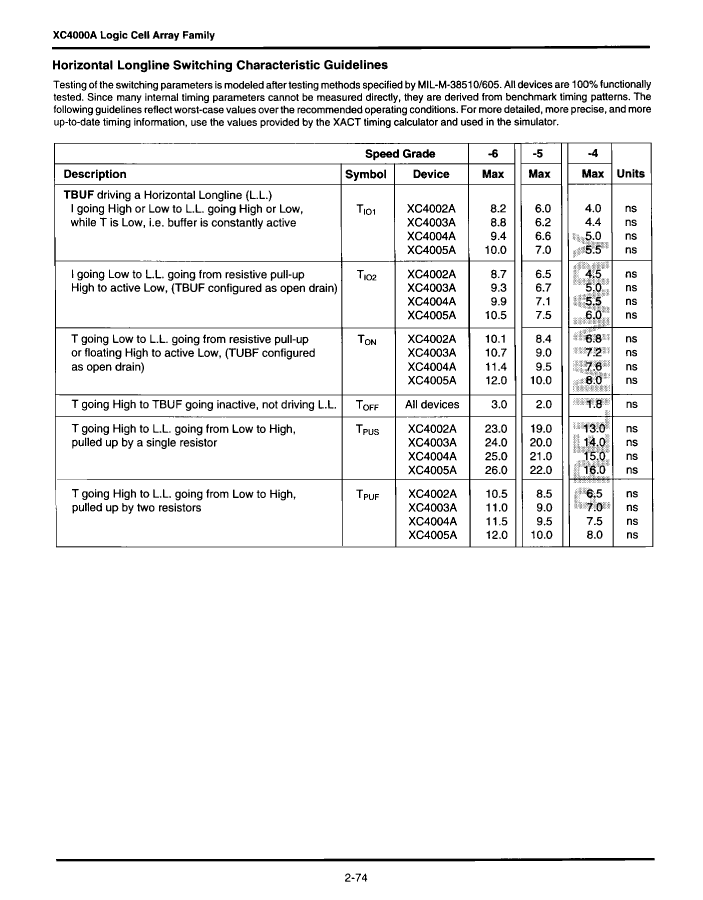

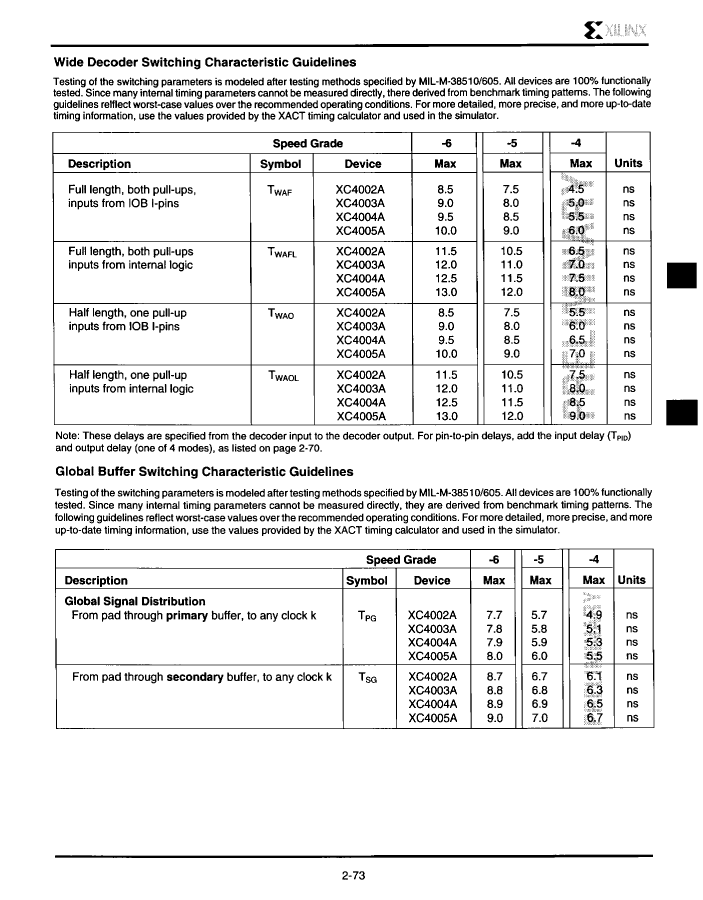

XC4002A-4PQ100C: DescriptionField Programmable Gate Array, 64 CLBs, 1600 Gates, 133.3MHz, 64-Cell, CMOS, PQFP100, PLASTIC, QFP-100; CategoryProgrammable logic devices Programmable logic; File Size690KB，16 Pages; ManufacturerXILINX; Websitehttps://www.xilinx.com/

Download Datasheet Parametric Compare View All

XC4002A-4PQ100C Overview

Field Programmable Gate Array, 64 CLBs, 1600 Gates, 133.3MHz, 64-Cell, CMOS, PQFP100, PLASTIC, QFP-100

XC4002A-4PQ100C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	XILINX
Parts packaging code	QFP
package instruction	QFP, QFP100,.7X.9
Contacts	100
Reach Compliance Code	_compli
ECCN code	3A001.A.7.A
Other features	MAX. 64 I/OS; 256 FLIP-FLOPS; TYP. GATES = 1600 - 2000
maximum clock frequency	133.3 MHz
Combined latency of CLB-Max	4 ns
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
Humidity sensitivity level	3
Configurable number of logic blocks	64
Equivalent number of gates	1600
Number of entries	64
Number of logical units	64
Output times	64
Number of terminals	100
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64 CLBS, 1600 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.7X.9
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	2.87 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm

Preview

Download Datasheet

View All

XC4002A-4PQ100C Related Products

	XC4002A-4PQ100C	XC4002A-4PG120C	XC4002A-4VQ100C	XC4002A-4PC84C	XC4004A-4TQ144C
Description	Field Programmable Gate Array, 64 CLBs, 1600 Gates, 133.3MHz, 64-Cell, CMOS, PQFP100, PLASTIC, QFP-100	Field Programmable Gate Array, 64 CLBs, 1600 Gates, 133.3MHz, 152-Cell, CMOS, CPGA120, CERAMIC, PGA-120	Field Programmable Gate Array, 64 CLBs, 1600 Gates, 133.3MHz, 64-Cell, CMOS, PQFP100, PLASTIC, VQFP-100	Field Programmable Gate Array, 64 CLBs, 1600 Gates, 133.3MHz, 64-Cell, CMOS, PQCC84, PLASTIC, LCC-84	Field Programmable Gate Array, 144 CLBs, 3200 Gates, 133.3MHz, 144-Cell, CMOS, PQFP144, PLASTIC, TQFP-144
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	incompatible
Maker	XILINX	XILINX	XILINX	XILINX	XILINX
Parts packaging code	QFP	PGA	QFP	LCC	QFP
package instruction	QFP, QFP100,.7X.9	PGA, PGA120,13X13	FQFP, TQFP100,.63SQ	PLASTIC, LCC-84	LFQFP, QFP144,.87SQ,20
Contacts	100	120	100	84	144
Reach Compliance Code	_compli	unknown	unknown	unknown	_compli
ECCN code	3A001.A.7.A	EAR99	EAR99	EAR99	3A991
Other features	MAX. 64 I/OS; 256 FLIP-FLOPS; TYP. GATES = 1600 - 2000	MAX. 64 I/OS; 256 FLIP-FLOPS; TYP. GATES = 1600 - 2000	MAX. 64 I/OS; 256 FLIP-FLOPS; TYP. GATES = 1600 - 2000	MAX. 64 I/OS; 256 FLIP-FLOPS; TYP. GATES = 1600 - 2000	MAX. 96 I/OS; 480 FLIP-FLOPS; TYP. GATES = 3200 - 4000
maximum clock frequency	133.3 MHz	133.3 MHz	133.3 MHz	133.3 MHz	133.3 MHz
Combined latency of CLB-Max	4 ns	4 ns	4 ns	4 ns	4 ns
JESD-30 code	R-PQFP-G100	S-CPGA-P120	S-PQFP-G100	S-PQCC-J84	S-PQFP-G144
length	20 mm	34.544 mm	14 mm	29.3116 mm	20 mm
Configurable number of logic blocks	64	64	64	64	144
Equivalent number of gates	1600	1600	1600	1600	3200
Number of entries	64	80	64	64	96
Number of logical units	64	152	64	64	144
Output times	64	80	64	64	96
Number of terminals	100	120	100	84	144
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64 CLBS, 1600 GATES	64 CLBS, 1600 GATES	64 CLBS, 1600 GATES	64 CLBS, 1600 GATES	144 CLBS, 3200 GATES
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	PGA	FQFP	QCCJ	LFQFP
Encapsulate equivalent code	QFP100,.7X.9	PGA120,13X13	TQFP100,.63SQ	LDCC84,1.2SQ	QFP144,.87SQ,20
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK	GRID ARRAY	FLATPACK, FINE PITCH	CHIP CARRIER	FLATPACK, LOW PROFILE, FINE PITCH
power supply	5 V	5 V	5 V	5 V	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.87 mm	3.81 mm	2.07 mm	4.699 mm	1.6 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	PIN/PEG	GULL WING	J BEND	GULL WING
Terminal pitch	0.65 mm	2.54 mm	0.5 mm	1.27 mm	0.5 mm
Terminal location	QUAD	PERPENDICULAR	QUAD	QUAD	QUAD
width	14 mm	34.544 mm	14 mm	29.3116 mm	20 mm
JESD-609 code	e0	-	-	e0	e0
Humidity sensitivity level	3	-	3	3	3
Terminal surface	Tin/Lead (Sn85Pb15)	-	-	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
