54LS02/BCA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54LS02/BCA

54LS02/BCA: DescriptionNOR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14; Categorylogic logic; File Size109KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

54LS02/BCA Overview

NOR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14

54LS02/BCA Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknow
series	LS
JESD-30 code	R-CDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	5.4 mA
propagation delay (tpd)	26 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

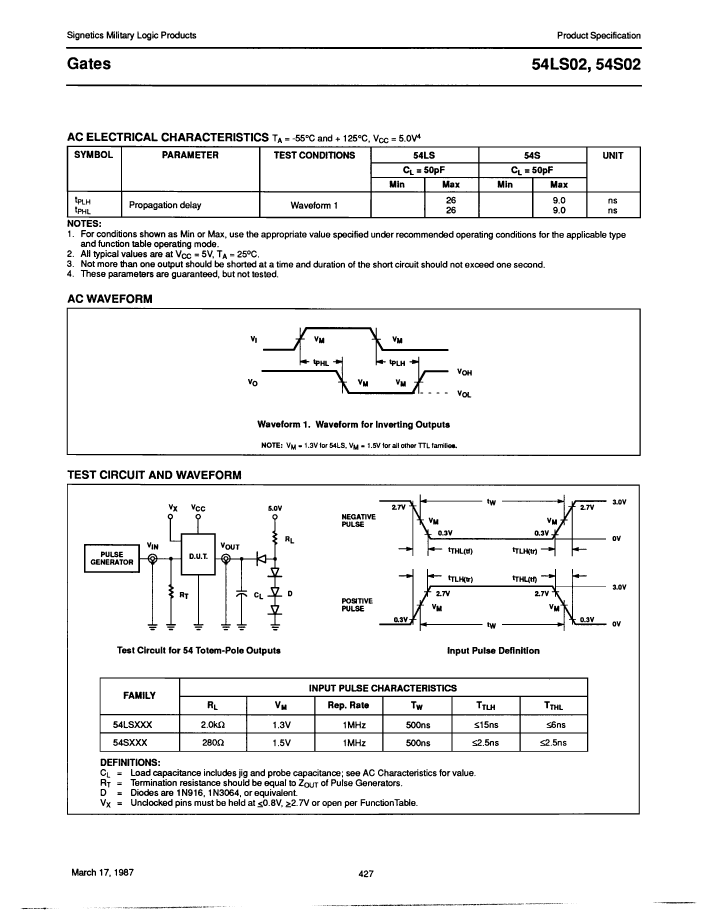

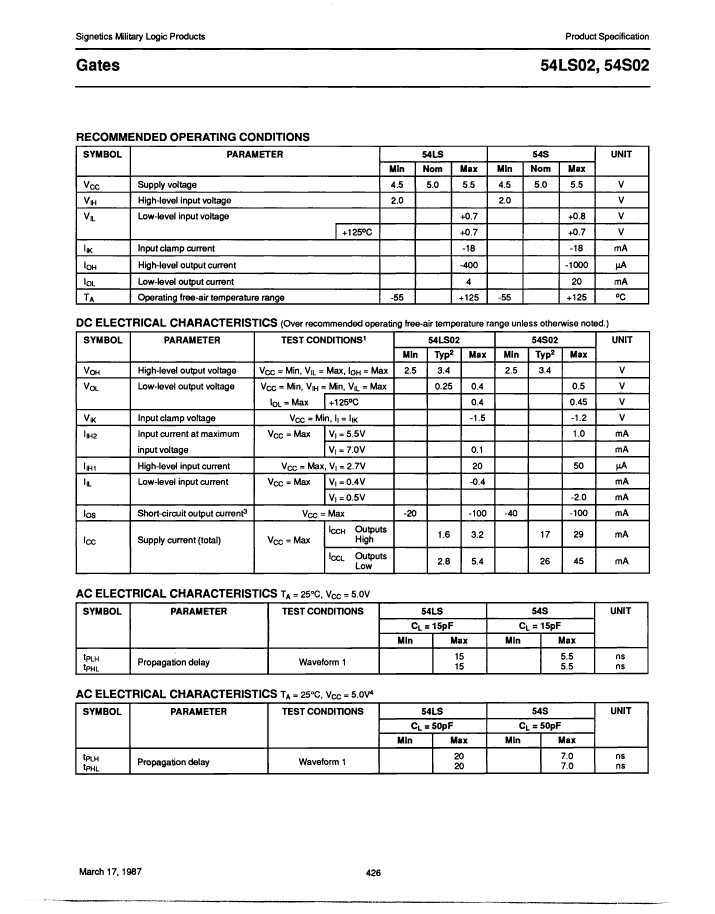

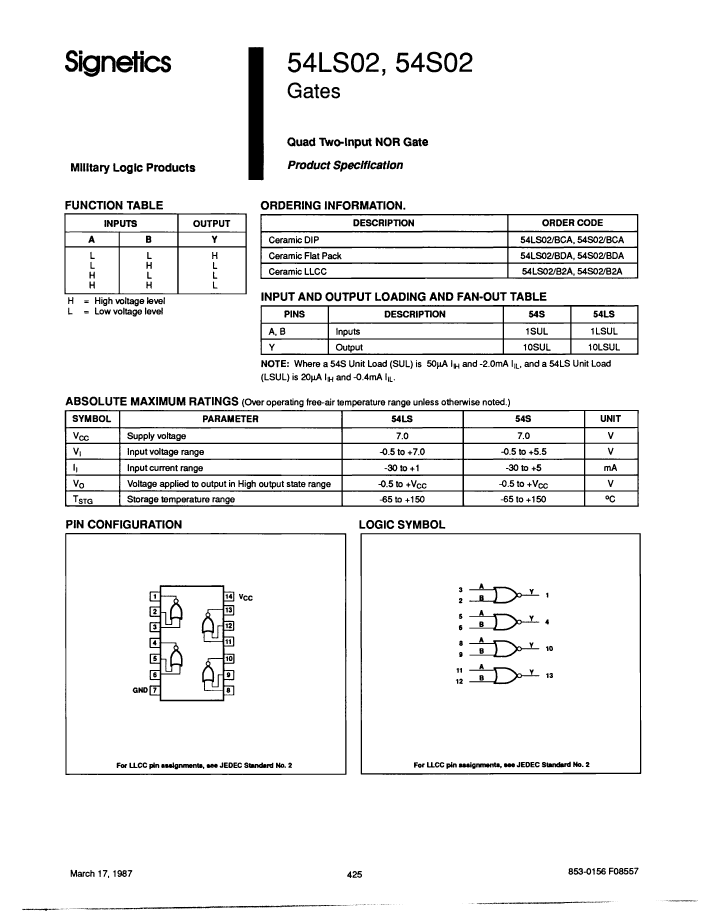

Preview

Download Datasheet

View All

54LS02/BCA Related Products

	54LS02/BCA	54LS02/BDA	54S02/B2A	54S02/BCA	WCR0402-24.9GI	54LS02/B2A
Description	NOR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14	NOR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14	NOR Gate, S Series, 4-Func, 2-Input, TTL, CQCC20	NOR Gate, S Series, 4-Func, 2-Input, TTL, CDIP14	RESISTOR, 0.063W, 2%, 200ppm, 24.9ohm, SURFACE MOUNT, 0402, CHIP	NOR Gate, LS Series, 4-Func, 2-Input, TTL, CQCC20
Reach Compliance Code	unknow	unknown	unknown	unknown	compliant	unknown
Number of terminals	14	14	20	14	2	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	155 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR PACKAGE	SQUARE
surface mount	NO	YES	YES	NO	YES	YES
Maker	YAGEO	YAGEO	YAGEO	YAGEO	-	YAGEO
series	LS	LS	S	S	-	LS
JESD-30 code	R-CDIP-T14	R-CDFP-F14	S-CQCC-N20	R-CDIP-T14	-	S-CQCC-N20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	50 pF
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	-	NOR GATE
Number of functions	4	4	4	4	-	4
Number of entries	2	2	2	2	-	2
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED
Package form	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE	-	CHIP CARRIER
Maximum supply current (ICC)	5.4 mA	5.4 mA	45 mA	45 mA	-	5.4 mA
propagation delay (tpd)	26 ns	26 ns	9 ns	9 ns	-	26 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	5 V
technology	TTL	TTL	TTL	TTL	-	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	-	NO LEAD
Terminal location	DUAL	DUAL	QUAD	DUAL	-	QUAD
Base Number Matches	-	1	1	1	-	1
