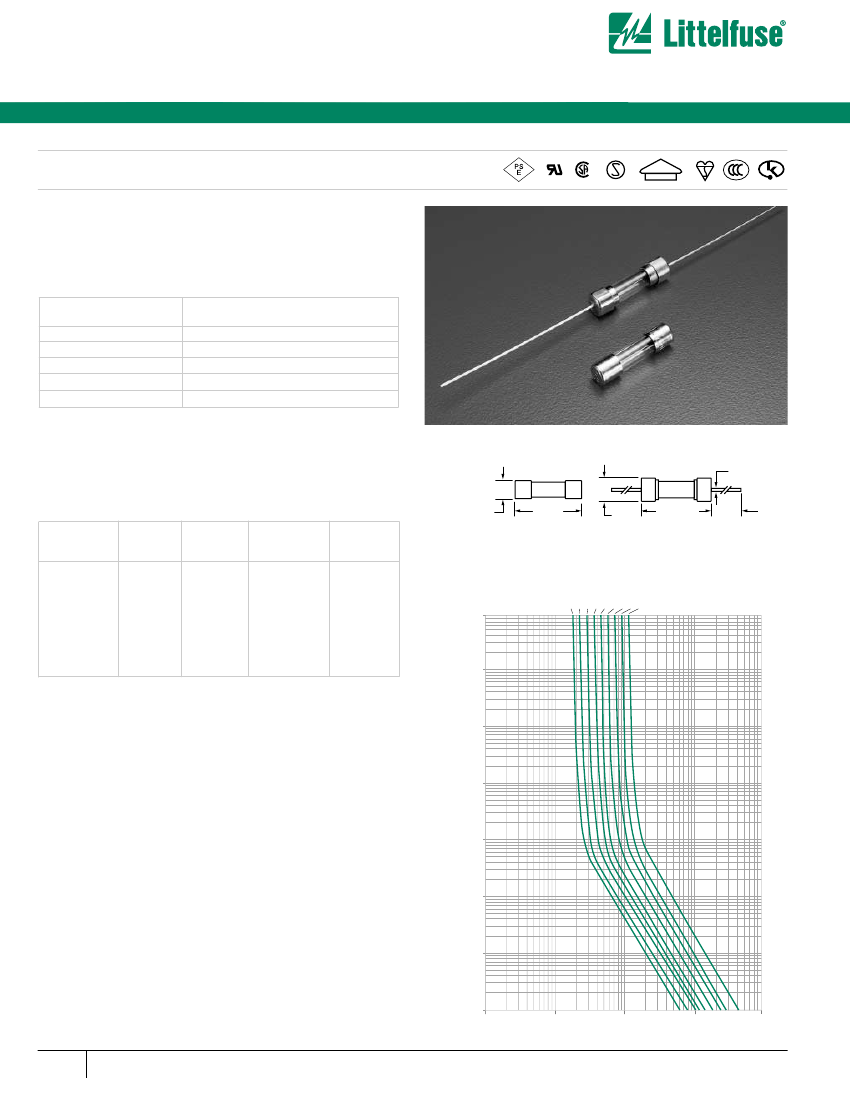

Axial Lead and Cartridge Fuses
Designed to IEC Standard
5 x 20 mm
Time Lag Fuse (SIo-Blo
®
Fuse) 219 Series
®
®
D
V
E
• Designed to International (IEC) Standards for use globally.
• Meets the IEC 60127-2, Sheet 6 specification for Time Lag Fuses.
• Available in Cartridge and Axial Lead Format.
• Available in ratings of 1.0 to 6.3 amperes.
• Enhanced Breaking Capacity, medium I
2
t
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
150%
210%
275%
400%
1000%
Opening
Time
60 minutes,
Minimum
2 minutes,
Maximum
0.6 sec.,
Min.;
10 sec.
Max
.15 sec.,
Min.;
3 sec.
Max
0.02 sec.,
Min.;
0.3 sec.
Max.
AGENCY APPROVALS:
Sheet 6 IEC 60127: SEMKO, BSI, METI, CCC, K Mark
and VDE approved 1A-6.3A. Recognized 1A to 6.3A under the components pro-
gram of Underwriters Laboratories and recognized by CSA. METI A 1A to 6.3A.
INTERRUPTING RATINGS:
150 amperes @ 250VAC, unity power factor
PACKAGING:
For Axial Leads add packaging suffix XE.
ORDERING INFORMATION:
5.2
(.205")
219
000
Series
219
000
XE
.65
(.026")
20
(.787)
Catalog
Number
0219
001.
0219
1.25
0219
01.6
0219
002.
0219
02.5
0219
3.15
0219
004.
0219
005.
0219
06.3
Ampere
Rating
1
1.25
1.6
2
2.5
3.15
4
5
6.3
Nominal
Voltage
Rating
250
250
250
250
250
250
250
250
250
Nominal
Resistance
Cold Ohms
0.055
0.042
0.032
0.029
0.022
0.017
0.013
0.010
0.0075
Nominal
Melting I
2
t
A
2
Sec
3.33
5.80
10.61
14.80
23.85
39.20
70.95
114.0
204.0
5.8 MAX
(.228")
22.5 MAX
(.886)
40
(1.58)
Average Time Current Curves
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
10000
1000
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
404
