023401.6M-ND: DescriptionMEDIUM BLOW ELECTRIC FUSE, 1A, 250VAC, THROUGH HOLE; CategoryCircuit protection; File Size132KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet View All

023401.6M-ND Overview

MEDIUM BLOW ELECTRIC FUSE, 1A, 250VAC, THROUGH HOLE

Preview

Download Datasheet

View All

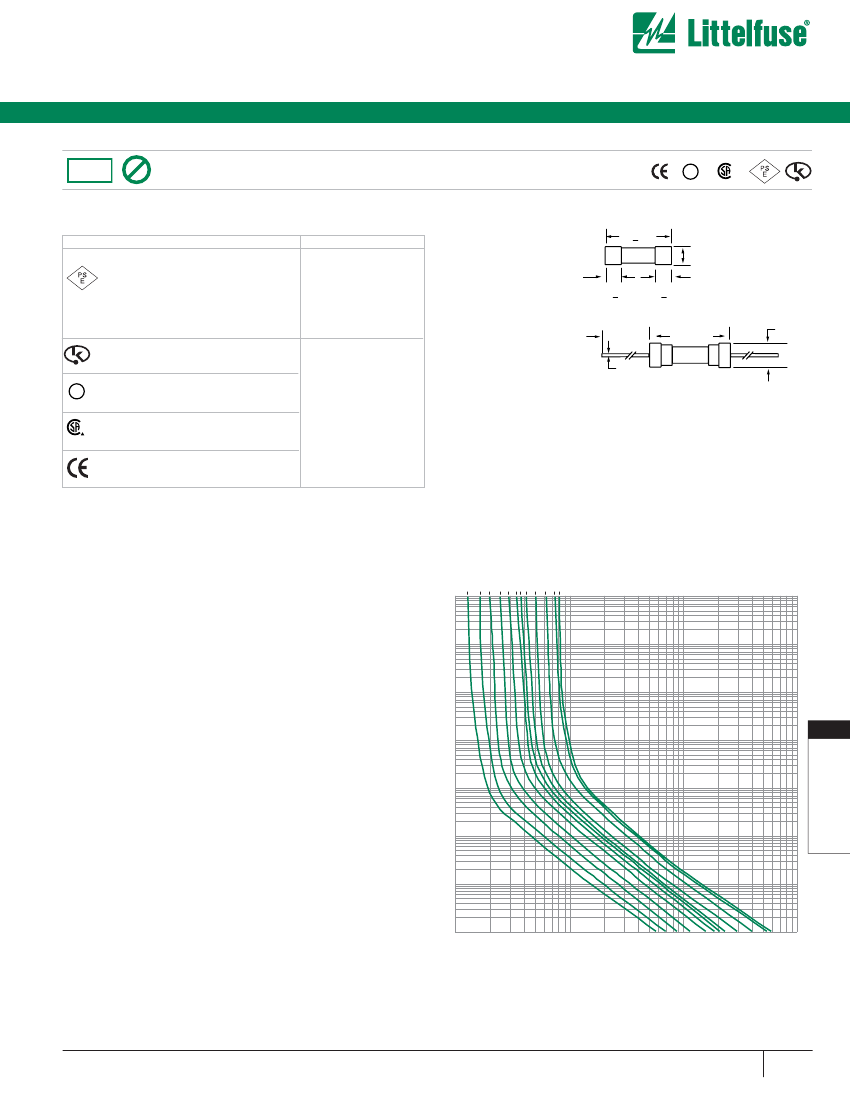

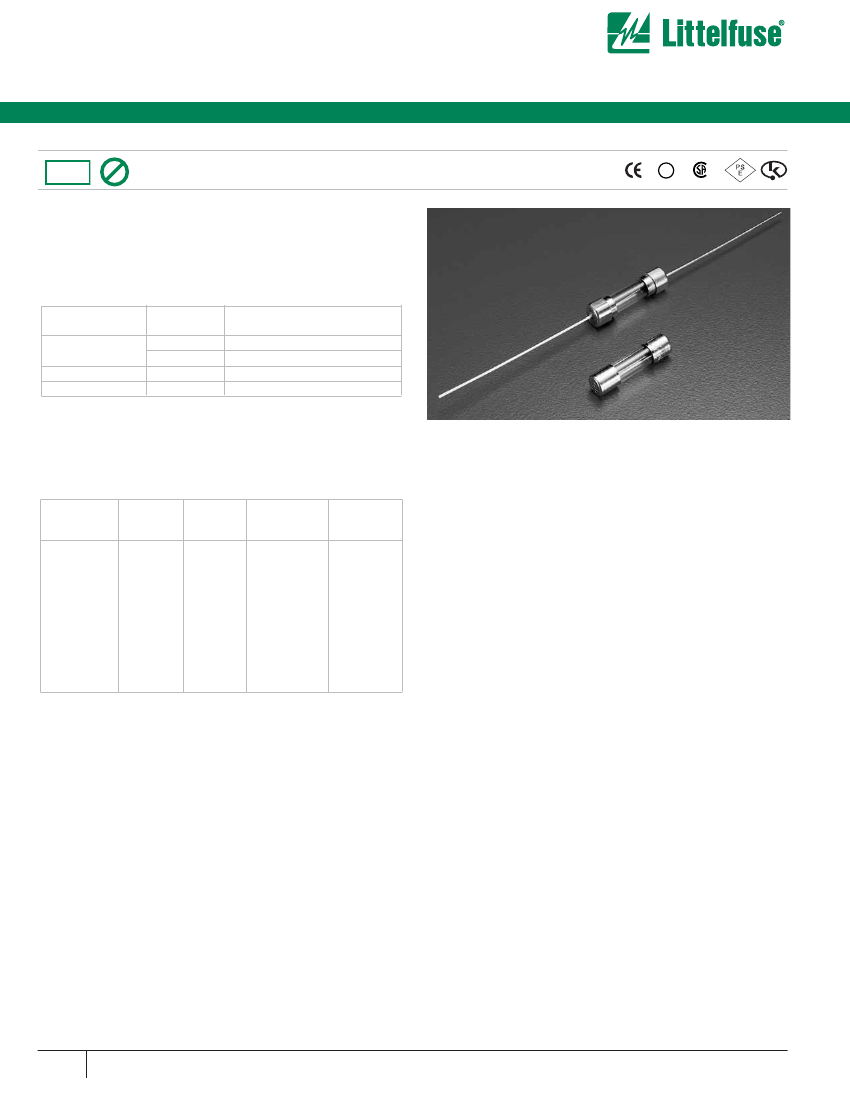

Axial Lead and Cartridge Fuses

Designed to UL/CSA Standards

RoHS

Pb

5 x 20 mm

Medium-Acting Fuse 233 Series

UL

®

• Designed to UL/ CSA/ANCE 248 Standard.

• Available in Cartridge, Axial and Radial Lead Format.

• Available in ratings of 1A to 10A.

•

RoHS compliant and Lead-Free version available, add XP suffix to

standard catalog number

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

Ampere

Rating

1–3.5

4–10

1–10

Opening

Time

4 hours,

Minimum

1 hour,

Minimum

3 sec.,

Min.;

1 hour

Max.

0.4 sec.,

Min.;

4 sec.,

Max.

INTERRUPTING RATING:

10,000 amperes at 125 VAC, 0.7-0.8 power factor

ORDERING INFORMATION:

RoHS compliant and Lead-Free version available, add XP suffix to

standard catalog number

Catalog

Number

0233

001

0233

1.25

0233

01.6

0233

002.

0233

02.5

0233

003.

0233

3.15

0233

03.5

0233

004.

0233

005.

0233

006.

0233

06.3

Ampere

Rating

1

1.25

1.6

2

2.5

3

3.15

3.5

4

5

6

6.3

Voltage

Rating

125

Nominal

Resistance

Cold Ohms

0.18

0.13

0.088

0.068

0.052

0.043

0.038

0.034

0.032

0.022

0.018

0.017

Nominal

Melting

I

2

t A

2

Sec

2.03

3.48

6.31

10.2

17.5

27.0

30.6

37.3

53.0

92.4

135

156

ENVIRONMENTAL SPECIFICATIONS:

Operating temperature:

-55˚C to 125˚C

Thermal Shock:

MIL-STD-202F Method 107G, Test Condition B: (5

cycles –65°C to +125°C)

Vibration:

MIL-STD-202F Method 201A

Humidity:

MIL-STD-202F Method 103B, Test Condition A. high relative

humidity (95%) and elevated temperature (40°C) for 240 hours.

Salt Spray:

MIL-STD-202F Method 101D, Test Condition B

PHYSICAL SPECIFICATIONS:

Material:

Body: Glass

Cap: Nickel Plated Brass

Leads: Tin Plated Copper

Terminal Strength:

MIL-STD-202F Method 211A,

Test Condition A

Solderability:

Reference IEC 60127 Second Edition 2003-01 Annex A

Product Marking:

Cap 1: current and voltage rating.

Cap 2: Agency approval markings.

Packaging:

Available in Bulk (v=5, H=100, M=1000 pcs/pkg) or on

Tape/Reel (MRET1=1000 pcs/reel).

426

w w w. l i t t e l f u s e . c o m
