CX28224/5/9
Inverse Multiplexing for ATM (IMA) Family
Data Sheet
28229-DSH-001-C
August 2003
Ordering Information
Model Number
CX28224
CX28225
CX28229
Manufacturing Part
Number
CX28224-14
CX28225-14
CX28229-14
Product
Revision
D
D
D
Package
256-pin, 17 mm BGA
256-pin, 17 mm BGA
256-pin, 17 mm BGA
Operating Temperature
–40
°
C to 85
°
C
–40
°
C to 85
°
C
–40
°
C to 85
°
C
Revision History
Revision
A
B
C
D
E
F
A
Level
Preliminary
Preliminary
Preliminary
Preliminary
Preliminary
Preliminary
Released
Date
July 2001
September
2001
September
2001
April 2002
May 2002
September
2002
January 2003
Description
Preliminary A version. Note that this document was also released as a preliminary
version under the document numbers 101265P1 and 101265P2.
Preliminary B version.
Removed all references to PLCP and updated some of the bit descriptions.
Restructured and enhanced document to include more IMA related information.
Updated Ordering Information and a few register descriptions to reflect the
CX28229-13 part.
Updated to reflect the -14 part. Section 8, Electrical and Mechanical Specifications,
improved and noted with change bars.
Revised document number to reflect new numbering system: new document
number is 28229-DSH-001-B.
Removed Prelimary document designations. Replaced hysteresis references with
TTL levels in
Table8-16.
Corrected TC Block Utopia interface settings, miscellaneous updates.
C
Released
August 2003
© 2003, Mindspeed Technologies, Inc. All rights reserved.
Information in this document is provided in connection with Mindspeed Technologies
T M
("Mindspeed
TM
") products. These materials are
provided by Mindspeed as a service to its customers and may be used for informational purposes only. Except as provided in Mindspeed’s
Terms and Conditions of Sale for such products or in any separate agreement related to this document, Mindspeed assumes no liability
whatsoever. Mindspeed assumes no responsibility for errors or omissions in these materials. Mindspeed may make changes to specifications
and product descriptions at any time, without notice. Mindspeed makes no commitment to update the information and shall have no
responsibility whatsoever for conflicts or incompatibilities arising from future changes to its specifications and product descriptions. No
license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, RELATING TO
SALE AND/OR USE OF MINDSPEED PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A
PARTICULAR PURPOSE, CONSEQUENTIAL OR INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF ANY
PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. MINDSPEED FURTHER DOES NOT WARRANT THE
ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CONTAINED WITHIN THESE
MATERIALS. MINDSPEED SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
INCLUDING WITHOUT LIMITATION, LOST REVENUES OR LOST PROFITS, WHICH MAY RESULT FROM THE USE OF THESE
MATERIALS.
Mindspeed products are not intended for use in medical, lifesaving or life sustaining applications. Mindspeed customers using or selling
Mindspeed products for use in such applications do so at their own risk and agree to fully indemnify Mindspeed for any damages resulting
from such improper use or sale.
Reader Response: Mindspeed Technologies, Inc. strives to produce quality documentation and welcomes your feedback. Please send
comments and suggestions to mailto:tech.pubs@mindspeed.com. For technical questions, or to talk to a field applications engineer contact
your local Mindspeed™ sales office listed below. For literature send email request to literature@mindspeed.com.
28229-DSH-001-C
Mindspeed Technologies
™
CX28224/5/9
Inverse Multiplexing for ATM (IMA) Family
The CX2822x family of devices provides system designers with a complete integrated
Distinguishing Features
IMA solution for up to 32 ports. All devices include a Transmission Convergence
Complete IMA solution in a single package
block to perform cell delineation, on-board RAM to meet ATM forum requirements
2 port, CX28224, 17mm BGA
4 port, CX28225, 17mm BGA
for differential delay compensation and a dual mode (UTOPIA or Serial) PHY layer
8/32 port, CX28229, 17mm BGA
interface.
Source code for all required software functions is available from Mindspeed. Since
all processing intensive functions are performed in hardware, they require only
minimal overhead from the system processor.
The TC block is capable of bit level cell delineation, which allows for direct connection
DSL serial data streams without a frame sync pulse. Individual ports can be operated
in a 'pass thru' mode without the IMA overhead.
The CX28229 provides direct connection to 8 serial links or can be expanded to a 32
port IMA using the PHY side UTOPIA bus and external TC devices such as the
RS8228. In addition, an external memory bus allows the differential delay memory to
access up to 2 Mbytes of external RAM.
Field tested software available
Supports up to 32 ports using external TC
PHYs
Up to 16 IMA groups
Supports the IMA standard requirements
for 25 ms differential delay with 256K
Internal memory
Memory expandable to 2 M bytes via
external bus (CX28229 only)
UTOPIA level 2 interfaces
Glueless interface to Mindspeed Framers
Octet or Bit level cell delineation
Variable link data rates (64K–3.072 Mb/s)

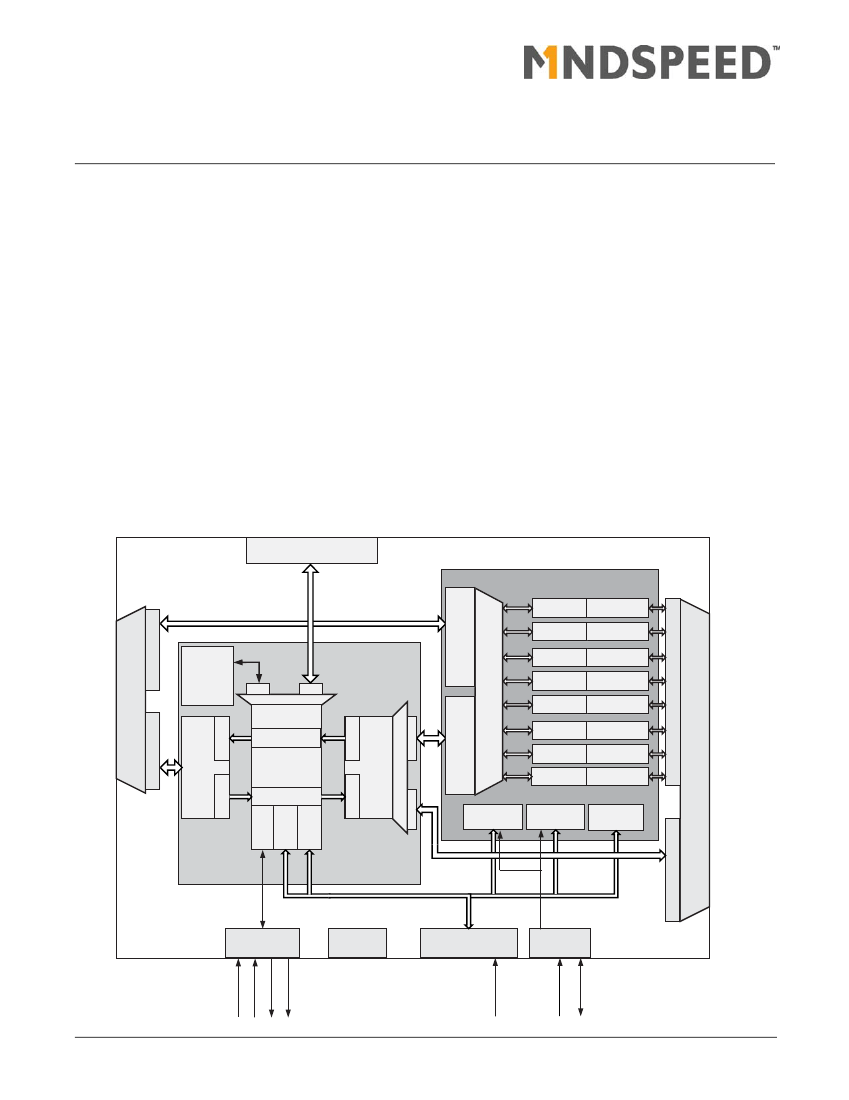

Functional Block Diagram
CX28229
External Memory Interface
TC Block
ATMmux[7,6] = 10 and
PhyIntFcSel pin = high
cell processor
cell processor
TC BLOCK UTOPIA INTERFACE
Line interface 0
Line interface 1
ATMmux[7,6] = 10
ATMmux[7,6] = 01
RX FIFO
PHY layer
UTOPIA 2 interface
Differential Delay
memory interface
Rx Block
ATMmux[7,6] = 01 and
PhyIntFcSel pin = high
cell processor
Line interface 4
PhyIntFcSel Pin
high
cell processor
cell processor
cell processor
Line interface 5
Line interface 6
Line interface 7
IMA
Engine
Tx Block
Control
Registers
Status
Registers
Clock
interface
OneSec
IMA clocks
IMA_SysClk
IMA_RefClk
JTAG
Micro interface
Micro
Clocks
OneSecIO
TxTRL[0]
TxTRL[1]
MicroClk
28229-DSH-001-C
Mindspeed Technologies
™
8 KHzIn
PhyIntFcSel pin tied low
TC
Counters
TC Status
Registers
TC Control
Registers
Phy SIDE INTERFACE PINS
TX FIFO
low
ATM LAYER UTOPIA INTERFACE PINS
Internal
256Kx8
SRAM
RX FIFO
TX FIFO
IMA Block
0
extmemsel pin
cell processor
cell processor
Line interface 2
Line interface 3
1
PhyIntFcSel pin tied high
ATM layer
UTOPIA 2 interface
iii
IMA Features
Field proven design
All software available
Supports variable link data rates (64K–
3.072 Mb/s)
Internal memory
Connects directly to the Mindspeed
SARs for inexpensive CPE solutions
CX28224 2 ports
CX28225 4 ports
CX28229 32 ports
Memory expandable to 2 M bytes via
external bus
Up to 16 independent groups (using
external PHYs):
Each group can have up to 8 links.
Supports IMA versions 1.0 and 1.1
Fractional T1/E1
Cell Delineation Section
Supports ATM cell interface for:
Circuit-based physical layer
Cell-based physical layer
Performs single-bit HEC correction and
single- or multiple-bit detection
Inserts headers and generates HEC
Direct connection to external
Mindspeed components for:
T1/E1
xDSL
General purpose mode
Byte-level or bit-level cell delineation
UTOPIA Interfaces
UTOPIA Level 2 Interface to ATM Layer:
8/16 bit operation
50 MHz
PHY-side UTOPIA Interface:
8-bit UTOPIA Level 2
Supports 32 ports via dual CLAV
and Enable lines
Counters/Status Register Section
Summary interrupt indications
Configuration of interrupt enables
One-second counter latching
Counters for:
LOCD events
Corrected HEC errors
Uncorrected HEC errors
Transmitted cells
Matching received cells
Non-matching received cells
Control and Status
Microprocessor Interface
Asynchronous SRAM-like interface
mode
Synchronous, glueless Bt8233/RS8234
SAR interface mode
8-bit data bus
Open-drain interrupt output
Open-drain ready output
8–33 MHz operation
All control registers are read/write
28229-DSH-001-C
Mindspeed Technologies
™
iv
