0365840002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0365840002

0365840002: Description160 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size161KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0365840002 Overview

160 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE

0365840002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Is Samacsys	N
Other features	PANEL MOUNTABLE, POLARIZED, STANDARDS: DIN 41612, IEC 603-2
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	YES
Filter function	NO
IEC compliance	YES
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	36584
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160
Base Number Matches	1

Preview

Download Datasheet

View All

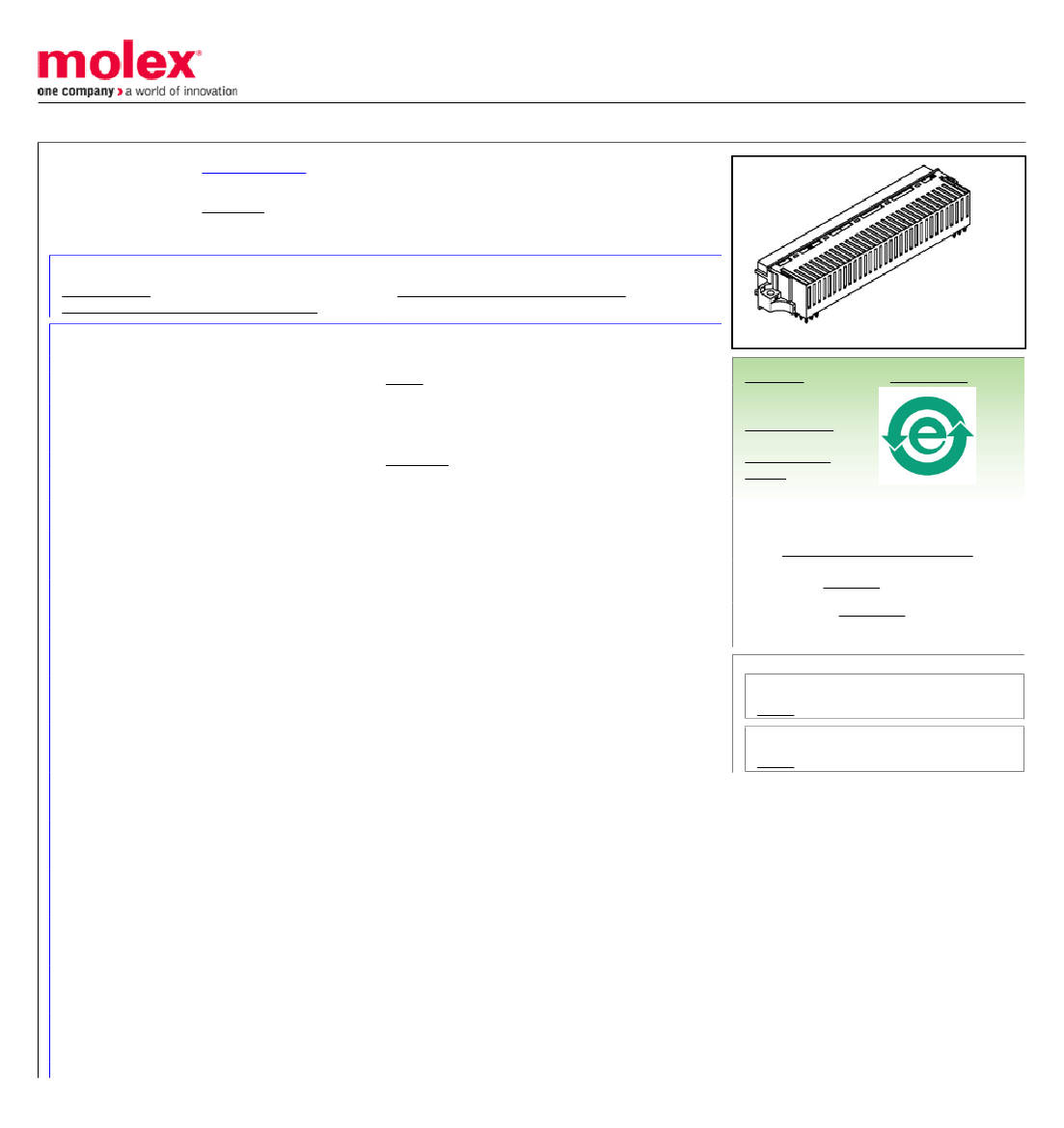

This document was generated on 05/13/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0365840002

Active

din_41612

2.54mm (0.100") Pitch DIN 41612 Receptacle, Right Angle, Through Hole, Solder

Type, 0.8µm (30µ") Selective Gold (Au), 160 circuits, Lead Free

Documents:

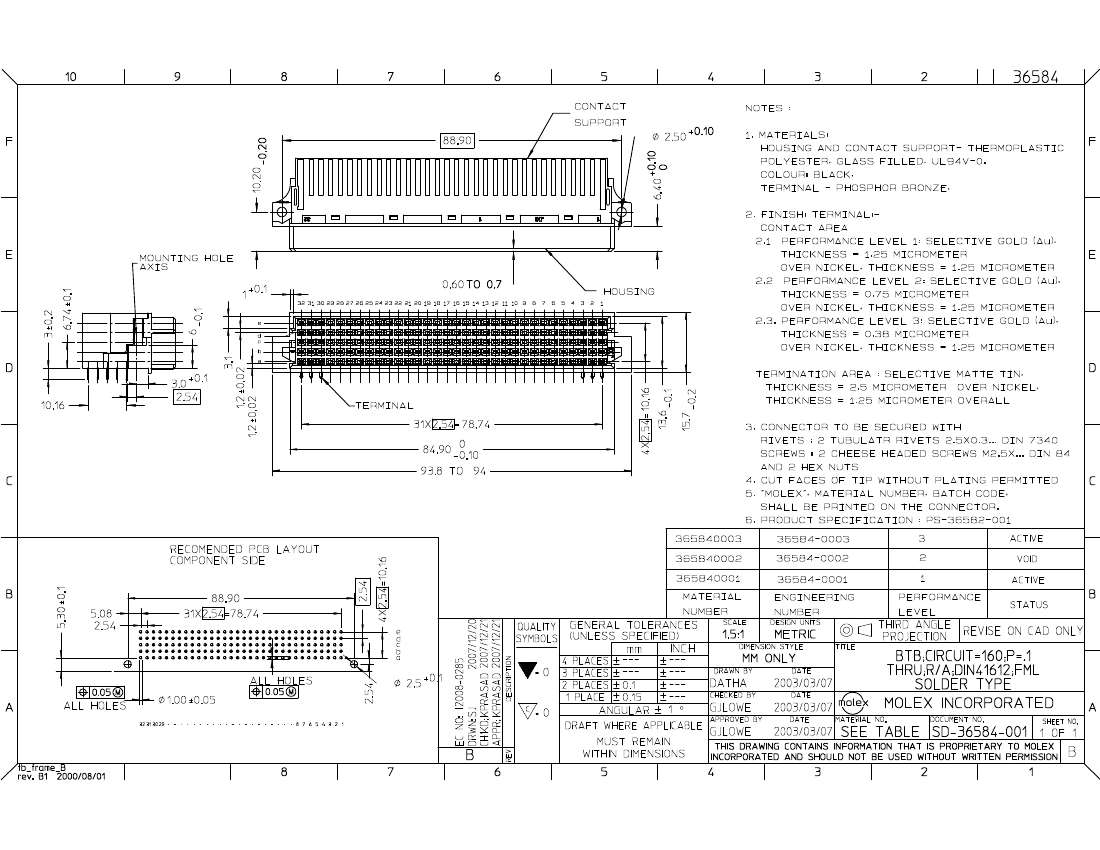

Drawing (PDF)

Product Specification PS-36582-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Style

Backplane Connectors

36584

Daughtercard

"R" at style represents Right Angle Female DIN

Connector

PCB Receptacle

din_41612

IEC 603-2/DIN 41612

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Circuits Detail

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

160

400

Yes

Phosphor Bronze

Gold

Tin

Open Pin Field

Right Angle

0.118 In

3.00 mm

Yes

0.063 In

1.60 mm

Bag

0.100 In

2.54 mm

0.100 In

2.54 mm

0.75

100

2.5

Yes

-55°C to +125°C

Through Hole

Search Parts in this Series

36584Series

Mates With

36587 Series R Male Press fit Headers

0365840002 Related Products

	0365840002	36584-0002	365840002
Description	160 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE	160 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE	160 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE
