5962-01-270-7108 datasheet, PDF

5962-01-270-7108: DescriptionIC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,28PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size181KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

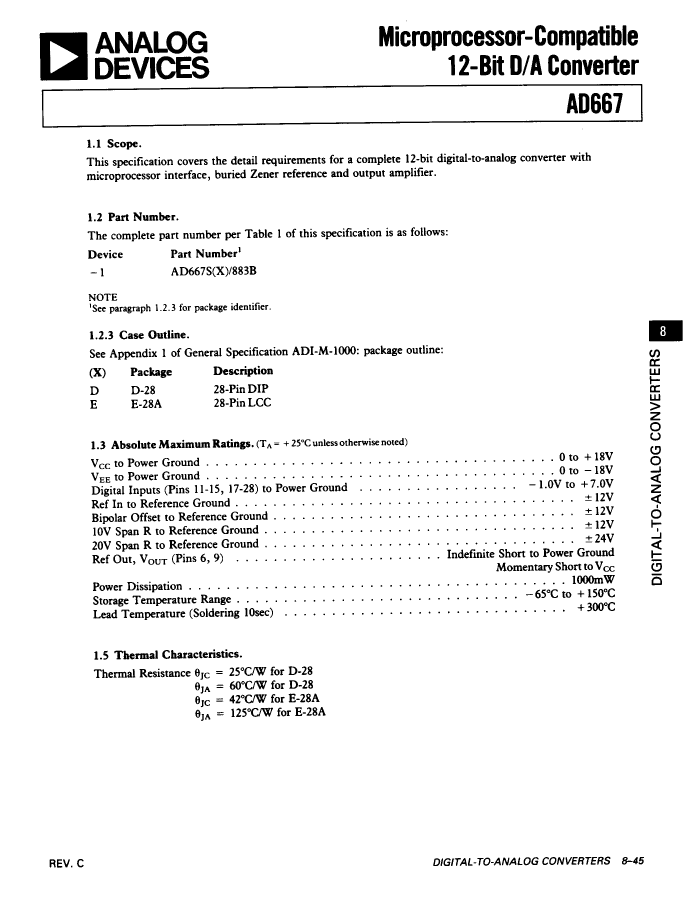

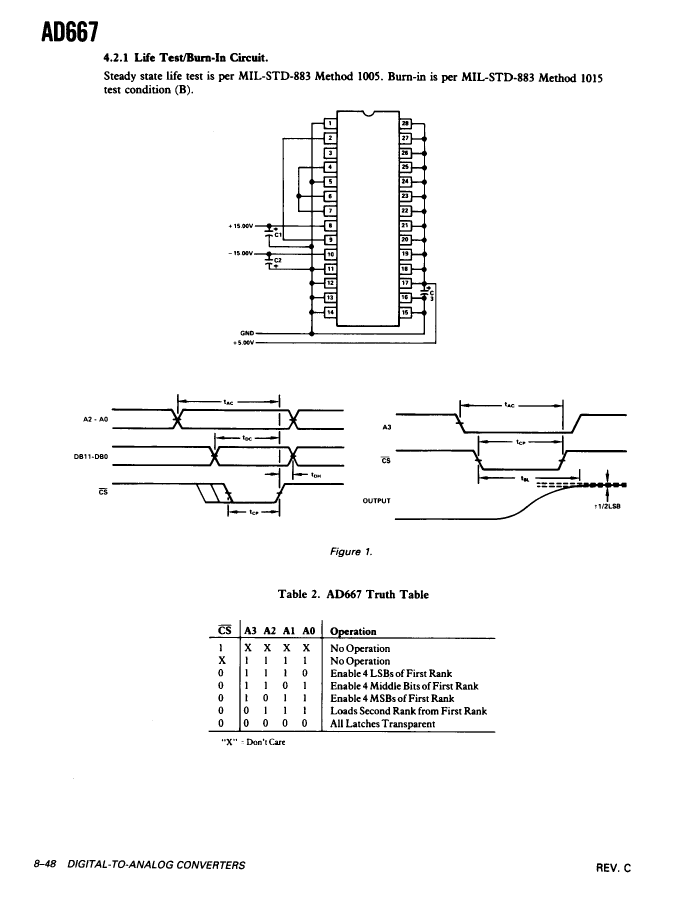

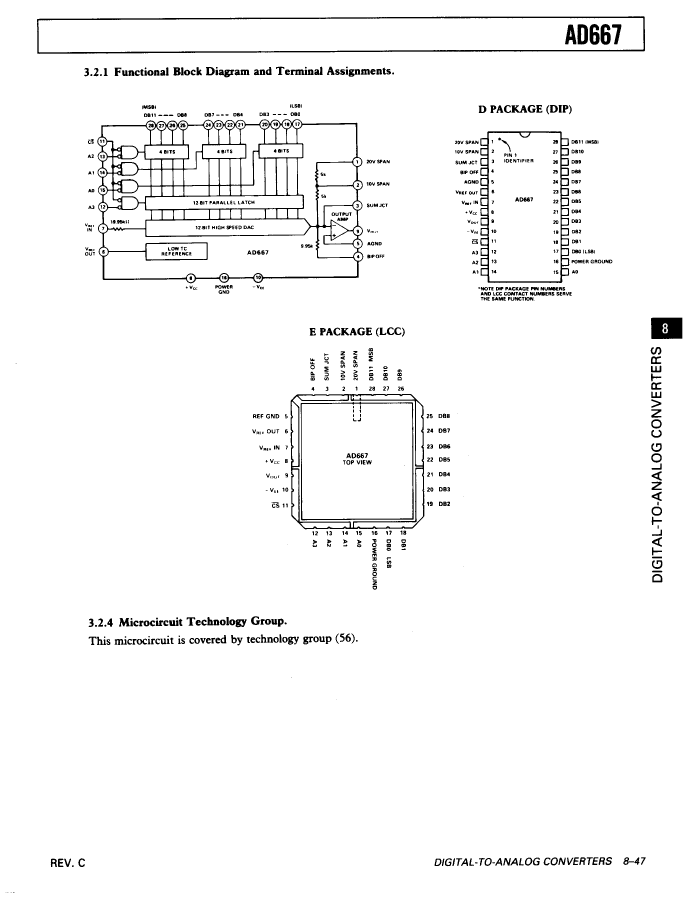

5962-01-270-7108 Overview

IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,28PIN, Digital to Analog Converter

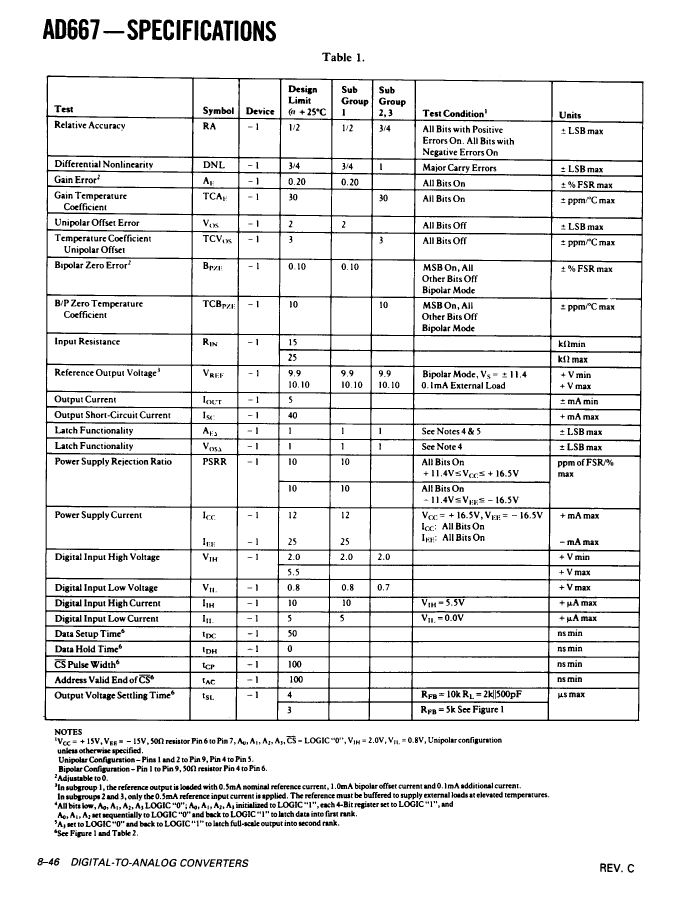

Parameter Name	Attribute value
Maker	ADI
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknow
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T28
Maximum linear error (EL)	0.018%
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-12/+-15 V
Certification status	Not Qualified
Maximum stabilization time	4 µs
Maximum slew rate	25 mA
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	5962-01-270-7108	AD667AE	5962-01-283-6048
Description	IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,LLCC,28PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,SINGLE,12-BIT,BIPOLAR,DIP,28PIN, Digital to Analog Converter
Reach Compliance Code	unknow	not_compliant	unknow
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
JESD-30 code	R-XDIP-T28	S-XQCC-N28	R-XDIP-T28
Maximum linear error (EL)	0.018%	0.018%	0.018%
Number of digits	12	12	12
Number of functions	1	1	1
Number of terminals	28	28	28
Maximum operating temperature	125 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-25 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN	DIP
Encapsulate equivalent code	DIP28,.6	LCC28,.45SQ	DIP28,.6
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE
power supply	+-12/+-15 V	+-12/+-15 V	+-12/+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum stabilization time	4 µs	4 µs	4 µs
Maximum slew rate	25 mA	25 mA	25 mA
surface mount	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	OTHER	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Maker	ADI	-	ADI
Parts packaging code	DIP	-	DIP
package instruction	DIP, DIP28,.6	-	DIP, DIP28,.6
Contacts	28	-	28
