5962-01-421-9069 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> 5962-01-421-9069

5962-01-421-9069: DescriptionIC IC,D/A CONVERTER,TRIPLE,6-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size752KB，11 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-01-421-9069 Overview

IC IC,D/A CONVERTER,TRIPLE,6-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter

5962-01-421-9069 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Contacts	44
Reach Compliance Code	unknow
Converter type	D/A CONVERTER
JESD-30 code	S-PQCC-J44
Maximum linear error (EL)	0.39%
Number of digits	6
Number of functions	3
Number of terminals	44
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	220 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

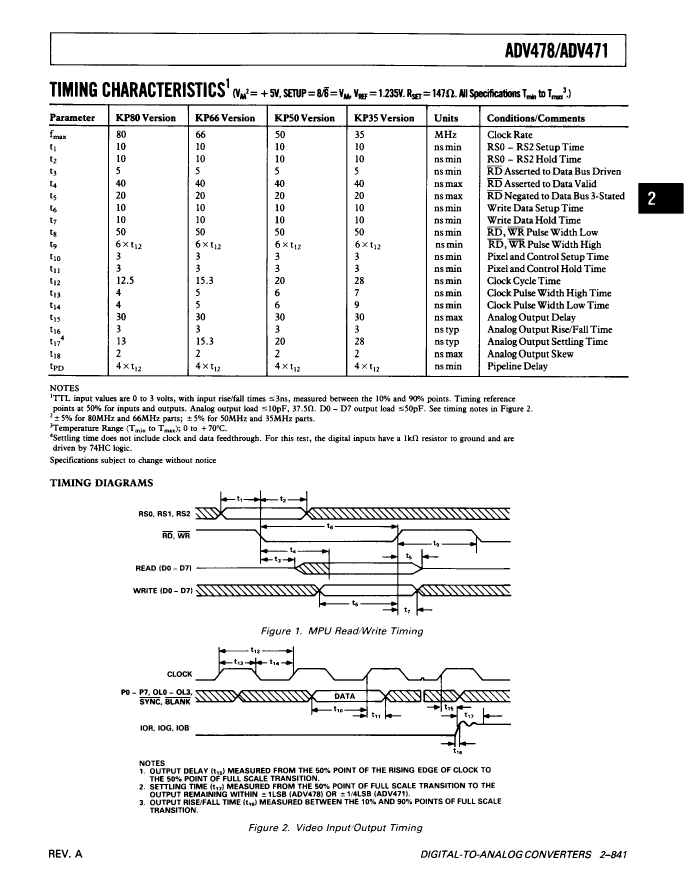

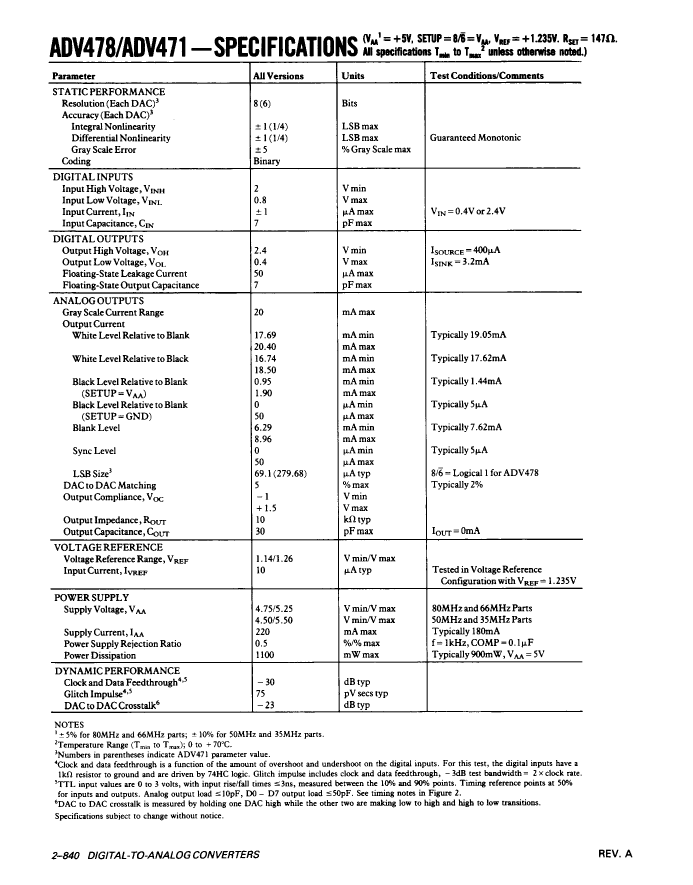

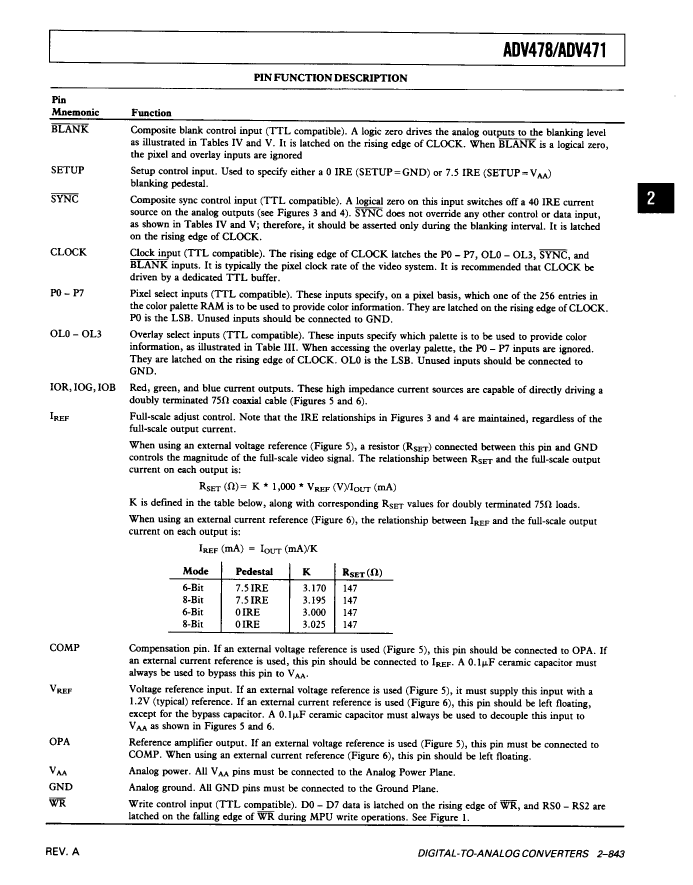

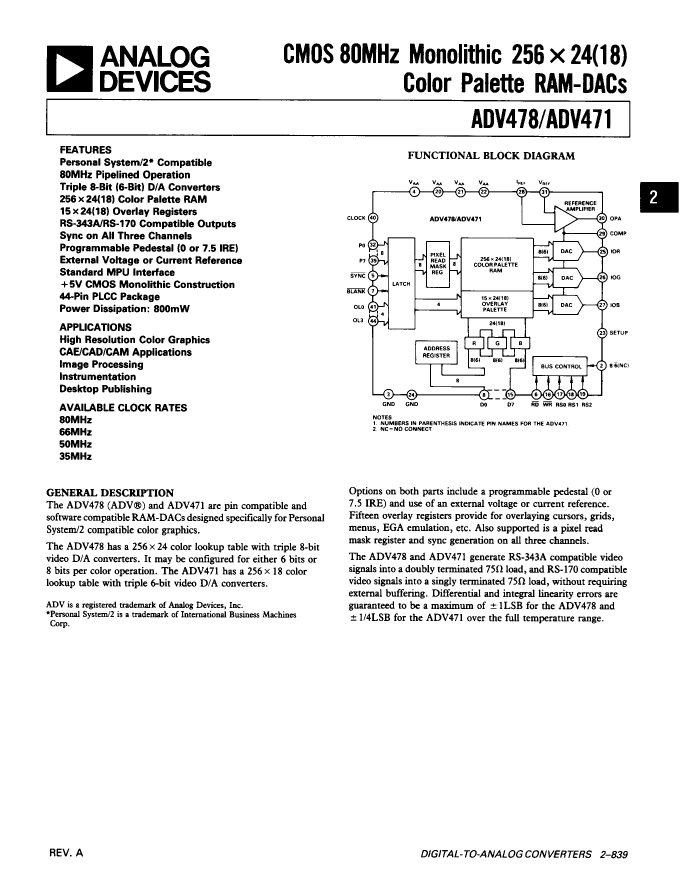

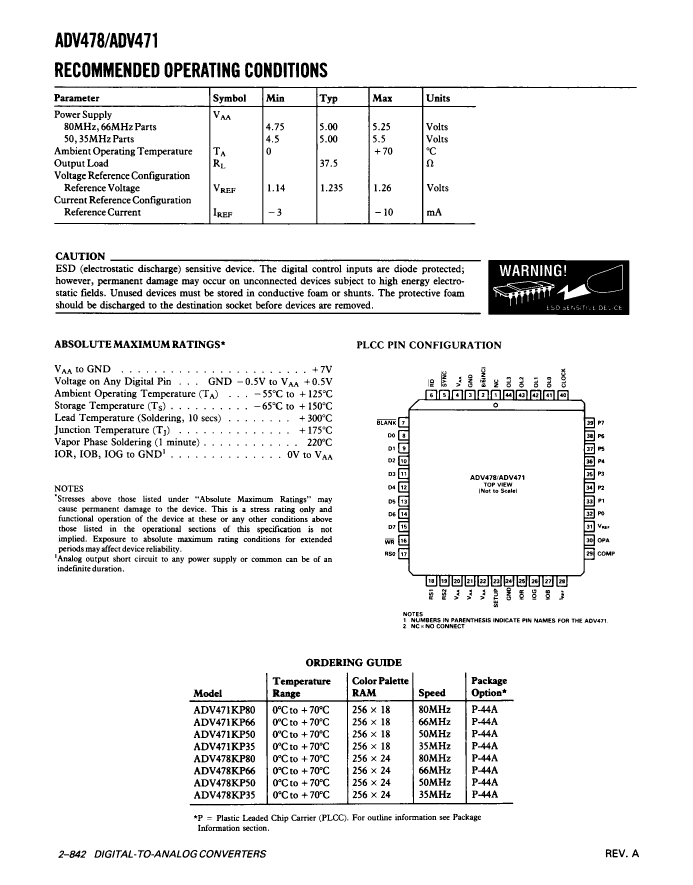

Preview

Download Datasheet

View All

5962-01-421-9069 Related Products

	5962-01-421-9069	PMADV478KP35	PMADV478KP50	PMADV478KP80	PMADV471KP35	PMADV471KP50	PMADV471KP80
Description	IC IC,D/A CONVERTER,TRIPLE,6-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,8-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,8-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,8-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,6-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,6-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter	IC IC,D/A CONVERTER,TRIPLE,6-BIT,CMOS,LDCC,44PIN, Digital to Analog Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI	ADI	ADI	ADI	ADI
Reach Compliance Code	unknow	not_compliant	not_compliant	not_compliant	unknown	unknown	unknown
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
Maximum linear error (EL)	0.39%	0.39%	0.39%	0.39%	0.39%	0.39%	0.39%
Number of digits	6	8	8	8	6	6	6
Number of functions	3	3	3	3	3	3	3
Number of terminals	44	44	44	44	44	44	44
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	220 mA	200 mA	200 mA	200 mA	200 mA	200 mA	200 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
JESD-609 code	-	e0	e0	e0	e0	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
