RDC1742442B datasheet, PDF - EEWORLD Datasheet

RDC1742442B: DescriptionIC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32, Position Converter; CategoryAnalog mixed-signal IC converter; File Size361KB，8 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

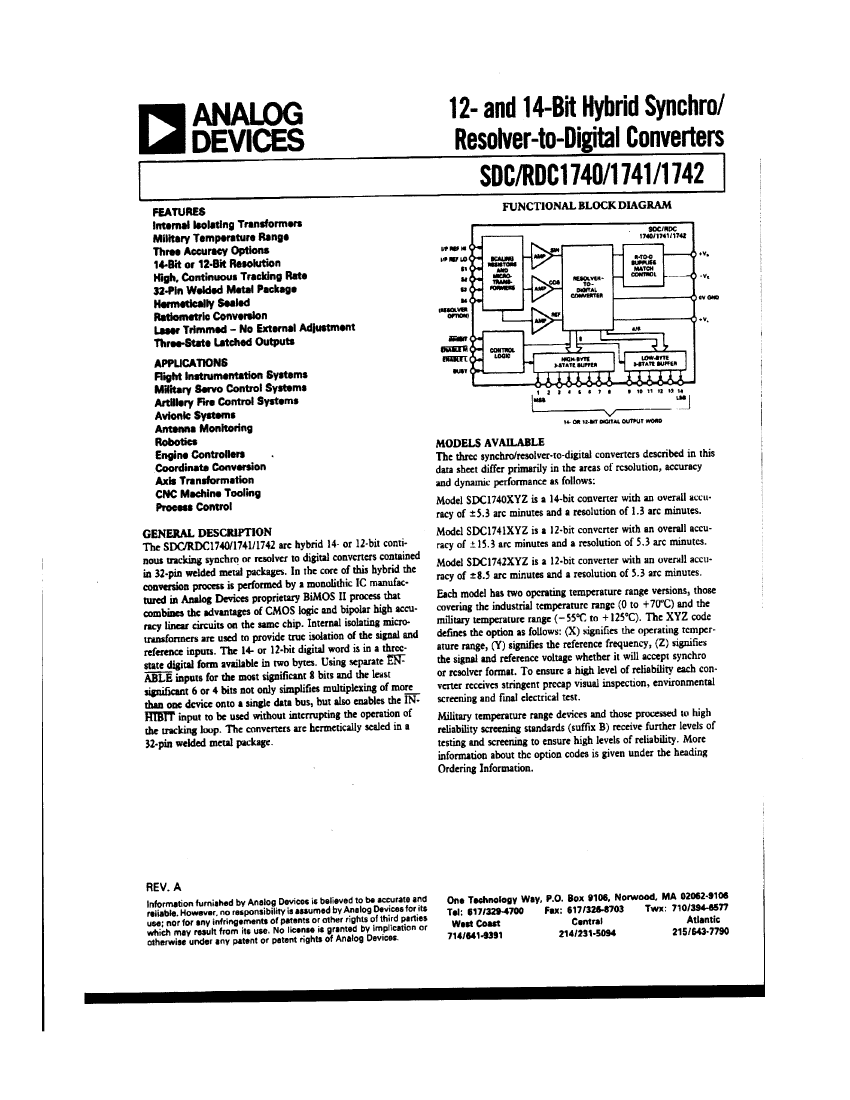

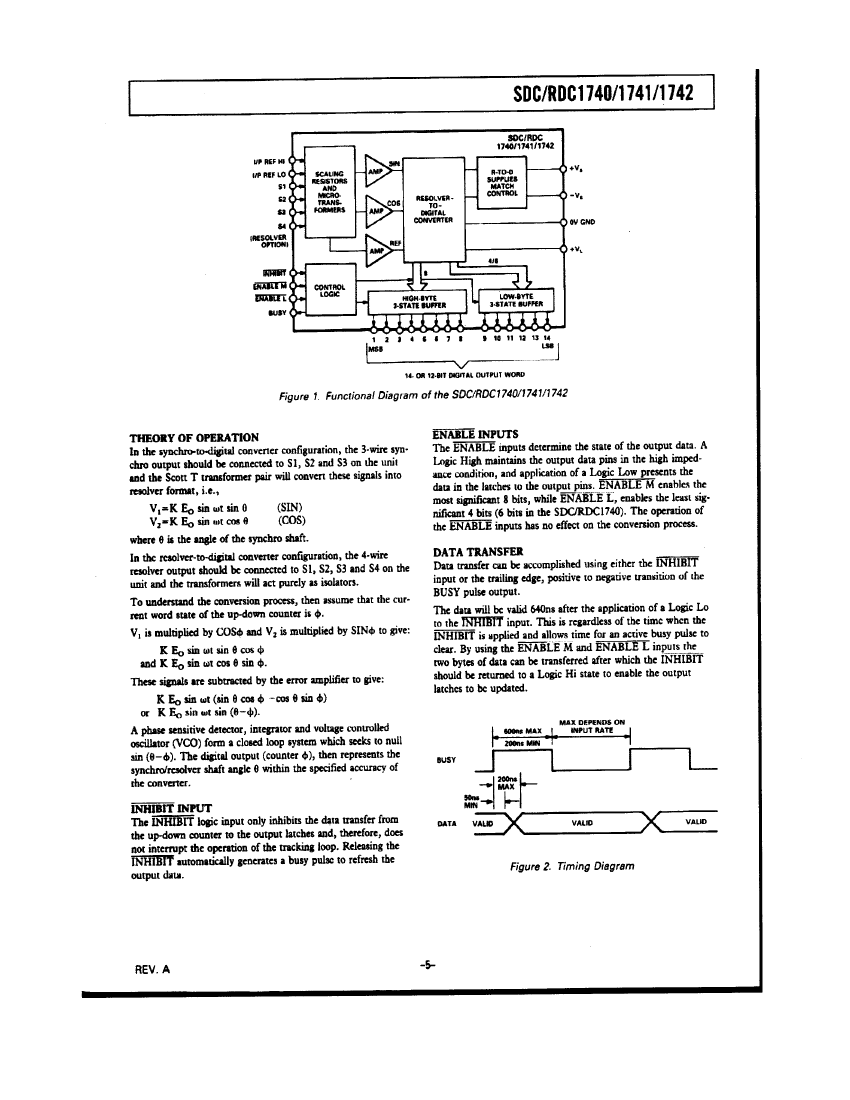

RDC1742442B Overview

IC SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32, Position Converter

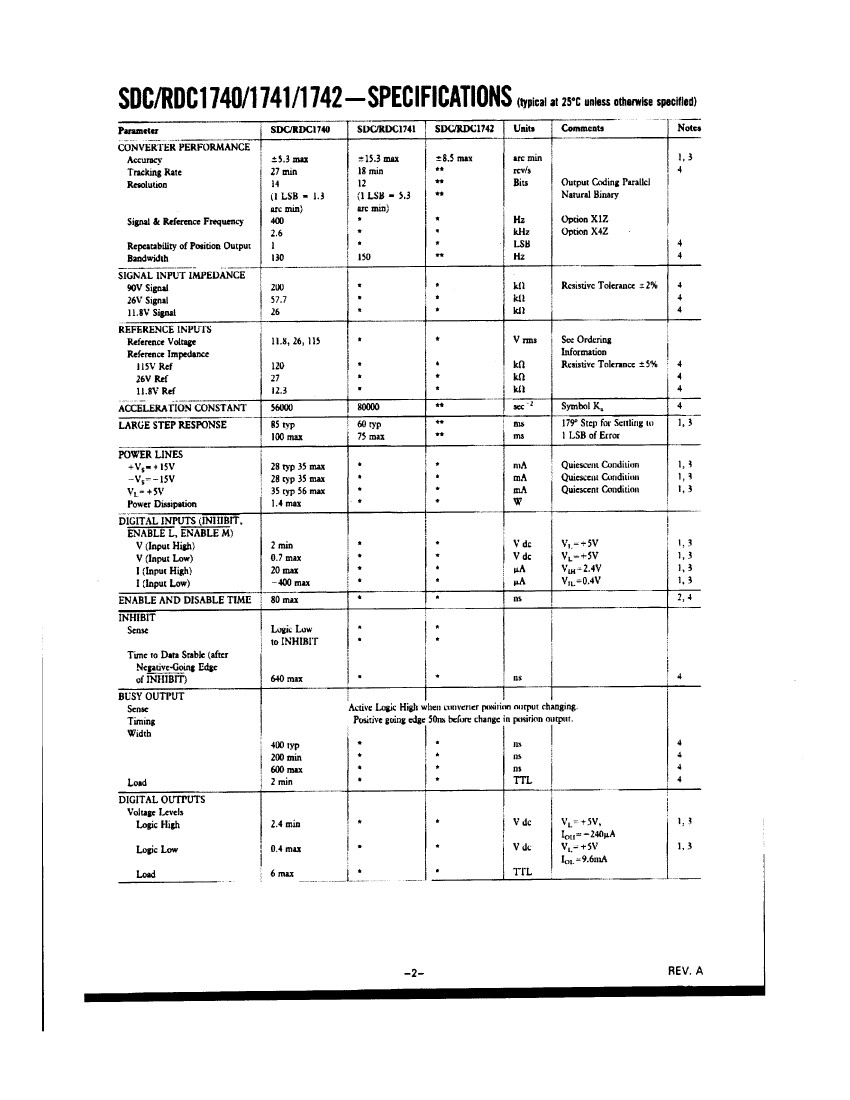

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32

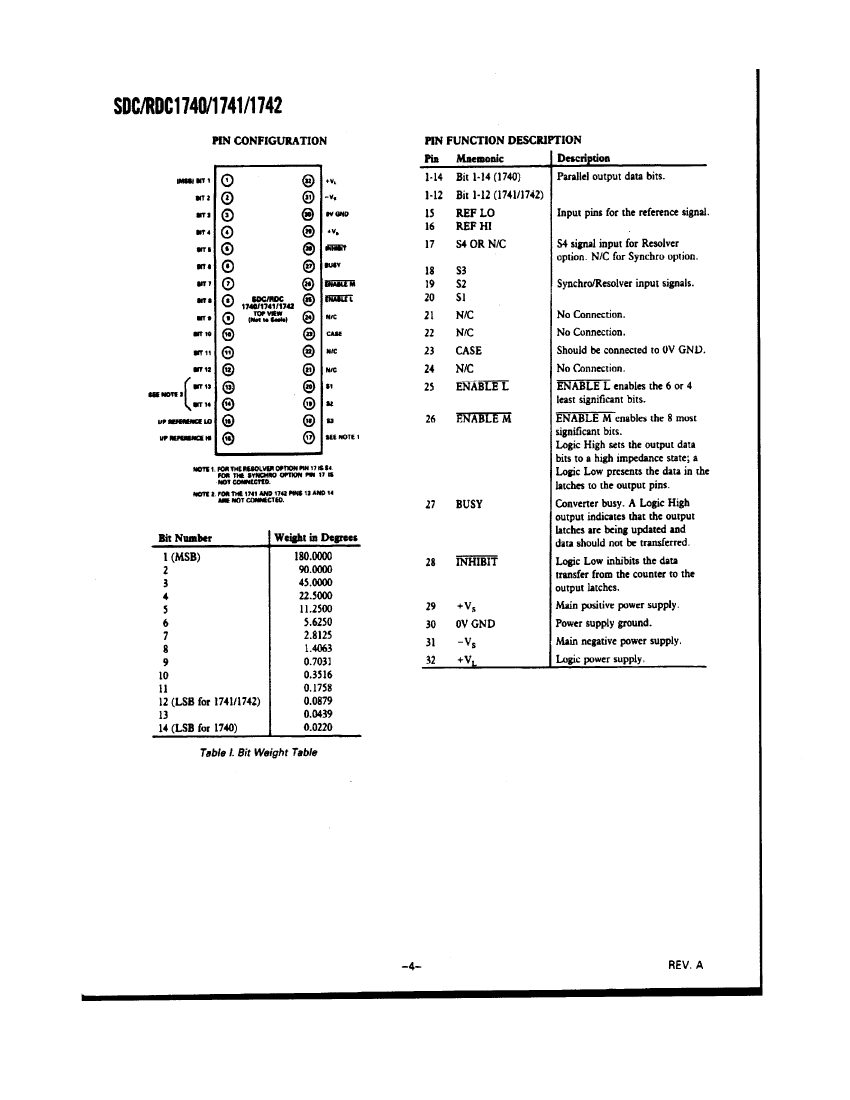

Contacts	32
Reach Compliance Code	compli
ECCN code	EAR99
Other features	115V REFERENCE INPUT
Maximum analog input voltage	90 V
Maximum angular accuracy	8.5 arc mi
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-MDIP-P32
JESD-609 code	e0

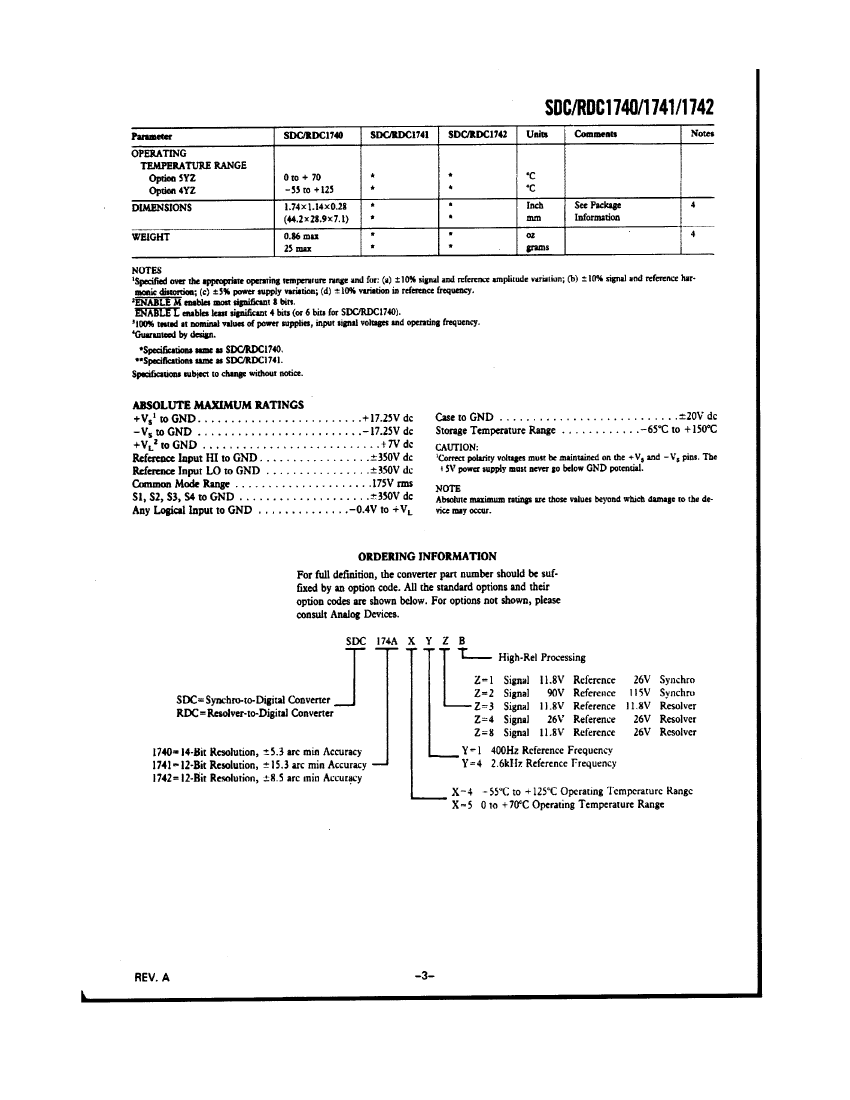

length	44.2 mm
Maximum negative supply voltage	-15.75 V
Minimum negative supply voltage	-14.25 V
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	8.289 mm
Maximum stabilization time	75 µs
Signal/output frequency	2600 Hz
Maximum slew rate	56 mA
Maximum supply voltage	15.75 V
Minimum supply voltage	14.25 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum tracking rate	18 rps
width	22.86 mm
