2220PC474KAT9A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 2220PC474KAT9A

2220PC474KAT9A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size86KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

2220PC474KAT9A Overview

Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT

2220PC474KAT9A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 2220
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.47 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2 mm
JESD-609 code	e3
length	5.6 mm
Manufacturer's serial number	2220
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
positive tolerance	10%
Rated (DC) voltage (URdc)	250 V
series	SIZE(TIP RING)
size code	2220
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
width	5.1 mm

Preview

Download Datasheet

View All

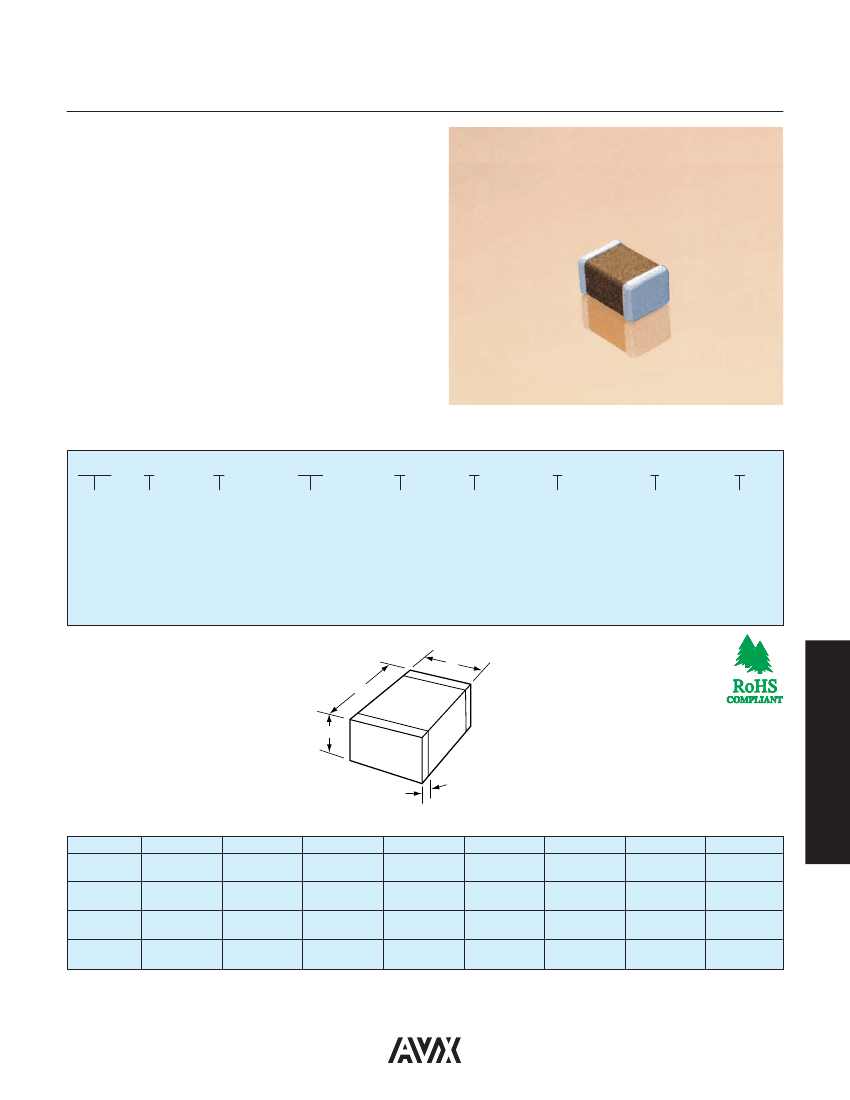

Tip & Ring

Multilayer Ceramic Chip Capacitors

AVX “Tip & Ring” or “ring detector” Multilayer Ceramic Chip

Capacitors are designed as a standard telecom filter

to block -48 Volts DC telephone line voltage and pass

subscriber’s AC signal pulse (16 to 25Hz, 70 to 90Vrms).

The typical ringing signal is seen on figure on page 132. The

ringer capacitors replace large leaded film capacitors and

are ideal for telecom/modem applications. Using AVX “Tip &

Ring” capacitors not only saves valuable real estate on the

board and reduces the weight of overall product, but also

features standard surface mounting capabilities, so critical to

new and compact designs.

The AVX “Tip & Ring” capacitors are offered in standard

EIA sizes and standard values. They offer excellent high

frequency performance, low ESR and improved temperature

performance over film capacitors.

HOW TO ORDER

1812

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

Voltage

250 VDC

Telco

Rating

Temperature

Coefficient

X7R

104

Capacitance Code

(2 significant digits

+ no. of zeros)

Examples:

1,000 pF = 102

22,000 pF = 223

220,000 pF = 224

1 µF = 105

Capacitance

Tolerance

K = ±10%

M = ±20%

Special Code

A = Standard

Termination

Test

Packaging

T = Plated

Level

1 or 2 = 7" Reel

Ni and Sn

A = Standard

3 or 4 = 13" Reel

(RoHS Compliant) 9 = Bulk

Z = FLEXITERM

100% Tin

(RoHS Compliant)

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

DIMENSIONS

Style

(L) Length

(W)Width

(T) Thickness

(t) terminal

millimeters (inches)

1206

1210*

1808*

1812*

1825*

2220*

2225*

0805

2.01 ± 0.20

3.20 ± 0.20

3.2 ± 0.20

4.57 ± 0.25

4.50 ± 0.30

5.60 ± 0.30

5.60 ± 0.25

(0.079 ± 0.008) (0.126 ± 0.008) (0.126 ± 0.008) (0.180 ± 0.010) (0.177 ± 0.012) (0.177 ± 0.012) (0.220 ± 0.012) (0.220 ± 0.010)

1.25 ± 0.20

1.60 ± 0.20

2.50 ± 0.20

2.03 ± 0.25

3.2 ± 0.20

6.34 ± 0.30

5.10 ± 0.40

6.35 ± 0.25

(0.049 ± 0.008) (0.063 ± 0.008) (0.098 ± 0.008) (0.080 ± 0.010) (0.126 ± 0.008) (0.252 ± 0.012) (0.200 ± 0.016) (0.250 ± 0.010)

1.30 max.

(0.051 max.)

1.50 max.

(0.059 max.)

1.78 max.

(0.070 max.)

1.78 max.

(0.070 max.)

2.00 max.

(0.080 max.)

2.00max.

(0.080 max.)

2.00 max.

(0.080 max.)

2.00 max.

(0.080 max.)

0.50 ± 0.25

0.63 ± 0.38

(0.020 ± 0.010) (0.020 ± 0.010) (0.020 ± 0.010) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015) (0.025 ± 0.015)

*Reflow Soldering Only
