This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

Documents:

3D Model

Drawing (PDF)

0395221012

Active

5.00mm (.197") Pitch Eurostyle™ Horizontal PCB Header, 12 Circuits

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39522

Wire-to-Board

PCB Header

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Wire Size AWG

N/A

Yes

Horizontal

0.154 In

3.90 mm

0.125 In

3.20 mm

0.197 In

5.00 mm

Yes

Closed Ends

-40°C to +105°C

N/A

Search Parts in this Series

39522Series

Mates With

39520 Horizontal Plug, 39523 Vertical

Plug, Most 5.00mm (.197") Pitch Industry

Standard Plugs

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Reference - Drawing Numbers

Product Specification

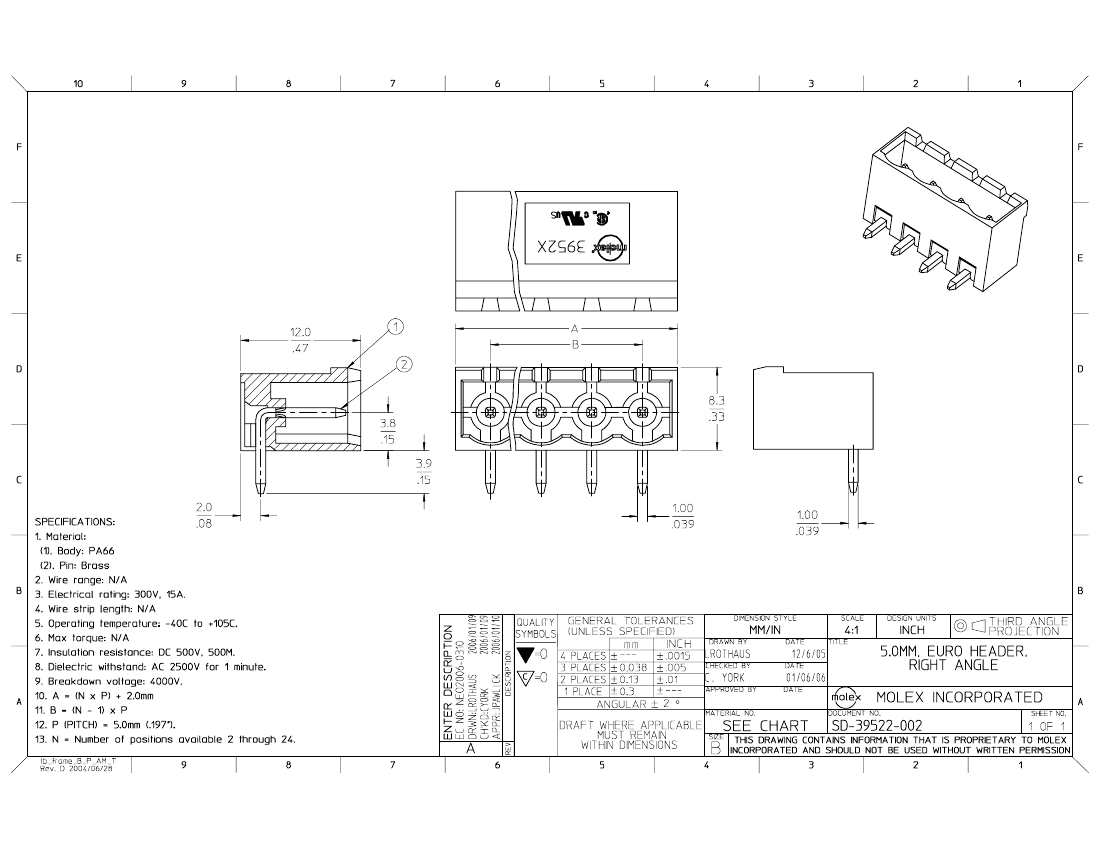

Sales Drawing

PS-39500-001

SD-39501-002, SD-39522-002

This document was generated on 04/23/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
