TK71535 Overview

LOW DROPOUT VOLTAGE REGULATOR

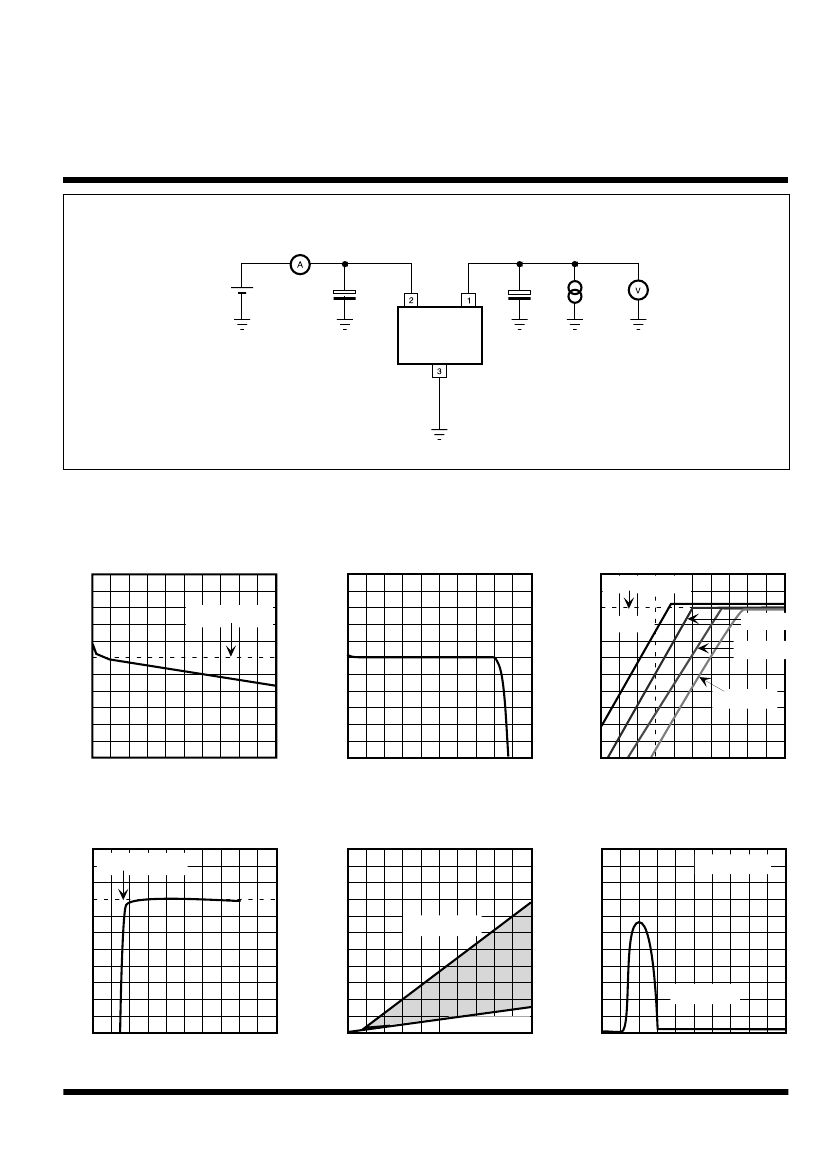

Preview

Download Datasheet

View All

TK715xx

LOW DROPOUT VOLTAGE REGULATOR

FEATURES

High Voltage Precision at

2.0% or

60 mV

Very Low Quiescent Current

Very Low Dropout Voltage

Reverse Bias Protection

Miniature Package (SOT-23-3)

Short Circuit Protection

High Ripple Rejection

APPLICATIONS

Battery Powered Systems

Cellular Telephones

Pagers

Personal Communications Equipment

Portable Instrumentation

Portable Consumer Equipment

Radio Control Systems

Toys

Low Voltage Systems

DESCRIPTION

The TK715xx is a low dropout linear regulator housed in a

small SOT-23-3 package, rated at 350 mW. An internal

PNP transistor is used to achieve a low dropout voltage of

105 mV (typ.) at 50 mA load current. This device offers high

precision output voltage of

2.0 % or

60 mV. The

TK715xx has a very low quiescent current of 25

µA

(typ.)

at no load. The low quiescent current and dropout voltage

make this part ideal for battery powered applications. The

internal reverse bias protection eliminates the requirement

for a reverse voltage protection diode, saving cost and

board space. The high 64 dB ripple rejection and low noise

provide enhanced performance for critical applications.

TK715xxS

VIN

20P

GND

VOUT

ORDERING INFORMATION

TK715

Voltage Code

SCL

Tape/ Reel Code

Temp. Code

Package Code

VIN

BLOCK DIAGRAM

VOUT

THERMAL

PROTECTION

VOLTAGE CODE

19 = 1.9 V

20 = 2.0 V

21 = 2.1 V

22 = 2.2 V

23 = 2.3 V

24 = 2.4 V

25 = 2.5 V

26 = 2.6 V

27 = 2.7 V

28 = 2.8 V

29 = 2.9 V

30 = 3.0 V

31 = 3.1 V

32 = 3.2 V

33 = 3.3 V

34 = 3.4 V

35 = 3.5 V

36 = 3.6 V

37 = 3.7 V

38 = 3.8 V

39 = 3.9 V

40 = 4.0 V

41 = 4.1 V

42 = 4.2 V

43 = 4.3 V

44 = 4.4 V

45 = 4.5 V

46 = 4.6 V

47 = 4.7 V

48 = 4.8 V

49 = 4.9 V

50 = 5.0 V

60 = 6.0 V

70 = 7.0 V

80 = 8.0 V

90 = 9.0 V

TEMPERATURE CODE

C -30 to +80 C

TAPE/REEL CODE

L: Tape Left

PACKAGE CODE

S : SOT-23-3

BANDGAP

REFERENCE

GND

January 1999 TOKO, Inc.

Page 1
