23DH-20: DescriptionFixed Attenuator, 0MHz Min, 23000MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size66KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

23DH-20 Overview

Fixed Attenuator, 0MHz Min, 23000MHz Max, ROHS COMPLIANT PACKAGE

23DH-20 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=250W
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
JESD-609 code	e4
Maximum operating frequency	23000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	GOLD
Maximum voltage standing wave ratio	1.4
Base Number Matches	1

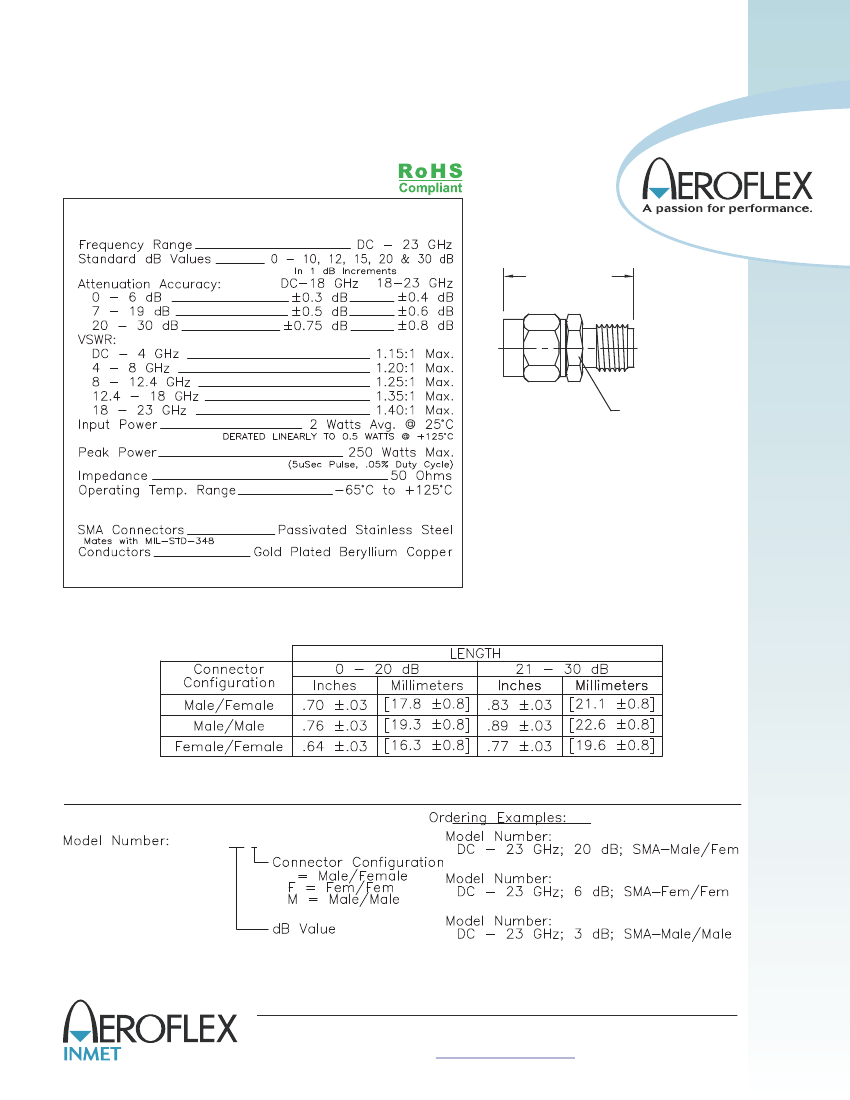

Preview

Download Datasheet

View All

DH ATTENUATORS

SMA, DC - 23 GHz, 2 Watts

SPECIFICATIONS:

Models: 23 DH-XX

Electrical:

LENGTH

SEE TABLE

5/16 [7.9] Hex

Note: Connectors are Epoxy Sealed

Mechanical:

HOW TO ORDER:

23DH-XXY

23DH-20

23DH-6F

23DH-3M

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

23DH-ATT: REV M

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet
