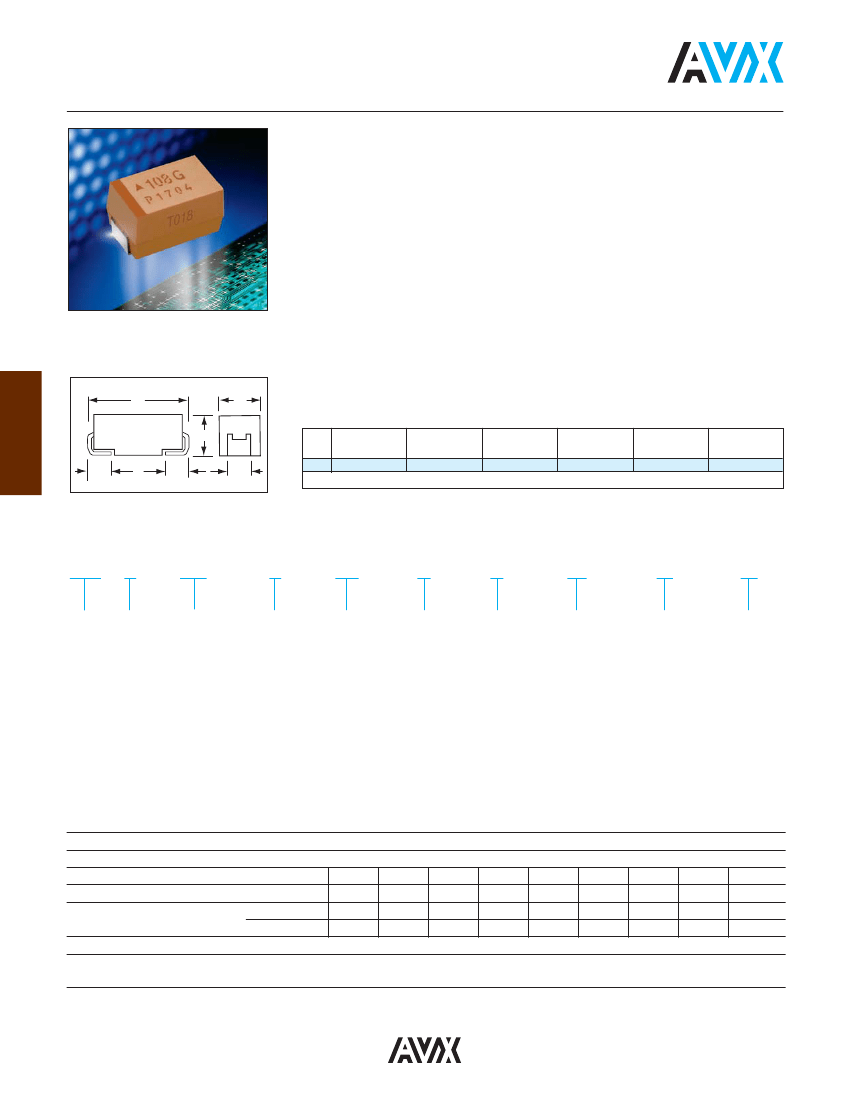

TBM Multianode
Tantalum Ultra Low ESR Capacitor COTS-Plus
Multianode COTS+ Tantalum capacitors
offer the lowest ESR and highest ripple
current available in a solid tantalum
capacitor. Capacitors are Weibull graded
and surge current tested per the
customer‘s requirements.
TBM are also available with Sn/Pb termi-
nations.
L
W
CASE DIMENSIONS:
millimeters (inches)
H
Code
A
S
A
W
1
L±0.20 (0.008)
7.30 (0.287)
W+0.20 (0.008)
–0.10 (0.004)
4.30 (0.169)
H+0.20 (0.008)
–0.10 (0.004)
4.10 (0.162)
W1 ±0.20
(0.008)
2.40 (0.094)
A+0.30 (0.012)
–0.20 (0.008)
1.30 (0.051)
S Min.
4.40 (0.173)
E
W
1
dimension applies to the termination width for A dimensional area only.
HOW TO ORDER
TBM
Type
E
Case
Size
158
Capacitance
Code
pF code:
1st two digits
represent
significant
figures 3rd digit
represents
multiplier
(number of zeros
to follow)
*
Capacitance
Tolerance
M = ±20%
K = ±10%
002
Voltage
Code
002 = 2.5Vdc
004 = 4Vdc
006 = 6Vdc
010 = 10Vdc
015 = 15Vdc
020 = 20Vdc
025 = 25Vdc
035 = 35Vdc
L
ESR
L = Low ESR
SB
Qualification/
Reliability
S = COTS+
B = 0.1%
per 1000 hrs.
0^
Termination
Finish
08 = Tin/Lead
07 = 100% Tin
++
Surge Test
Option
00 = None
23 = 10 cycles,
+25°C
24 = 10 cycles,
-55°C &
+85°C
Packaging
B = Bulk
R = 7" T&R
S = 13" T&R
W = Waffle
NOTE:
The EIA & CECC standards for low ESR Solid Tantalum Capacitors
allow an ESR movement to 1.25 times catalog limit post mounting.
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage DC (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
All technical data relate to an ambient temperature of +25°C
22 µF to 1500 µF
±10%; ±20%
2.5
4
6
10
15
20
25
1.7
2.7
4
7
10
13
17
3.3
5.2
8
13
20
26
32
2.2
3.4
5
8
13
16
20
-55°C to +125°C
1% per 1000 hours at 85°C, V
R
with 0.1Ω/V series impedance,
60% confidence level
+85°C:
+125°C:
+85°C:
+125°C:
35
23
46
28
50
33
65
40
104
TBM Multianode
Tantalum Ultra Low ESR Capacitor COTS-Plus
CAPACITANCE AND RATED VOLTAGE RANGE
LETTER DENOTES CASE SIZE ESR LIMIT IN BRACKETS
Capacitance
µF
Code
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
106
156
226
336
476
686
107
157
227
337
477
687
108
158
2.5V (e)
4V (G)
6V (J)
Rated Voltage DC (V
R
) to 85°C
10V (A)
15V (C)
20V (D)
25V (E)
35V (V)
50V (T)
E(120)
E(75)
E(75)
E(60)
E(50)
E(55)
E(45)
E(35)
E(30)
E(25)
E(18)
E(18), V(23)
E(23)
E(23)
E(12)
E(18)
E(18), V(18)
E(15)
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
Case
Size
DCL
Capacitance
Rated
(µA)
(µF)
Voltage(V)
Max.
DF
ESR
% Max. (mΩ)
Max. @ 100kHz
100kHz Ripple Current Ratings (A)
25ºC
85ºC
125ºC
100kHz Ripple Voltage Ratings (V)
25ºC
85ºC
125ºC
TBME158*002L
TBME687*004L
TBME108*004L
TBMV108*004L
TBME158*004L
TBME477*006L
TBME687*006L
TBMV687*006L
TBME337*010L
TBME477*010L
TBME157*015L
TBME227*015L
TBME107*020L
TBME686*025L
TBME226*035L
TBME336*035L
TBME476*035L
TBME106*050L
TBME156*050L
TBME226*050L
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
SB0^++
E
E
E
V
E
E
E
V
E
E
E
E
E
E
E
E
E
E
E
E
1500
680
1000
1000
1500
470
680
680
330
470
150
220
100
68
22
33
47
10
15
22
2.5
4
4
4
4
6
6
6
10
10
15
15
20
25
35
35
35
50
50
50
38
27
40
40
40
28
41
41
33
47
24
35
20
17
8
12
16
5
7.5
11
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
8
12
18
18
18
15
18
18
23
23
23
30
25
35
45
60
50
55
120
75
75
4.743
3.873
3.873
3.979
4.243
3.873
3.873
3.520
3.426
3.426
3.000
3.286
2.777
2.449
2.121
2.324
2.216
1.500
1.897
1.897
4.269
3.486
3.486
3.581
3.818
3.486
3.486
3.168
3.084
3.084
2.700
2.958
2.500
2.205
1.909
2.091
1.994
1.350
1.708
1.708
1.897
1.549
1.549
1.592
1.697
1.549
1.549
1.408
1.370
1.370
1.200
1.315
1.111
0.980
0.849
0.930
0.886
0.600
0.759
0.759
0.057
0.070
0.070
0.072
0.064
0.070
0.070
0.081
0.079
0.079
0.090
0.082
0.097
0.110
0.127
0.116
0.122
0.180
0.142
0.142
0.051
0.063
0.063
0.064
0.057
0.063
0.063
0.073
0.071
0.071
0.081
0.074
0.087
0.099
0.115
0.105
0.110
0.162
0.128
0.128
0.023
0.028
0.028
0.029
0.025
0.028
0.028
0.032
0.032
0.032
0.036
0.033
0.039
0.044
0.051
0.046
0.049
0.072
0.057
0.057
All technical data relates to an ambient temperature of +25°C.
Capacitance and DF are measured at 120Hz,
0.5V RMS with maximum DC bias of 2.2 volts.
DCL is measured at rated voltage after 5 minutes.
* Insert K for ±10% and M for ±20% Capacitance Tolerance
TBM MULTIANODE CONSTRUCTION
