IDT75C58S20DB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> IDT75C58S20DB

IDT75C58S20DB: DescriptionADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP28, 0.600 INCH, HERMETIC SEALED, CERDIP-28; CategoryAnalog mixed-signal IC converter; File Size340KB，10 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT75C58S20DB Overview

ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP28, 0.600 INCH, HERMETIC SEALED, CERDIP-28

IDT75C58S20DB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	DIP
package instruction	0.600 INCH, HERMETIC SEALED, CERDIP-28
Contacts	28
Reach Compliance Code	_compli
ECCN code	3A001.A.2.C
Maximum analog input voltage	0.1 V
Minimum analog input voltage	-1.9 V
Converter type	ADC, FLASH METHOD
JESD-30 code	R-GDIP-T28
JESD-609 code	e0
length	37.211 mm
Maximum linear error (EL)	0.2%
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	BINARY
Output format	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	225
power supply	5,-5.2 V
Certification status	Not Qualified
Sampling rate	30 MHz
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	15.24 mm

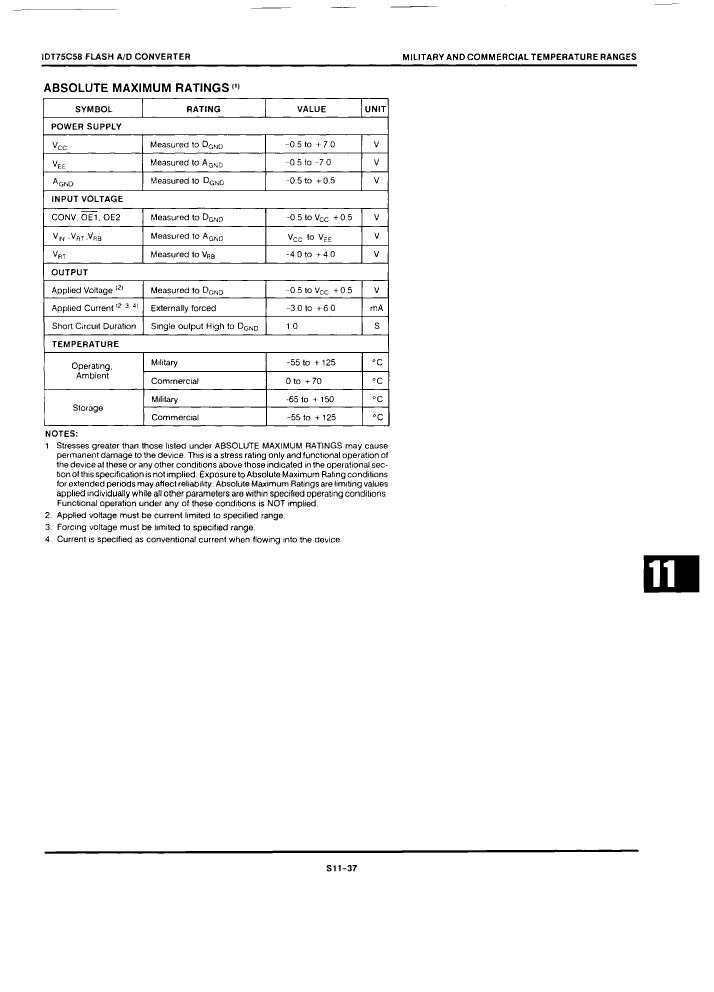

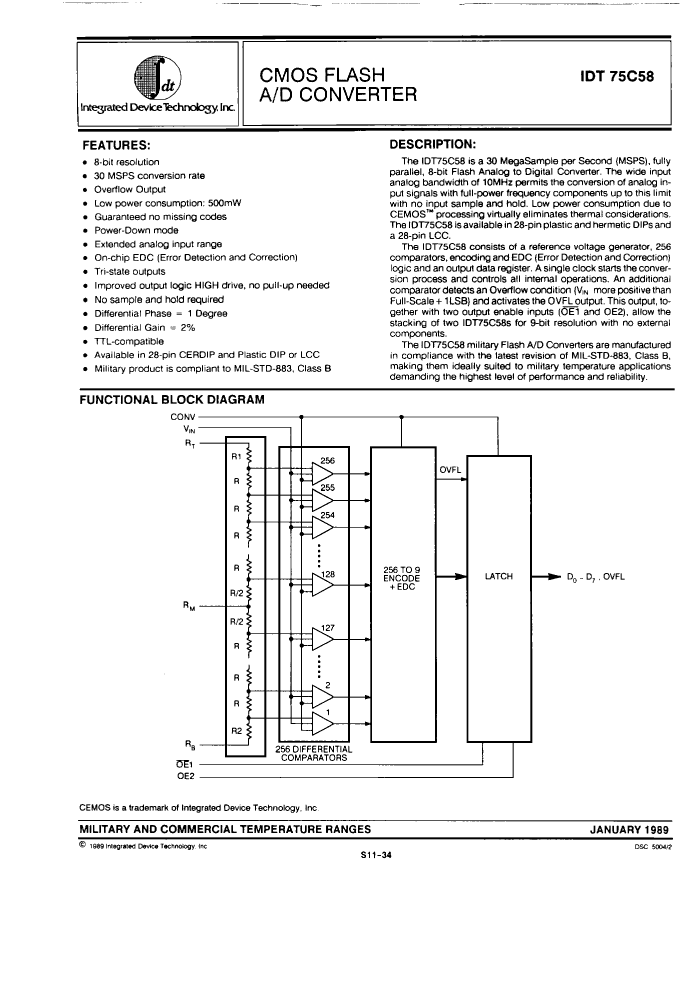

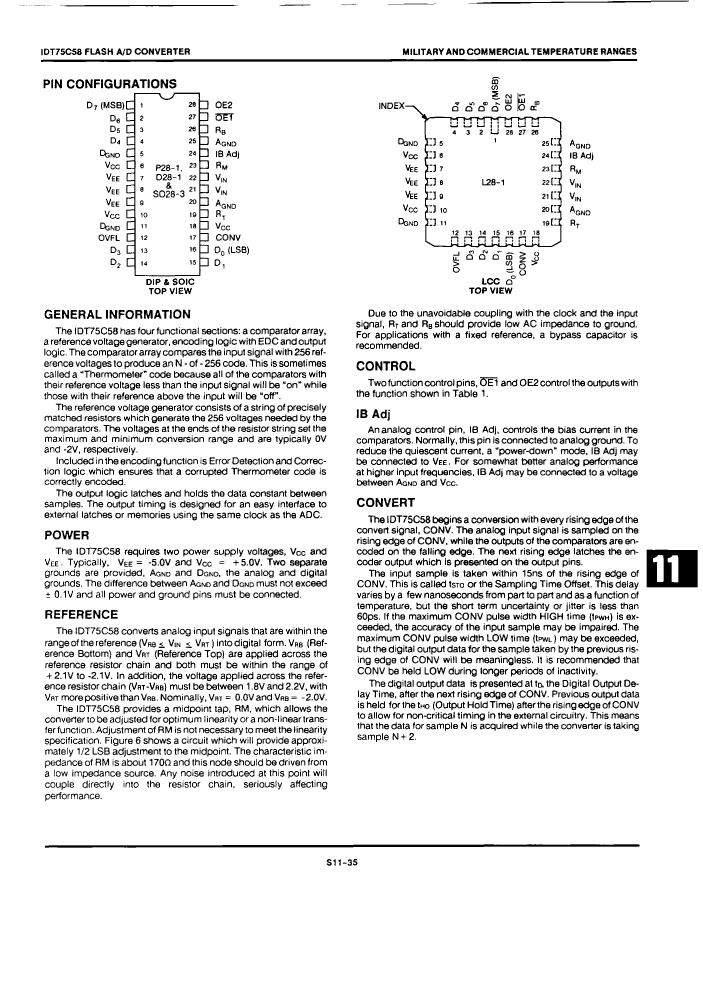

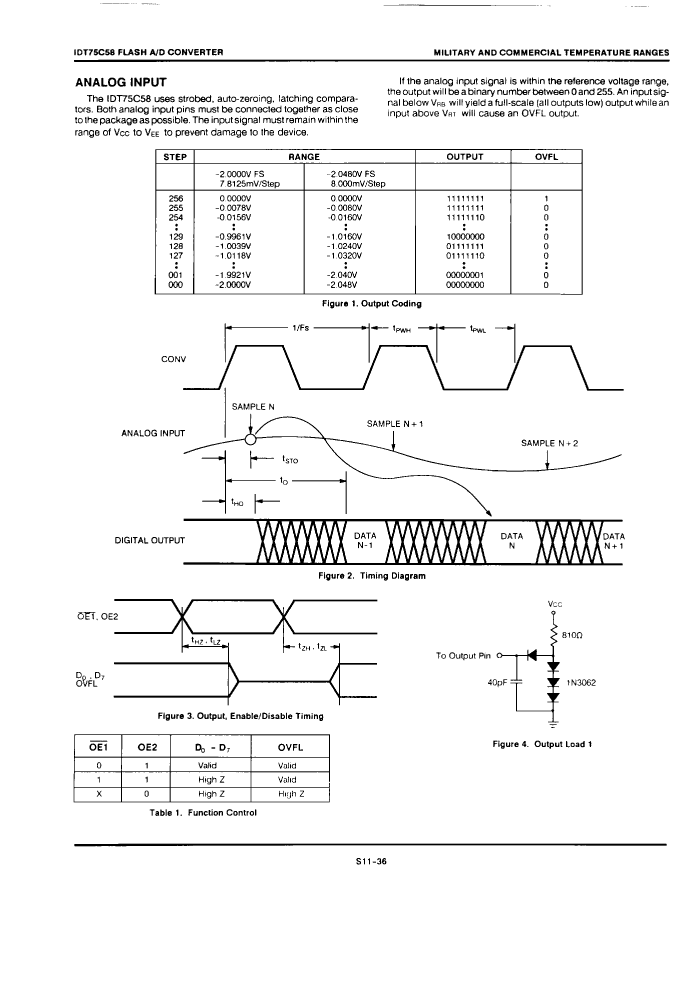

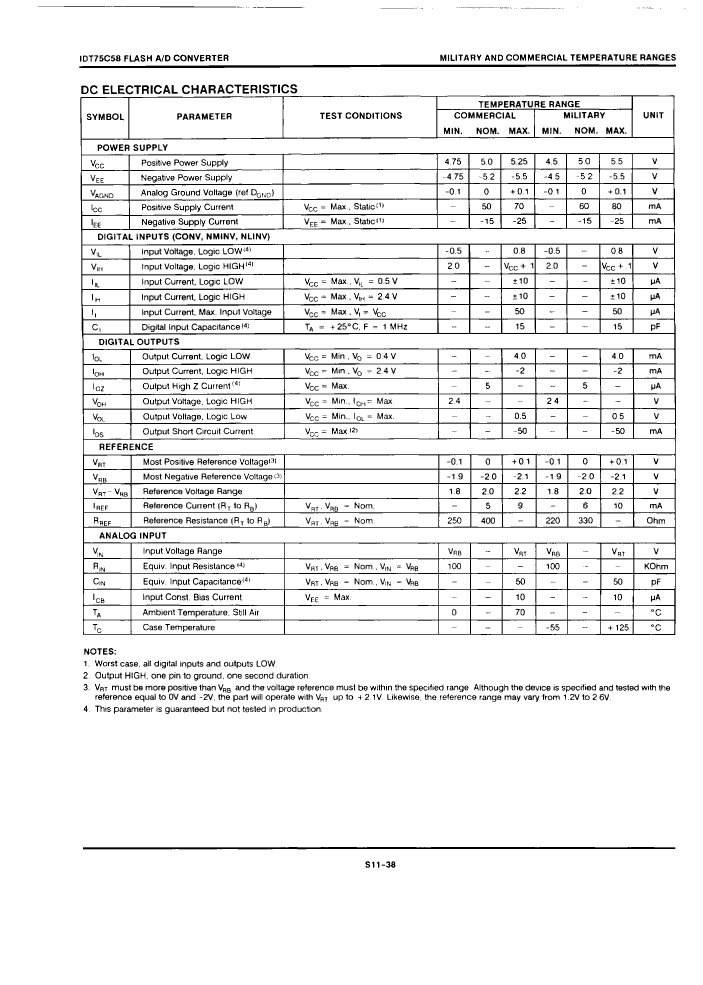

Preview

Download Datasheet

View All

IDT75C58S20DB Related Products

	IDT75C58S20DB	IDT75C58SC20LB	IDT75C58SC30SOB	IDT75C58SC30SO	IDT75C58SB20DB	IDT75C58SB20D	IDT75C58SC30PB
Description	ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP28, 0.600 INCH, HERMETIC SEALED, CERDIP-28	ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CQCC28, LCC-28	ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO28, SOIC-28	ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDSO28, SOIC-28	ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP28, 0.600 INCH, HERMETIC SEALED, CERDIP-28	ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, CDIP28, 0.600 INCH, HERMETIC SEALED, CERDIP-28	ADC, Flash Method, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	DIP	QLCC	SOIC	SOIC	DIP	DIP	DIP
package instruction	0.600 INCH, HERMETIC SEALED, CERDIP-28	LCC-28	SOP,	SOIC-28	0.600 INCH, HERMETIC SEALED, CERDIP-28	0.600 INCH, HERMETIC SEALED, CERDIP-28	DIP,
Contacts	28	28	28	28	28	28	28
Reach Compliance Code	_compli	not_compliant	unknown	not_compliant	not_compliant	not_compliant	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C	EAR99	3A001.A.2.C
Maximum analog input voltage	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V	0.1 V
Minimum analog input voltage	-1.9 V	-1.9 V	-1.9 V	-1.9 V	-1.9 V	-1.9 V	-1.9 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-GDIP-T28	S-CQCC-N28	R-PDSO-G28	R-PDSO-G28	R-GDIP-T28	R-GDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	37.211 mm	11.43 mm	18.3642 mm	18.3642 mm	37.211 mm	37.211 mm	36.576 mm
Maximum linear error (EL)	0.2%	0.3906%	0.4%	0.4%	0.3%	0.3%	0.4%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of analog input channels	1	1	1	1	1	1	1
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-	-55 °C
Output bit code	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY	BINARY
Output format	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS	PARALLEL, 8 BITS
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	QCCN	SOP	SOP	DIP	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	30 MHz	30 MHz	40 MHz	40 MHz	30 MHz	30 MHz	40 MHz
Maximum seat height	5.08 mm	2.54 mm	3.048 mm	3.048 mm	5.08 mm	5.08 mm	4.699 mm
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	11.43 mm	8.763 mm	8.763 mm	15.24 mm	15.24 mm	15.24 mm
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible	-
Encapsulate equivalent code	DIP28,.6	LCC28,.45SQ	-	SOP28,.5	DIP28,.6	DIP28,.6	-
Peak Reflow Temperature (Celsius)	225	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5,-5.2 V	5,-5.2 V	-	5,-5.2 V	5,-5.2 V	5,-5.2 V	-
Maximum time at peak reflow temperature	20	NOT SPECIFIED	-	-	NOT SPECIFIED	NOT SPECIFIED	-
Base Number Matches	-	1	1	1	1	1	1
