Z8018110FEC: DescriptionMicrocontroller, 8-Bit, 10MHz, CMOS, PQFP100, PLASTIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，74 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

Z8018110FEC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	Z8018110FEC	-	-	View	Buy Now

Z8018110FEC Overview

Microcontroller, 8-Bit, 10MHz, CMOS, PQFP100, PLASTIC, QFP-100

Z8018110FEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IXYS
Parts packaging code	QFP
package instruction	PLASTIC, QFP-100
Contacts	100
Reach Compliance Code	unknow
Has ADC	NO
Other features	RAM AND ROM CHIP SELECT PINS
Address bus width	20
bit size	8
boundary scan	NO
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	YES
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
low power mode	YES
Number of DMA channels	2
Number of external interrupt devices	4
Number of I/O lines	16
Number of serial I/Os	3
Number of terminals	100
Number of timers	2
On-chip data RAM width
On-chip program ROM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,.7X1.0
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	225
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
rom(word)	0
Maximum seat height	3.1 mm
speed	10 MHz
Maximum slew rate	80 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

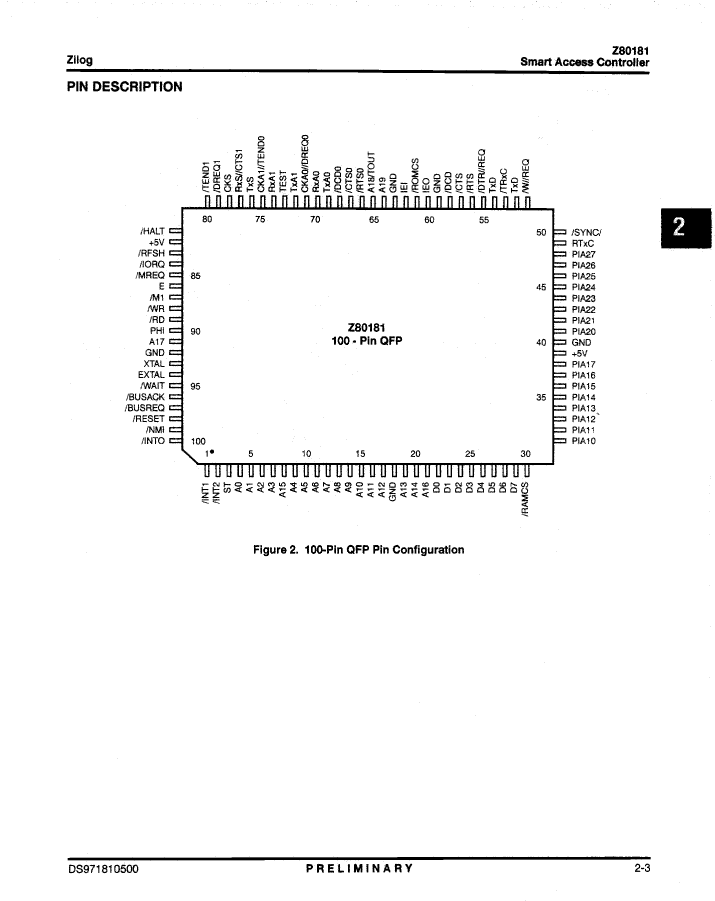

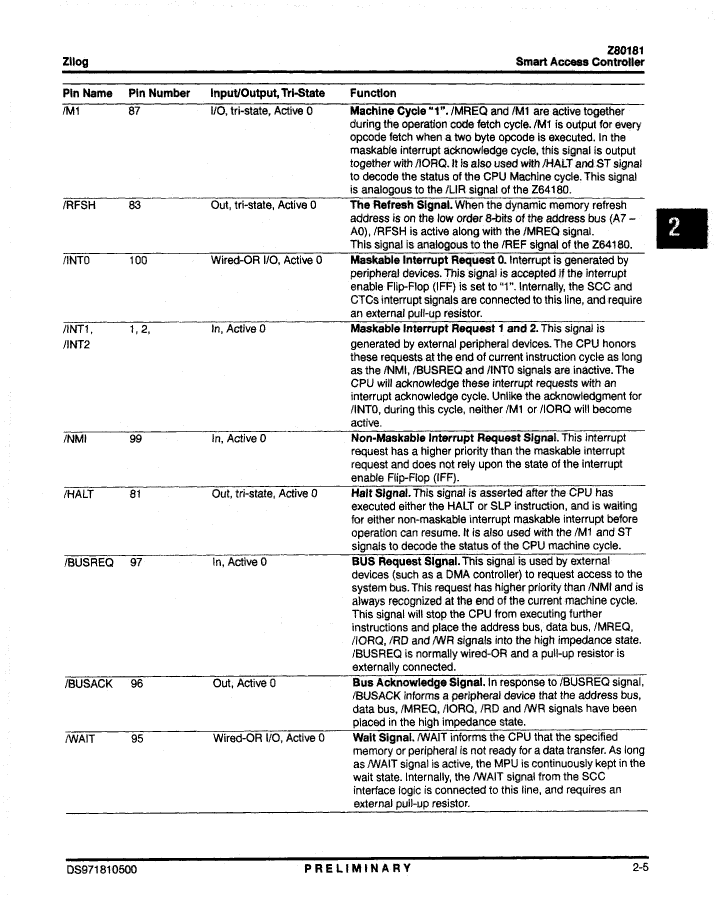

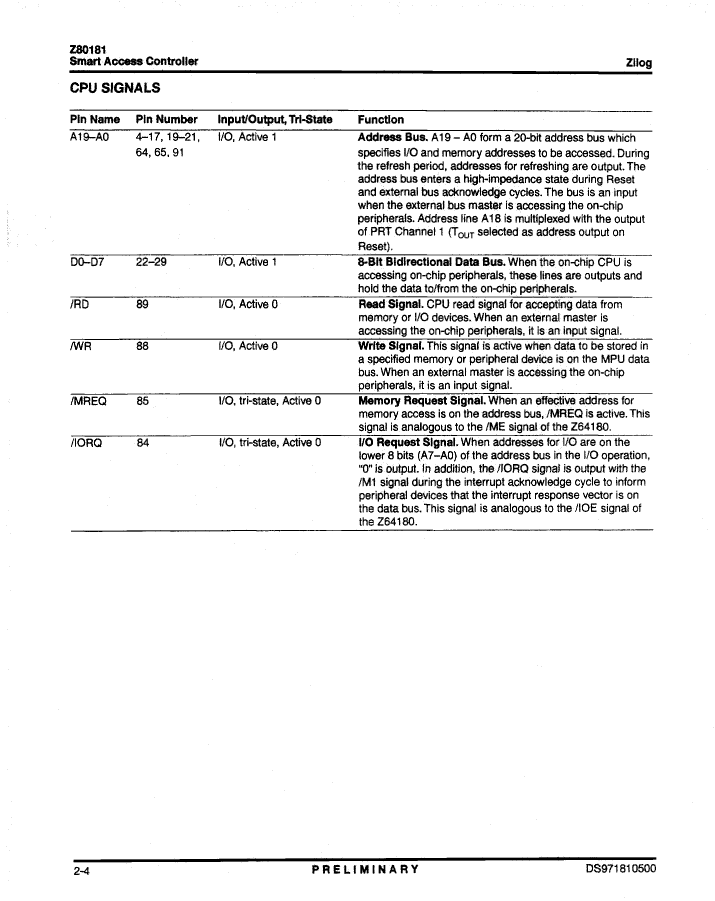

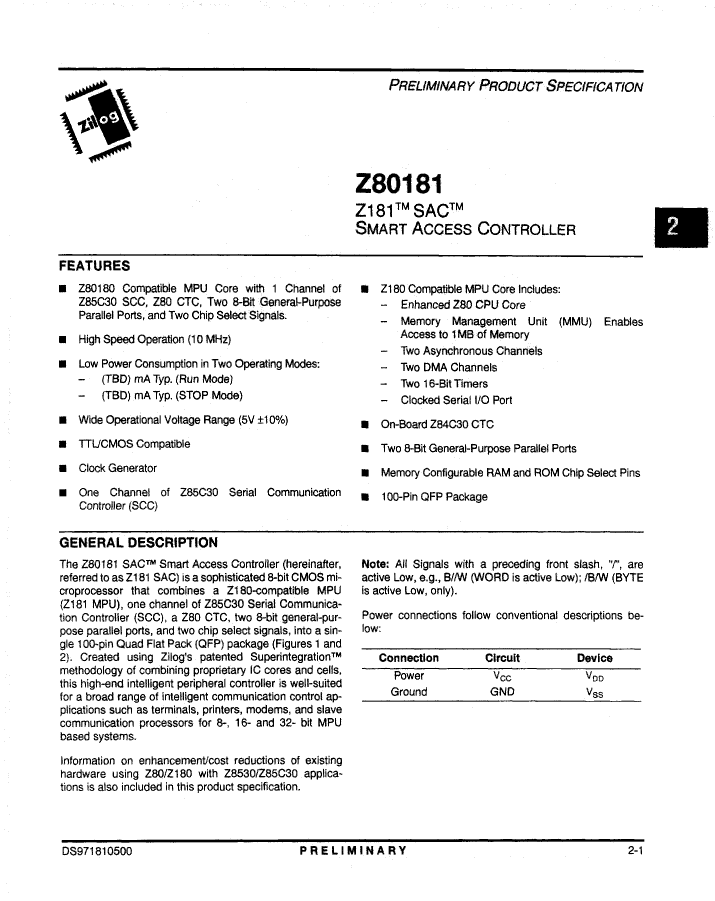

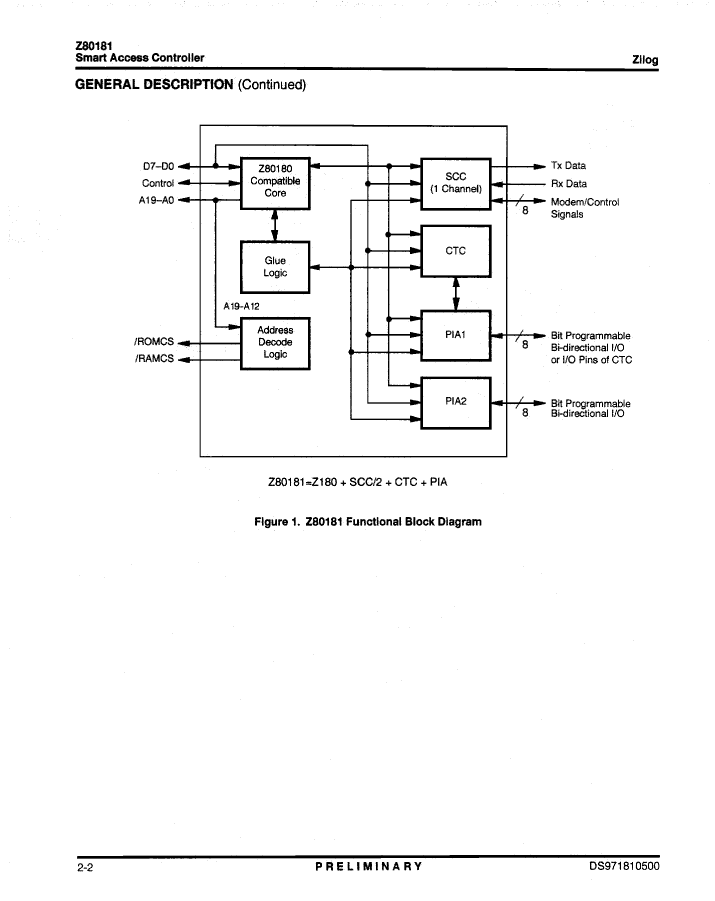

Z8018110FEC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Z8018110FEC Related Products

	Z8018110FEC	Z8018110FEG
Description	Microcontroller, 8-Bit, 10MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microcontroller, 8-Bit, 10MHz, CMOS, PQFP100, PLASTIC, QFP-100
Is it lead-free?	Contains lead	Lead free
Is it Rohs certified?	incompatible	conform to
Maker	IXYS	IXYS
Parts packaging code	QFP	QFP
package instruction	PLASTIC, QFP-100	PLASTIC, QFP-100
Contacts	100	100
Reach Compliance Code	unknow	compliant
Has ADC	NO	NO
Other features	RAM AND ROM CHIP SELECT PINS	RAM AND ROM CHIP SELECT PINS
Address bus width	20	20
bit size	8	8
boundary scan	NO	NO
maximum clock frequency	20 MHz	20 MHz
DAC channel	NO	NO
DMA channel	YES	YES
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	R-PQFP-G100	R-PQFP-G100
JESD-609 code	e0	e3
length	20 mm	20 mm
low power mode	YES	YES
Number of DMA channels	2	2
Number of external interrupt devices	4	4
Number of I/O lines	16	16
Number of serial I/Os	3	3
Number of terminals	100	100
Number of timers	2	2
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK
Peak Reflow Temperature (Celsius)	225	260
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.1 mm	3.1 mm
speed	10 MHz	10 MHz
Maximum slew rate	80 mA	80 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	40
width	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
