Wire-wound Chip Inductors for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications (LB series)[LBC]
LBC2518T221MV
Features
Item Summary
220uH±20%, 80mA, 1007/2518 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Inductance
Case Size (EIA/JIS)
Rated Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
220 uH ± 20 %
1007/2518
80 mA
10.92 Ω
8.4 Ω
0.796 MHz
5.5 MHz
-40 to +105 ℃
(Including-self-generated heat)
± 25 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.5 ±0.2 mm
1.8 ±0.2 mm
1.8 ±0.2 mm
0.5 ±0.2 mm
2018.10.30
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant

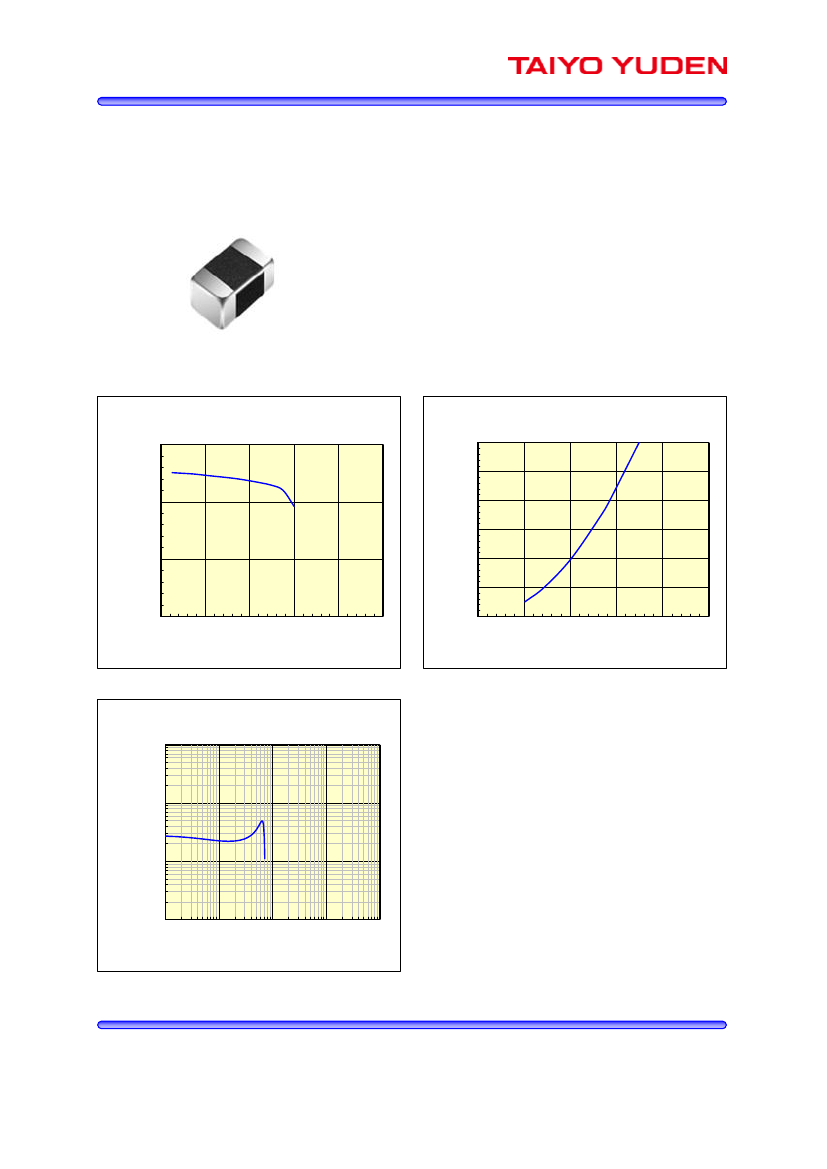

Wire Wound Inductor
-Electrical Characteristics Data-
2016/10/17
Wire-wound Chip Inductors for Automotive / Industrial Applications
(LB series)
Dimension
Length :
Width :
Height :
Inductance :
DC Resistance :
Rated Current :
unit : mm
2.5 + / - 0.2
1.8 + / - 0.2
1.8 + / - 0.2
220
8.4
/
80
unit : inch
( 0.098 + / - 0.008 )
( 0.071 + / - 0.008 )
( 0.071 + / - 0.008 )
LBC2518T221MV
uH
( test freq at 0.796MHz )
ohm ( typ / max )
10.92
mA
Rated current typical : 10% reduction from initial L value.
and Temperature will rise by 20 deg C
DC Bias vs Inductance
300
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
40
80
120
160
200
50
40
30
20
10
0
0
60
120
180
240
300
Inductance [uH]
200
100
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
10000
Inductance [uH]
1000
100
10
0.1
1
10
100
1000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
