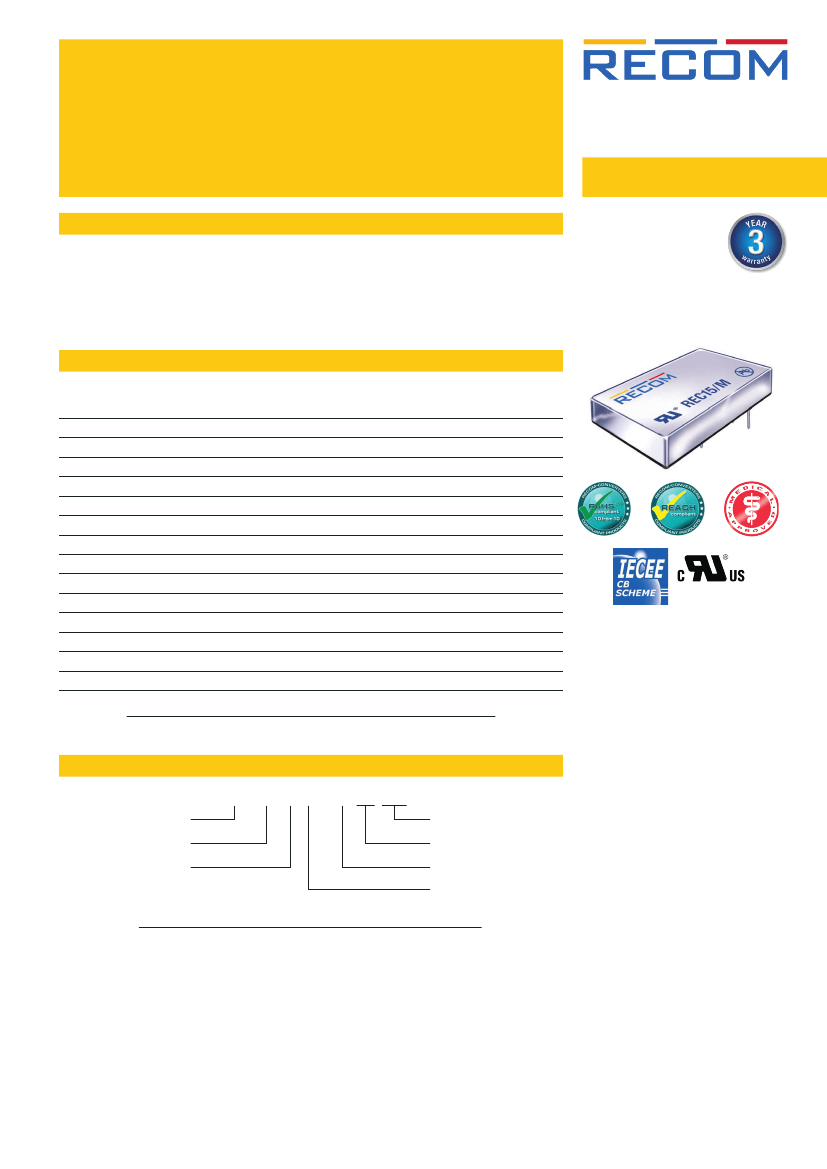

Features
Regulated
Converters
Description
• 15W in 2” x 1” Package
• 2kVDC And 3kVDC Isolation Options
• 2:1 or 4:1 Input Voltage Range
• Continuous Short Circuit Protection (Power Limiting)
• Full SMD Internal Design
• Synchronous Rectification On 3.4V & 5.1V Outputs
• CTRL Pin Option
DC/DC Converter
REC15-S_D(Z)/M
15 Watt
2“ x 1“
Metal Case
Single and Dual
The REC15-xxxxS_D/M -series offer single and dual regulated outputs in a 2”x1” package with 2kVDC
or 3kVDC isolation options and are suitable for higher power industrial applications. Remote on/off
control is standard. The converters can deliver 150% rated power for short periods of time to cope with
applications with large capacitive loads or high start up currents. The outputs with 3A load current have
raised output voltages to compensate for track losses as standard.
Selection Guide
Part
Number
REC15-xx3.4S
REC15-xx5.1S
REC15-xx12S
REC15-xx15S
REC15-xx05D
REC15-xx12D
REC15-xx15D
REC15-xx3.4SZ
REC15-xx5.1SZ
REC15-xx12SZ
REC15-xx15SZ
REC15-xx05DZ
REC15-xx12DZ
REC15-xx15DZ
Input
Voltage Range
[VDC]
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-18, 18-36, 36-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
9-36, 18-75
Output
Voltage
[VDC]
3.4
5.1
12
15
±5
±12
±15
3.4
5.1
12
15
±5
±12
±15
Output
Current
[mA]
3000
3000
1250
1000
±1500
±625
±500
3000
3000
1250
1000
±1500
±625
±500
Efficiency
typ.
(1)
[%]
84-85
86-87
85-86
85-86
82-83
85-86
85-86
84-85
87
86
86
83
86
86
max. Capacitive
Load
[µF]
3300
3300
3300
3300
±1500
±1000
±1000
3300
3300
3300
3300
±1500
±1000
±1000
E224736
IEC60950-1 + AM2 Certified
EN60950-1 + AM2 Certified
UL60950-1 Certified
IEC/EN60601-1 Certified
CB Report
Notes:
Note1: Efficiency is tested at nominal input and full load at +25°C ambient.
Model Numbering
REC15-__ __ _ _/H_/M/X2
nom. Input Voltage
Output Voltage
Single
or
Dual
CTRL Pin
(4)
Metal Case
Isolation
(3)
2:1 or 4:1 Input
(2)
Notes:
Note2: add „Z“ for 4:1 Input Voltage (24= 9-36VDC or 48= 18-75VDC)
Note3: „/H2“ = 2kVDC isolation
„/H3“ = 3kVDC isolation
Note4: without suffix, standard Pinning with CTRL Pin
with suffix „/X2“, without CTRL Pin
Ordering Examples:
REC15-125.1S/H3/M
REC15-2412DZ/H2/M/X2
REC15-2412S/H3/M
REC15-4815DZ/H2/M
REC15-2405SZ/H2/M/X2
9-18Vin
9-36Vin
18-36Vin
18-75Vin
18-36
5.1Vout
±12Vout
12Vout
±15Vout
24Vout
Single output
Dual output
Single Output
Dual Output
Single Ouptut
2:1 input
4:1 input
2:1 input
4:1 input
2:1 input
3kVDC isolation
2kVDC isolation
3kVDC isolation
2kVDC isolation
2kVDC isolation
with CTRL Pin
without CTRL Pin
with CTRL Pin
with CTRL Pin
without CTRL Pin
www.recom-power.com
REV.: 0/2017
ECO-1
REC15-S_D(Z)/M
DC/DC Converter
BASIC CHARACTERISTICS
Parameter
Internal Input Filter
2:1 Input Voltage =
Input Voltage Range
4:1 Input Voltage =
Input Surge Voltage
100ms max.
nom. Input Voltage
nom. Vin= 12VDC
(2:1 and 4:1 Input Types)
Under Voltage Lockout (UVLO)
nom. Vin= 24VDC
(2:1 and 4:1 Input Types)
nom. Vin= 48VDC
2:1 Input Voltage =
Input Current
4:1 Input Voltage =
Quiescent Current
Minimum Load
Start-up time
Rise Time
Hold-up Time
ON/OFF CTRL
Internal Operating Frequency
Output Ripple and Noise
(4)
20MHz BW
Notes:
Note4: Measurements are made with a 100nF MLCC across output. (low ESR)
DC-DC ON
DC-DC OFF
300kHz
100mVp-p
0%
25ms
200µs
200µs
Open or 3.5V<Vr<12V
0V<Vr<1.2V
12VDC
24VDC
48VDC
24VDC
48VDC
12VDC
24VDC
48VDC
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
DC-DC ON
DC-DC OFF
9-18VDC
18-36VDC
36-75VDC
9-36VDC
18-75VDC
9VDC
18VDC
36VDC
9VDC
18VDC
Series
Condition
Min.
Typ.
Max.
Pi Network
18VDC
36VDC
75VDC
36VDC
75VDC
36VDC
50VDC
100VDC
8.3VDC
7.9VDC
17.4VDC
16.7VDC
35.7VDC
34.3VDC
2A
1A
0.5A
2A
1A
20mA
Specifications
(measured @ ta= 25°C, nominal input voltage, full load and after warm up unless otherwise specified)

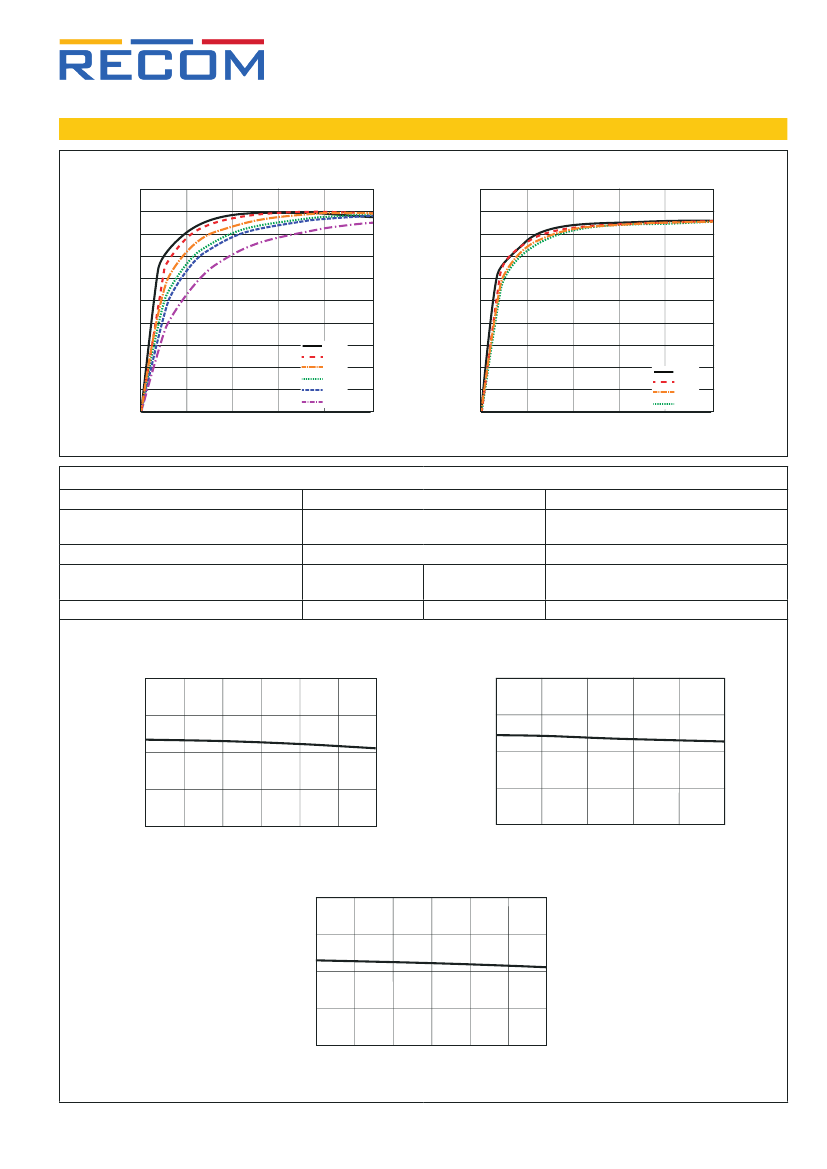

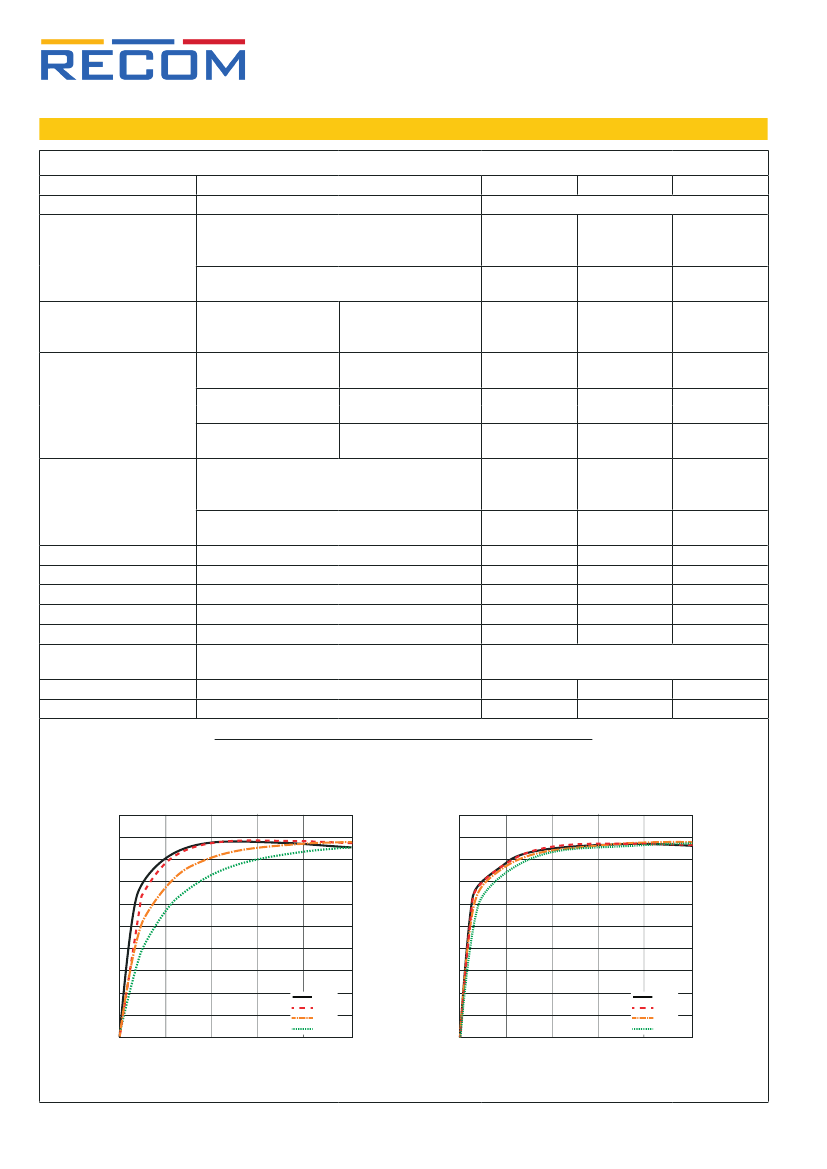

Efficiency vs. Load
100
90
80
REC15-245.1SZ/H2/M
100
90
80
REC15-2412S/H2/M
Efficiency [%]
60
50
40
30
20
10
0
0
20
40
60
80
09Vin
12Vin
24Vin
36Vin
Efficiency [%]
70
70
60
50
40
30
20
10
18Vin
24Vin
30Vin
36Vin
100
0
0
20
40
60
80
100
Output Current [%]
continued on next page
ECO-2
REV.: 0/2017
Output Current [%]
www.recom-power.com
REC15-S_D(Z)/M
DC/DC Converter
Efficiency vs. Load
100
90
80
Series
REC15-2415D/H2/M
100
90
80
Specifications
(measured @ ta= 25°C, nominal input voltage, full load and after warm up unless otherwise specified)
REC15-485.1SZ/H2/M
Efficiency [%]
60
50
40
30
20
10
0
0
20
40
60
18Vin
24Vin
36Vin
48Vin
54Vin
75Vin
Efficiency [%]
70
70
60
50
40
30
20
10
18Vin
24Vin
30Vin
36Vin
80
100
0
0
20
40
60
80
100
Output Current [%]
REGULATIONS
Parameter
Output Accuracy
Line Regulation
Load Regulation
Cross Regulation
25% to 100% load
dual output only
Single
Dual
25% to 100% load
Output Current [%]
Condition
3.4Vout
all other
Value
±1.2% max.
±1.0% max.
±0.3% max.
±0.5% max.
±1.2% max.
±5.0% max.
Accuracy vs. Load
(@ min Vin to max. Vin)
+1.0
+0.5
0
-0.5
-1.0
REC15-245.1SZ/H2/M
+1.0
+0.5
0
-0.5
-1.0
REC15-2412S/H2/M
Deviation [%]
Deviation [%]
0
0.5
1.0
1.5
2.0
2.5
3.0
0
0.25
0.5
0.75
1.0
1.25
Output Current [A]
+1.0
+0.5
0
-0.5
-1.0
Output Current [A]
REC15-485.1SZ/H2/M
Deviation [%]
0
0.5
1.0
1.5
2.0
2.5
3.0
Output Current [A]
continued on next page
www.recom-power.com
REV.: 0/2017
ECO-3
REC15-S_D(Z)/M
DC/DC Converter
Accuracy vs. Load
(@ min Vin to max. Vin)
Series
REC15-2415DZ/H2/M
Specifications
(measured @ ta= 25°C, nominal input voltage, full load and after warm up unless otherwise specified)
+1.0
+0.5
0
-0.5
-1.0
0
Negative Vout
+1.0
+0.5
0
-0.5
-1.0
Positive Vout
Deviation [%]
Deviation [%]
0.1
0.2
0.3
0.4
0.5
0
0.1
0.2
0.3
0.4
0.5
Output Current [A]
PROTECTIONS
Parameter
Short Circuit Protection (SCP)
Over Load Protection (OLP)
/H2 verions
Isolation Voltage
(7)
/H3 verions
Isolation Resistance
Isolation Capacitance
Insulation Grade
Means of Protection
Leakage Current
Internal and External
Clearance
Creepage
tested for 1 second
rated for 1 minute
tested for 1 second
rated for 1 minute
Output Current [A]
Type
below 100mW
Value
continuous, auto recovery
150% typ., Hiccup mode
2kVDC
1kVAC
3kVDC
1.5kVAC
1GW min.
1200pF max.
basic
none
2µA typ.
≥
3.4mm
≥
3.4mm
Notes:
Note7: For repeat Hi-Pot testing, reduce the time and/or the test voltage.
Note8: An input fuse is required if the mains supply is not over-current protected. Recommended fuse: T4A slow blow type
ENVIRONMENTAL
Parameter
Operating Temperature Range
Maximum Case Temperature
Thermal Impedance
Temperature Coefficient
Temperature Coefficient
Operating Altitude
Operating Humidity
Pollution Degree
Vibration
MTBF
according to MIL-HDBK-217F,
G.B.
+25°C
+71°C
non-condensing
0.1m/s (natural convection)
Condition
with derating (see graph)
2:1 Input
4:1 Input
Value
-40°C to +100°C
-40°C to +90°C
+100°C
12°C/W
±0.05% max.
±0.05% max.
2000m max.
95% RH max.
PD2
10-55Hz, 2G, 30min along X,Y and Z
700 x 10
3
hours
150 x 10
3
hours
continued on next page
ECO-4
REV.: 0/2017
www.recom-power.com
REC15-S_D(Z)/M
DC/DC Converter
Derating Graph
(@ Chamber and natural convection 0.1m/s)
100
80
60
40
20
0
-40
4:1 Input Voltage
2:1 Input Voltage
-20
0
20
40
60
80 90 100
65 71
Series
Specifications
(measured @ ta= 25°C, nominal input voltage, full load and after warm up unless otherwise specified)
Output Power [%]
Ambient Temperature [°C]
SAFETY AND CERTIFICATIONS
Certificate Type (Safety)
Information Technology Equipment, General Requirements for Safety (LVD)
Information Technology Equipment, General Requirements for Safety (CB Scheme)
Information Technology Equipment, General Requirements for Safety (LVD)
Medical electrical equipment Part 1: General requirements for basic safety and
essential performance
Risk Management
RoHs2
Report / File Number
E224736-A19
1310058-1
LVD1605077-01
MDD12060585
RM12060585
Standard
UL60950-1, 2nd Edition, 2007
CAN/CSA-C22.2 No. 60950-1-03, 2nd Edition, 2007
IEC60950-1:2005, 2nd Edition + 2009
EN60950-1, 2nd Edition, 2011
IEC60950-1:2005, 2nd Edition + A2:2013
EN60950-1:2006 + A2:2013
IEC60601-1, 3rd Edition, 2007
EN60601-1, 2006
ISO14971:2007
RoHS 6/6, 2011/65/EU + AM-2015/863
EMC Compliance
Information technology equipment - Radio disturbance characteristics - Limits
and methods of measurement
Condition
with external filter
Standard / Criterion
EN55022, Class B
EMC Filtering Suggestions for EN55022 Class B
Single Output
L1
+Vin
+Vout
+Vin
Dual Output
C4
L1
+Vout
C1
C2
C1
C2
Com
-Vout
-Vin
-Vout
-Vin
C3
C3
Vin
12VDC
24VDC
48VDC
according to EN55022 Class B
C1 C2 C3 C4
L1
10µF
4.7µF
2.2µF
3.3nF
CMC, 1200µH
WE 7446723001
www.recom-power.com
REV.: 0/2017
ECO-5
