1.5SMC480CA-AT/13

Description
Transient Suppressor,
CategoryDiscrete semiconductor    diode
File Size708KB,6 Pages
ManufacturerPulse Electronics
Download Datasheet Parametric View All

1.5SMC480CA-AT/13 Overview

Transient Suppressor,

1.5SMC480CA-AT/13 Parametric

Parameter NameAttribute value
MakerPulse Electronics
Reach Compliance Codeunknow

1.5SMC480CA-AT/13 Preview

1.5SMC-AT SERIES
Transient Voltage Suppressors (TVS) Data Sheet
Features
For surface mounted applications in order to optimize board space
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
1500W peak pulse power capability at 10/1000μs waveform,
repetition rate (duty cycle): 0.01%
Fast response time
Typical I
R
less than 1μA above 12V
High Temperature soldering: 260℃/10 seconds at terminals
Plastic package has underwriters laboratory flammability 94V-0
Meets MSL level 1, per J-STD-020
Safety certification: UL: E244458
AEC-Q101 qualified
Mechanical Data
Case: JEDEC DO-214AB. Molded plastic over glass passivated junction
Terminal: Solder plated, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode except bi-directional models
Standard Packaging: 16mm tape (EIA STD RS-481)
Weight: 0.26g
Applications
I/O interface
AC/DC power supply
Low frequency signal transmission line (RS232, RS485, etc.)
Maximum Ratings and Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Rating
Peak pulse power dissipation at 10/1000μs waveform
(Note1, Note2, Fig.1)
Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3)
Steady state power dissipation at T
A
=50℃ (Fig.5)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load, (JEDEC Method) (Note3, Fig.6)
Operating junction and Storage Temperature Range.
Typical thermal resistance junction to lead
Typical thermal resistance junction to ambient
Symbol
P
PPM
I
PPM
P
M(AV)
I
FSM
T
J
,T
STG
R
θJL
R
θJA
Value
Minimum 1500
See Table
6.5
200
-55 to +150
15
75
Units
Watts
Amps
Watts
Amps
℃/W
℃/W
Notes: 1. Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2.
2. Mounted on 8.0mm×8.0mm copper pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, duty cycle=4 pulses per minutes maximum.
Revision:TVS-1.5SMC-AT SERIES-001(A1)
1/6
http://brightking.pulseelectronics.com
1.5SMC-AT SERIES

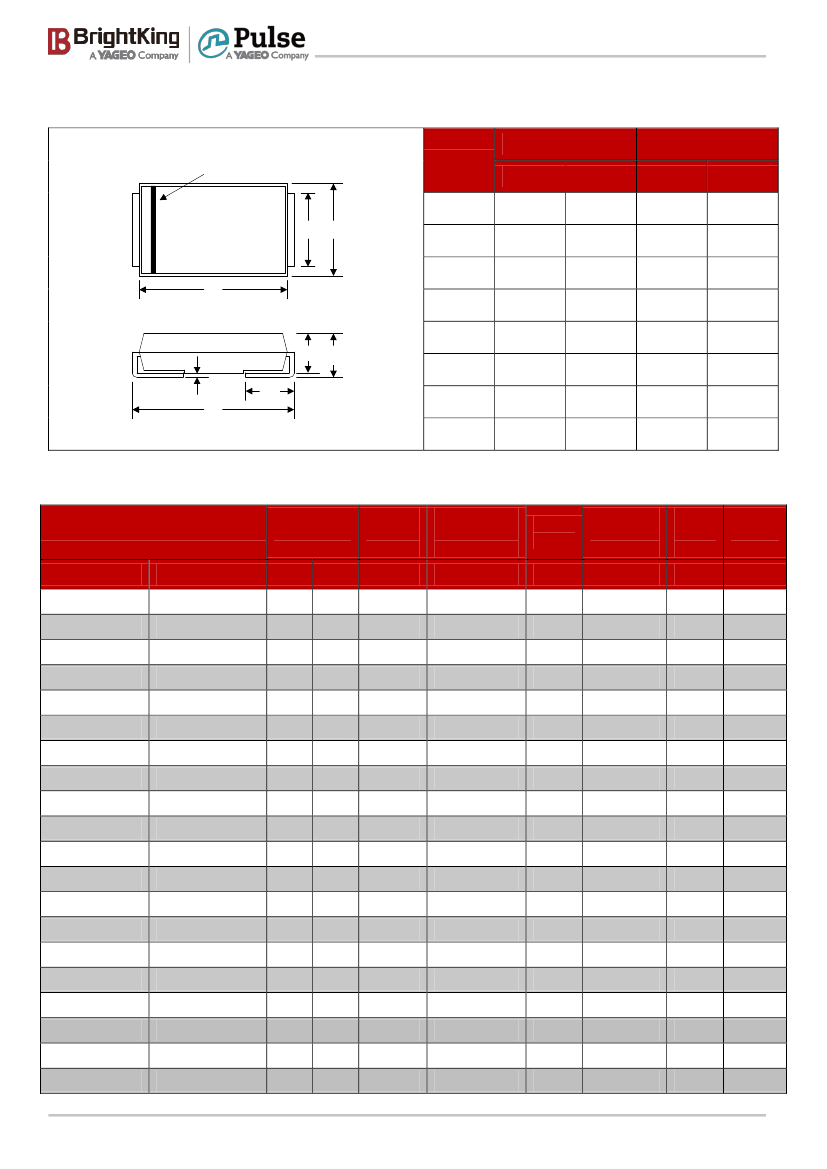

Dimensions (SMC/DO-214AB)
Millimeters
Inches
Min.
0.260
0.220
0.114
0.305
0.030
-
0.087
0.079
Max.
0.280
0.245
0.126
0.320
0.060
0.008
0.110
0.103
Cathode Band
Symbol
Min.
L
6.60
5.59
2.90
7.75
0.76
-
2.20
2.06
Max.
7.11
6.22
3.20
8.13
1.52
0.203
2.80
2.62
D1 D
D
D1
L
T
T1
H1 H
d
T
T1
d
H
H1
Electrical Characteristics (T
A
=25℃)
Part Number
Device
Marking
Code
UNI
6V8A
7V5A
8V2A
9V1A
10A
11A
12A
13A
15A
16A
18A
20A
22A
24A
27A
30A
33A
36A
39A
43A
BI
6V8C
7V5C
8V2C
9V1C
10C
11C
12C
13C
15C
16C
18C
20C
22C
24C
27C
30C
33C
36C
39C
43C
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
Breakdown
Voltage
@I
T
V
BR
(V)
6.45~7.14
7.13~7.88
7.79~8.61
8.65~9.55
9.50~10.50
10.50~11.60
11.40~12.60
12.40~13.70
14.30~15.80
15.20~16.80
17.10~18.90
19.00~21.00
20.90~23.10
22.80~25.20
25.70~28.40
28.50~31.50
31.40~34.70
34.20~37.80
37.10~41.00
40.90~45.20
Test
Current
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage@I
PP
V
C
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
Peak
Pulse
Current
I
PP
(A)
144.8
134.5
125.6
113.4
104.8
97.4
91.0
83.5
71.7
67.6
60.3
54.9
49.7
45.8
40.5
36.7
33.3
30.5
28.2
25.6
Reverse
Leakage
@V
RWM
I
R
(μA)
1000
500
200
50
10
5
5
1
1
1
1
1
1
1
1
1
1
1
1
1
Unidirectional
1.5SMC6.8A-AT
1.5SMC7.5A-AT
1.5SMC8.2A-AT
1.5SMC9.1A-AT
1.5SMC10A-AT
1.5SMC11A-AT
1.5SMC12A-AT
1.5SMC13A-AT
1.5SMC15A-AT
1.5SMC16A-AT
1.5SMC18A-AT
1.5SMC20A-AT
1.5SMC22A-AT
1.5SMC24A-AT
1.5SMC27A-AT
1.5SMC30A-AT
1.5SMC33A-AT
1.5SMC36A-AT
1.5SMC39A-AT
1.5SMC43A-AT
Bidirectional
1.5SMC6.8CA-AT
1.5SMC7.5CA-AT
1.5SMC8.2CA-AT
1.5SMC9.1CA-AT
1.5SMC10CA-AT
1.5SMC11CA-AT
1.5SMC12CA-AT
1.5SMC13CA-AT
1.5SMC15CA-AT
1.5SMC16CA-AT
1.5SMC18CA-AT
1.5SMC20CA-AT
1.5SMC22CA-AT
1.5SMC24CA-AT
1.5SMC27CA-AT
1.5SMC30CA-AT
1.5SMC33CA-AT
1.5SMC36CA-AT
1.5SMC39CA-AT
1.5SMC43CA-AT
Revision:TVS-1.5SMC-AT SERIES-001(A1)
2/6
http://brightking.pulseelectronics.com
1.5SMC-AT SERIES
Device
Marking
Code
UNI
47A
51A
56A
62A
68A
75A
82A
91A
100A
110A
120A
130A
150A
160A
170A
180A
200A
220A
250A
300A
350A
400A
440A
480A
510A
530A
540A
550A
BI
47C
51C
56C
62C
68C
75C
82C
91C
100C
110C
120C
130C
150C
160C
170C
180C
200C
220C
250C
300C
350C
400C
440C
480C
510C
530C
540C
550C
Reverse
Stand-Off
Voltage
V
RWM
(V)
40.20
43.60
47.80
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
408.00
434.00
450.00
459.00
467.00
Breakdown
Voltage
@I
T
V
BR
(V)
44.70~49.40
48.50~53.60
53.20~58.80
58.90~65.10
64.60~71.40
71.30~78.80
77.90~86.10
86.50~95.50
95.00~105.00
105.00~116.00
114.00~126.00
124.00~137.00
143.00~158.00
152.00~168.00
162.00~179.00
171.00~189.00
190.00~210.00
209.00~231.00
237.00~263.00
285.00~315.00
332.00~368.00
380.00~420.00
418.00~462.00
456.00~504.00
485.00~535.00
503.50~556.50
513.00~567.00
522.50~577.50
Maximum
Clamping
Voltage@I
PP
V
C
(V)
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
Peak
Pulse
Current
I
PP
(A)
23.5
21.7
19.7
17.9
16.5
14.8
13.5
12.2
11.1
10.0
9.2
8.5
7.3
6.9
6.5
6.2
5.5
4.6
4.4
3.7
3.2
2.8
2.5
2.3
2.1
2.1
2.0
2.0
Reverse
Leakage
@V
RWM
I
R
(μA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Part Number
Test
Current
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Unidirectional
1.5SMC47A-AT
1.5SMC51A-AT
1.5SMC56A-AT
1.5SMC62A-AT
1.5SMC68A-AT
1.5SMC75A-AT
1.5SMC82A-AT
1.5SMC91A-AT
1.5SMC100A-AT
1.5SMC110A-AT
1.5SMC120A-AT
1.5SMC130A-AT
1.5SMC150A-AT
1.5SMC160A-AT
1.5SMC170A-AT
1.5SMC180A-AT
1.5SMC200A-AT
1.5SMC220A-AT
1.5SMC250A-AT
1.5SMC300A-AT
1.5SMC350A-AT
1.5SMC400A-AT
1.5SMC440A-AT
1.5SMC480A-AT
1.5SMC510A-AT
1.5SMC530A-AT
1.5SMC540A-AT
1.5SMC550A-AT
Bidirectional
1.5SMC47CA-AT
1.5SMC51CA-AT
1.5SMC56CA-AT
1.5SMC62CA-AT
1.5SMC68CA-AT
1.5SMC75CA-AT
1.5SMC82CA-AT
1.5SMC91CA-AT
1.5SMC100CA-AT
1.5SMC110CA-AT
1.5SMC120CA-AT
1.5SMC130CA-AT
1.5SMC150CA-AT
1.5SMC160CA-AT
1.5SMC170CA-AT
1.5SMC180CA-AT
1.5SMC200CA-AT
1.5SMC220CA-AT
1.5SMC250CA-AT
1.5SMC300CA-AT
1.5SMC350CA-AT
1.5SMC400CA-AT
1.5SMC440CA-AT
1.5SMC480CA-AT
1.5SMC510CA-AT
1.5SMC530CA-AT
1.5SMC540CA-AT
1.5SMC550CA-AT
Notes: For bidirectional type having V
RWM
of 10V and less, the I
R
limit is double.
Revision:TVS-1.5SMC-AT SERIES-001(A1)
3/6
http://brightking.pulseelectronics.com
1.5SMC-AT SERIES

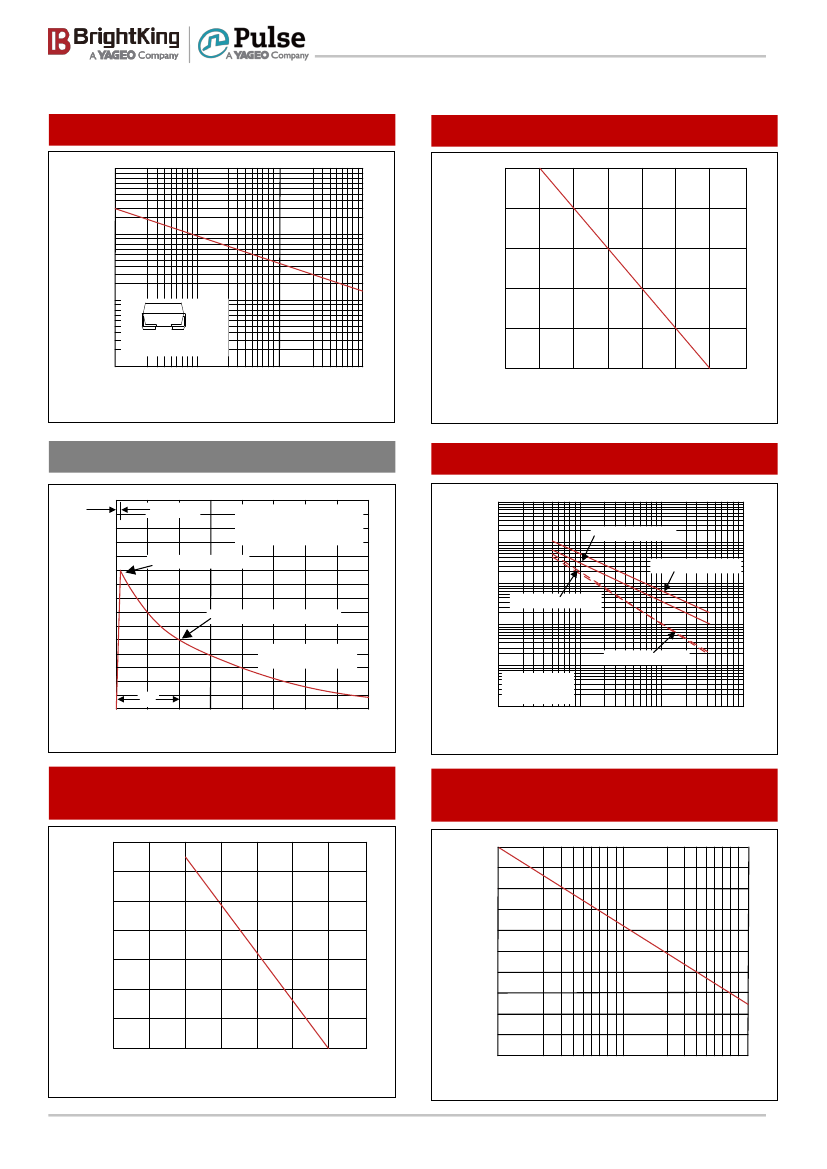

Ratings and Characteristic Curves (T
A
=25℃ unless otherwise noted)
Figure 1. Peak Pulse Power Rating Curve
100
Figure 2. Pulse Derating Curve
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
100
P
PPM
- Peak Pulse Power (kW)
80
10
60
40
1
0.2×0.2″(5.0×5.0mm)
Copper Pad Area
20
0.1
1
10
100
1000
t
d
-Pulse Width (µs)
0
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (℃)
Figure 3. Pulse Waveform
150
Figure 4. Typical Junction Capacitance
100000
Bi-directional V=0V
I
PPM
- Peak Pulse Current, %I
RSM
t
r
=10µs
T
J
=25℃
Pulse Width(t
d
) is defined as
the point where the peak
current decays to 50% of I
PPM
10000
Uni-directional V=0V
100
Peak Value I
PPM
Cj (pF)
1000
Uni-directional @V
R
Half Value I
PPM
(I
PPM
/2)
50
10/1000µs Waveform
as defined by R.E.A
100
10
1
T
J
=25℃
f=1.0MHz
Vsig=50mVp-p
Bi-directional @V
R
0
0
t
d
1.0
2.0
t-Time (ms)
3.0
4.0
1
10
100
1000
V
BR
-Reverse Breakdown Voltage (V)
Figure 5. Steady State Power Dissipation Derating
Curve
P
M(AV)
, Steady State Power Dissipation (W)
Figure 6. Maximum Non-Repetitive Forward
Surge Current Uni-Directional Only
200
7
I
FSM
- Peak Forward Surve Current (A)
6
5
4
3
2
1
0
0
25
50
75
100
125
150
175
T
A
-Ambient Temperature (℃)
180
160
140
120
100
80
60
40
20
0
1
10
Number of Cycles at 60Hz
100
Revision:TVS-1.5SMC-AT SERIES-001(A1)
4/6
http://brightking.pulseelectronics.com
1.5SMC-AT SERIES

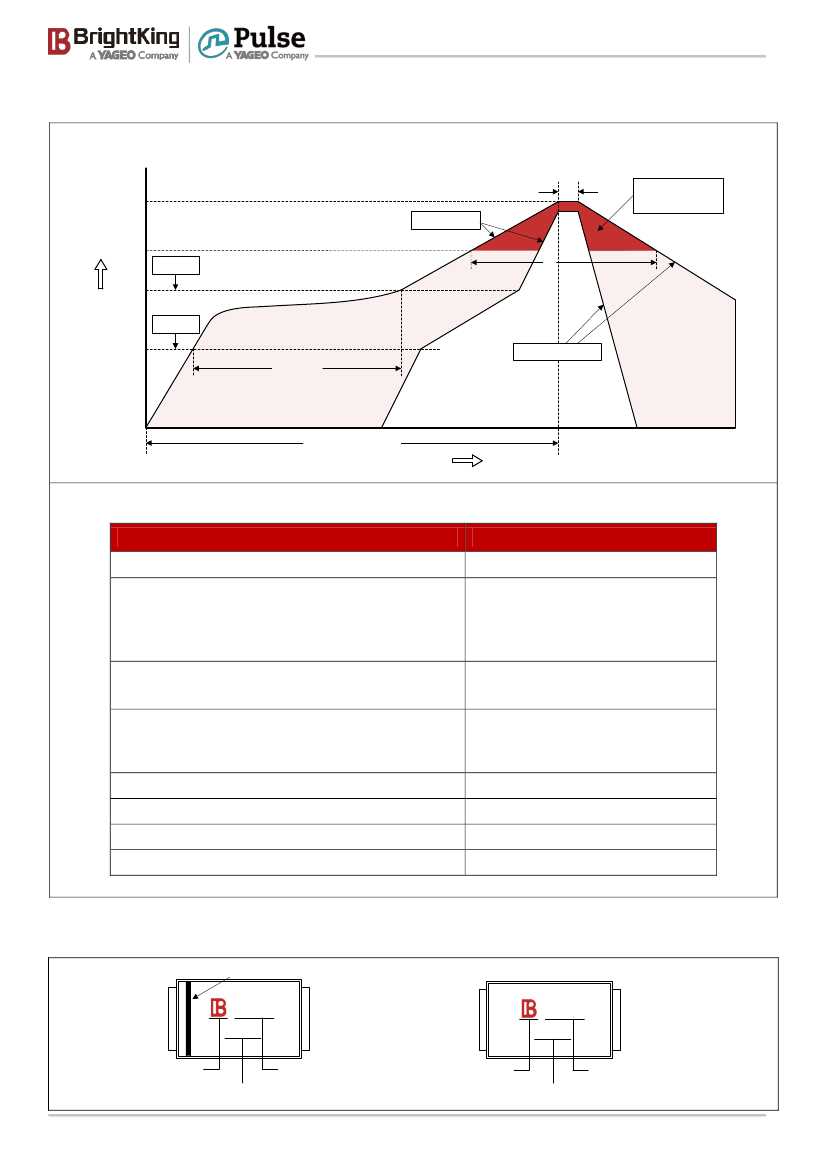

Recommended Soldering Conditions
Reflow Soldering
T
P
Ramp-up
T
L
T
S max
Temperature
t
P
Critical Zone
T
L
to T
P
t
L
T
S min
t
S
Preheat
Ramp-down
25
t 25℃ to Peak
Time
Recommended Conditions
Profile Feature
Average ramp-up rate (T
L
to T
P
)
Preheat
-Temperature Min (T
S min
)
-Temperature Max (T
S max
)
-Time (min to max) (t
S
)
T
S max
to T
L
-Ramp-up Rate
Time maintained above:
-Temperature (T
L
)
-Time (t
L
)
Peak Temperature (T
P
)
Time within 5℃ of actual Peak Temperature (t
P
)
Ramp-down Rate
Time 25℃ to Peak Temperature
Pb-Free Assembly
3℃/second max.
150℃
200℃
60-180 seconds
3℃/second max.
217℃
60-150 seconds
260℃
20-40 seconds
6℃/second max.
8 minutes max.
Marking Code
Cathode Band
YXXX
6V8A
Logo
Date Code
Logo
YXXX
6V8C
Date Code
Marking Code
Revision:TVS-1.5SMC-AT SERIES-001(A1)
5/6
Marking Code
http://brightking.pulseelectronics.com
What is a sensor array? ? Please give its concept and implementation ideas
Recommended books and websites are also acceptable....
cwbdawei Sensor
How to develop Windows CE .NET 4.2 applications using VS2008
I have a MOTOROLA MC1000 device, which is installed with WINDOWS CE .NET 4.2. I read on the Internet that .NET can be used to develop programs for mobile devices, so I downloaded it and tried it. I op...
ghmgs Embedded System
[What a painful realization] Wu Jianying - The disaster caused by a spider
[i=s]This post was last edited by Wu Jianying. on 2015-4-2 17:15[/i] [align=center][/align] A missing nail means a lost horseshoe; A lost horseshoe means a fallen warhorse; A fallen warhorse means a w...
吴鉴鹰. MCU
Please recommend an FPGA learning board
Please recommend an FPGA learning board so that I can learn it together with the digital electronics class when school starts....
foursking FPGA/CPLD
An exception occurs when the program executes to the last return statement. Please help!
ARM7 44b0, compiled and debugged with ADS1.20. A function device_run is defined in the code as follows. BOOL device_run(BYTE type) { BYTE setAttributeValue; MAC_ENUM status; PAN_DESCRIPTOR *pPanDescri...
hzq23 Embedded System
Has anyone used the AD1674 or AD574?
I use AD1674 for AD conversion and 51 for data reading. Now I find that 51 cannot read correctly. Can anyone who has used it help me?...
aiwenzx Analog electronics

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1878  1313  2005  1918  1315  38  27  41  39  57
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
