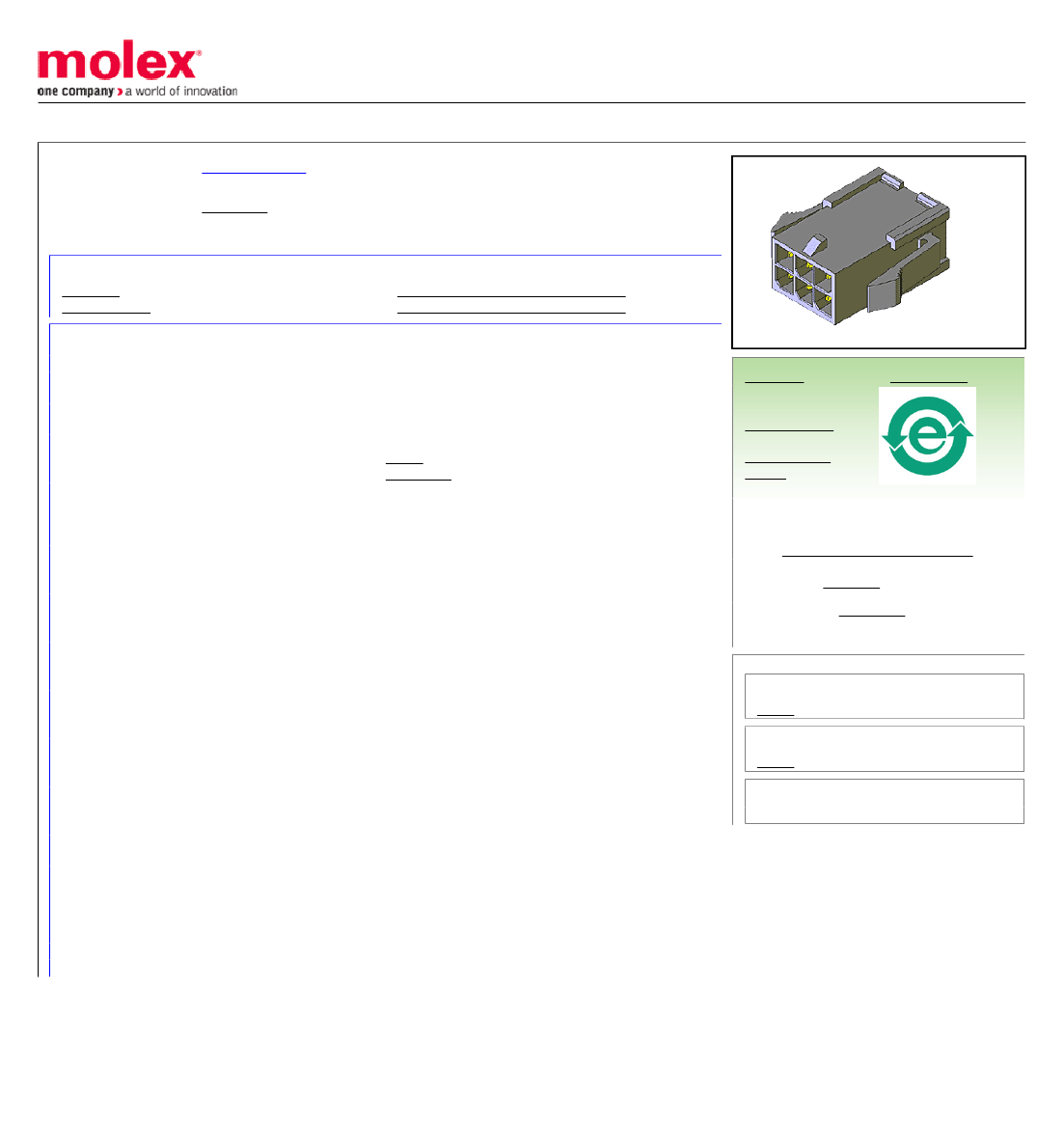

This document was generated on 05/27/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0430202201
Active
microfit_30
3.00mm (.118") Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, without Panel Mount
Ears, 22 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-43045 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
R72081037
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
UL
General
Product Family
Series
Overview
Product Literature Order No
Product Name
Crimp Housings
43020
microfit_30
USA-106
Micro-Fit 3.0™
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
22
22
Black
94V-0
Male
No
Yes
Polyester
2
Bag
No
0.118 In
3.00 mm
0.118 In
3.00 mm
Yes
No
-40°C to +105°C
Search Parts in this Series
43020Series
Mates With
43025 Micro-Fit 3.0™ Receptacle Housing
Use With
Micro-Fit 3.0™ Crimp Terminal, Male
Electrical
Current - Maximum per Contact
5A
Material Info
Reference - Drawing Numbers
Product Specification

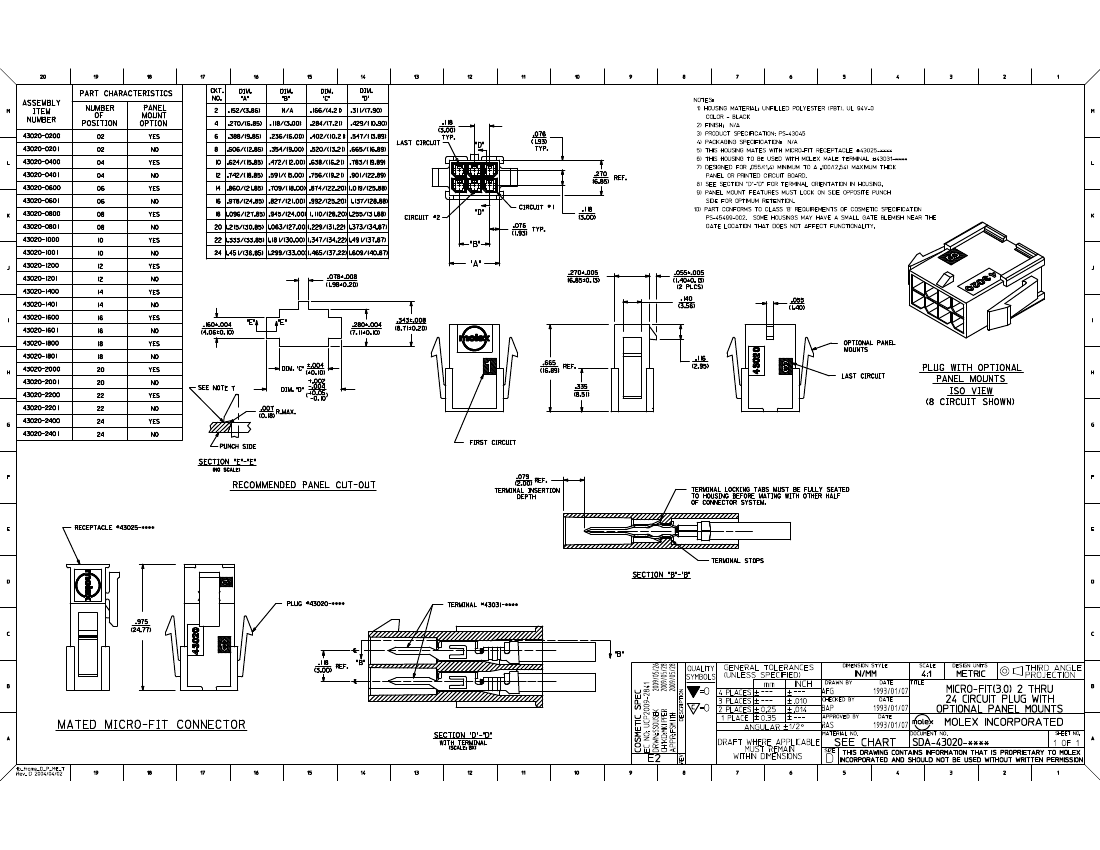

Sales Drawing
PS-43045, RPS-43045-003, RPS-43045-004
SDA-43020-****
