0430202401

Description
24 CONTACT(S), MALE, POWER CONNECTOR, CRIMP, PLUG
CategoryThe connector    The connector
File Size210KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0430202401 Overview

24 CONTACT(S), MALE, POWER CONNECTOR, CRIMP, PLUG

0430202401 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompli
ECCN codeEAR99
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Base Number Matches1

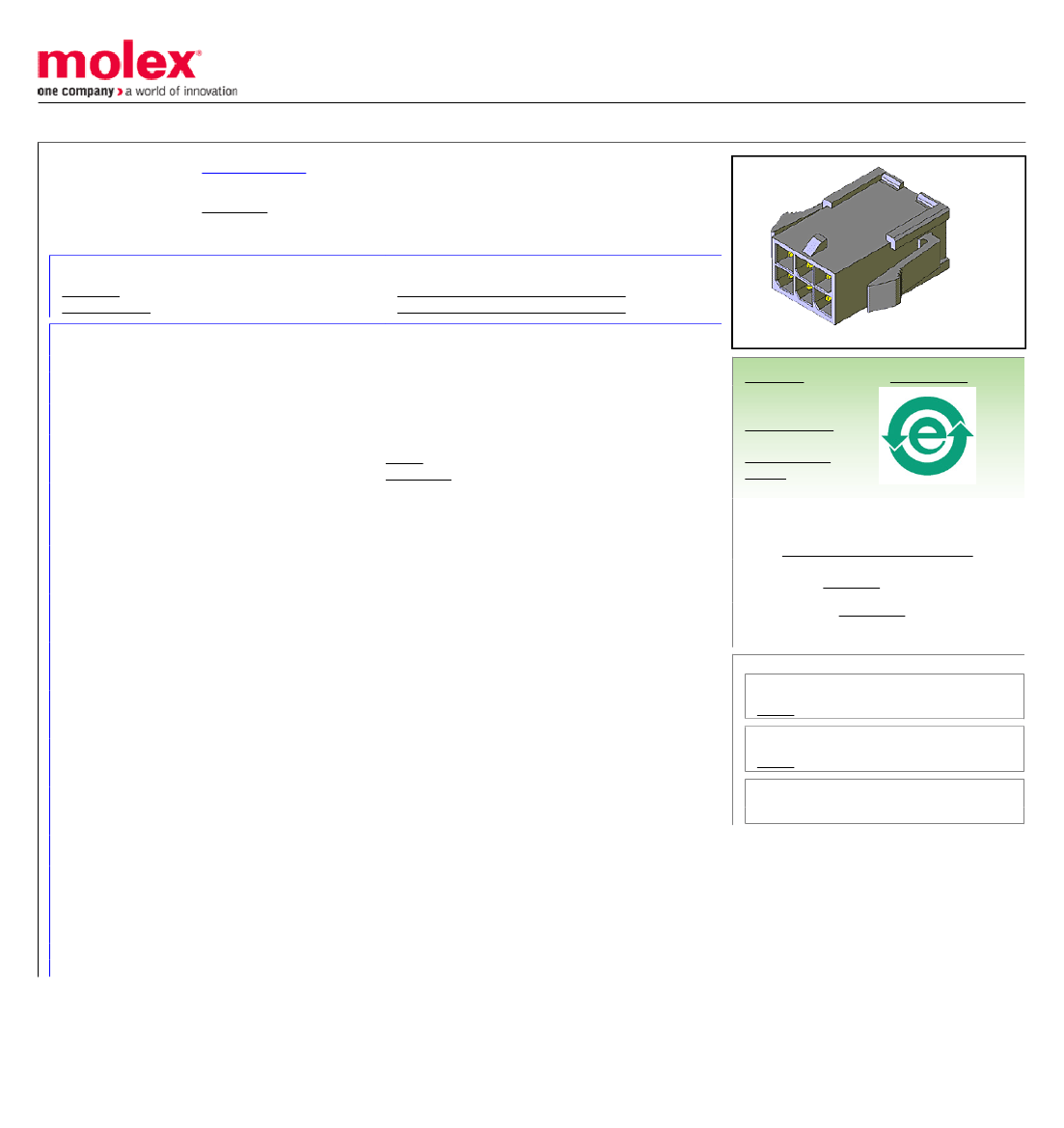

This document was generated on 05/28/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0430202401
Active
microfit_30
3.00mm (.118") Pitch Micro-Fit 3.0™ Plug Housing, Dual Row, without Panel Mount
Ears, 24 Circuits
Documents:
3D Model

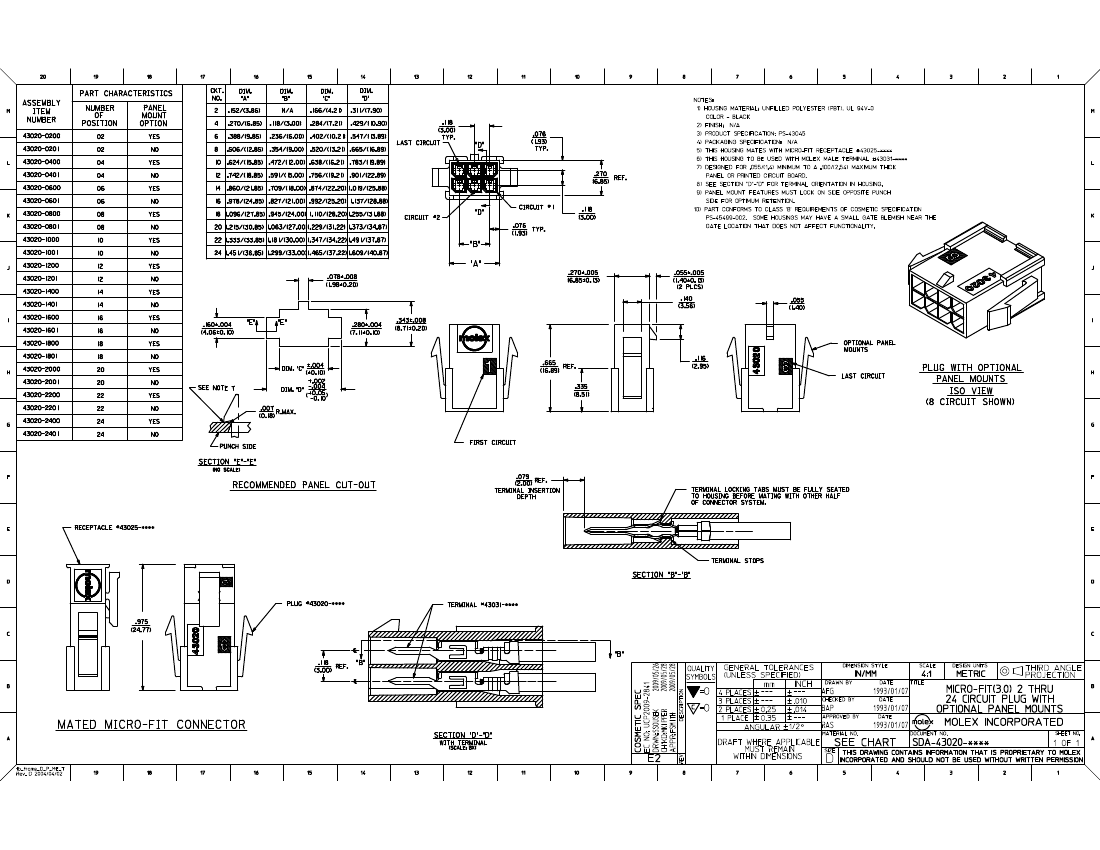

Drawing (PDF)
Product Specification PS-43045 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
R72081037
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
UL
General
Product Family
Series
Overview
Product Literature Order No
Product Name
Crimp Housings
43020
microfit_30
USA-106
Micro-Fit 3.0™
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Pitch - Term. Interface (in)
Pitch - Term. Interface (mm)
Polarized to Mating Part
Stackable
Temperature Range - Operating
24
24
Black
94V-0
Male
No
Yes
Polyester
2
Bag
No
0.118 In
3.00 mm
0.118 In
3.00 mm
Yes
No
-40°C to +105°C
Search Parts in this Series
43020Series
Mates With
43025 Micro-Fit 3.0™ Receptacle Housing
Use With
Micro-Fit 3.0™ Crimp Terminal, Male
Electrical
Current - Maximum per Contact
5A
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-43045, RPS-43045-003, RPS-43045-004
SDA-43020-****
This document was generated on 05/28/2010
