Wire-wound Chip Inductors for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications (LB series)[LBC]
LBC2518T470MV
Features
Item Summary
47uH±20%, 0.165A, 1007/2518 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Inductance
Case Size (EIA/JIS)
Rated Current (max)
DC Resistance (max)
DC Resistance (typ)
LQ Measuring Frequency
Self Resonant Frequency (min)
Operating Temp. Range
Temperature characteristic
(Inductance change)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
Yes
Yes
Yes
Reflow
47 uH ± 20 %
1007/2518
0.165 A
2.47 Ω
1.9 Ω
2.52 MHz
12 MHz
-40 to +105 ℃
(Including-self-generated heat)
± 25 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.5 ±0.2 mm
1.8 ±0.2 mm
1.8 ±0.2 mm
0.5 ±0.2 mm
2018.10.30
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Halogen free / RoHS compliant
Wire Wound Inductor
-Electrical Characteristics Data-
2016/10/17
Wire-wound Chip Inductors for Automotive / Industrial Applications
(LB series)
Dimension
Length :
Width :
Height :
Inductance :
DC Resistance :
Rated Current :
unit : mm
2.5 + / - 0.2
1.8 + / - 0.2
1.8 + / - 0.2
47
1.9
/
165
unit : inch
( 0.098 + / - 0.008 )
( 0.071 + / - 0.008 )
( 0.071 + / - 0.008 )
LBC2518T470MV
uH
( test freq at 2.52MHz )
ohm ( typ / max )
2.47
mA
Rated current typical : 10% reduction from initial L value.
and Temperature will rise by 20 deg C

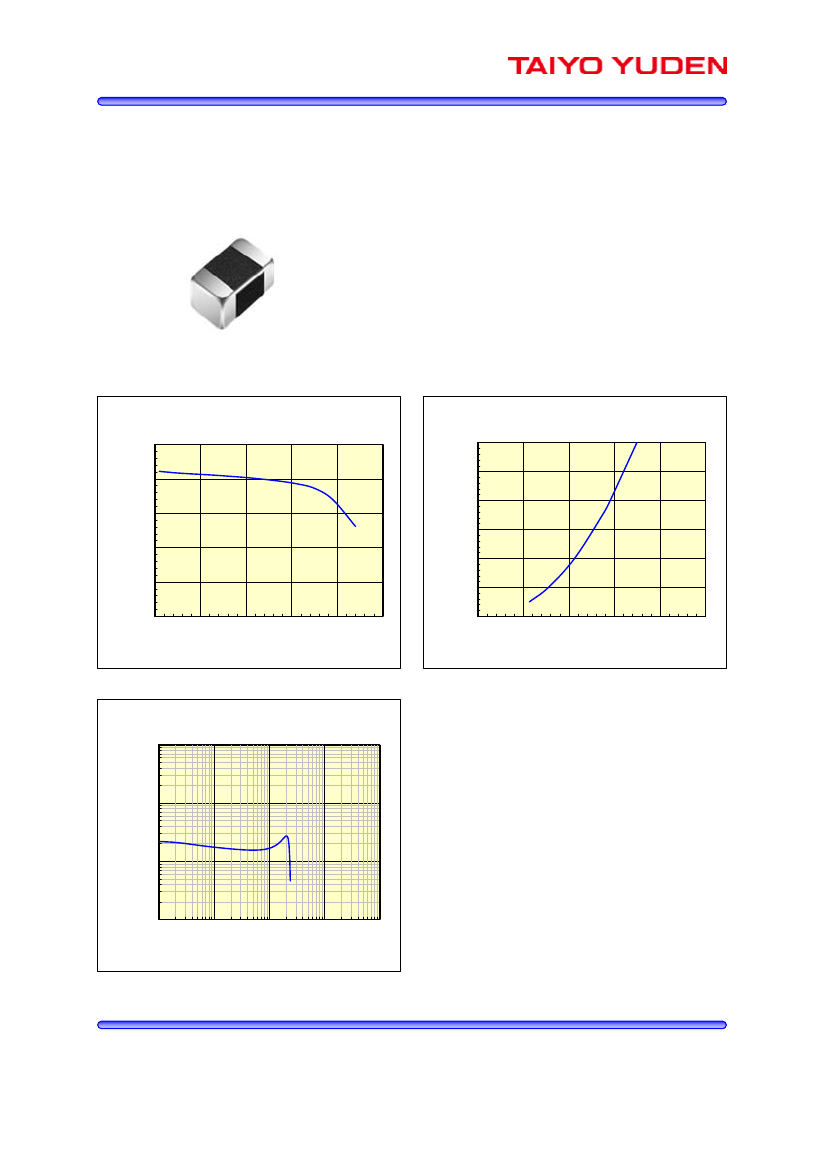

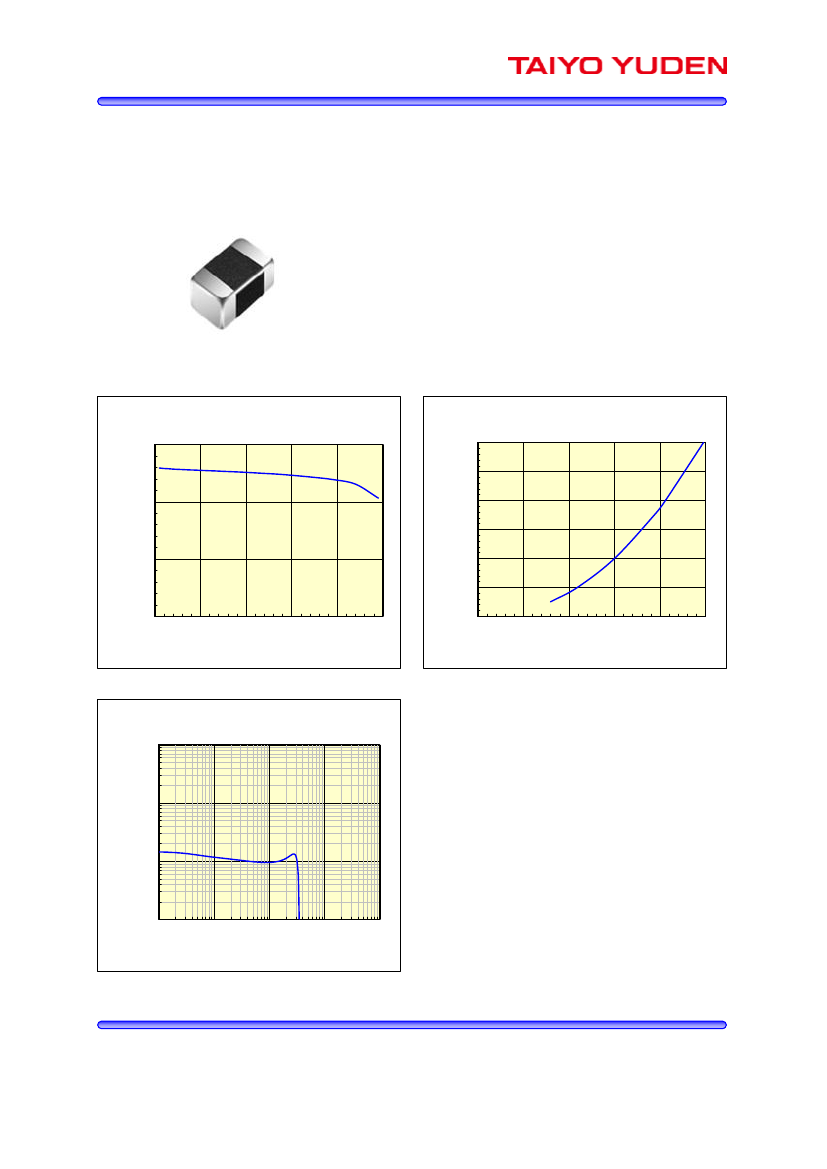

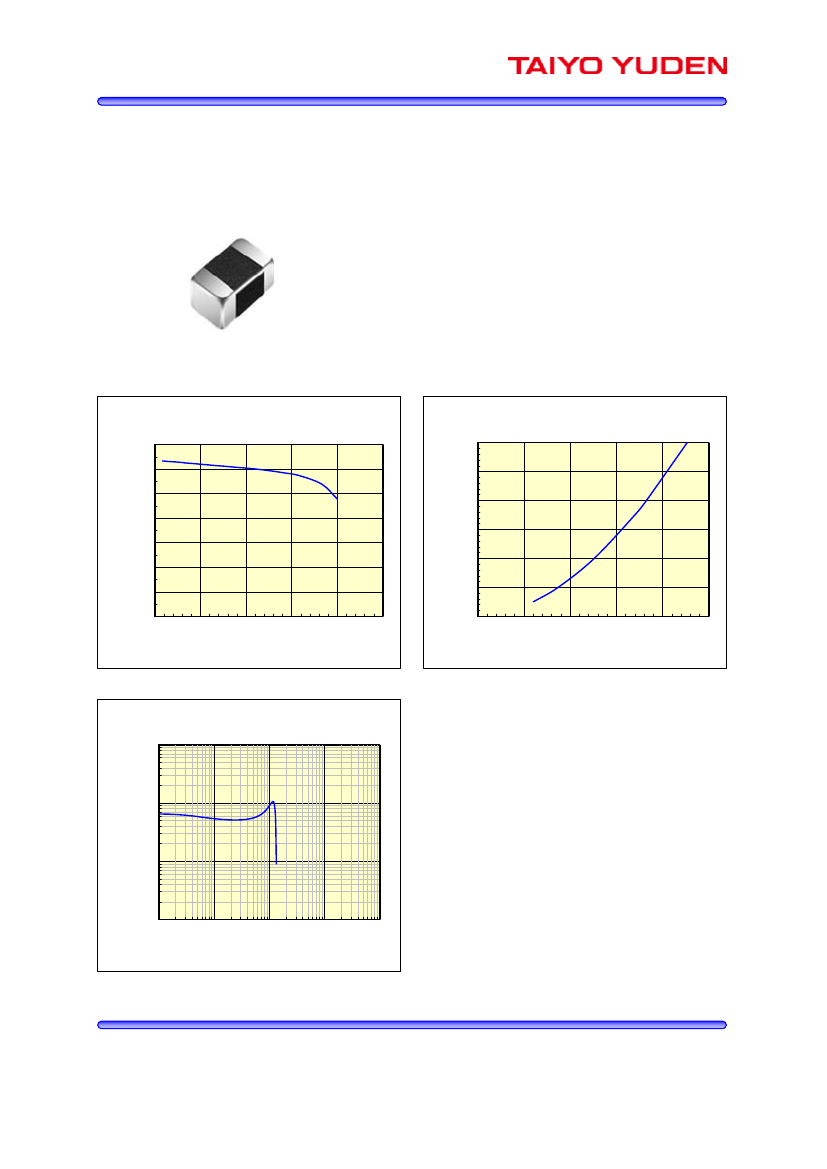

DC Bias vs Inductance
70
60
60
DC Bias vs Temperature
Self-temperature rise [deg]
0
60
120
180
240
300
50
40
30
20
10
0
0
100
200
300
400
500
Inductance [uH]
50
40
30
20
10
0
DC Bias [mA]
DC Bias [mA]
Frequency vs Inductance
1000
Inductance [uH]
100
10
1
0.1
1
10
100
1000
Frequency [MHz]
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
