Part Number:
Status:
Overview:
Description:
0430451020
Active
microfit_30

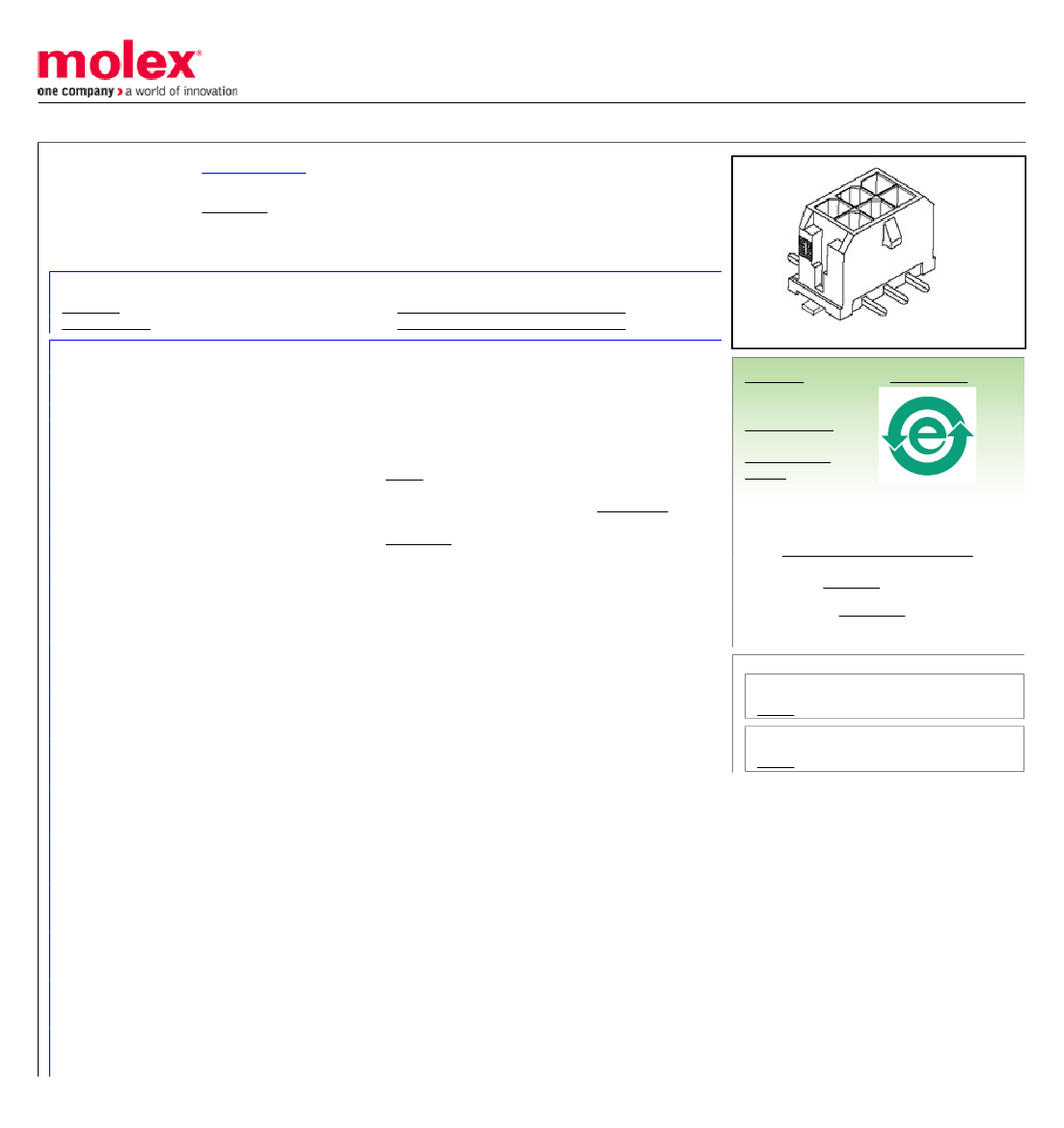

3.00mm (.118") Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Vertical,
with Solder Tab, 10 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating, Glow Wire
Compatible
Documents:
3D Model

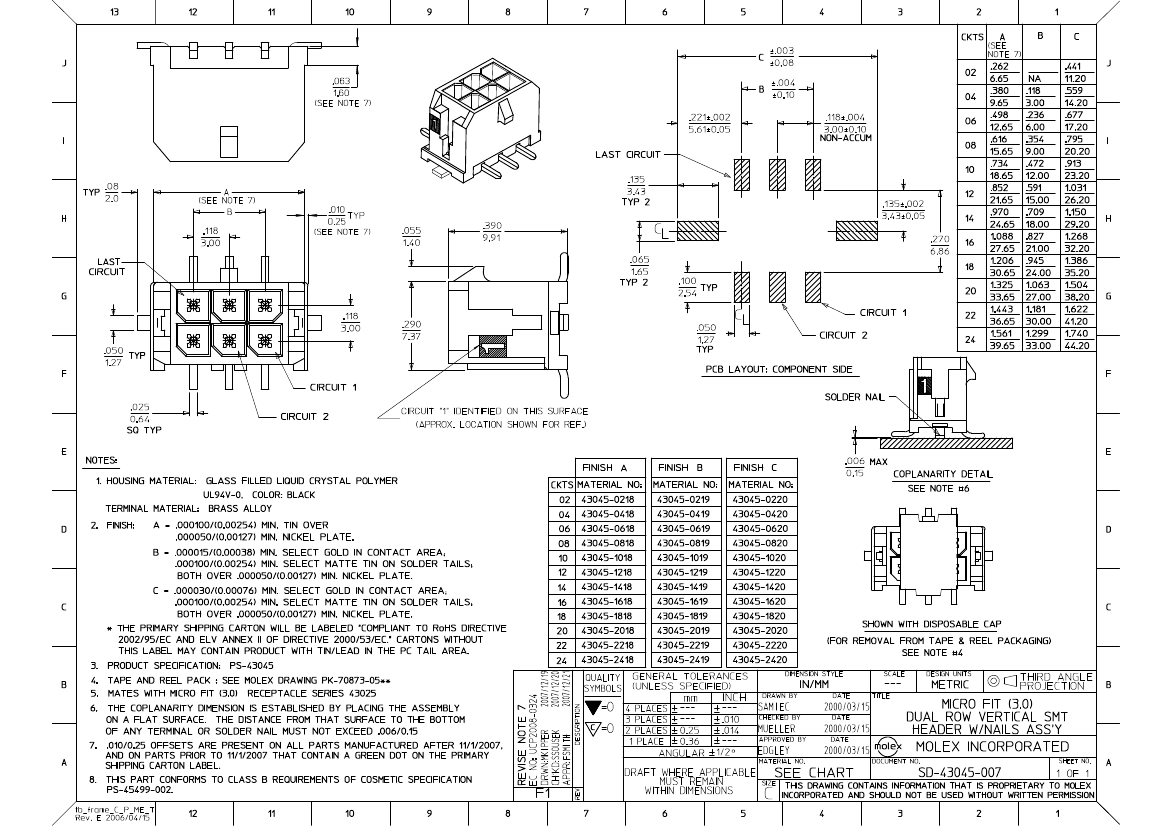

Drawing (PDF)
Product Specification PS-43045 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
Series
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Overview
Product Literature Order No
Product Name
PCB Headers
43045
Wire-to-Board
Glow Wire Equivalent Part Number 430451020. High
Temperature, Square Pin, Solder Type
microfit_30
USA-106
Micro-Fit 3.0™
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Mated Height (in)
Mated Height (mm)
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
No
10
10
Black
30
94V-0
Yes
0.680 In
17.27 mm
Brass
Tin
Tin
High Temperature Thermoplastic
2
Vertical
Yes
Yes
0.062 In
1.60 mm
Embossed Tape on Reel
0.118 In
3.00 mm
35
0.88
35
0.88
Yes
Fully
No
Search Parts in this Series
43045Series
Mates With
43025
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
N/A
-40°C to +105°C
Surface Mount
Electrical
Current - Maximum per Contact
Voltage - Maximum
5A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
30
Reflow Capable (SMT only)
3
260
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Test Summary
AS-43555-001
PK-70873-05**
PS-43045, RPS-43045-003, RPS-43045-004
SD-43045-007
TS-43045-001, TS-43045-002
