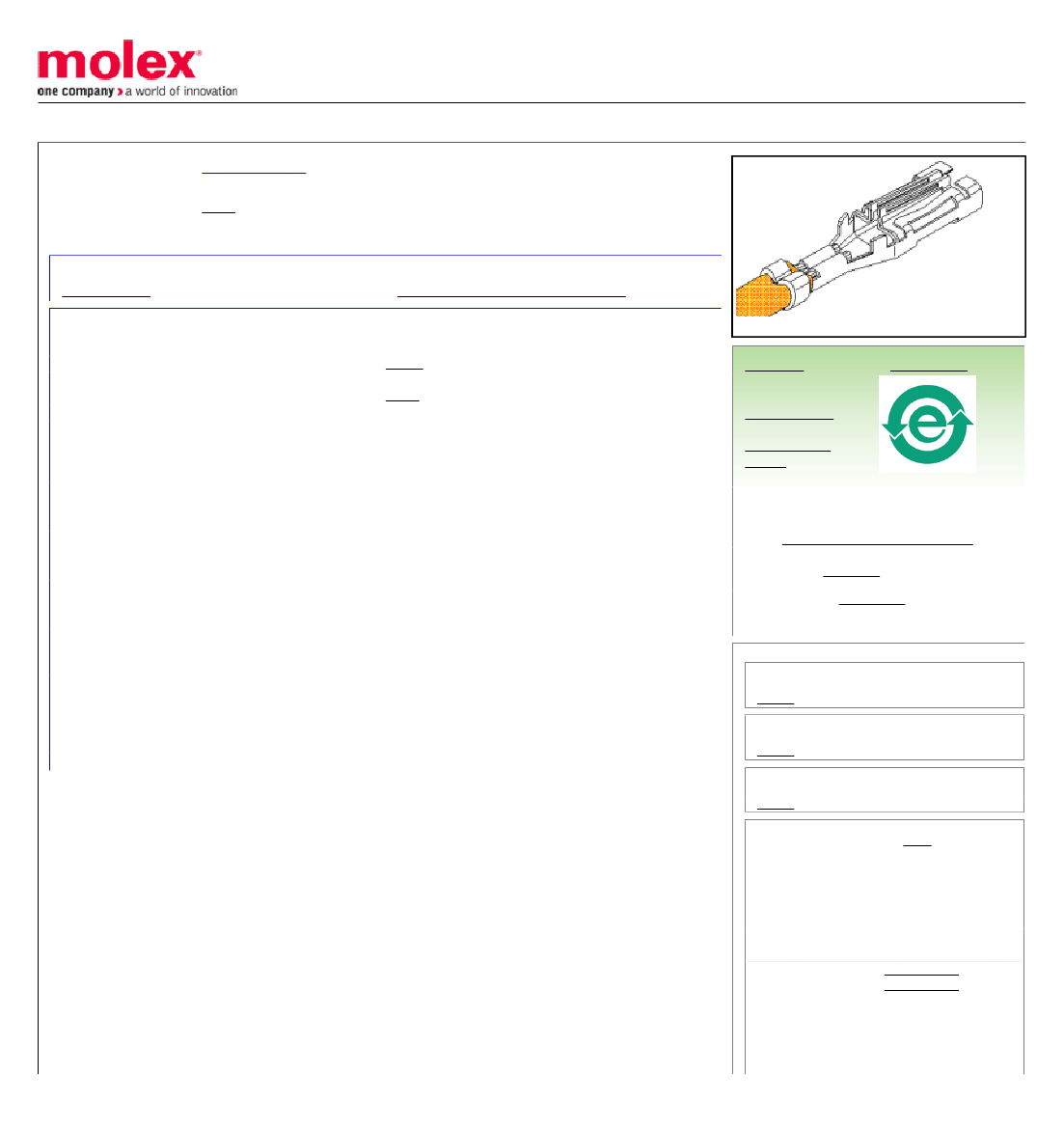

Part Number:
Status:
Overview:
Description:
0433752001
Active
sabre
Sabre™ Crimp Terminal, Female, with Tin (Sn) Plated Brass Contact, Double 18-20
AWG, 2.85mm (.112") Max. Insulation Diameter, Reel Packaged
Documents:
Drawing (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
Crimp Terminals
43375
Yes
sabre
USA-113
Sabre™
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Crimp Quality Equipment
Overview
Product Literature Order No
Product Name
Physical
Durability (mating cycles max)
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
25
Female
Brass
Tin
Tin
Reel
20
0.50
20
0.50
Crimp or Compression
3.30mm (.130") max.
18, 20
N/A
Search Parts in this Series
43375Series
Mates With
43178 Male Crimp Terminals
Use With
44441 Receptacle Housings
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Extraction Tool
0638132700
FineAdjust™
0639012500
Applicator for
Sabre™ Flat Blade
Crimp Terminal,
18-20 AWG, UL
1007 wires
Material Info

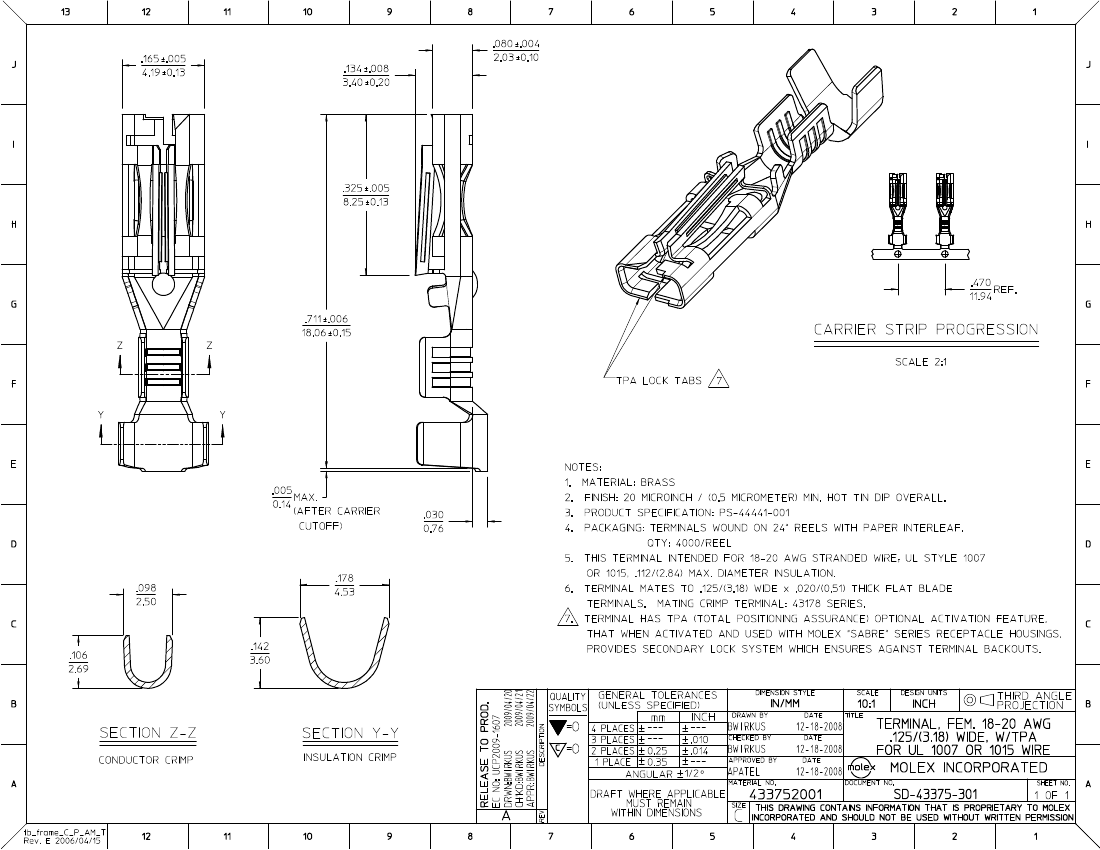

Reference - Drawing Numbers
Sales Drawing
SD-43375-301
