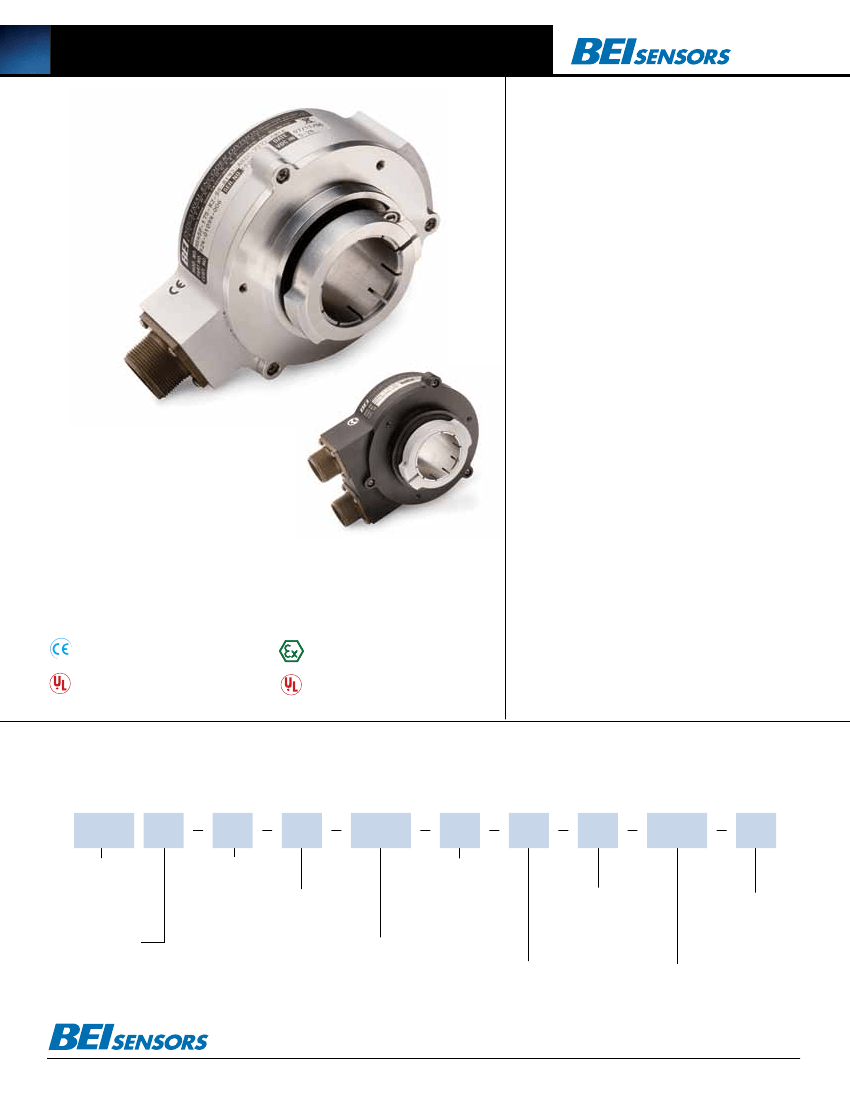

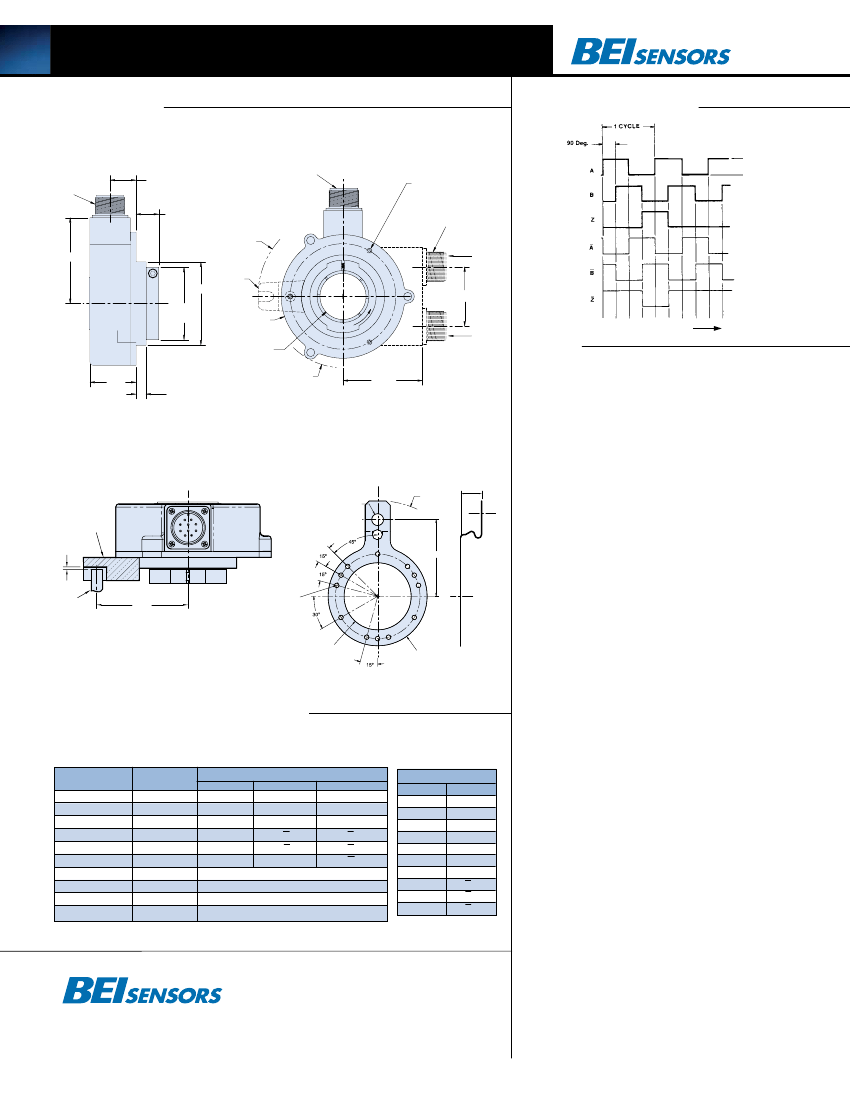

HS45 Incremental Optical Encoder
Mechanical Specifications
Shaft Bore:
1.750” max
Allowable Misalignment:
Axial: ±0.030 (with R2),
±0.050 (with R1), Radial: 0.005 T.I.R.
Bore Runout:
0.002” T.I.R.
Running Torque at 25° C:
Dual seals (SS) = 30 in-oz (max); Single
seal (BS) = 18 in-oz (max)
Bearings:
52100 dual preloaded bearings
Shaft Material:
Stainless Steel
Bearing Housing:
Die cast aluminum with protective finish
Cover:
Die cast aluminum with protective finish
Bearing Life:
5 X 10
12
revs
Maximum RPM:
5,000 RPM (see Frequency Response, below)
Moment of Inertia:
0.063 oz-in-sec
2
max
Weight:
Approximately 2.3 lbs single output, 2.6 lbs dual output
Electrical Specifications
The HS45 is a large bore, heavy duty, rugged
encoder designed to operate in very demand-
ing environments. It is available in both single
and dual output versions as shown above.
These encoders use a preloaded bearing set for
mechanical stability and a long service life.
The dual output version has redundant electronics
internal to the encoder simplifying signal distribution to multiple controllers.
The HS45 Incremental Encoder is available with the following certifications:
EN 55011 and EN 61000-6-2
U.S. Standards Class I, Group A,B,C & D;
Class II Group E, F & G
CENELEC EEX ia IIC T4
Canadian Standards
Class I, Zone 0, Group IIC
The HS45 Dual Output Encoder
Code:
Incremental
Output Format:
Incremental output format, 2 channels with comple-
ments, in quadrature, 1/2 cycle index gated with negative B channel
Cycles per Shaft Turn:
Up to 8192
Supply Voltage:
5–28 VDC ( ± 5%)
Current Requirements:
100 mA (typical) per side
+ output load, 250 mA (max)
Voltage/Output:
(see note 5)
28V/V: Line Driver, 5–28 VDC in,Vout = Vin
28V/5: Line Driver, 5–28 VDC in, Vout = 5 VDC
28V/OC: Open Collector, 5–28 VDC in, OCout
Protection Level:
Reverse, overvoltage and output short circuit (see note 5)
Frequency Response:
150kHz
Output Terminations:
see Table 1
Environmental Specifications
Enclosure Rating:
IP65 (NEMA 4 & 13)
Temperature:
Operating 0º to 70ºC standard, -40º to 85º C optional,
storage -40 to 90° C
Shock:
50 g’s for 11 msec
Vibration:
10–2000 Hz @ 20 g’s
Humidity:
98% RH non-condensing
NOTES & TABLES:
All notes and tables referred to in the text can be
found on the back page.
C
HS45 Incremental Ordering Options
HS45
TYPE:
Hollow Shaft
45 = 4.5”
Encoder Diameter
HOuSING
CONFIG:
F = Standard
BORE SIzE:
30mm = 1.18”
175 = 1.750”
TETHER:
162 = 1.625”
Blank = None
125 = 1.250”
150 = 1.50” R1 = Tether Block
and Pin
Bores <1.750”
R2 = Tether Arm
are insulated
FoR ASSiSTANCe CAll
800-350-2727
Use this diagram, working from left to right to construct your model number (example:
HS45F-175-R2-SS-8192-ABZC-28V/V-SM18).
All notes and tables referred to can be found on the back of this page.
CYCLES
PER TuRN:
60, 500, 720,
1000, 1024, 2048,
2500, 8192
SHAFT SEAL
CONFIGuRATION:
SS = Through, standard
BS = Blind, option
VOLTAGE/OuTPuT:
28V/V = 5–28Vin/out
28V/5 = 5–28Vin/5Vout
28V/OC = 5–28Vin/OCout
CHANNELS:
ABZC
TERMINATION:
S = Single Termination
D = Dual Termination
CONNECTOR:
M18 = 10 PIN connector
Tel: 805-968-0782 /800-350-2727 | Fax: 805-968-3154 / 800-960-2726
7230 Hollister Ave., Goleta, CA 93117-2807 |
www.beisensors.com
Specification No. 02095-001 Rev.08-11
These commodities, technology or software if exported from the United States must be in accordance with the Bureau of Industry, and Security, Export Administration regulations. Diversion contrary to U.S law is prohibited.
HS45 Incremental Optical Encoder
