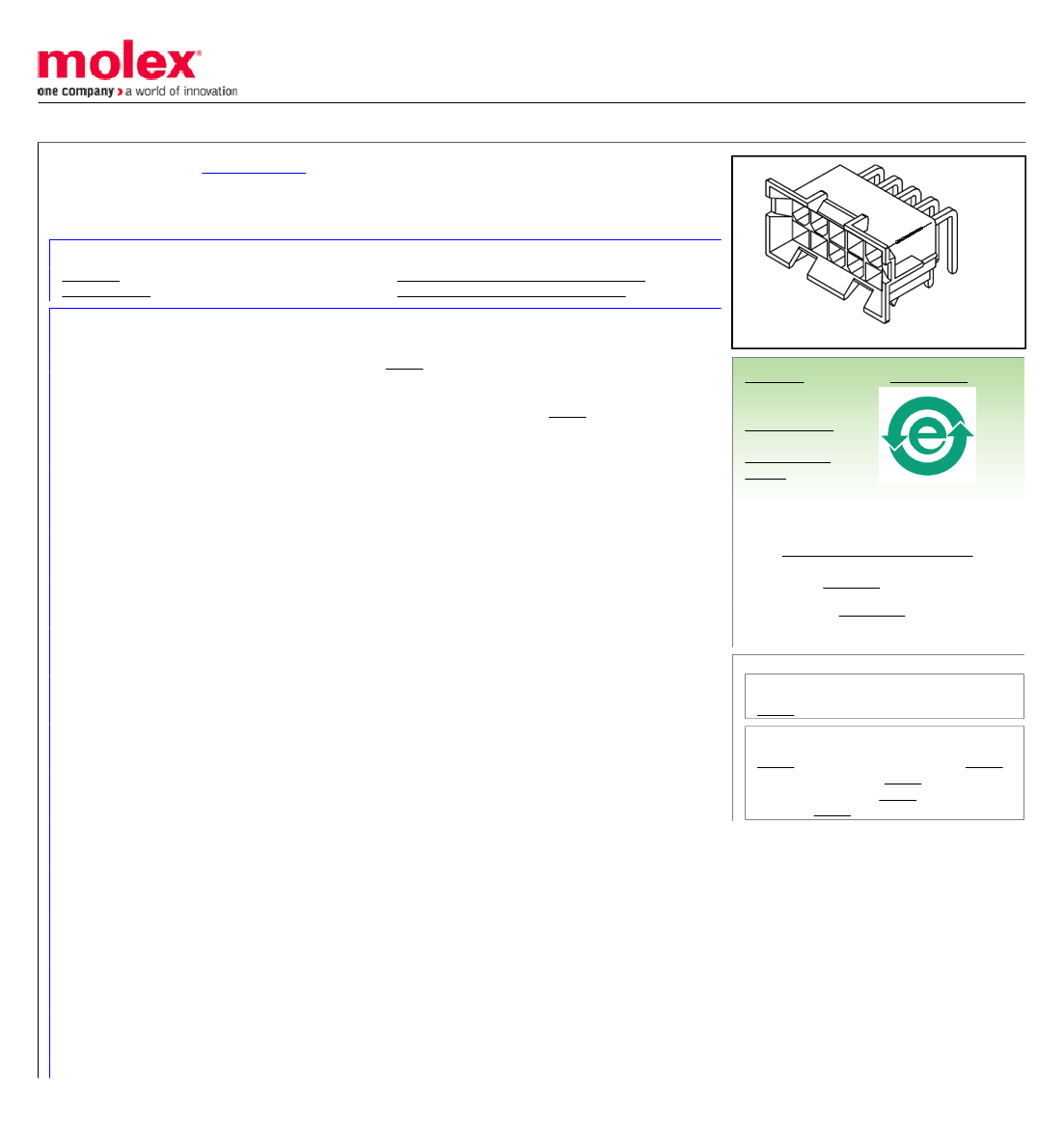

Part Number:
Status:
Description:
0436440007
Active
4.20mm (.165") Pitch Mini-Fit Jr.™ BMI Header, Dual Row, Right Angle, 14 Circuits, PA
Polyamide Nylon 6/6 94V-0, with Tin (Sn) Plating
Documents:
3D Model

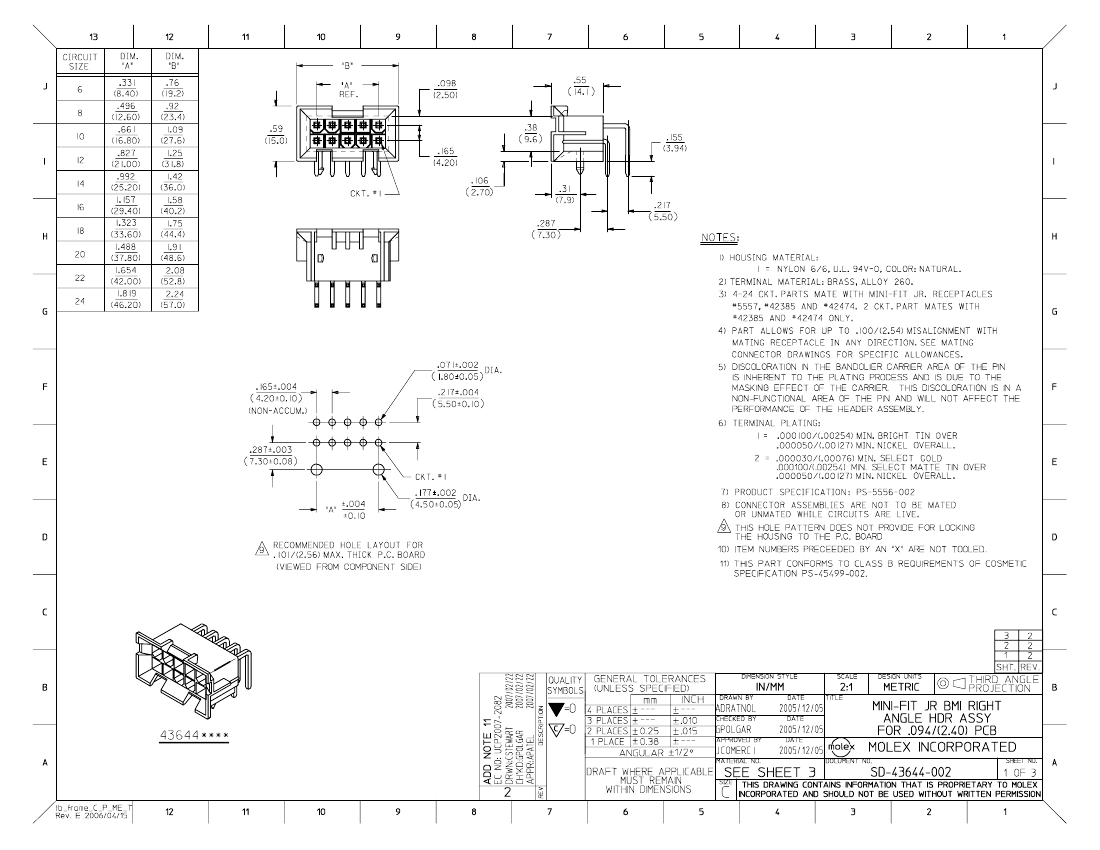

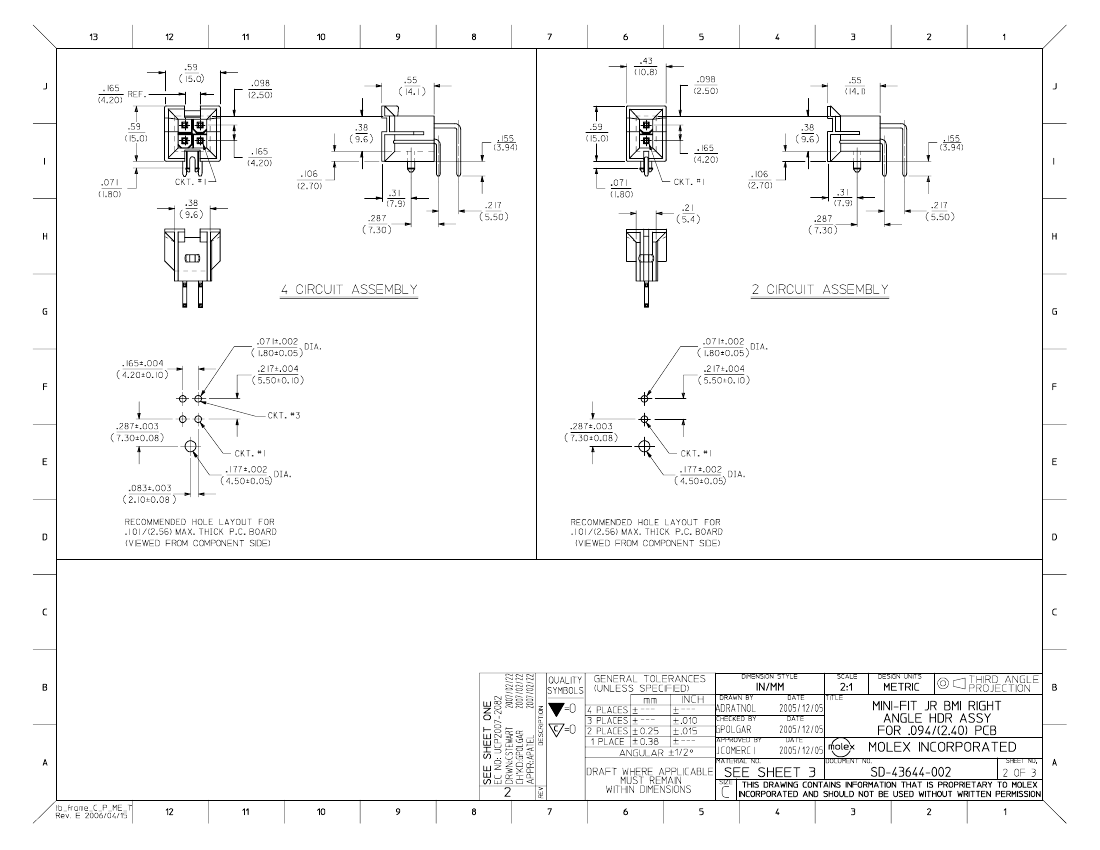

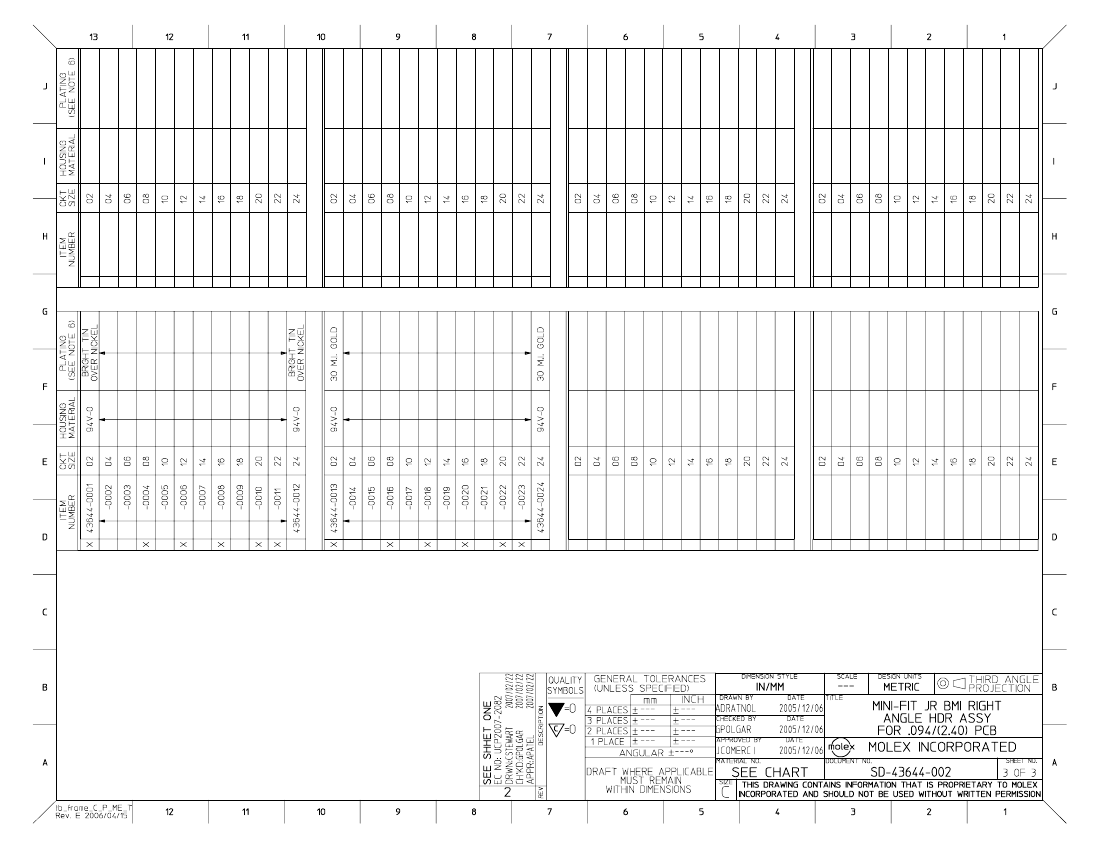

Drawing (PDF)
Product Specification PS-5556-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
PCB Headers
43644
Board-to-Board, Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex Product specification PS-5556-002 for additional
current de-rating information.
Mini-Fit BMI™
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
General
Product Family
Series
Application
Comments
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
14
14
Natural (White)
30
No
No
No
None
None
Brass
Tin
Tin
Nylon
2
Right Angle
0.130 In
3.30 mm
Yes
None
0.093 In
2.40 mm
Tray
0.165 In
4.20 mm
100
2.54
100
2.54
Yes
Partial
No
No
-40°C to +105°C
Through Hole
Search Parts in this Series
43644Series
Mates With
44516 Slide-and-Lock Receptacle, 42474
Receptacle Housing, 44475 Mini-Fit HCS™
Receptacle Header, 5557d Receptacle
Housing, 42385 Receptacle Header
