0436450800

Description
8 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE
CategoryThe connector    The connector
File Size138KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

0436450800 Overview

8 CONTACT(S), FEMALE, POWER CONNECTOR, CRIMP, RECEPTACLE

0436450800 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Factory Lead Time10 weeks
Is SamacsysN
Other featuresMICRO FIT 3.0, POLARIZED
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell materialPOLYESTER
Termination typeCRIMP
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

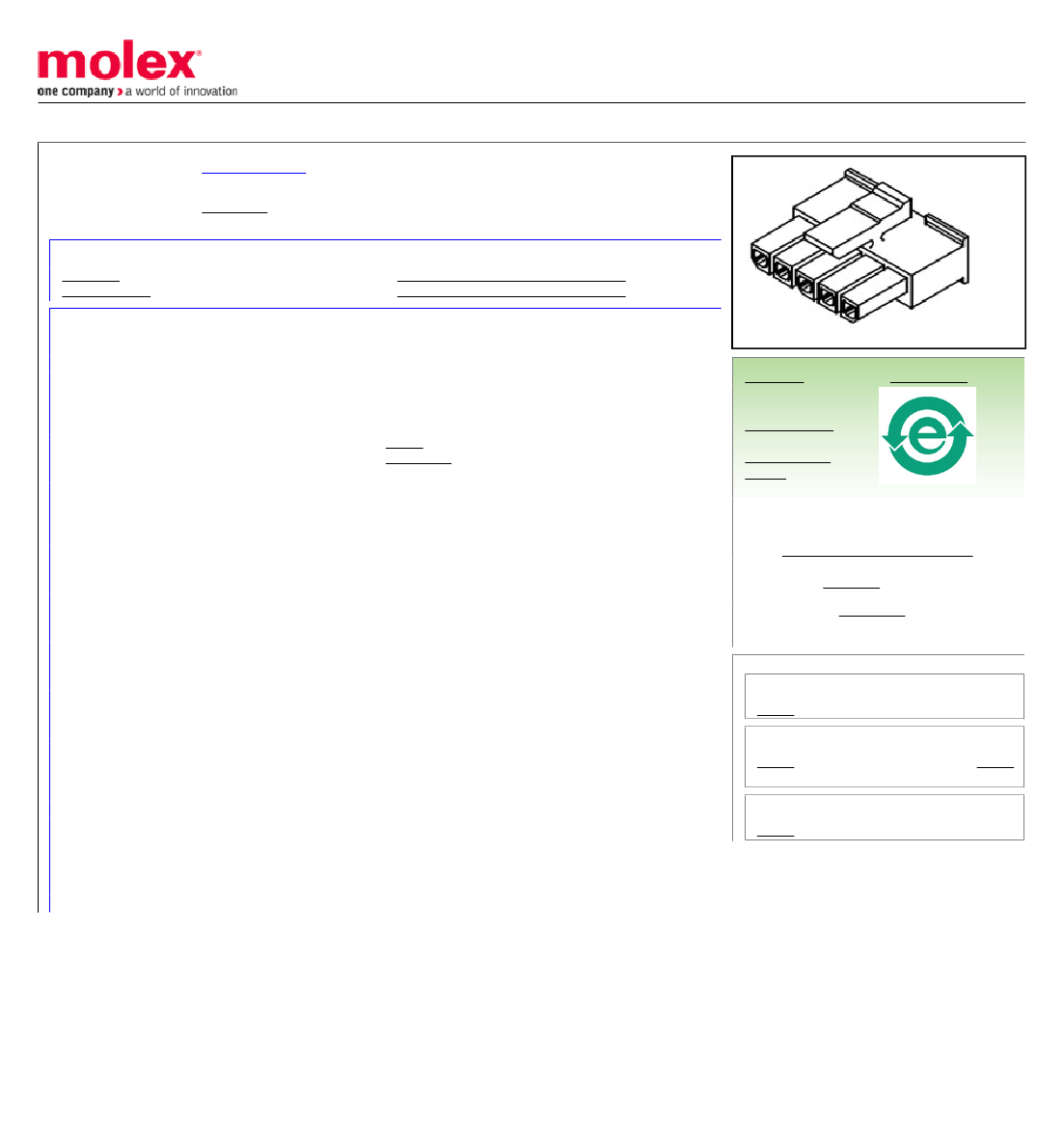

This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
0436450800
Active
microfit_30
3.00mm (.118") Pitch Micro-Fit 3.0™ Receptacle Housing, Single Row, 8 Circuits
Product Specification PS-43650 (PDF)
RoHS Certificate of Compliance (PDF)
Series
LR19980
R72081037
E29179
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Halogen-Free
Status
Not Halogen-Free
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Agency Certification
CSA
TUV
UL
General
Product Family
Series
Overview
Product Literature Order No
Product Name
Crimp Housings
43645
microfit_30
USA-106
Micro-Fit 3.0™
Physical
Circuits (maximum)
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Stackable
Temperature Range - Operating
8
Black
94V-0
Female
No
None
Yes
Polyester
1
Bag
No
0.118 In
3.00 mm
No
-40°C to +105°C
Search Parts in this Series
43645Series
Mates With
43640 Micro-Fit 3.0™ Plug Housing, 43650
Micro-Fit 3.0™ Header
Use With
43030 Micro-Fit 3.0™ Crimp Terminal
Electrical
Current - Maximum per Contact
5A
Material Info
Reference - Drawing Numbers
Product Specification

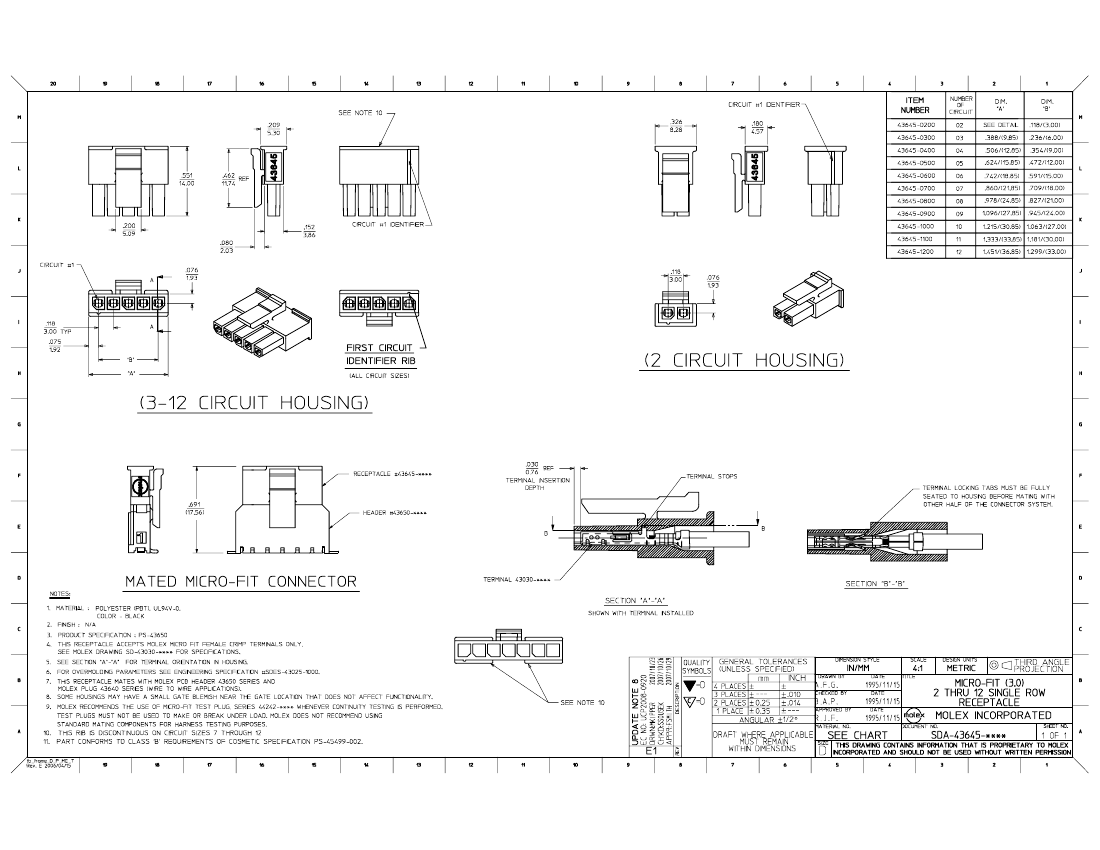

Sales Drawing
PS-43650
SDA-43645-****
This document was generated on 05/19/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
